Log Parser Usage Details For IIS Logs

Introduction

Log Parser Studio helps us to parse different types of logs.

In this tutorial, we will mainly focus on parsing IIS logs.

There are 2 Log Parser softwares – one which runs in the command prompt only and the second one has proper GUI support.

Installation

Kindly find the link for Log Parser Studio.

Below is the sample query for Log Parser with GUI to get the output from IIS logs for a URL and other data like [MAX, MIN, AVG] – Response Time in mili seconds and hits.

SELECT cs-uri-stem as URL,

MAX(time-taken) As Max,

MIN(time-taken) As Min,

Avg(time-taken) As Average,

Count(1) as Hits

FROM '[LOGFILEPATH]'

GROUP BY URL

ORDER By Average DESC

Below is the sample query to run in Log Parser with the command prompt version

Logparser - i: iisw3c “ SELECT cs-uri-stem as URL,

MAX(time-taken) As Max,

MIN(time-taken) As Min,

Avg(time-taken) As Average,

Count(1) as Hits from D:\test.log GROUP By URL ORDER BY Average DESC TO D:\result.csv” –o : csv

Usage Details- Log Parser Studio

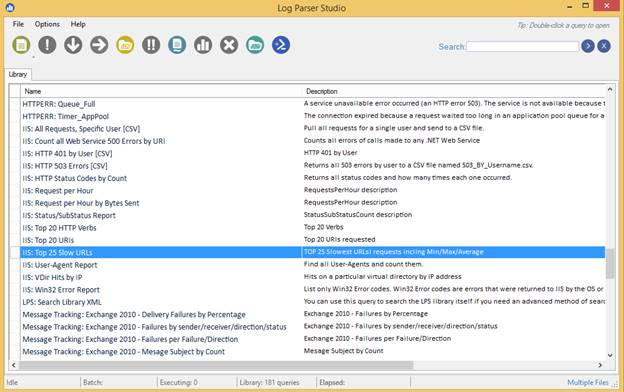

The landing screen of Log Parser Studio is given below.

As we are interested in parsing IIS logs, so select IIS-Top25 slow URL's.

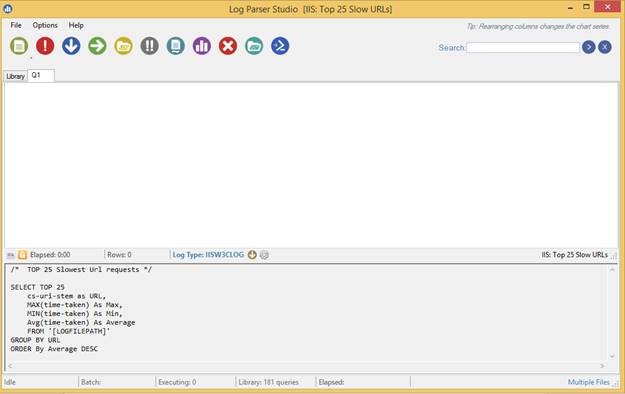

The query with all the details will be shown to the user.

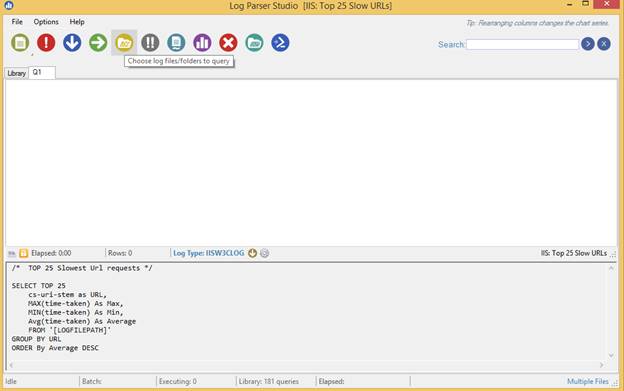

Now, we need to choose IIS logs file. Click Choose log files icon.

The dialog box with the options will be shown, where we have to select the individual log files or the folder.

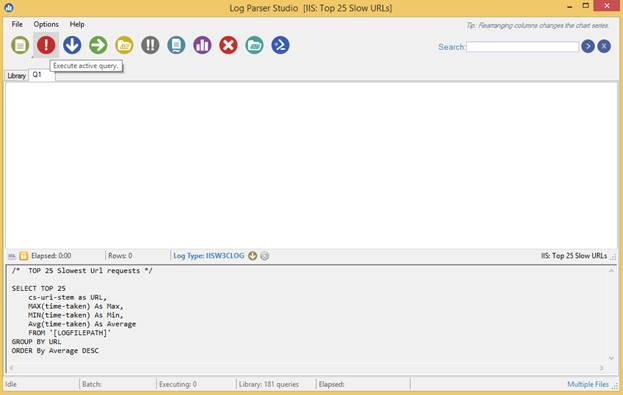

Now, we need to click icon to execute an active query.

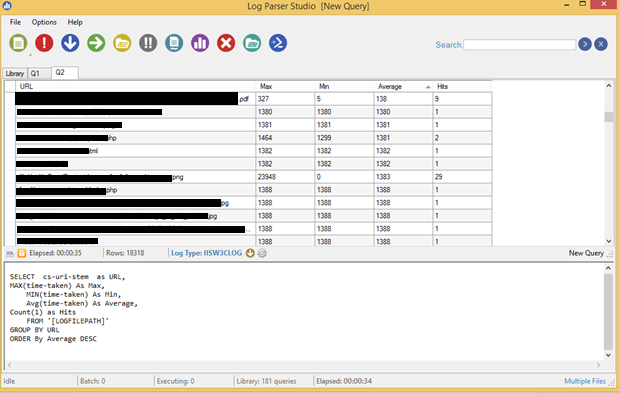

Below is the screenshot of Log Parser Studio with the results.

The data for Max, Min, Average refers to Response Time in mili seconds.

We can copy the data or export the data, as required.

Thanks.
