Simple Login Application using Sessions in ASP.NET MVC

This article explains the following:

• How to create a ASP.NET MVC Project
• How to Add ADO.NET Entity Data Model
• How to Add Controller
• How to validate User Credentials
• How to keep User Details in Sessions and display in User DashBoard

Step: Design your Database

Create the UserProfile table using the following script.

Create Table UserProfile
    (
        UserId int primary key identity(1, 1),
        UserName varchar(50),
        Password varchar(50),
        IsActive bit
    )

Insert user records using the following script.

Insert into UserProfile
Select 'jaipal', 'jai1234', 1 Union All
Select 'praveen', 'praveen1234', 1 Union All
Select 'pruthvi', 'pruthvi1234', 1

Step 1: Create Project

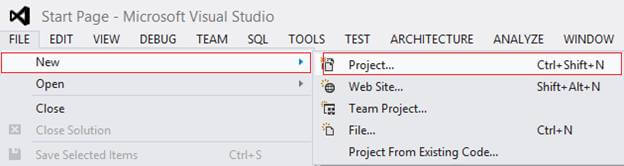

Go to FILE, New, then click on Project.

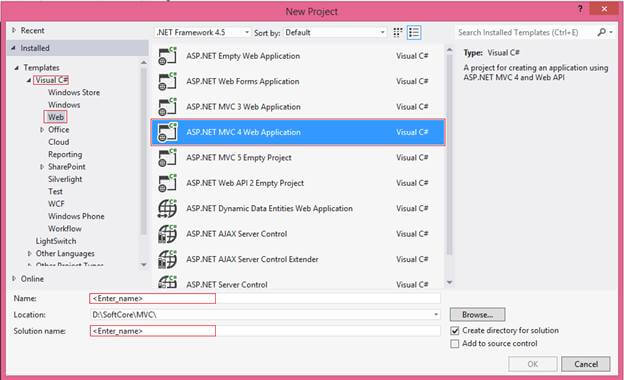

Select Visual C#, Web under Installed templates. After that select ASP.NET MVC 4 Web Application, then mention the Application Name (MvcLoginAppDemo) and Solution Name as you wish, then click OK.

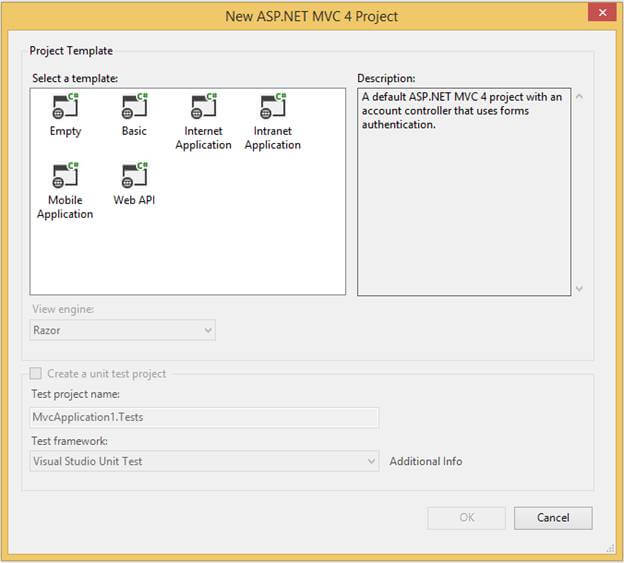

Under Project template select a template as Basic, then view engine as Razor. Click OK.

Step 2: Add Entity Data Model

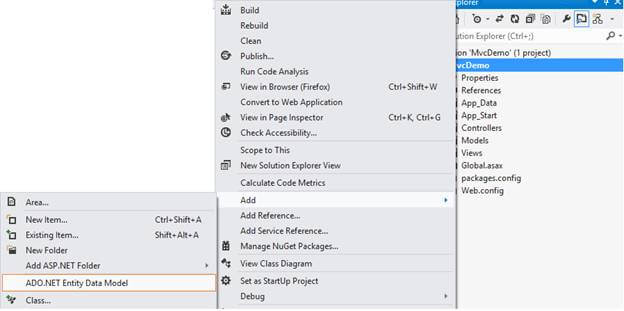

Go to Solution Explorer, Right Click on Project, Add, then select ADO.NET Entity Data Model.

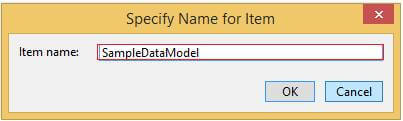

Give it a meaningful model name and then click on Add.

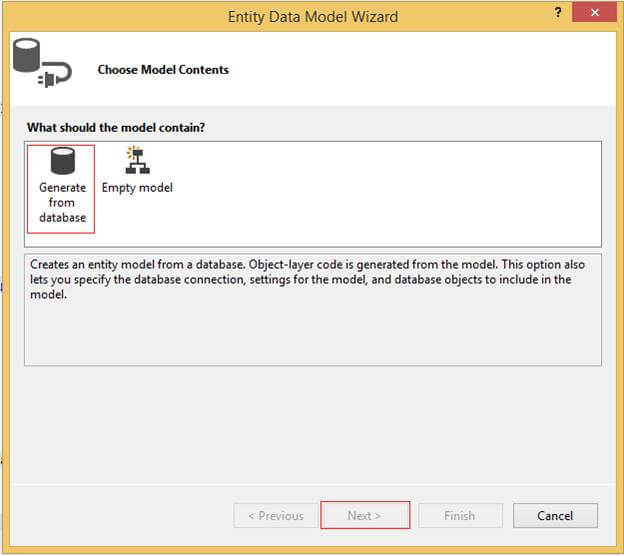

Select Generate from database and then click on Next.

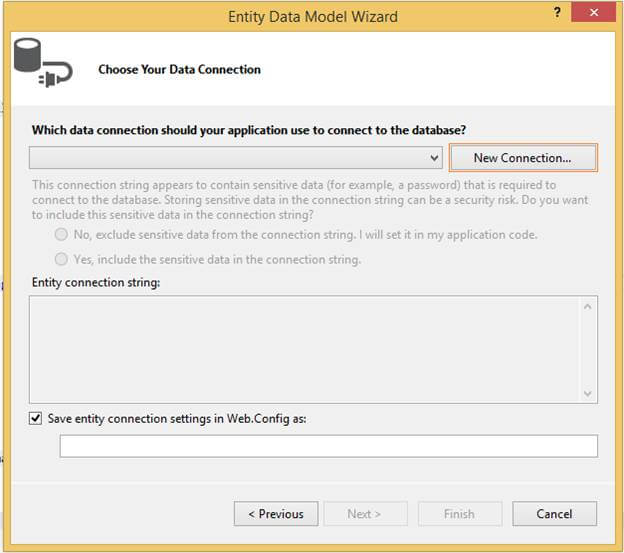

Click on New Connection,

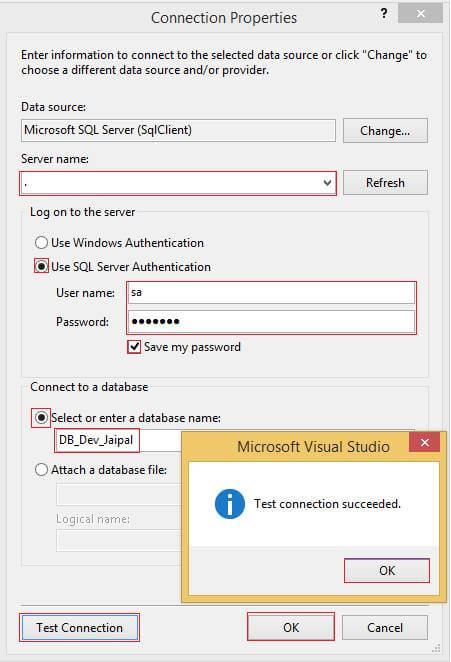

After clicking on New Connection, we have to provide the following Connection Properties in the following wizard.

• Provide the Server name.
• Select the "Use SQL Server Authentication" radio button.
• Enter the User name and Password in the password text box.
• Check the "Save my password" checkbox.
• Select the "Select or enter a database name:" radio button.
• Select the database to which you want to set the connection.
• Click on the "Test Connection" button to ensure the connection can be established.
• Then click OK.

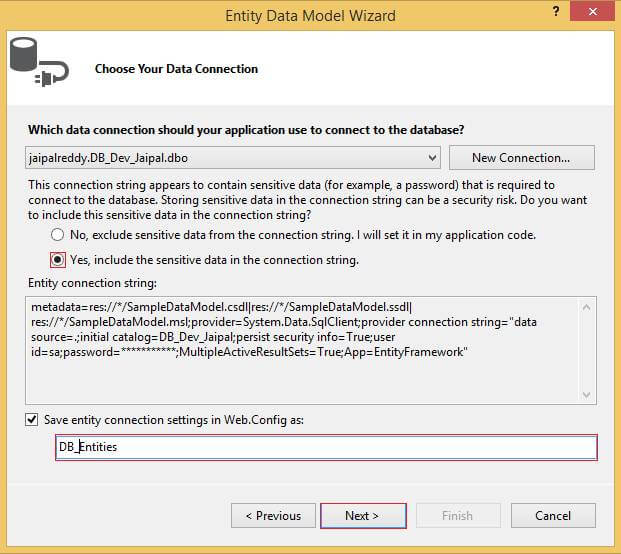

Select radio button: Yes include the sensitive data in the connection string.

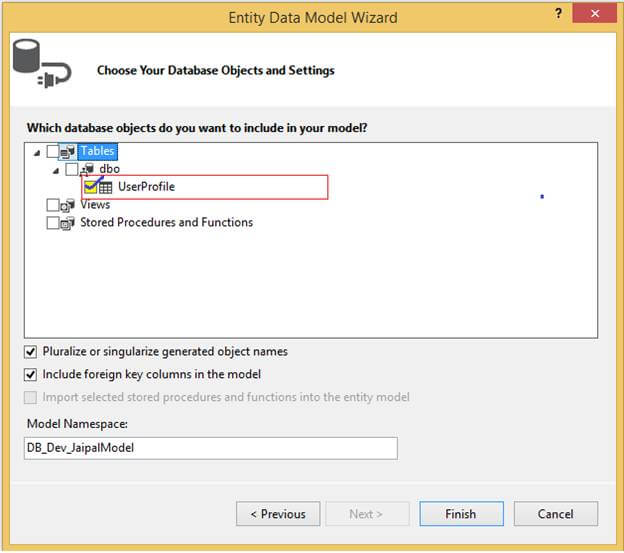

Choose your database objects, as in the following image.



 Click on Finish. At this point UserProfie entity will be created.

Step 3: Add a Controller

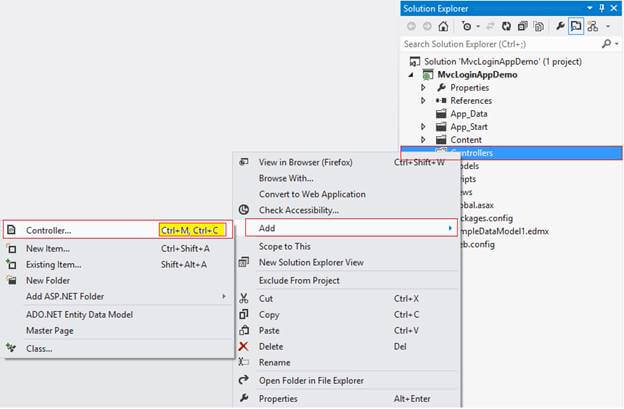

Go to Solution Explorer, Right click on Controller folder, Add and then click on Controller.
( Or ) Simply use shortcut key Ctrl + M, Ctrl + C,

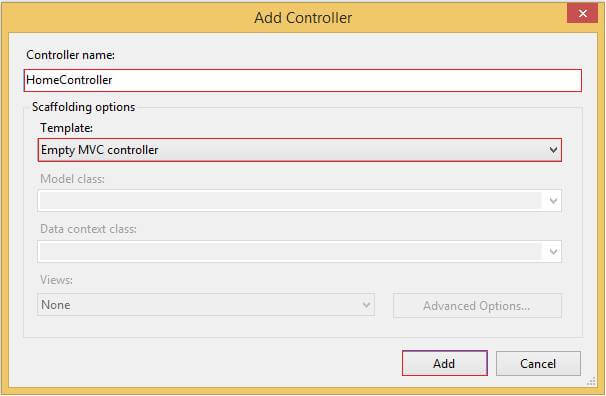

Provide the Controller Name, and Scaffolding template as Empty MVC Controller. Then click on Add.

Write the following code in HomeController.

using System.Linq;
using System.Web.Mvc;

namespace MvcLoginAppDemo.Controllers
{
    public class HomeController: Controller
    {
        public ActionResult Login()
        {
            return View();
        }

        [HttpPost]
        [ValidateAntiForgeryToken]
        public ActionResult Login(UserProfile objUser)
        {
            if (ModelState.IsValid)
            {
                using(DB_Entities db = new DB_Entities())
                {
                    var obj = db.UserProfiles.Where(a => a.UserName.Equals(objUser.UserName) && a.Password.Equals(objUser.Password)).FirstOrDefault();
                    if (obj != null)
                    {
                        Session["UserID"] = obj.UserId.ToString();
                        Session["UserName"] = obj.UserName.ToString();
                        return RedirectToAction("UserDashBoard");
                    }
                }
            }
            return View(objUser);
        }

        public ActionResult UserDashBoard()
        {
            if (Session["UserID"] != null)
            {
                return View();
            } else
            {
                return RedirectToAction("Login");
            }
        }
    }
}

Step 4: Create Views

Create View for Login Action Method

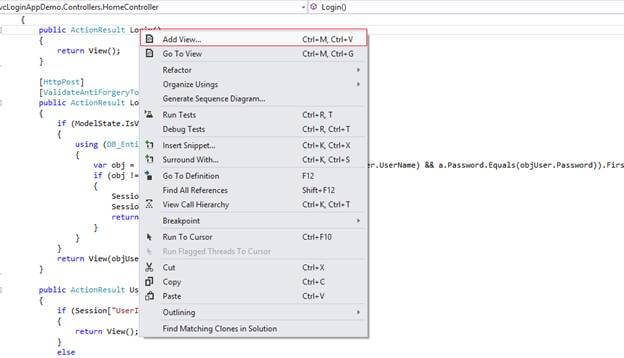

Right click on the Login Action method, then click on Add View as in the following picture.

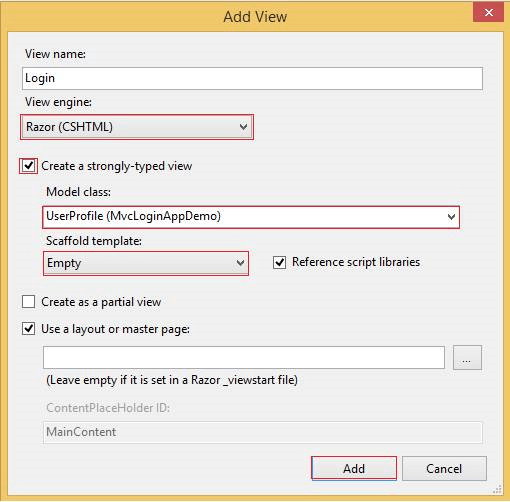

Create Strongly Typed View

• View Name must be an action method name.
• Select view engine as Razor.
• Select Create a strongly typed view CheckBox .
• Select Model class as UserProfile (MvcLoginAppDemo)
• Select Scaffold template as Empty
• Click on Add

And write the following code in Login.cshtml (view).

@model MvcLoginAppDemo.UserProfile

@{
ViewBag.Title = "Login";
}

@using (Html.BeginForm("Login", "Home", FormMethod.Post))
{
<fieldset>
<legend>Mvc Simple Login Application Demo</legend>

@Html.AntiForgeryToken()
@Html.ValidationSummary(true)
@if (@ViewBag.Message != null)
{
<div style="border: 1px solid red">
@ViewBag.Message
</div>
}
<table>
<tr>
<td>@Html.LabelFor(a => a.UserName)</td>
<td>@Html.TextBoxFor(a => a.UserName)</td>
<td>@Html.ValidationMessageFor(a => a.UserName)</td>
</tr>
<tr>
<td>
@Html.LabelFor(a => a.Password)
</td>
<td>
@Html.PasswordFor(a => a.Password)
</td>
<td>
@Html.ValidationMessageFor(a => a.Password)
</td>
</tr>
<tr>
<td></td>
<td>
<input type="submit" value="Login" />
</td>
<td></td>
</tr>
</table>
</fieldset>
}

Create View for UserDashBoard Action method same as login view. And write the following code in UserDashBoard.cshtml (View).

@ {
    ViewBag.Title = "UserDashBoard";
}

< fieldset >
    < legend > User DashBoard < /legend>

@if(Session["UserName"] != null) { < text >
        Welcome @Session["UserName"].ToString() < /text>
} < /fieldset>

Step 5: Set as StartUp Page

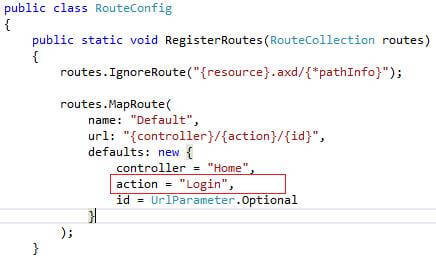

Go to Solution Explorer, Project, App_Start, then RouteConfig.cs  and change the action name from Index to Login (Login.cshtml as start up page).



Step 6: Run the Application

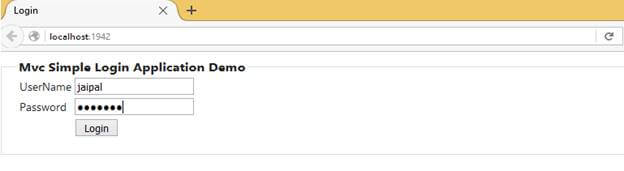

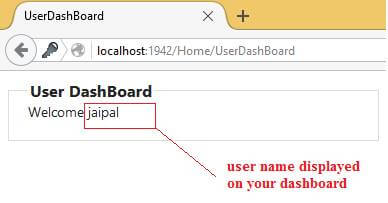

Provide the user credentials and click on OK. If you provide the valid user credentials then the user name will be displayed on your dashboard.

Read my articles on SSRS: http://www.c-sharpcorner.com/UploadFile/44fb93/ssrs-tutorial-part-5-embedded-datasets/

I hope you enjoyed it.
