Step By Step Process Of Creating StackPanel In UWP Application


  • Visual Studio 2015 update 3

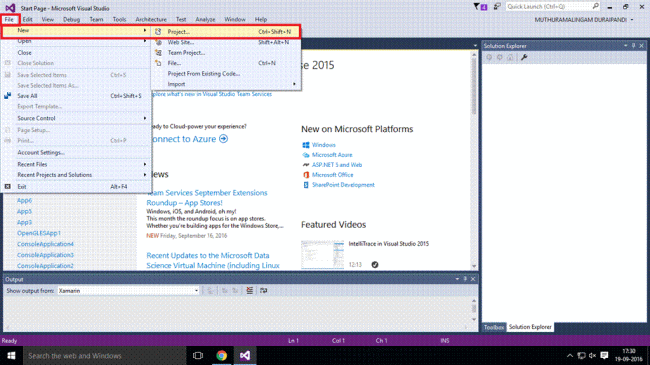

Step 1 - Open the Visual Studio 2015 Update 3. Then go to File→New→Project . Now, open a new project.

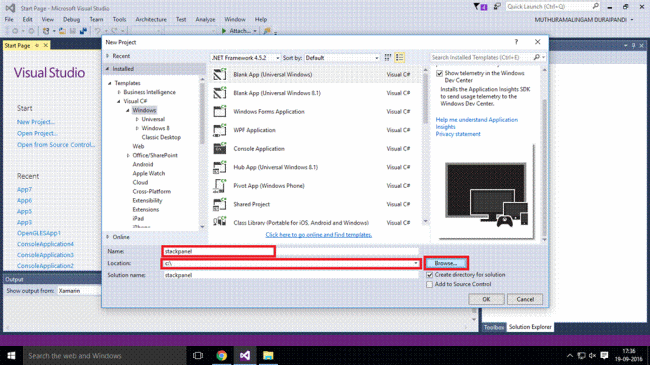

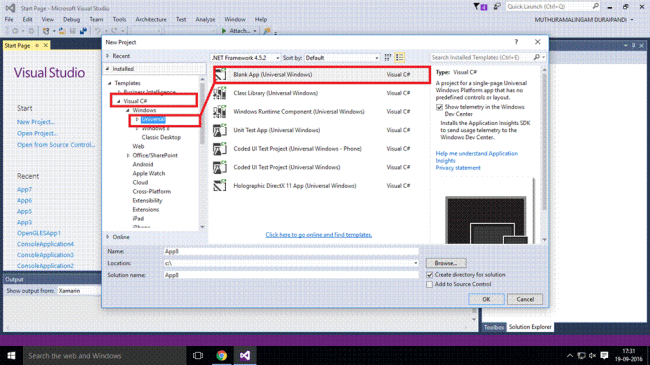

Step 2 - In the New Project window, choose Visual C#  and select Universal. Then, select Blank App (Universal Windows).

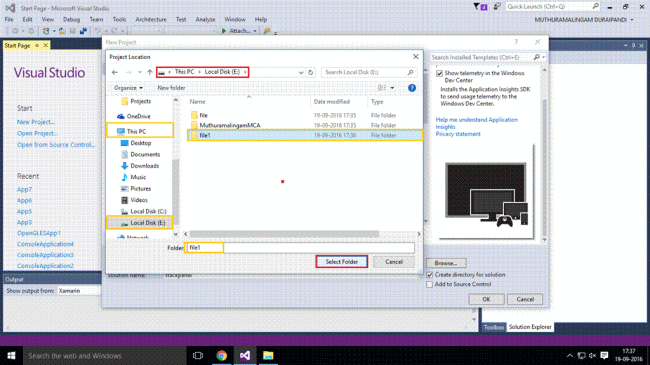

Step 3 - Now, name your application and assign the location for the app.

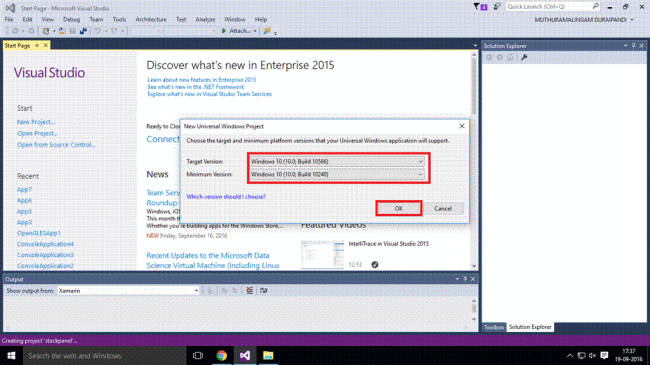

Step 4 - Select the Target Version and Minimum Version for your Universal Windows application and after that, click ” OK”.

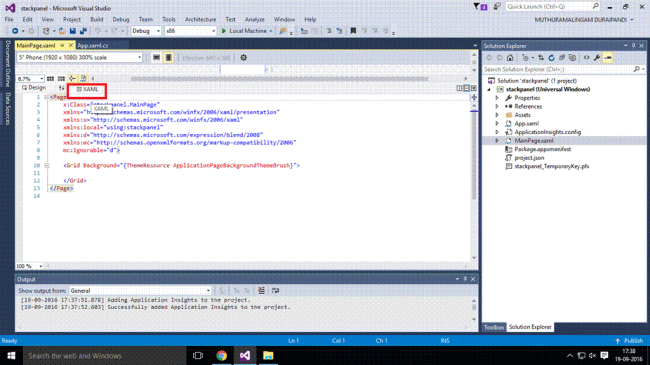

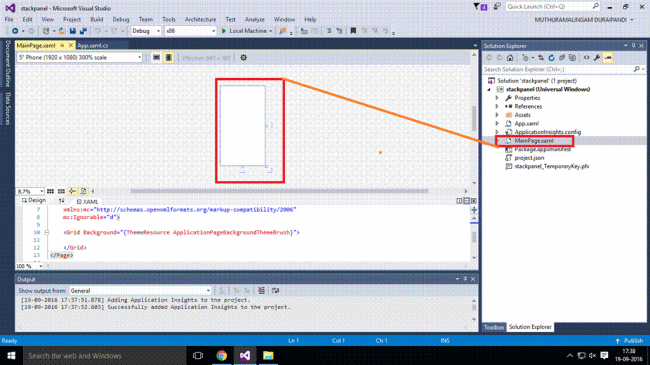

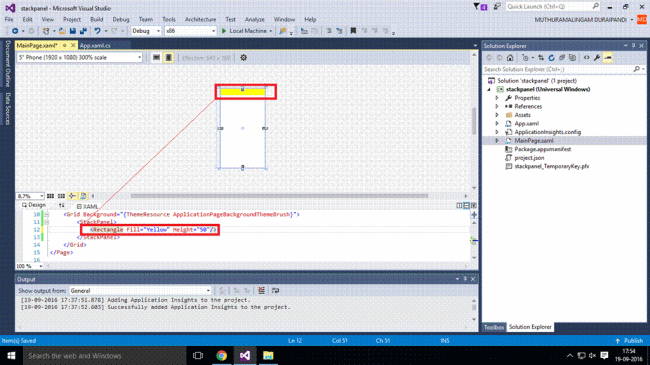

Step 5 - We should go to the Solution Explorer now. Choose MainPage.xaml and open XAML or Design window. Then, go to the XAML window and write some .xaml code.

Step 6 - According to your requirement of shapes, boxes, and blocks, write the code.

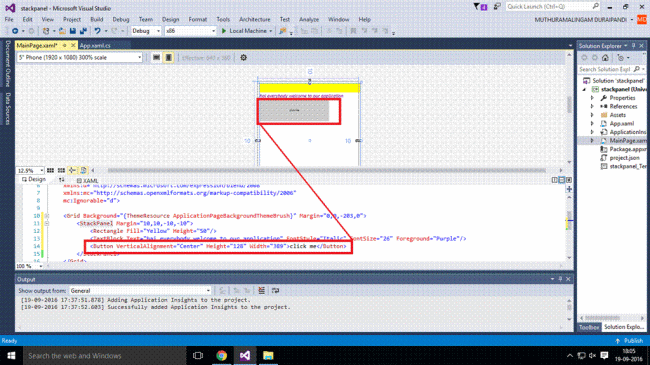

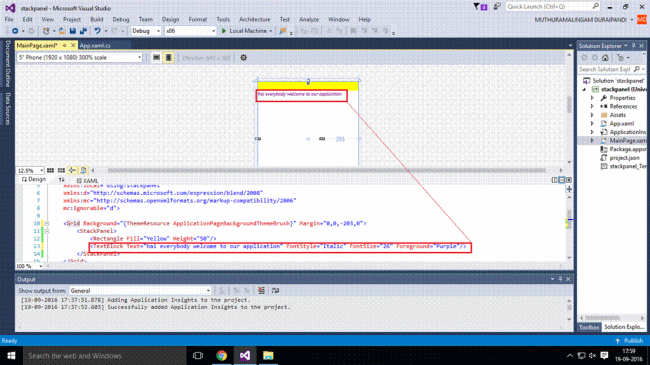

Step 7 - We want some option in our project, like TextBlock, button, images, and so on.
  1. <Page
  2.     x:Class="stackpanel1.MainPage"
  3.     xmlns=""
  4.     xmlns:x=""
  5.     xmlns:local="using:stackpanel1"
  6.     xmlns:d=""
  7.     xmlns:mc=""
  8.     mc:Ignorable="d">
  10.     <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
  11.         <StackPanel Margin="10,10,10,10">
  12.             <Rectangle Fill="Yellow" Height="50"/>
  13.             <TextBlock Text="hai everybody welcome to our application" FontStyle="Italic" FontSize="26" Foreground="Purple"/>
  14.             <Button VerticalAlignment="Center" Height="128" Width="389">click me</Button>
  15.         </StackPanel>
  16.     </Grid>
  17. </Page>

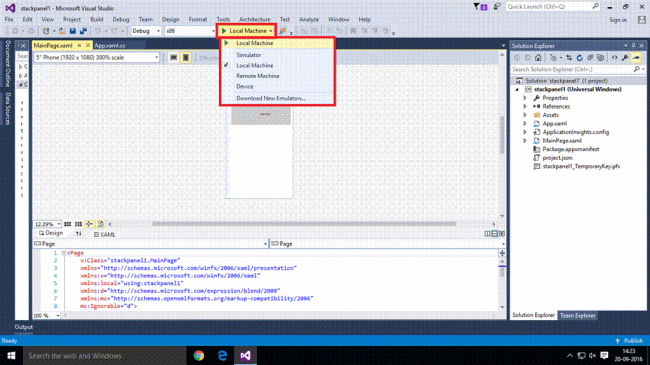

Step 8 - Write the XAML code and save all the files. After that, you can run it either on local machine or remote machine or any device. Let's choose Local Machine.

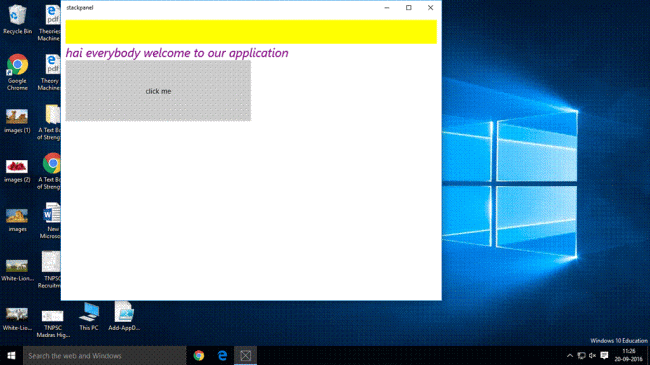

Step 9 - We can see our output below. Now, stackPanel UWP Application is created.
