UITableView in Xamarin iOS App

Introduction

Xamarin is a platform to develop cross-platform and multi-platform apps (for example, Windows phone, Android, iOS). In the Xamarin platform, the code sharing concept is used. In Xamarin Studio, Visual Studio is also available.


Prerequisites
  • Xamarin Studio.
  • Xcode.
The steps given below are required to be followed in order to create a List Using UITableView in Xamarin iOS.

Step 1

Go To Xamarin Studio.

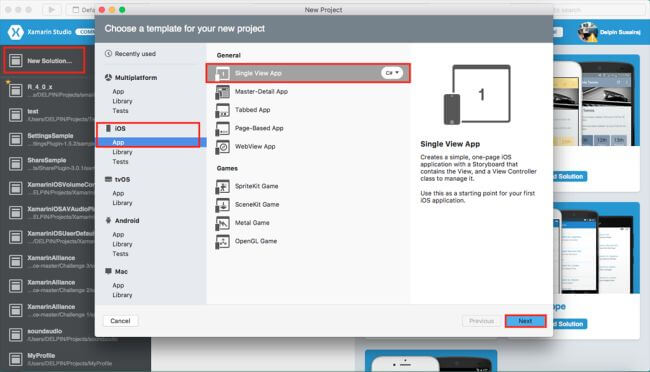

Click New Solution—> select iOS—>select App--> Choose single View App. Afterwards, click Next.



Step 2

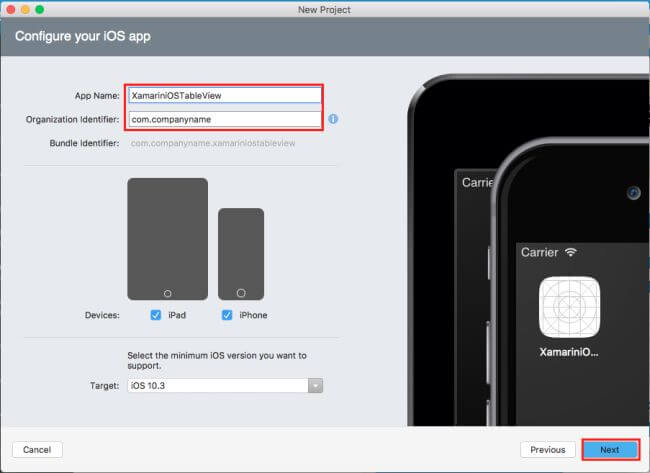

In this step, configure your app. Give the app name (Ex:sample), Organization Identifier. Afterwards, click Next.



Step 3

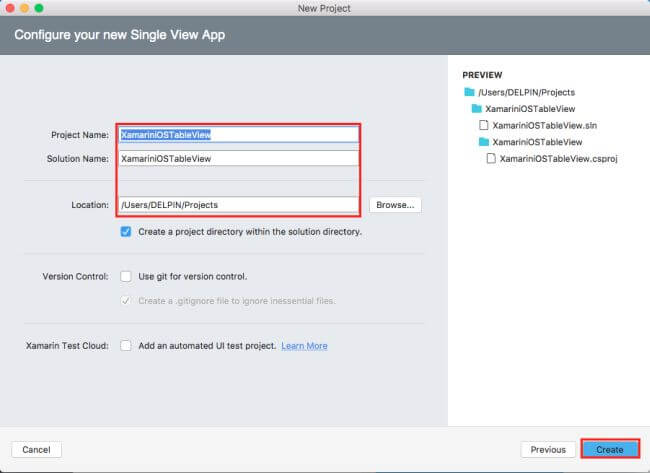

In this step, give your project name (Ex: Sample) and solution name (Ex: Sample). Give the path of your project. Afterwards, click Create.



Step 4

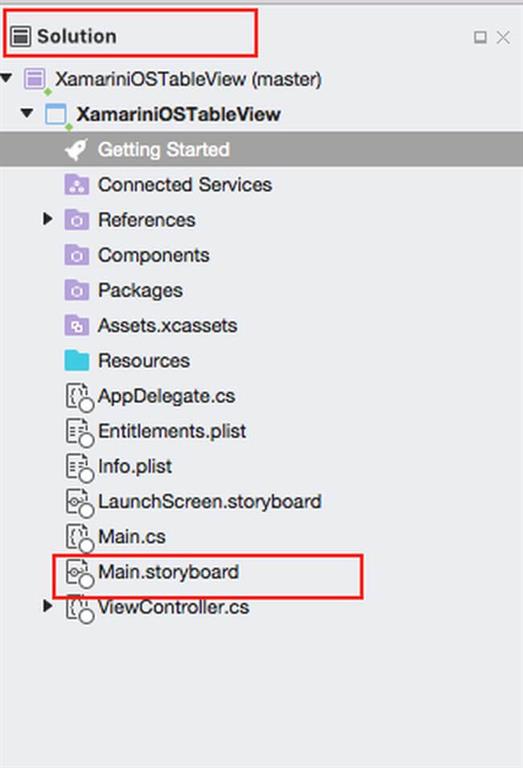

Subsequently, go to the solution. In the solution, get all the files and sources in your project. Now, select Main.storyboard and double click to open Main.storyboard page.



Step 5

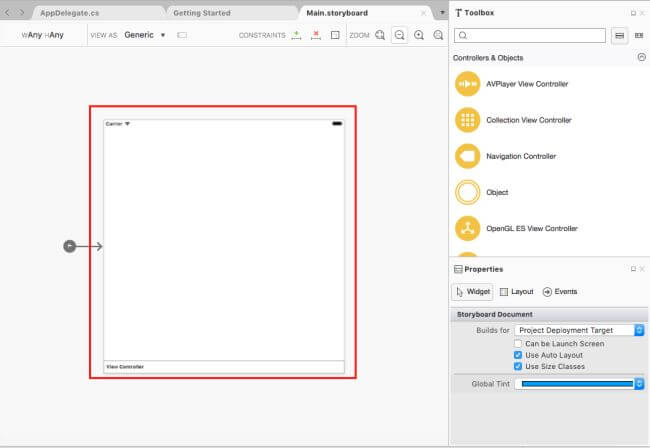

After opening the Main.storyboard, you can design this page, as per your desire.



Step 6

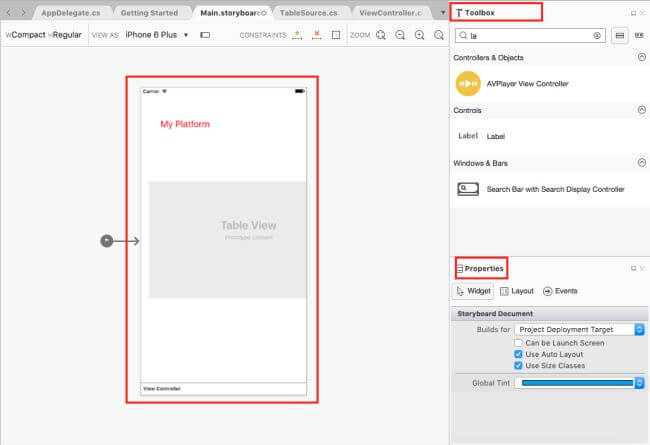

In this step, design your app using Storyboard, Toolbox, and Properties.
  1. Table View(myTable).
  2. Lable(lblMessage).


Step 7

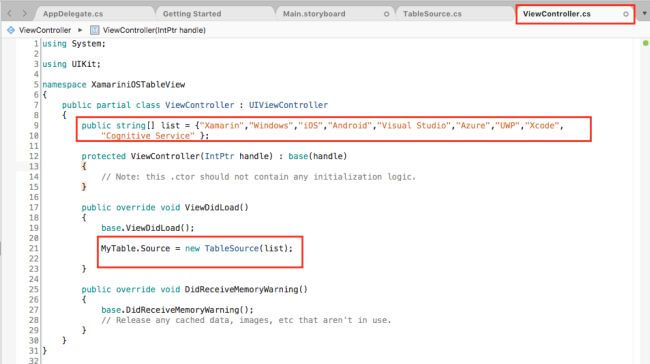

In this step, go to the ViewController.cs page. Write the code given below.

ViewController.cs
  1. using System;
  2. using UIKit;
  3. namespace XamariniOSTableView {
  4.     public partial class ViewController: UIViewController {
  5.         public string[] list = {
  6.             "Xamarin",
  7.             "Windows",
  8.             "iOS",
  9.             "Android",
  10.             "Visual Studio",
  11.             "Azure",
  12.             "UWP",
  13.             "Xcode",
  14.             "Cognitive Service"
  15.         };
  16.         protected ViewController(IntPtr handle): base(handle) {
  17.             // Note: this .ctor should not contain any initialization logic.
  18.         }
  19.         public override void ViewDidLoad() {
  20.             base.ViewDidLoad();
  21.             MyTable.Source = new TableSource(list);
  22.         }
  23.         public override void DidReceiveMemoryWarning() {
  24.             base.DidReceiveMemoryWarning();
  25.             // Release any cached data, images, etc that aren't in use.
  26.         }
  27.     }
  28. }


Step 8

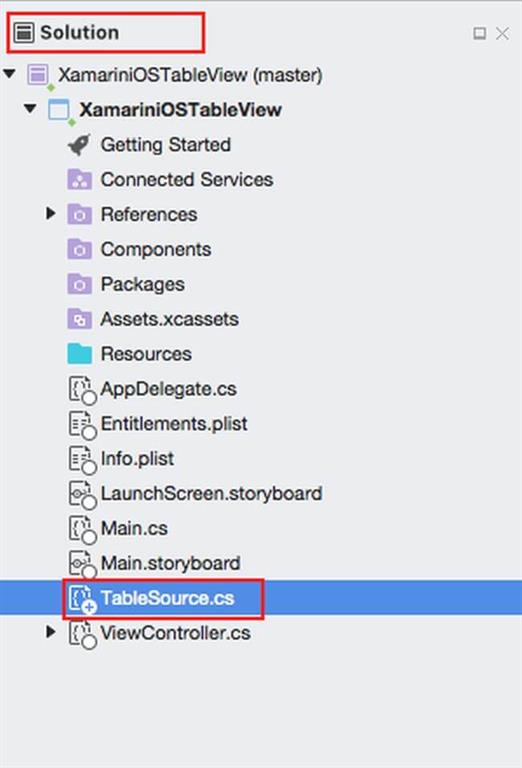

Now, add one Class and name it as TableSource.cs.

Go to Solution—>Resource—>Right click—>Add—>New File—>Select Empty Class. and give name (Ex:TableSource).



Step 9

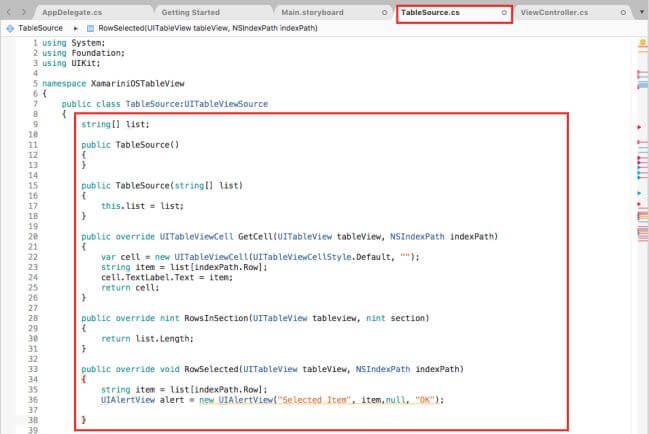

In this step, go to the TableSource.cs page and write the code given below.

TableSource.cs
  1. using System;
  2. using Foundation;
  3. using UIKit;
  4. namespace XamariniOSTableView {
  5.     public class TableSource: UITableViewSource {
  6.         string[] list;
  7.         public TableSource() {}
  8.         public TableSource(string[] list) {
  9.             this.list = list;
  10.         }
  11.         public override UITableViewCell GetCell(UITableView tableView, NSIndexPath indexPath) {
  12.             var cell = new UITableViewCell(UITableViewCellStyle.Default, "");
  13.             string item = list[indexPath.Row];
  14.             cell.TextLabel.Text = item;
  15.             return cell;
  16.         }
  17.         public override nint RowsInSection(UITableView tableview, nint section) {
  18.             return list.Length;
  19.         }
  20.         public override void RowSelected(UITableView tableView, NSIndexPath indexPath) {
  21.             string item = list[indexPath.Row];
  22.             UIAlertView alert = new UIAlertView("Selected Item", item, null"OK");
  23.             alert.Show();
  24.         }
  25.     }
  26. }


Step 10

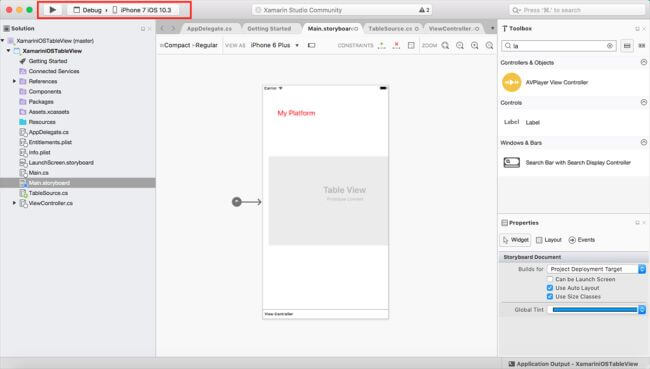

Now, go to Run option ,choose Debug. From the list of iPhone and iPad simulators, you can choose any one simulator and run it.



Output

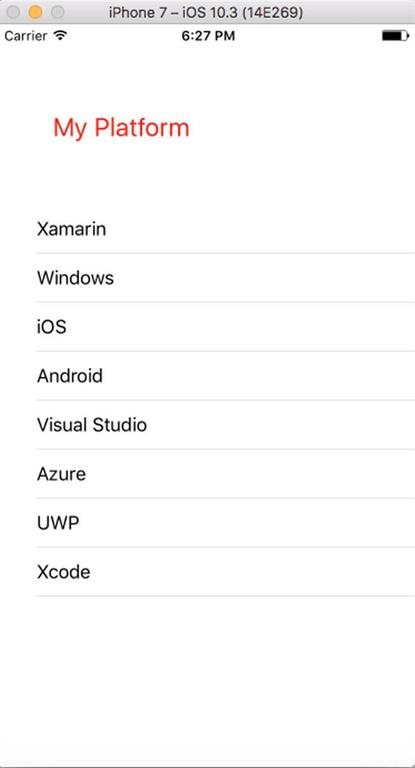

After a few seconds, the app will start running on your iPhone simulator. You will see your app working successfully.

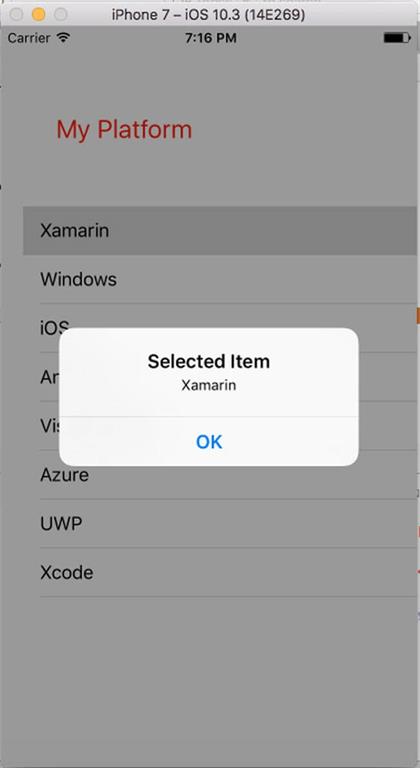

You can see the Table View is working here.



Summary

This was the process of how to create a List using UITableView in Xamarin iOS.
