User Specific Notifications Using ASP.NET MVC And SignalR

In this post, we are going to explore how to implement user-based notification using ASP.NET MVC and SignalR. If you are new to SignalR, please get some basics here.

Why SignalR?

SignalR provides "real-time" web functionality in our application using Javascript function call in client browser from the server (Server-sent Events). It has several connections for management like

  • connect/disconnect/reconnect events,
  • grouping connections,
  • authorization etc

Go to http://signalr.net for more.

We will focus on

  1. Creating a new ASP.Net MVC Web Application
  2. Add SignalR
  3. Creating Hub
  4. Enable SignalR
  5. Database Modification
  6. Send specific user Notification using SignalR

Create ASP.Net MVC Web Application

Open Visual Studio go to > File >New Project Choose ASP.Net MVC application.

ASP.NET

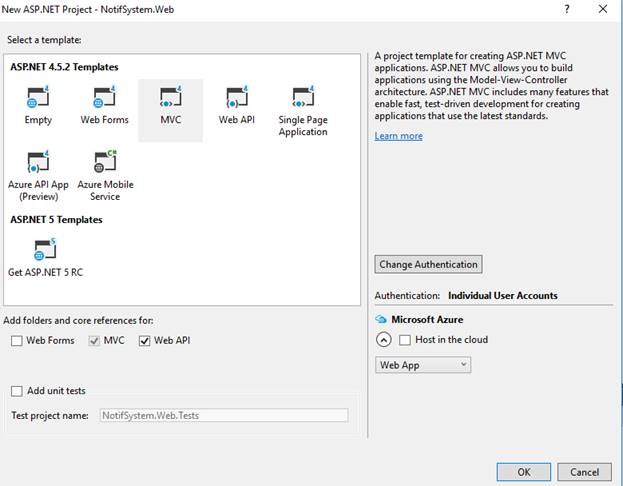

Choose a template. In my case, I have used MVC. Check Web API reference then hit ok button, that’s it. Build & run the application for the first time.

Add SignalR

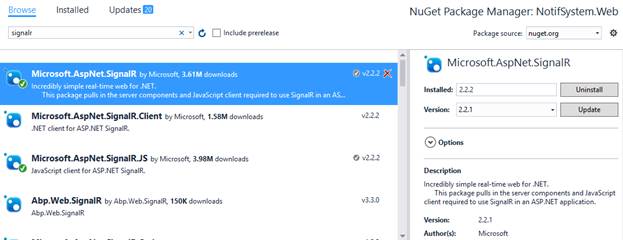

Get it on NuGet! Right click the project > Manage NuGet package > Browse to install.

ASP.NET

Browse package then install to application, it’ll automatically do the rest.

ASP.NET

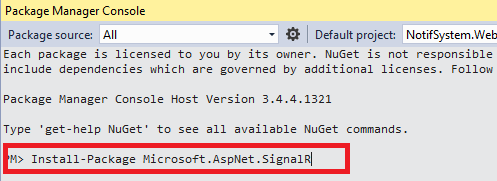

OR Install using package manager console

Install-Package Microsoft.AspNet.SignalR.

ASP.NET

Creating Hub

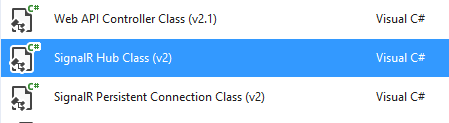

Add a new Hub Class, name it NotificationHub.cs.

ASP.NET

  1. public class NotificationHub : Hub
  2. {
  3.     private static readonly ConcurrentDictionary<string, UserHubModels> Users =
  4.         new ConcurrentDictionary<string, UserHubModels>(StringComparer.InvariantCultureIgnoreCase);
  5.
  6.
  7.     public override Task OnConnected()
  8.     {
  9.         string userName = Context.User.Identity.Name;
  10.         string connectionId = Context.ConnectionId;
  11.
  12.         var user = Users.GetOrAdd(userName, _ => new UserHubModels
  13.         {
  14.             UserName = userName,
  15.             ConnectionIds = new HashSet<string>()
  16.         });
  17.
  18.         lock (user.ConnectionIds)
  19.         {
  20.             user.ConnectionIds.Add(connectionId);
  21.             if (user.ConnectionIds.Count == 1)
  22.             {
  23.                 Clients.Others.userConnected(userName);
  24.             }
  25.         }
  26.
  27.         return base.OnConnected();
  28.     }
  29.
  30.     public override Task OnDisconnected(bool stopCalled)
  31.     {
  32.         string userName = Context.User.Identity.Name;
  33.         string connectionId = Context.ConnectionId;
  34.
  35.         UserHubModels user;
  36.         Users.TryGetValue(userName, out user);
  37.
  38.         if (user != null)
  39.         {
  40.             lock (user.ConnectionIds)
  41.             {
  42.                 user.ConnectionIds.RemoveWhere(cid => cid.Equals(connectionId));
  43.                 if (!user.ConnectionIds.Any())
  44.                 {
  45.                     UserHubModels removedUser;
  46.                     Users.TryRemove(userName, out removedUser);
  47.                     Clients.Others.userDisconnected(userName);
  48.                 }
  49.             }
  50.         }
  51.
  52.         return base.OnDisconnected(stopCalled);
  53.     }
  54. }

Enable SignalR - Startup.cs
  1. using Microsoft.Owin;
  2. using Owin;
  3.
  4. [assembly: OwinStartupAttribute(typeof(NotifSystem.Web.Startup))]
  5. namespace NotifSystem.Web
  6. {
  7.     public partial class Startup
  8.     {
  9.         public void Configuration(IAppBuilder app)
  10.         {
  11.             app.MapSignalR();
  12.         }
  13.     }
  14. }

Layout page

  1. <script src="~/Scripts/jquery.signalR-2.2.2.min.js"></script>
  2. <script src="~/signalr/hubs"></script>
  3. <script type="text/javascript">
  4.     $(document).ready(function () {
  5.         var hub = $.connection.notificationHub;
  6.         $.connection.hub.start()
  7.             .done(function () {
  8.                 console.log("Hub Connected!");
  9.
  10.             })
  11.             .fail(function () {
  12.                 console.log("Could not Connect!");
  13.             });
  14.     });
  15. </script>

Test SignalR

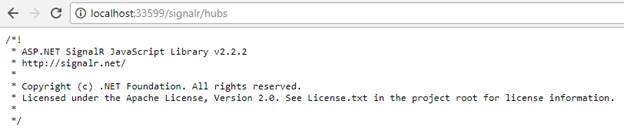

Run the application go to url modify by /signalr/hubs. This will show the magic SignalR JavaScript Library with the current version like below screenshot.

ASP.NET

In Browser Console it’ll show message about Hub Connection.

ASP.NET

Database Modification

Create new database then modify connection string in web.config file. Restore database from attached script file in App_Data folder.

We need to create a table to store Notifications.

  1. CREATE TABLE [dbo].[Notification](
  2.     [Id] [int] IDENTITY(1,1) NOT NULL,
  3.     [Type] [int] NULL,
  4.     [Details] [nvarchar](500) NULL,
  5.     [Title] [nvarchar](50) NULL,
  6.     [DetailsURL] [nvarchar](500) NULL,
  7.     [SentTo] [nvarchar](50) NULL,
  8.     [Date] [date] NULL,
  9.     [IsRead] [bit] NULL,
  10.     [IsDeleted] [bit] NULL,
  11.     [IsReminder] [bit] NULL,
  12.     [Code] [nvarchar](100) NULL,
  13.     [NotificationType] [nvarchar](100) NULL,
  14.  CONSTRAINT [PK_Notification] PRIMARY KEY CLUSTERED
  15. (
  16.     [Id] ASC
  17. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  18. ) ON [PRIMARY]
  19. GO

Send specific user Notification using SignalR

In this section we will work with view to send notification to specific user.

Index.cshtml

  1. <div class="col-md-12">
  2.     <h2>Say Hello</h2>
  3.     <div id="messages"></div>
  4.     <hr />
  5.
  6.     <div class="form-group">
  7.         <label for="email">User Email:</label>
  8.         <input type="email" class="form-control" id="toUser" value="" placeholder="[email protected]"/>
  9.     </div>
  10.     <div class="form-group">
  11.         <label for="pwd">Message:</label>
  12.         <input type="password" class="form-control" id="myMessage" value="" placeholder="message"/>
  13.     </div>
  14.
  15.     <button type="submit" class="btn btn-default" id="submit">Submit</button>
  16.
  17. </div>

Javascript

  1. <script type="text/javascript">
  2. $("#submit").click(function (e) {
  3.     e.preventDefault();
  4.
  5.     var message = $("#myMessage").val();
  6.     var sendtouser = $("#toUser").val();
  7.
  8.     var Notification = { UserID: sendtouser, Message: message };
  9.
  10.     $.ajax({
  11.         type: "POST",
  12.         url: "/api/Values/SendNotification",
  13.         data: JSON.stringify(Notification),
  14.         contentType: 'application/json; charset=utf-8',
  15.         success: function (data) {
  16.             //reset field
  17.             $("#myMessage").val("");
  18.         },
  19.         error: function () {
  20.             alert("Error occured!!")
  21.         }
  22.     });
  23.
  24. });
  25. </script>

API

  1. public class ValuesController : ApiController
  2. {
  3.     private NotifEntities context = new NotifEntities();
  4.
  5.     [HttpPost]
  6.     public HttpResponseMessage SendNotification(NotifModels obj)
  7.     {
  8.         NotificationHub objNotifHub = new NotificationHub();
  9.         Notification objNotif = new Notification();
  10.         objNotif.SentTo = obj.UserID;
  11.
  12.         context.Configuration.ProxyCreationEnabled = false;
  13.         context.Notifications.Add(objNotif);
  14.         context.SaveChanges();
  15.
  16.         objNotifHub.SendNotification(objNotif.SentTo);
  17.
  18.         //var query = (from t in context.Notifications
  19.         //             select t).ToList();
  20.
  21.         return Request.CreateResponse(HttpStatusCode.OK);
  22.     }
  23. }

Modify Hub

We need to add additional methods in our Hub class.

  1. private NotifEntities context = new NotifEntities();
  2.
  3. //Logged Use Call
  4. public void GetNotification()
  5. {
  6.     try
  7.     {
  8.         string loggedUser = Context.User.Identity.Name;
  9.
  10.         //Get TotalNotification
  11.         string totalNotif = LoadNotifData(loggedUser);
  12.
  13.         //Send To
  14.         UserHubModels receiver;
  15.         if (Users.TryGetValue(loggedUser, out receiver))
  16.         {
  17.             var cid = receiver.ConnectionIds.FirstOrDefault();
  18.             var context = GlobalHost.ConnectionManager.GetHubContext<NotificationHub>();
  19.             context.Clients.Client(cid).broadcaastNotif(totalNotif);
  20.         }
  21.     }
  22.     catch (Exception ex)
  23.     {
  24.         ex.ToString();
  25.     }
  26. }
  27.
  28. //Specific User Call
  29. public void SendNotification(string SentTo)
  30. {
  31.     try
  32.     {
  33.         //Get TotalNotification
  34.         string totalNotif = LoadNotifData(SentTo);
  35.
  36.         //Send To
  37.         UserHubModels receiver;
  38.         if (Users.TryGetValue(SentTo, out receiver))
  39.         {
  40.             var cid = receiver.ConnectionIds.FirstOrDefault();
  41.             var context = GlobalHost.ConnectionManager.GetHubContext<NotificationHub>();
  42.             context.Clients.Client(cid).broadcaastNotif(totalNotif);
  43.         }
  44.     }
  45.     catch (Exception ex)
  46.     {
  47.         ex.ToString();
  48.     }
  49. }
  50.
  51. private string LoadNotifData(string userId)
  52. {
  53.     int total = 0;
  54.     var query = (from t in context.Notifications
  55.                     where t.SentTo == userId
  56.                     select t)
  57.                 .ToList();
  58.     total = query.Count;
  59.     return total.ToString();
  60. }

Finally the Hub

  1. public class NotificationHub : Hub
  2. {
  3.     private static readonly ConcurrentDictionary<string, UserHubModels> Users =
  4.         new ConcurrentDictionary<string, UserHubModels>(StringComparer.InvariantCultureIgnoreCase);
  5.
  6.     private NotifEntities context = new NotifEntities();
  7.
  8.     //Logged Use Call
  9.     public void GetNotification()
  10.     {
  11.         try
  12.         {
  13.             string loggedUser = Context.User.Identity.Name;
  14.
  15.             //Get TotalNotification
  16.             string totalNotif = LoadNotifData(loggedUser);
  17.
  18.             //Send To
  19.             UserHubModels receiver;
  20.             if (Users.TryGetValue(loggedUser, out receiver))
  21.             {
  22.                 var cid = receiver.ConnectionIds.FirstOrDefault();
  23.                 var context = GlobalHost.ConnectionManager.GetHubContext<NotificationHub>();
  24.                 context.Clients.Client(cid).broadcaastNotif(totalNotif);
  25.             }
  26.         }
  27.         catch (Exception ex)
  28.         {
  29.             ex.ToString();
  30.         }
  31.     }
  32.
  33.     //Specific User Call
  34.     public void SendNotification(string SentTo)
  35.     {
  36.         try
  37.         {
  38.             //Get TotalNotification
  39.             string totalNotif = LoadNotifData(SentTo);
  40.
  41.             //Send To
  42.             UserHubModels receiver;
  43.             if (Users.TryGetValue(SentTo, out receiver))
  44.             {
  45.                 var cid = receiver.ConnectionIds.FirstOrDefault();
  46.                 var context = GlobalHost.ConnectionManager.GetHubContext<NotificationHub>();
  47.                 context.Clients.Client(cid).broadcaastNotif(totalNotif);
  48.             }
  49.         }
  50.         catch (Exception ex)
  51.         {
  52.             ex.ToString();
  53.         }
  54.     }
  55.
  56.     private string LoadNotifData(string userId)
  57.     {
  58.         int total = 0;
  59.         var query = (from t in context.Notifications
  60.                         where t.SentTo == userId
  61.                         select t)
  62.                     .ToList();
  63.         total = query.Count;
  64.         return total.ToString();
  65.     }
  66.
  67.     public override Task OnConnected()
  68.     {
  69.         string userName = Context.User.Identity.Name;
  70.         string connectionId = Context.ConnectionId;
  71.
  72.         var user = Users.GetOrAdd(userName, _ => new UserHubModels
  73.         {
  74.             UserName = userName,
  75.             ConnectionIds = new HashSet<string>()
  76.         });
  77.
  78.         lock (user.ConnectionIds)
  79.         {
  80.             user.ConnectionIds.Add(connectionId);
  81.             if (user.ConnectionIds.Count == 1)
  82.             {
  83.                 Clients.Others.userConnected(userName);
  84.             }
  85.         }
  86.
  87.         return base.OnConnected();
  88.     }
  89.
  90.     public override Task OnDisconnected(bool stopCalled)
  91.     {
  92.         string userName = Context.User.Identity.Name;
  93.         string connectionId = Context.ConnectionId;
  94.
  95.         UserHubModels user;
  96.         Users.TryGetValue(userName, out user);
  97.
  98.         if (user != null)
  99.         {
  100.             lock (user.ConnectionIds)
  101.             {
  102.                 user.ConnectionIds.RemoveWhere(cid => cid.Equals(connectionId));
  103.                 if (!user.ConnectionIds.Any())
  104.                 {
  105.                     UserHubModels removedUser;
  106.                     Users.TryRemove(userName, out removedUser);
  107.                     Clients.Others.userDisconnected(userName);
  108.                 }
  109.             }
  110.         }
  111.
  112.         return base.OnDisconnected(stopCalled);
  113.     }
  114. }

Output

ASP.NET

Hope this will help.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
