XML Schema Validator

The XML Schema Validator checks if a given XML document is well formed and has a valid schema model. If it finds the document is not a valid XML schema, it generates the error telling the problem in the schema.

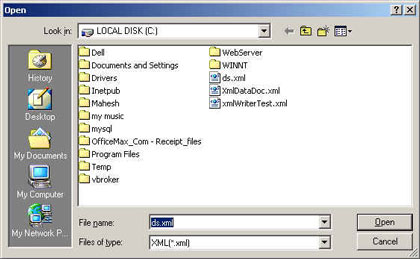

The Browser button lets you browse for an xml document.

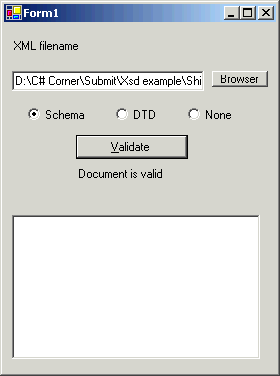

The Validate button validates the schema and generates message "Document is valid" if it finds an schema as a valid schema.

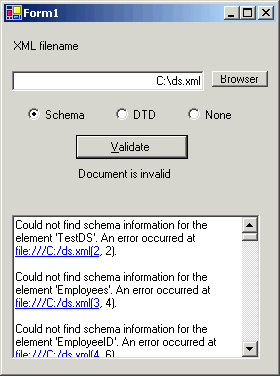

If an schema is not a valid schema, it generates to the detailed error listed in the list box.



I have used the XmlValidatingReader class. The source code on the Validate button is listed in the following table.

private void validate_Click(object sender, System.EventArgs e)
{
//reset UI information
error = "";
result.Text ="";
resultErrors.Text = "";
isValid =
true;
header = "";
try
{
XmlTextReader xml =
new XmlTextReader(file.Text);
XmlValidatingReader xsd =
new XmlValidatingReader(xml);
//use schemas or DTDs
if (documentTypeSchema.Checked == true)
{
/schemas - YAAAAAAA
xsd.ValidationType = ValidationType.Schema;
}
else if (documentTypeNone.Checked == true)
{
//so you just want to see if your XML is well formed?
xsd.ValidationType = ValidationType.None;
}
else
{
//why do you want to learn this? its old, no one uses it and they are laughing behind your back. Shame on you!
xsd.ValidationType = ValidationType.DTD;
}
//and validation errors events go to...
xsd.ValidationEventHandler += new ValidationEventHandler(MyValidationEventHandler);
//wait until the read is over, its occuring in a different thread - kinda like when your walking to get a cup of coffee and your mind is in Hawaii
while (xsd.Read())
{
}
xsd.Close();
// Check whether the document is valid or invalid.
if (isValid)
header = "Document is valid";
else
header = "Document is invalid";
}
catch(UnauthorizedAccessException a)
{
//dont have access permission
error = a.Message;
}
catch(Exception a)
{
//and other things that could go wrong
error = a.Message;
}
resultErrors.Text = error;
result.Text = header;
}
