Chart control in PHP and MySQL using JpGraph

How to install jpgraph ?

Step 1

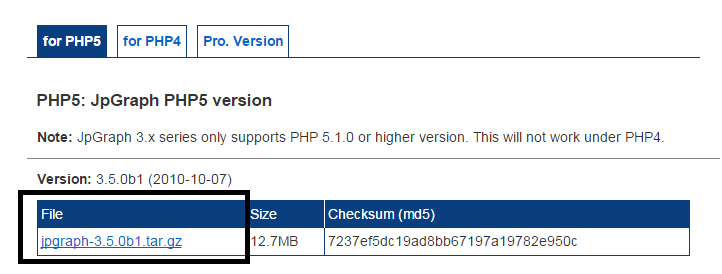

At first Download jpgraph.Then Copy and paste this file in your C drive.

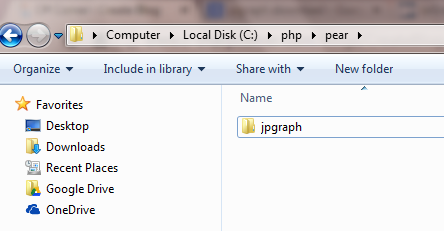

C:\php\pear>



You can also download it from attached file.

Step 2

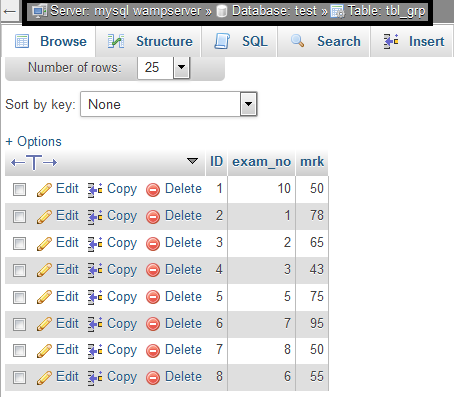

Create a new database into mysql database..



Step 3

Then Create a new php file called (lin.php)

The code is shown below.
  1. <?php
  2. require_once('jpgraph/jpgraph.php');
  3. require_once('jpgraph/jpgraph_line.php');
  4. require_once('jpgraph/jpgraph_bar.php');
  5. $x_axis = array();
  6. $y_axis = array();
  7. $i      = 0;
  8. $con    = mysqli_connect("localhost""root""""test");
  9. // Check connection
  10. if (mysqli_connect_errno()) {
  11.     echo "Failed to connect to MySQL: " . mysqli_connect_error();
  12. }
  13. $result = mysqli_query($con"SELECT * FROM tbl_grp");
  14. while ($row = mysqli_fetch_array($result)) {
  15.     $x_axis[$i] = $row["exam_no"];
  16.     $y_axis[$i] = $row["mrk"];
  17.     $i++;
  18. }
  19. mysqli_close($con);
  20. $width  = 600;
  21. $height = 200;
  22. $graph  = new Graph($width$height);
  23. $graph->SetScale('textint');
  24. $graph->title->Set('My Example');
  25. $graph->xaxis->title->Set('(year)');
  26. $graph->xaxis->SetTickLabels($x_axis);
  27. $graph->yaxis->title->Set('(# example)');
  28. $barplot = new BarPlot($y_axis);
  29. $graph->Add($barplot);
  30. $graph->Stroke();
  31. ?>

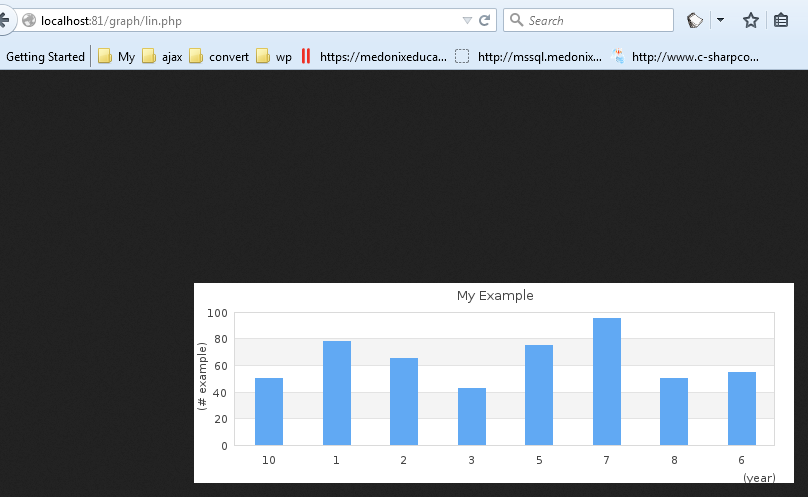

Open your Browser and see.



Thanks.
