Expand Particular Node In Kendo Tree View By Button Click

Introduction

In my last blog, I explained how to expand all the nodes in Kendo Tree View on load. In this blog, I’m going to explain how to expand a particular node in Kendo Tree View via a button click.

Kendo Tree View with remote data binding

KendoTreeView.html
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <style>
  5.         html {
  6.             font-size: 14px;
  7.             font-family: Arial, Helvetica, sans-serif;
  8.         }
  9.     </style>
  10.     <title></title>
  11.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.common-material.min.css" />
  12.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.min.css" />
  13.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.mobile.min.css" />
  14.
  15.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/jquery.min.js"></script>
  16.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/kendo.all.min.js"></script>
  17. </head>
  18. <body>
  19.     <div id="example">
  20.         <div class="demo-section k-content">
  21.             <div class="k-content">
  22.                 <h4> Kendo Tree View</h4>
  23.
  24.             </div>
  25.
  26.             <div id="treeview"></div>
  27.             <div>
  28.                 <button id="btnAuto" class="k-button">Expand</button>
  29.             </div>
  30.             <!--<div>
  31.                 <p id="result">No nodes checked.</p>
  32.             </div>-->
  33.         </div>
  34.         <script>
  35.                     homogeneous = new kendo.data.HierarchicalDataSource({
  36.                         transport: {
  37.                             read: {
  38.                                 url: "http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource",
  39.                                 dataType: "json"
  40.                             }
  41.                         },
  42.                         schema: {
  43.                             model: {
  44.                                 id: "value",
  45.                                 children: "items"
  46.                             }
  47.                         }
  48.                     });
  49.
  50.                 $("#treeview").kendoTreeView({
  51.                     dataSource: homogeneous,
  52.                     dragAndDrop: true,
  53.                     dataTextField: ["name"],
  54.                     checkboxes: {
  55.                         checkChildren: true
  56.                     },
  57.                     check: onCheck,
  58.
  59.             });
  60.
  61.                 function checkedNodeIds(nodes, checkedNodes) {
  62.                     debugger;
  63.                     for (var i = 0; i < nodes.length; i++) {
  64.                         if (nodes[i].name =="Automobiles") {
  65.                             checkedNodes.push(nodes[i].data);
  66.
  67.                         }
  68.
  69.                         if (nodes[i].hasChildren) {
  70.                             checkedNodeIds(nodes[i].children.view(), checkedNodes);
  71.                         }
  72.                     }
  73.                 }
  74.
  75.                 // show checked node IDs on datasource change
  76.                 function onCheck()
  77.                 {
  78.                     var checkedNodes = [],
  79.                         treeView = $("#treeview").data("kendoTreeView"),
  80.                         message;
  81.
  82.                     checkedNodeIds(treeView.dataSource.view(), checkedNodes);
  83.
  84.                     if (checkedNodes.length > 0) {
  85.                         message = "IDs of checked nodes: " + checkedNodes.join(",");
  86.                     } else {
  87.                         message = "No nodes checked.";
  88.                     }
  89.
  90.                     $("#result").html(message);
  91.                 }
  92.
  93.         </script>
  94.     </div>
  95. </body>
  96. </html>
The Kendo TreeView binding is done by the reponse of http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource - REST API

Result in Browser

      Figure 1

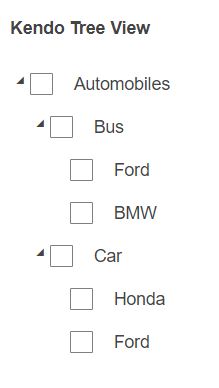

After expanding all the nodes.

                  Figure 2

Expand particular node

Let's have a button to force the particular node to expand in the Tree View. In my last blog, we have seen how to expand all the nodes in Kendo Tree View using a databound event. Now, in this blog, you will learn how to expand a particular node in kendo TreeView using external events.

From the figure 2, you can notice the autombile's node consist of two immediate children, so now let's expand only bus node from the automobiles from the external event.
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <style>
  5.         html {
  6.             font-size: 14px;
  7.             font-family: Arial, Helvetica, sans-serif;
  8.         }
  9.     </style>
  10.     <title></title>
  11.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.common-material.min.css" />
  12.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.min.css" />
  13.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.mobile.min.css" />
  14.
  15.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/jquery.min.js"></script>
  16.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/kendo.all.min.js"></script>
  17. </head>
  18. <body>
  19.     <div id="example">
  20.         <div class="demo-section k-content">
  21.             <div class="k-content">
  22.                 <h4> Kendo Tree View</h4>
  23.
  24.             </div>
  25.
  26.             <div id="treeview"></div>
  27.             <div>
  28.                 <button id="btnAuto" class="k-button">Expand</button>
  29.             </div>
  30.             <!--<div>
  31.                 <p id="result">No nodes checked.</p>
  32.             </div>-->
  33.         </div>
  34.         <script>
  35.                     homogeneous = new kendo.data.HierarchicalDataSource({
  36.                         transport: {
  37.                             read: {
  38.                                 url: "http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource",
  39.                                 dataType: "json"
  40.                             }
  41.                         },
  42.                         schema: {
  43.                             model: {
  44.                                 id: "value",
  45.                                 children: "items"
  46.                             }
  47.                         }
  48.                     });
  49.
  50.                 $("#treeview").kendoTreeView({
  51.                     dataSource: homogeneous,
  52.                     dragAndDrop: true,
  53.                     dataTextField: ["name"],
  54.                     checkboxes: {
  55.                         checkChildren: true
  56.                     },
  57.                     check: onCheck,
  58.
  59.             });
  60.
  61.                 function checkedNodeIds(nodes, checkedNodes) {
  62.                     debugger;
  63.                     for (var i = 0; i < nodes.length; i++) {
  64.                         if (nodes[i].name =="Automobiles") {
  65.                             checkedNodes.push(nodes[i].data);
  66.
  67.                         }
  68.
  69.                         if (nodes[i].hasChildren) {
  70.                             checkedNodeIds(nodes[i].children.view(), checkedNodes);
  71.                         }
  72.                     }
  73.                 }
  74.
  75.                 // show checked node IDs on datasource change
  76.                 function onCheck()
  77.                 {
  78.                     var checkedNodes = [],
  79.                         treeView = $("#treeview").data("kendoTreeView"),
  80.                         message;
  81.
  82.                     checkedNodeIds(treeView.dataSource.view(), checkedNodes);
  83.
  84.                     if (checkedNodes.length > 0) {
  85.                         message = "IDs of checked nodes: " + checkedNodes.join(",");
  86.                     } else {
  87.                         message = "No nodes checked.";
  88.                     }
  89.
  90.                     $("#result").html(message);
  91.                 }
  92.                 $('#btnAuto').click(function () {
  93.
  94.                     var treeview = $('#treeview').data('kendoTreeView');
  95.                     var nodeElement = treeview.dataSource.view();
  96.                     for (var i = 0; i < nodeElement.length; i++) {
  97.                         if (nodeElement[i].name == "Automobiles") {
  98.                             var u_id = nodeElement[i].uid;
  99.                             var nodeElement_test = $("#treeview").find('li[data-uid=' + u_id + ']');
  100.                             var node = treeview.findByUid(u_id);
  101.                             treeview.expand(node);
  102.                             if (nodeElement[i].hasChildren) {
  103.                                 childNodeExpand(nodeElement[i].children.view());
  104.                             }
  105.                         }
  106.                     }
  107.                 });
  108.
  109.                 function childNodeExpand(childNodes) {
  110.
  111.                     var treeview = $('#treeview').data('kendoTreeView');
  112.                     for (var i = 0; i < childNodes.length; i++) {
  113.                         if (childNodes[i].name == "Bus") {
  114.                             var u_id = childNodes[i].uid;
  115.                             var nodeElement_test = $("#treeview").find('li[data-uid=' + u_id + ']');
  116.                             var node = treeview.findByUid(u_id);
  117.                             treeview.expand(node);
  118.                         }
  119.                     }
  120.                 }
  121.         </script>
  122.     </div>
  123. </body>
  124. </html>
I have added a button, so when you click on button the click event will get fired where we have written a logic where the bus node will get expanded.

Expanding the node is done by the expand function of the Kendo tree view,  where we need to pass the node information which should be expanded as per our requirement.

I'm getting the node information based on UID which will be unique for all the nodes.

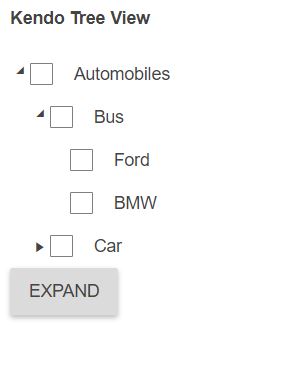

By clicking on expand button the bus node will get expanded.

Result
     Figure 3

Click on Expand button to expand the bus node

        Figure 4

I hope you have learned from this blog. Your valuable feedback, questions, or comments about this blog are always welcome.

Download the source code from GitHub.
