How To Add Combobox In Ag-Grid Or Edit Grid Coloumn With Combobox

Introduction

To add combobox in ag-grid first of all we have to have knowledge of cell render. Through cell render we can edit our ag-grid column with drop down or textbox.

We can bind our dropdown in two ways: statically and dynamically

In this I will show statically how to bind dropdown.

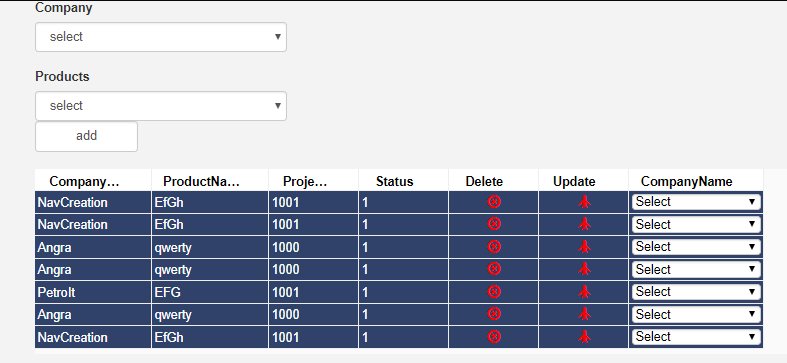

Now In This Image I inserted DropDown.

Firstly let's see the code part of this.
  1. $scope.gridOptions = {
  2.     columnDefs: [{
  3.         headerName: "CompanyName",
  4.         field: "CompanyName",
  5.         editable: true,
  6.         width: 130
  7.     }, {
  8.         headerName: 'ProductName',
  9.         field: "ProductName",
  10.         editable: true,
  11.         width: 130
  12.     }, {
  13.         headerName: "ProjectID",
  14.         field: "ProjectID",
  15.         editable: true,
  16.         width: 100
  17.     }, {
  18.         headerName: "Status",
  19.         field: "Status",
  20.         editable: true,
  21.         width: 100
  22.     }, {
  23.         headerName: "Delete",
  24.         field: "Delete",
  25.         editable: true,
  26.         editable: false,
  27.         width: 100,
  28.         cellRenderer: customEditorImageWQ
  29.     }, {
  30.         headerName: "Update",
  31.         field: "Update",
  32.         editable: true,
  33.         editable: false,
  34.         width: 100,
  35.         cellRenderer: customEditor
  36.     }, {
  37.         headerName: "CompanyName",
  38.         field: "CompanyName",
  39.         width: 150,
  40.         cellRenderer: CustomCombobox
  41.     }, ],
  42.     rowData: null,
  43.     enableColResize: true,
  44.     enableSorting: true,
  45.     rowSelection: 'multiple',
  46.     angularCompileRows: true,
  47.     rowDeselection: true,
  48.     onRowClicked: RowClick,
  49.     enableFilter: true,
  50.     editable: true,
  51.     suppressRowClickSelection: true,
  52. };
  53.
  54. function CustomCombobox(params) {
  55.     //Find RowIndex
  56.     var rowIndex = params.rowIndex;
  57.     //FindColoumn Name
  58.     var Column = params.eGridCell.attributes.colId;
  59.     //FindGridData
  60.     var WeldGridData = $scope.gridOptions.rowData;
  61.     //create select element using javascript
  62.     var eSelect = document.createElement("select");
  63.     //Set attributes
  64.     eSelect.setAttribute('class''custom-select form-control');
  65.     eSelect.setAttribute('style''padding:0px');
  66.     eSelect.setAttribute('name', params.colDef.field);
  67.     eSelect.setAttribute('id', params.colDef.field + "_" + rowIndex);
  68.     //get the value of the select option
  69.     var value = params.data.CompanyID;
  70.     //create the default option of the select element
  71.     var eOption = document.createElement("option");
  72.     eOption.text = "Select";
  73.     eOption.value = "";
  74.     eSelect.appendChild(eOption);
  75.     if (params.colDef.field == "CompanyName") {
  76.         CompanyName = $scope.CompanyList;
  77.         var companyid = params.data.CompanyID;
  78.         var eOptionVal = document.createElement("option");
  79.         //Statical set data in grid ComboBox
  80.         eOptionVal.text = "Angra";
  81.         eOptionVal.value = 1;
  82.         eSelect.appendChild(eOptionVal);
  83.         var eOption = document.createElement("option");
  84.         eOption.text = "Navcreation";
  85.         eOption.value = "2";
  86.         eSelect.appendChild(eOption);
  87.     }
  88.     return eSelect;
  89. }
This Is coding part in js file through this I bind my dropdown


If you want to know how to add dropdown dynamically then visit my blog.

Thanks for visiting; please do comment
