JQuery

Last Row Warning Message Issue In Kendo Grid

Introduction

Usually, while using validation in Kendo Grid, you will find some design issues in the Grid when displaying the warning/error message. This blog will tell you how to fix this issue..

Kendo Grid with validation

I will implement the Kendo Grid by referring http://demos.telerik.com/kendo-ui/grid/editing

KendoGrid.html

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.   <meta charset="utf-8">
  5.   <title>Untitled</title>
  6.
  7.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.common.min.css">
  8.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.rtl.min.css">
  9.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.default.min.css">
  10.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.mobile.all.min.css">
  11.
  12.   <script src="http://code.jquery.com/jquery-1.12.3.min.js"></script>
  13.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/angular.min.js"></script>
  14.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/jszip.min.js"></script>
  15.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/kendo.all.min.js"></script></head>
  16. <body>
  17.    <div id="example">
  18.             <div id="grid"></div>
  19.
  20.             <script>
  21.                 $(document).ready(function () {
  22.
  23.
  24.                     var crudServiceBaseUrl = "https://demos.telerik.com/kendo-ui/service",
  25.                         dataSource = new kendo.data.DataSource({
  26.                             transport: {
  27.                                 read:  {
  28.                                     url: crudServiceBaseUrl + "/Products",
  29.                                     dataType: "jsonp"
  30.                                 },
  31.                                 update: {
  32.                                     url: crudServiceBaseUrl + "/Products/Update",
  33.                                     dataType: "jsonp"
  34.                                 },
  35.                                 destroy: {
  36.                                     url: crudServiceBaseUrl + "/Products/Destroy",
  37.                                     dataType: "jsonp"
  38.                                 },
  39.                                 create: {
  40.                                     url: crudServiceBaseUrl + "/Products/Create",
  41.                                     dataType: "jsonp"
  42.                                 },
  43.                                 parameterMap: function(options, operation) {
  44.                                     if (operation !== "read" && options.models) {
  45.                                         return {models: kendo.stringify(options.models)};
  46.                                     }
  47.                                 }
  48.                             },
  49.                             batch: true,
  50.                             pageSize: 20,
  51.                             schema: {
  52.                                 model: {
  53.                                     id: "ProductID",
  54.                                     fields: {
  55.                                         ProductID: { editable: false, nullable: true },
  56.                                         ProductName: { validation: { required: true } },
  57.                                         UnitPrice: { type: "number", validation: { required: true, min: 1} },
  58.                                         Discontinued: { type: "boolean" },
  59.                                         UnitsInStock: { type: "number", validation: { min: 0, required: true } }
  60.                                     }
  61.                                 }
  62.                             }
  63.                         });
  64.
  65.                     $("#grid").kendoGrid({
  66.                         dataSource: dataSource,
  67.                         navigatable: true,
  68.                         pageable: true,
  69.                         height: 550,
  70.                         toolbar: ["create", "save", "cancel"],
  71.                         columns: [
  72.                             "ProductName",
  73.                             { field: "UnitPrice", title: "Unit Price", format: "{0:c}", width: 120 },
  74.                             { field: "UnitsInStock", title: "Units In Stock", width: 120 },
  75.                             { field: "Discontinued", width: 120 },
  76.                             { command: "destroy", title: " ", width: 150 }],
  77.                         editable: true
  78.                     });
  79.                 });
  80.             </script>
  81.         </div>
  82. </body>
  83. </html>

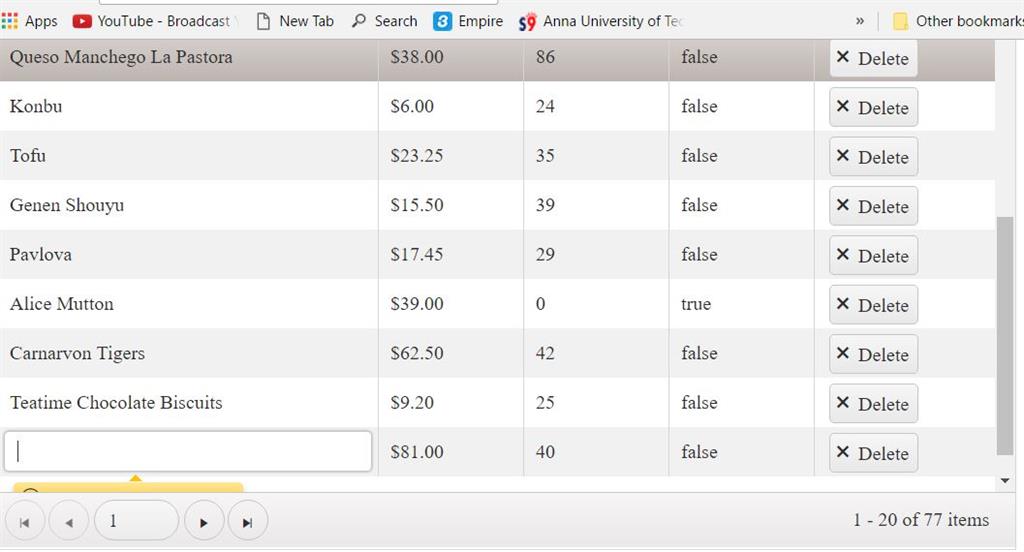

Result in browser


From the above figure, you can notice there is a break in error message. In the last row of Grid, the user needs to scroll down manually to check the error message. This is somewhat odd from a user's perspective. Let’s see how to fix it with simple logic which is written in the below function.
  1.          $(function () {
  2.     var grid = $("#grid").data("kendoGrid");
  3.
  4.     grid.table.on("focusout", ".k-invalid", function () {
  5.         var content = grid.content;
  6.         var height = content.height();
  7.         var cell = $(this).closest("td");
  8.         var message = cell.find(".k-invalid-msg");
  9.         var callout = message.find(".k-callout");
  10.         var position = message.position();
  11.         var top = position.top + callout.outerHeight() + message.outerHeight();
  12.         if (top > height) {
  13.             content.scrollTop(content.scrollTop() + top - height);
  14.         }
  15.     });
  16. });
Complete code
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.   <meta charset="utf-8">
  5.   <title>Untitled</title>
  6.
  7.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.common.min.css">
  8.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.rtl.min.css">
  9.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.default.min.css">
  10.   <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.mobile.all.min.css">
  11.
  12.   <script src="http://code.jquery.com/jquery-1.12.3.min.js"></script>
  13.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/angular.min.js"></script>
  14.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/jszip.min.js"></script>
  15.   <script src="http://kendo.cdn.telerik.com/2017.1.118/js/kendo.all.min.js"></script></head>
  16. <body>
  17.    <div id="example">
  18.             <div id="grid"></div>
  19.
  20.             <script>
  21.                 $(document).ready(function () {
  22.
  23.              $(function () {
  24.                 var grid = $("#grid").data("kendoGrid");
  25.
  26.                 grid.table.on("focusout", ".k-invalid", function () {
  27.                 var content = grid.content;
  28.                 var height = content.height();
  29.                 var cell = $(this).closest("td");
  30.                 var message = cell.find(".k-invalid-msg");
  31.                 var callout = message.find(".k-callout");
  32.                 var position = message.position();
  33.                 var top = position.top + callout.outerHeight() + message.outerHeight();
  34.                 if (top > height) {
  35.                 content.scrollTop(content.scrollTop() + top - height);
  36.             }
  37.         });
  38.     });
  39.
  40.                     var crudServiceBaseUrl = "https://demos.telerik.com/kendo-ui/service",
  41.                         dataSource = new kendo.data.DataSource({
  42.                             transport: {
  43.                                 read:  {
  44.                                     url: crudServiceBaseUrl + "/Products",
  45.                                     dataType: "jsonp"
  46.                                 },
  47.                                 update: {
  48.                                     url: crudServiceBaseUrl + "/Products/Update",
  49.                                     dataType: "jsonp"
  50.                                 },
  51.                                 destroy: {
  52.                                     url: crudServiceBaseUrl + "/Products/Destroy",
  53.                                     dataType: "jsonp"
  54.                                 },
  55.                                 create: {
  56.                                     url: crudServiceBaseUrl + "/Products/Create",
  57.                                     dataType: "jsonp"
  58.                                 },
  59.                                 parameterMap: function(options, operation) {
  60.                                     if (operation !== "read" && options.models) {
  61.                                         return {models: kendo.stringify(options.models)};
  62.                                     }
  63.                                 }
  64.                             },
  65.                             batch: true,
  66.                             pageSize: 20,
  67.                             schema: {
  68.                                 model: {
  69.                                     id: "ProductID",
  70.                                     fields: {
  71.                                         ProductID: { editable: false, nullable: true },
  72.                                         ProductName: { validation: { required: true } },
  73.                                         UnitPrice: { type: "number", validation: { required: true, min: 1} },
  74.                                         Discontinued: { type: "boolean" },
  75.                                         UnitsInStock: { type: "number", validation: { min: 0, required: true } }
  76.                                     }
  77.                                 }
  78.                             }
  79.                         });
  80.
  81.                     $("#grid").kendoGrid({
  82.                         dataSource: dataSource,
  83.                         navigatable: true,
  84.                         pageable: true,
  85.                         height: 550,
  86.                         toolbar: ["create", "save", "cancel"],
  87.                         columns: [
  88.                             "ProductName",
  89.                             { field: "UnitPrice", title: "Unit Price", format: "{0:c}", width: 120 },
  90.                             { field: "UnitsInStock", title: "Units In Stock", width: 120 },
  91.                             { field: "Discontinued", width: 120 },
  92.                             { command: "destroy", title: " ", width: 150 }],
  93.                         editable: true
  94.                     });
  95.                 });
  96.             </script>
  97.         </div>
  98. </body>
  99. </html>

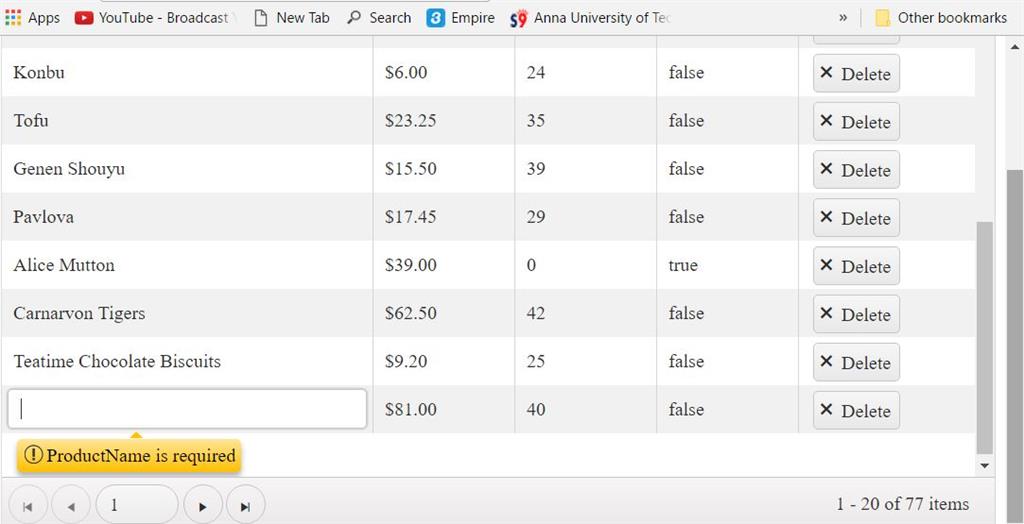

Result in Browser


I hope you have enjoyed this blog. Your valuable feedback, questions, and comments about this blog are always welcome.
