Overview of Panels in WPF

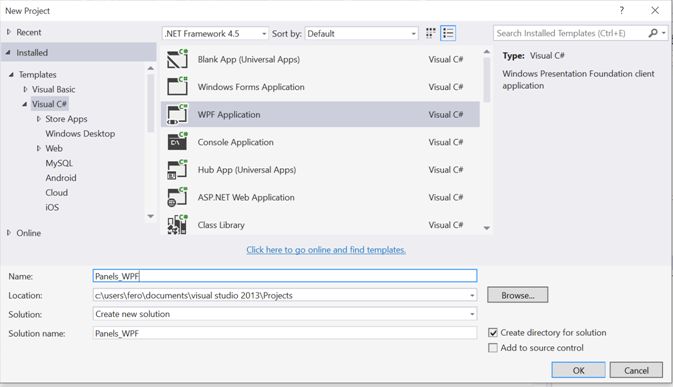

Step 1: Create an empty WPF using Visual Studio, enter the name for the application and click on OK

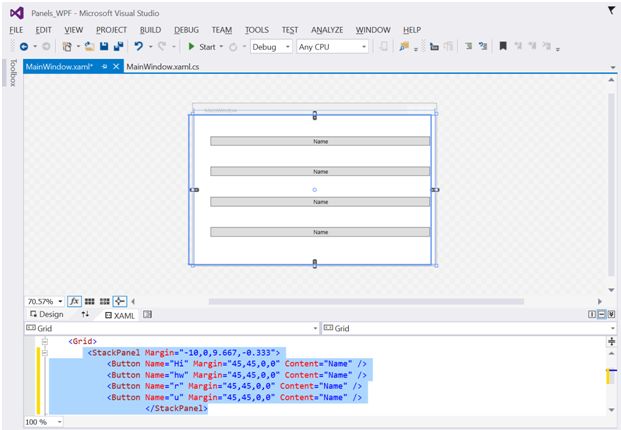

Step 2: Add elements with help of Stackpanel.

Code:

  1. <StackPanel Margin="-10,0,9.667,-0.333">
  2.     <Button Name="Hi" Margin="45,45,0,0" Content="Name" />
  3.     <Button Name="hw" Margin="45,45,0,0" Content="Name" />
  4.     <Button Name="r" Margin="45,45,0,0" Content="Name" />
  5.     <Button Name="u" Margin="45,45,0,0" Content="Name" />
  6. </StackPanel>


Code of Mainwindow.xaml:
  1. <Window x:Class="Panels_WPF.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="MainWindow" Height="350" Width="525">
  2.     <Grid>
  3.         <StackPanel Margin="-10,0,9.667,-0.333">
  4.             <Button Name="Hi" Margin="45,45,0,0" Content="Name" />
  5.             <Button Name="hw" Margin="45,45,0,0" Content="Name" />
  6.             <Button Name="r" Margin="45,45,0,0" Content="Name" />
  7.             <Button Name="u" Margin="45,45,0,0" Content="Name" />
  8.         </StackPanel>
  9.     </Grid>
  10. </Window>
Step 3: Add a new window by right clicking on the solution name and name it as Wrapapnel.xaml for Wrappanel

Code of Wrappanel.xaml:
  1. <Window x:Class="Panels_WPF.Wrappanel" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="Wrappanel" Height="300" Width="300">
  2.     <Grid>
  3.         <WrapPanel>
  4.             <Button Name="Hi" Margin="45,45,0,0" Content="Name" />
  5.             <Button Name="hw" Margin="45,45,0,0" Content="Name" />
  6.             <Button Name="r" Margin="45,45,0,0" Content="Name" />
  7.             <Button Name="u" Margin="45,45,0,0" Content="Name" />
  8.
  9.         </WrapPanel>
  10.
  11.     </Grid>
  12. </Window>

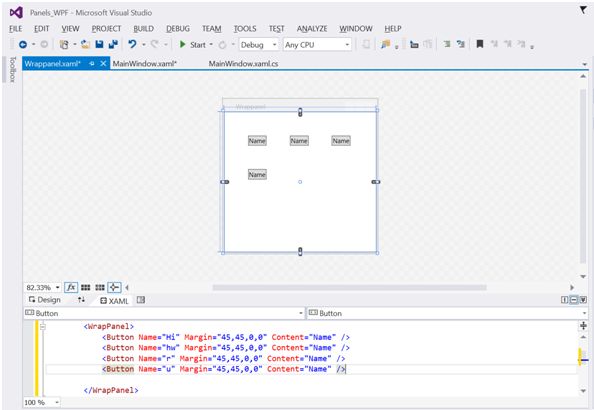

The window will be as such for wrappanel,



Step 4:
Now make the button at Mainwindow.xaml for Wrappanel to open this window using the following code:

Double click on Wrap panel button and write the following code at Mainwindow.xaml.cs
  1. Wrappanel p = newWrappanel();
  2. p.Show();
Code for mainwindow.xaml.cs:

  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.Linq;
  4. usingSystem.Text;
  5. usingSystem.Threading.Tasks;
  6. usingSystem.Windows;
  7. usingSystem.Windows.Controls;
  8. usingSystem.Windows.Data;
  9. usingSystem.Windows.Documents;
  10. usingSystem.Windows.Input;
  11. usingSystem.Windows.Media;
  12. usingSystem.Windows.Media.Imaging;
  13. usingSystem.Windows.Navigation;
  14. usingSystem.Windows.Shapes;
  15. namespacePanels_WPF
  16. {
  17.     ///<summary>
  18.     /// Interaction logic for MainWindow.xaml
  19.     ///</summary>
  20.     publicpartialclassMainWindow: Window
  21.     {
  22.         publicMainWindow()
  23.         {
  24.             InitializeComponent();
  25.         }
  26.         privatevoidHi_Click(object sender, RoutedEventArgs e)
  27.         {
  28.             Wrappanel p = newWrappanel();
  29.             p.Show();
  30.         }
  31.     }
  32. }

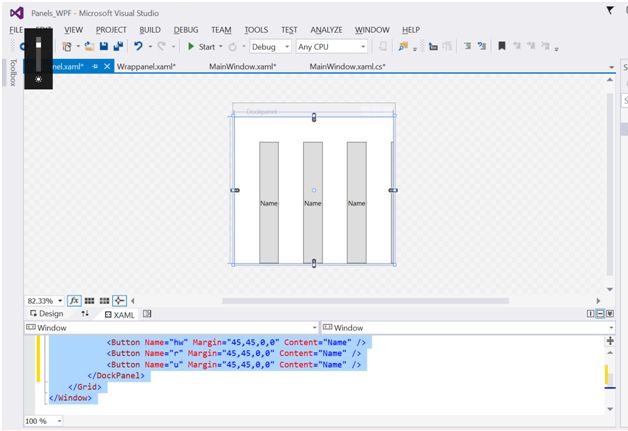

Step 5: Create a new window the same for Dockpanel and place the elements within the grid using. <Dockpanel></DockPanel>.

The code should be as:
  1. <Window x:Class="Panels_WPF.Dockpanel" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="Dockpanel" Height="300" Width="300">
  2.     <Grid>
  3.
  4.         <DockPanel>
  5.             <Button Name="Hi" Margin="45,45,0,0" Content="Name" />
  6.             <Button Name="hw" Margin="45,45,0,0" Content="Name" />
  7.             <Button Name="r" Margin="45,45,0,0" Content="Name" />
  8.             <Button Name="u" Margin="45,45,0,0" Content="Name" />
  9.         </DockPanel>
  10.     </Grid>
  11. </Window>

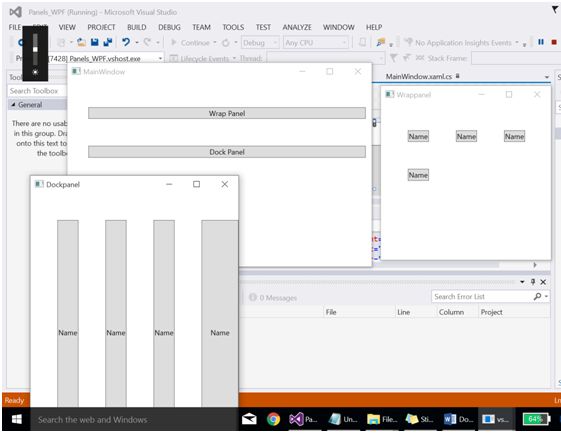

Step 6: Now run the code:
