RFID Programming

Here am shows how to read RFID data and store information in to database

Form1.designer.cs

Code:

  1. namespace AMS
  2. {
  3.     partial class Form1
  4.     {
  5.         /// <summary>
  6.         /// Required designer variable.
  7.         /// </summary>
  8.         private System.ComponentModel.IContainer components = null;
  9.
  10.         /// <summary>
  11.         /// Clean up any resources being used.
  12.         /// </summary>
  13.         /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
  14.         protected override void Dispose(bool disposing)
  15.         {
  16.             if (disposing && (components != null))
  17.             {
  18.                 components.Dispose();
  19.             }
  20.             base.Dispose(disposing);
  21.         }
  22.
  23.         #region Windows Form Designer generated code
  24.
  25.         /// <summary>
  26.         /// Required method for Designer support - do not modify
  27.         /// the contents of this method with the code editor.
  28.         /// </summary>
  29.         private void InitializeComponent()
  30.         {
  31.             this.txttag = new System.Windows.Forms.TextBox();
  32.             this.label1 = new System.Windows.Forms.Label();
  33.             this.label2 = new System.Windows.Forms.Label();
  34.             this.label3 = new System.Windows.Forms.Label();
  35.             this.label4 = new System.Windows.Forms.Label();
  36.             this.label5 = new System.Windows.Forms.Label();
  37.             this.txtstudname = new System.Windows.Forms.TextBox();
  38.             this.txtrollno = new System.Windows.Forms.TextBox();
  39.             this.comboclass = new System.Windows.Forms.ComboBox();
  40.             this.combosec = new System.Windows.Forms.ComboBox();
  41.             this.btnsubmit = new System.Windows.Forms.Button();
  42.             this.btncancel = new System.Windows.Forms.Button();
  43.             this.SuspendLayout();
  44.             //
  45.             // txttag
  46.             //
  47.             this.txttag.Location = new System.Drawing.Point(138, 50);
  48.             this.txttag.Name = "txttag";
  49.             this.txttag.Size = new System.Drawing.Size(100, 20);
  50.             this.txttag.TabIndex = 0;
  51.             //
  52.             // label1
  53.             //
  54.             this.label1.AutoSize = true;
  55.             this.label1.Location = new System.Drawing.Point(60, 50);
  56.             this.label1.Name = "label1";
  57.             this.label1.Size = new System.Drawing.Size(40, 13);
  58.             this.label1.TabIndex = 1;
  59.             this.label1.Text = "Tag ID";
  60.             //
  61.             // label2
  62.             //
  63.             this.label2.AutoSize = true;
  64.             this.label2.Location = new System.Drawing.Point(44, 78);
  65.             this.label2.Name = "label2";
  66.             this.label2.Size = new System.Drawing.Size(75, 13);
  67.             this.label2.TabIndex = 2;
  68.             this.label2.Text = "Student Name";
  69.             //
  70.             // label3
  71.             //
  72.             this.label3.AutoSize = true;
  73.             this.label3.Location = new System.Drawing.Point(60, 108);
  74.             this.label3.Name = "label3";
  75.             this.label3.Size = new System.Drawing.Size(42, 13);
  76.             this.label3.TabIndex = 3;
  77.             this.label3.Text = "Roll No";
  78.             //
  79.             // label4
  80.             //
  81.             this.label4.AutoSize = true;
  82.             this.label4.Location = new System.Drawing.Point(60, 135);
  83.             this.label4.Name = "label4";
  84.             this.label4.Size = new System.Drawing.Size(32, 13);
  85.             this.label4.TabIndex = 4;
  86.             this.label4.Text = "Class";
  87.             //
  88.             // label5
  89.             //
  90.             this.label5.AutoSize = true;
  91.             this.label5.Location = new System.Drawing.Point(57, 163);
  92.             this.label5.Name = "label5";
  93.             this.label5.Size = new System.Drawing.Size(43, 13);
  94.             this.label5.TabIndex = 5;
  95.             this.label5.Text = "Section";
  96.             //
  97.             // txtstudname
  98.             //
  99.             this.txtstudname.Location = new System.Drawing.Point(138, 78);
  100.             this.txtstudname.Name = "txtstudname";
  101.             this.txtstudname.Size = new System.Drawing.Size(100, 20);
  102.             this.txtstudname.TabIndex = 6;
  103.             //
  104.             // txtrollno
  105.             //
  106.             this.txtrollno.Location = new System.Drawing.Point(138, 105);
  107.             this.txtrollno.Name = "txtrollno";
  108.             this.txtrollno.Size = new System.Drawing.Size(100, 20);
  109.             this.txtrollno.TabIndex = 7;
  110.             //
  111.             // comboclass
  112.             //
  113.             this.comboclass.FormattingEnabled = true;
  114.             this.comboclass.Items.AddRange(new object[] {
  115.             "I",
  116.             "II",
  117.             "III",
  118.             "IV",
  119.             "V",
  120.             "VI",
  121.             "VII",
  122.             "VIII",
  123.             "IX",
  124.             "X"});
  125.             this.comboclass.Location = new System.Drawing.Point(138, 132);
  126.             this.comboclass.Name = "comboclass";
  127.             this.comboclass.Size = new System.Drawing.Size(121, 21);
  128.             this.comboclass.TabIndex = 8;
  129.             //
  130.             // combosec
  131.             //
  132.             this.combosec.FormattingEnabled = true;
  133.             this.combosec.Items.AddRange(new object[] {
  134.             "A",
  135.             "B",
  136.             "C",
  137.             "D",
  138.             "E",
  139.             "F",
  140.             "G",
  141.             "H"});
  142.             this.combosec.Location = new System.Drawing.Point(138, 160);
  143.             this.combosec.Name = "combosec";
  144.             this.combosec.Size = new System.Drawing.Size(121, 21);
  145.             this.combosec.TabIndex = 9;
  146.             //
  147.             // btnsubmit
  148.             //
  149.             this.btnsubmit.Location = new System.Drawing.Point(105, 202);
  150.             this.btnsubmit.Name = "btnsubmit";
  151.             this.btnsubmit.Size = new System.Drawing.Size(75, 23);
  152.             this.btnsubmit.TabIndex = 10;
  153.             this.btnsubmit.Text = "Submit";
  154.             this.btnsubmit.UseVisualStyleBackColor = true;
  155.             this.btnsubmit.Click += new System.EventHandler(this.btnsubmit_Click);
  156.             //
  157.             // btncancel
  158.             //
  159.             this.btncancel.Location = new System.Drawing.Point(197, 202);
  160.             this.btncancel.Name = "btncancel";
  161.             this.btncancel.Size = new System.Drawing.Size(75, 23);
  162.             this.btncancel.TabIndex = 11;
  163.             this.btncancel.Text = "Cancel";
  164.             this.btncancel.UseVisualStyleBackColor = true;
  165.             //
  166.             // Form1
  167.             //
  168.             this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
  169.             this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
  170.             this.ClientSize = new System.Drawing.Size(290, 261);
  171.             this.Controls.Add(this.btncancel);
  172.             this.Controls.Add(this.btnsubmit);
  173.             this.Controls.Add(this.combosec);
  174.             this.Controls.Add(this.comboclass);
  175.             this.Controls.Add(this.txtrollno);
  176.             this.Controls.Add(this.txtstudname);
  177.             this.Controls.Add(this.label5);
  178.             this.Controls.Add(this.label4);
  179.             this.Controls.Add(this.label3);
  180.             this.Controls.Add(this.label2);
  181.             this.Controls.Add(this.label1);
  182.             this.Controls.Add(this.txttag);
  183.             this.Name = "Form1";
  184.             this.Text = "Form1";
  185.             this.Load += new System.EventHandler(this.Form1_Load);
  186.             this.ResumeLayout(false);
  187.             this.PerformLayout();
  188.
  189.         }
  190.
  191.         #endregion
  192.
  193.         private System.Windows.Forms.TextBox txttag;
  194.         private System.Windows.Forms.Label label1;
  195.         private System.Windows.Forms.Label label2;
  196.         private System.Windows.Forms.Label label3;
  197.         private System.Windows.Forms.Label label4;
  198.         private System.Windows.Forms.Label label5;
  199.         private System.Windows.Forms.TextBox txtstudname;
  200.         private System.Windows.Forms.TextBox txtrollno;
  201.         private System.Windows.Forms.ComboBox comboclass;
  202.         private System.Windows.Forms.ComboBox combosec;
  203.         private System.Windows.Forms.Button btnsubmit;
  204.         private System.Windows.Forms.Button btncancel;
  205.     }
  206. }

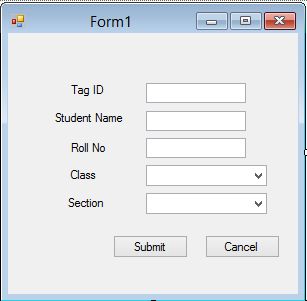

Screen Design:

form 1
Form1.cs

Code:

Adding namespaces for serial port connection.
  1. using System.IO.Ports;
  2. using System.Threading;
  3. using System.Data.Sql;
  4. using System.Data.SqlClient;
Full Code:
  1. using System.IO.Ports;
  2. using System.Threading;
  3. using System.Data.Sql;
  4. using System.Data.SqlClient;
  5.
  6. Full Code:
  7. using System;
  8. using System.Collections.Generic;
  9. using System.ComponentModel;
  10. using System.Data;
  11. using System.Drawing;
  12. using System.Linq;
  13. using System.Text;
  14. using System.Windows.Forms;
  15. using System.IO.Ports;
  16. using System.Threading;
  17. using System.Data.Sql;
  18. using System.Data.SqlClient;
  19. namespace AMS
  20. {
  21.     public partial class Form1 : Form
  22.     {
  23.         string str = "Data Source=.;Initial Catalog=AMS;Integrated Security=True";
  24.         private SerialPort RFID;
  25.         private string DispString;
  26.          public Form1()
  27.         {
  28.             InitializeComponent();
  29.         }
  30.
  31.         private void Form1_Load(object sender, EventArgs e)
  32.         {
  33.
  34.             RFID = new SerialPort();
  35.             RFID.PortName = "COM5";
  36.             RFID.BaudRate = 9600;
  37.             RFID.DataBits = 8;
  38.             RFID.Parity = Parity.None;
  39.             RFID.StopBits = StopBits.One;
  40.             RFID.Open();
  41.             RFID.ReadTimeout = 200;
  42.             if (RFID.IsOpen)
  43.             {
  44.                 DispString = "";
  45.                 txttag.Text = "";
  46.             }
  47.             else
  48.             {
  49.                 RFID.Close();
  50.             }
  51.             RFID.DataReceived += new SerialDataReceivedEventHandler(RFID_DataReceived);
  52.
  53.         }
  54.
  55.         private void button1_Click(object sender, EventArgs e)
  56.         {
  57.
  58.         }
  59.         private void RFID_DataReceived(object sender, SerialDataReceivedEventArgs e)
  60.         {
  61.
  62.             if (txttag.Text.Length >= 12)
  63.             {
  64.                RFID.Close();
  65.
  66.             }
  67.             else
  68.             {
  69.                 DispString = RFID.ReadExisting();
  70.                 this.Invoke(new EventHandler(DisplayText));
  71.             }
  72.
  73.         }
  74.         private void DisplayText(object sender, EventArgs e)
  75.         {
  76.             txttag.AppendText(DispString);
  77.         }
  78.
  79.         private void btnsubmit_Click(object sender, EventArgs e)
  80.         {
  81.             switch (btnsubmit.Text)
  82.             {
  83.                 case "Submit":
  84.                     if (txttag.Text.Length == 0 || txtrollno.Text.Length == 0 || txtstudname.Text.Length == 0)
  85.                     { return; }
  86.                     if (!CheckDuplicateRFID())
  87.                     {
  88.                         MessageBox.Show("Already Saved");
  89.                         txttag.Text = "";
  90.                         return;
  91.                     }
  92.                     break;
  93.             }
  94.             SqlConnection con = new SqlConnection(str);
  95.             con.Open();
  96.             SqlCommand cmd = new SqlCommand("insert into tbl_Studentdet(RFID,Student_Name,RollNo,Class,Section) values (@RFID,@Student_Name,@RollNo,@Class,@Section)", con);
  97.             cmd.Parameters.AddWithValue("@RFID", txttag.Text);
  98.             cmd.Parameters.AddWithValue("@Student_Name", txtstudname.Text);
  99.             cmd.Parameters.AddWithValue("@RollNo", txtrollno.Text);
  100.             cmd.Parameters.AddWithValue("@Section", combosec.SelectedItem.ToString());
  101.             cmd.Parameters.AddWithValue("@Class", comboclass.SelectedItem.ToString());
  102.             cmd.ExecuteNonQuery();
  103.             MessageBox.Show("Student added");
  104.             con.Close();
  105.         }
  106.         private bool CheckDuplicateRFID()
  107.         {
  108.             SqlConnection con = new SqlConnection(str);
  109.             con.Open();
  110.             SqlCommand cmd = new SqlCommand("select * from tbl_Studentdet where RFID='" + txttag.Text + "'", con);
  111.             SqlDataReader rd = cmd.ExecuteReader();
  112.             if (rd.HasRows)
  113.             {
  114.                 rd.Close();
  115.                 return false;
  116.             }
  117.             else
  118.             {
  119.                 rd.Close();
  120.                 return true;
  121.             }
  122.         }
  123.
  124.
  125.     }
  126. }

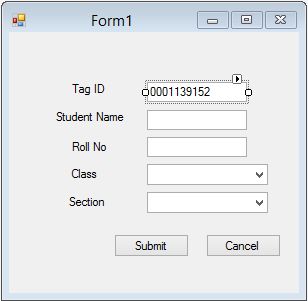

Output(While showing the card In to the RFID reader).

Output

Ebook Download
View all
Learn
View all
