Show Data According to the Columns and Rows Generated at Run Time in C#

I assume everyone knows how to show data in gridview. But here I will explain how the data can be shown according to the columns and rows generated at run time. So let's get started.

First create a table that store the columns of different Gridviews. Here I took one column order for the order of columns in a Gridview and visible column for hide/show.
  1. create table table_column(
  2.    t_id int not null identity(1,1),
  3.    column_name nvarchar(max),
  4.    page_name nvarchar(100),
  5.    orderby int,
  6.    visible int
  7. )
Create another Table that stores employee data.
  1. create table employee(
  2.    eid int not null identity(1,1),
  3.    emp_name nvarchar(max),
  4.    emp_gender nvarchar(50),
  5.    emp_salary float
  6. )
Now insert some employee to employee table.
  1. insert into employee(emp_name,emp_gender,emp_salary)values
  2. ('AbC','Male','1000000'),
  3. ('Xyz','Male','5825600'),
  4. ('Mno','Male','7852300'),
  5. ('Pqr','Male','7458000')
Now insert the columns into the table_column table. This is the record that is used to display data to gridview.
Visible value (1 means show and 0 means hide).
  1. insert into table_column(column_name,page_name,orderby,visible) values
  2. ('emp_name','Employee','1','1'),
  3. ('emp_gender','Employee','3','1'),
  4. ('emp_salary','Employee','2','1'),
  5. ('eid','Employee','4','1')
Now come to aspx page and take a gridview control. Remember autogeneratecolumns property must be true.
Code
  1. DataTable dt2 = new DataTable();
  2. using(SqlCommand cmd2 = new SqlCommand())
  3. {
  4.     cmd2.CommandText = " select column_name,page_name from table_column where visible='1' and                                                                    page_name='Employee' order by orderby ";
  5.     cmd2.Connection = con;
  6.     SqlDataAdapter adp = new SqlDataAdapter(cmd2);
  7.     adp.Fill(dt2);
  8. }
  9. DataTable dt = new DataTable();
  10. using(SqlCommand cmd = new SqlCommand())
  11. {
  12.     cmd.CommandText = "select eid,emp_name,emp_gender,emp_salary from employee";
  13.     cmd.Connection = con;
  14.     SqlDataAdapter da = new SqlDataAdapter(cmd);
  15.     da.Fill(dt);
  16. }
  17. DataTable dta = new DataTable();
  18. if (dt.Rows.Count > 0)
  19. {
  20.     if (dt2.Rows.Count > 0)
  21.     {
  22.         for (int i = 0; i < dt2.Rows.Count; i++)
  23.         {
  24.             string nam = dt2.Rows[i]["column_name"].ToString();
  25.             dta.Columns.Add(nam);
  26.         }
  27.         DataRow dr1 = dta.NewRow();
  28.         for (int j = 0; j < dt.Rows.Count; j++)
  29.         {
  30.             for (int i = 0; i < dt2.Rows.Count; i++)
  31.             {
  32.                 dr1[dt2.Rows[i]["column_name"].ToString()] = dt.Rows[j][dt2.Rows[i]["column_name"].ToString()].ToString();
  33.             }
  34.             dta.Rows.Add(dr1.ItemArray);
  35.         }
  36.         gvaccount.DataSource = dta;
  37.     }
  38.     else
  39.     {
  40.         gvaccount.DataSource = dt;
  41.     }
  42. }
  43. gvaccount.DataBind();
  44. }

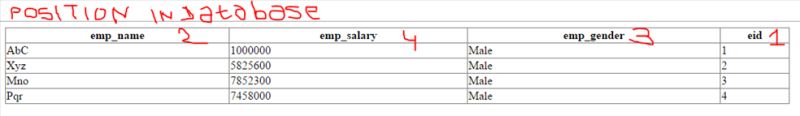

After this Run your project and you see the below output with the column order we define in the database.

  1. update table_Column set visible='0' where column_name='eid'
Now if I update the visibility of the column id to 0 and the resultant output is -
If suppose we did not insert the columns into the table_column table then there is no issue, the default order of columns will display.

Hope this will help you and if you have any questions, please do comment.
