Working With SharePoint And ChartJS

In this article, we will see how we can represent SharePoint data in graphical form.

Let's start.

Create a custom SharePoint list 'TaskDetails' with the below details.

Column NameType
TitleSingle line
statusChoice

Add list items into 'TaskDetails'.

Then add the below HTML elements on the page.
  1. <div>
  2.     <canvas id="AssetStatus" width="500" height="500"></canvas>
  3. </div>
  4. <div id="chartjs-legend" class="noselect" ></div>
Add reference for jQuery and ChartJS plugin.
  1. <script type="text/javascript" src="jquery-1.7.2.min.js"> </script>
  2. <script type="text/javascript" src="Chart.js"></script>
Code for getting SharePoint 'TaskDetails' list data using Rest API.
  1. $.ajax({
  2.     url: "<Add SharePoint Site Url>/_api/Web/Lists/GetByTitle('TaskDetails')/items",
  3.     type: "Get",
  4.     headers: {
  5.         "accept": "application/json;odata=verbose",
  6.     },
  7.     success: function (data) {
  8.         LoadChart(data);
  9.     },
  10.     error: function (err) {
  11.         //show error
  12.     }
  13. });
Convert data into chartJS dataset and load the chart.
  1. var LoadChart = function (data) {
  2.             var items = [];
  3.             var statuses = [];
  4.             var chartData = [];
  5.             var temp = "";
  6.
  7.             //Loop through items to find unique statuses
  8.             for (var i = 0; i < data.d.results.length; i++) {
  9.                 items.push(data.d.results[i]);
  10.                 if (statuses.filter(findStatus(data.d.results[i].status)).length > 0) {
  11.                     continue;
  12.                 }
  13.                 temp = data.d.results[i].status;
  14.                 statuses.push(temp);
  15.             }
  16.
  17.             function findStatus(arg) {
  18.                 return function (items) {
  19.                     return items.indexOf(arg) > -1;
  20.                 }
  21.             }
  22.             var clrs = ["#3e95cd", "#8e5ea2", "#3cba9f", "#e8c3b9", "#c45850"];
  23.             for (var i = 0; i < statuses.length; i++) {
  24.                 var tempCount = items.filter(findStatusInData(statuses[i])).length;
  25.                 var object = {
  26.
  27.                     value: tempCount,
  28.                     color: clrs[i],
  29.                     label: statuses[i]
  30.                 }
  31.                 chartData.push(object);
  32.             }
  33.
  34.             function findStatusInData(arg) {
  35.                 return function (items) {
  36.                     return items.status.indexOf(arg) > -1;
  37.                 }
  38.             }
  39.
  40.             var ctx = document.getElementById('AssetStatus').getContext("2d");
  41.             var chart = new Chart(ctx).Doughnut(chartData, {});
  42.
  43.             document.getElementById("chartjs-legend").innerHTML = chart.generateLegend();
  44.
  45.         }

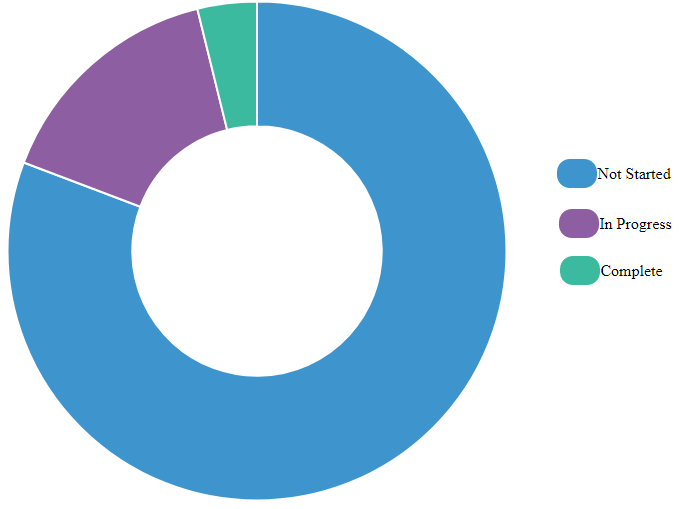

The Output will be as below.

Output

The integrated code will be as below.
  1. <!DOCTYPE html>
  2.
  3. <html lang="en" xmlns="http://www.w3.org/1999/xhtml">
  4. <head>
  5.     <script type="text/javascript" src="jquery-1.7.2.min.js"> </script>
  6.     <script type="text/javascript" src="Chart.js"></script>
  7.     <script type="text/javascript" >
  8.
  9.         $.ajax({
  10.             url: "<Add SharePoint Site Url>/_api/Web/Lists/GetByTitle('TaskDetails')/items",
  11.             type: "Get",
  12.             headers: {
  13.                 "accept": "application/json;odata=verbose",
  14.             },
  15.             success: function (data) {
  16.                 LoadChart(data);
  17.             },
  18.             error: function (err) {
  19.                 //show error
  20.             }
  21.         });
  22.
  23.         var LoadChart = function (data) {
  24.             var items = [];
  25.             var statuses = [];
  26.             var chartData = [];
  27.             var temp = "";
  28.
  29.             //Loop through items to find unique statuses
  30.             for (var i = 0; i < data.d.results.length; i++) {
  31.                 items.push(data.d.results[i]);
  32.                 if (statuses.filter(findStatus(data.d.results[i].status)).length > 0) {
  33.                     continue;
  34.                 }
  35.                 temp = data.d.results[i].status;
  36.                 statuses.push(temp);
  37.             }
  38.
  39.             function findStatus(arg) {
  40.                 return function (items) {
  41.                     return items.indexOf(arg) > -1;
  42.                 }
  43.             }
  44.             var clrs = ["#3e95cd", "#8e5ea2", "#3cba9f", "#e8c3b9", "#c45850"];
  45.             for (var i = 0; i < statuses.length; i++) {
  46.                 var tempCount = items.filter(findStatusInData(statuses[i])).length;
  47.                 var object = {
  48.
  49.                     value: tempCount,
  50.                     color: clrs[i],
  51.                     label: statuses[i]
  52.                 }
  53.                 chartData.push(object);
  54.             }
  55.
  56.             function findStatusInData(arg) {
  57.                 return function (items) {
  58.                     return items.status.indexOf(arg) > -1;
  59.                 }
  60.             }
  61.
  62.             var ctx = document.getElementById('AssetStatus').getContext("2d");
  63.             var chart = new Chart(ctx).Doughnut(chartData, {});
  64.
  65.             document.getElementById("chartjs-legend").innerHTML = chart.generateLegend();
  66.
  67.         }
  68.
  69.     </script>
  70.      <style type="text/css">
  71.        ol,
  72.        ul {
  73.            list-style: none;
  74.            margin: 0;
  75.            padding: 0;
  76.            text-align: center;
  77.        }
  78.
  79.        li {
  80.            display: inline-table;
  81.        }
  82.        .noselect {
  83.            -webkit-touch-callout: none;
  84.            -webkit-user-select: none;
  85.            -khtml-user-select: none;
  86.            -moz-user-select: none;
  87.            -ms-user-select: none;
  88.            user-select: none;
  89.        }
  90.        #chartjs-legend {
  91.            position: absolute;
  92.            width: 100%;
  93.            bottom: 10%;
  94.        }
  95.
  96.            #chartjs-legend li {
  97.                cursor: pointer;
  98.                margin: 10px 4px;
  99.            }
  100.
  101.                #chartjs-legend li span {
  102.                    position: relative;
  103.                    padding: 6px 20px;
  104.                    border-radius: 13px;
  105.                    color: white;
  106.                    z-index: 2;
  107.                }
  108.    </style>
  109.     <meta charset="utf-8" />
  110.     <title></title>
  111. </head>
  112. <body>
  113.     <div>
  114.         <canvas id="AssetStatus" width="500" height="500"></canvas>
  115.     </div>
  116.     <div id="chartjs-legend" class="noselect" ></div>
  117. </body>
  118. </html>
Refer to the attached resources for more.
