WPF Required Field Validation

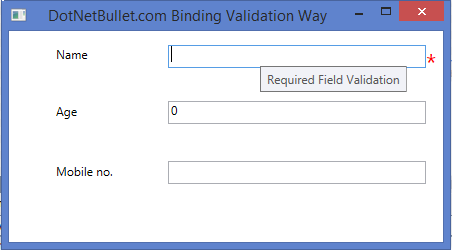

In this blog I will show you how can we apply validation in WPF as displayed in below screenshot:

validation

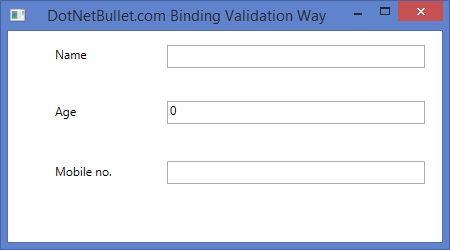

Step 1: Design a keying screen like the image being displayed below,

Design 1

Step 2: Add a class User.cs,

  1. namespace DotnetBullet.WPFValidationWay1
  2. {
  3.     public class User
  4.     {
  5.         #region Variables
  6.         string _userName = string.Empty;
  7.         int _age;
  8.         string _mobileNo = string.Empty;
  9.         #endregion
  10.
  11.         #region Properties
  12.         /// <summary>
  13.         /// Gets or sets the name of the user.
  14.         /// </summary>
  15.         /// <value>
  16.         /// The name of the user.
  17.         /// </value>
  18.         public string UserName
  19.         {
  20.             get
  21.             {
  22.                 return _userName;
  23.             }
  24.             set
  25.             {
  26.                 _userName = value;
  27.             }
  28.         }
  29.
  30.         /// <summary>
  31.         /// Gets or sets the age.
  32.         /// </summary>
  33.         /// <value>
  34.         /// The age.
  35.         /// </value>
  36.         public int Age
  37.         {
  38.             get
  39.             {
  40.                 return _age;
  41.             }
  42.             set
  43.             {
  44.                 _age = value;
  45.             }
  46.         }
  47.
  48.         /// <summary>
  49.         /// Gets or sets the mobile no.
  50.         /// </summary>
  51.         /// <value>
  52.         /// The mobile no.
  53.         /// </value>
  54.         public string MobileNo
  55.         {
  56.             get
  57.             {
  58.                 return _mobileNo;
  59.             }
  60.             set
  61.             {
  62.                 _mobileNo = value;
  63.             }
  64.         }
  65.         #endregion
  66.     }
  67. }
Step 3: Add a class RequiredFiedValidationRule.cs for Required Field Validation,
  1. using System.Globalization;
  2. using System.Windows.Controls;
  3.
  4. namespace DotnetBullet.WPFValidationWay1
  5. {
  6.     class RequiredFiedValidationRule : ValidationRule
  7.     {
  8.         public RequiredFiedValidationRule()
  9.         {
  10.
  11.         }
  12.         public override ValidationResult Validate(object value, CultureInfo cultureInfo)
  13.         {
  14.             if (value.ToString().Length > 0)
  15.             {
  16.                 return new ValidationResult(truenull);
  17.             }
  18.             else
  19.             {
  20.                 return new ValidationResult(false"Required Field Validation");
  21.             }
  22.         }
  23.     }
  24. }
Step 4: Add Control Template like this:
  1. <ControlTemplate x:Key="validationTemplate">
  2.             <DockPanel>
  3.                 <TextBlock Foreground="Red" FontSize="25" Text="*" DockPanel.Dock="Right"
  4.                   </TextBlock>
  5.                 <AdornedElementPlaceholder/>
  6.             </DockPanel>
  7. </ControlTemplate>
Step 5: Add Style,
  1. <Style x:Key="InputControlErrors" TargetType="{x:Type TextBox}">
  2.             <Style.Triggers>
  3.                 <Trigger Property="Validation.HasError" Value="true">
  4.                     <Setter Property="ToolTip"
  5.               Value="{Binding RelativeSource={x:Static RelativeSource.Self},
  6.                               Path=(Validation.Errors)[0].ErrorContent}"/>
  7.                 </Trigger>
  8.             </Style.Triggers>
  9.         </Style>
Step 6: Modify textbox XAML,
  1. <TextBox HorizontalAlignment="Left" Height="23" Margin="159,14,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="258"
  2.                  Validation.ErrorTemplate="{StaticResource validationTemplate}" Style="{StaticResource InputControlErrors}"
  3.                  Name="txtName">
  4.             <TextBox.Text>
  5.                 <Binding Path="UserName" Source="{StaticResource user}" UpdateSourceTrigger="PropertyChanged">
  6.                     <Binding.ValidationRules>
  7.                         <c:RequiredFiedValidationRule></c:RequiredFiedValidationRule>
  8.                     </Binding.ValidationRules>
  9.                 </Binding>
  10.             </TextBox.Text>
  11.
  12.         </TextBox>
Repeat the same for all the 3 controls.

The complete XAML code for UI is as follows:
  1. <Window x:Class="DotnetBullet.WPFValidationWay1.MainWindow"
  2.         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.         xmlns:c="clr-namespace:DotnetBullet.WPFValidationWay1"
  5.         Title="DotNetBullet.com Binding Validation Way" Height="250" Width="450">
  6.
  7.     <Window.Resources>
  8.         <c:User x:Key="user"/>
  9.         <ControlTemplate x:Key="validationTemplate">
  10.             <DockPanel>
  11.                 <TextBlock Foreground="Red" FontSize="25" Text="*" DockPanel.Dock="Right"></TextBlock>
  12.                 <AdornedElementPlaceholder/>
  13.             </DockPanel>
  14.         </ControlTemplate>
  15.
  16.         <Style x:Key="InputControlErrors" TargetType="{x:Type TextBox}">
  17.             <Style.Triggers>
  18.                 <Trigger Property="Validation.HasError" Value="true">
  19.                     <Setter Property="ToolTip"
  20.               Value="{Binding RelativeSource={x:Static RelativeSource.Self},
  21.                               Path=(Validation.Errors)[0].ErrorContent}"/>
  22.                 </Trigger>
  23.             </Style.Triggers>
  24.         </Style>
  25.     </Window.Resources>
  26.
  27.     <Grid Margin="0,0,0,5">
  28.         <Label Content="Name" HorizontalAlignment="Left" Margin="42,10,0,0" VerticalAlignment="Top"/>
  29.         <Label Content="Age" HorizontalAlignment="Left" Margin="42,67,0,0" VerticalAlignment="Top"/>
  30.         <Label Content="Mobile no." HorizontalAlignment="Left" Margin="42,127,0,0" VerticalAlignment="Top"/>
  31.
  32.         <TextBox HorizontalAlignment="Left" Height="23" Margin="159,14,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="258"
  33.                  Validation.ErrorTemplate="{StaticResource validationTemplate}" Style="{StaticResource InputControlErrors}"
  34.                  Name="txtName">
  35.             <TextBox.Text>
  36.                 <Binding Path="UserName" Source="{StaticResource user}" UpdateSourceTrigger="PropertyChanged">
  37.                     <Binding.ValidationRules>
  38.                         <c:RequiredFiedValidationRule></c:RequiredFiedValidationRule>
  39.                     </Binding.ValidationRules>
  40.                 </Binding>
  41.             </TextBox.Text>
  42.
  43.         </TextBox>
  44.
  45.         <TextBox HorizontalAlignment="Left" Height="23" Margin="159,70,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="258"
  46.                  Validation.ErrorTemplate="{StaticResource validationTemplate}" Style="{StaticResource InputControlErrors}"
  47.                  Name="txtAge">
  48.             <TextBox.Text>
  49.                 <Binding Path="Age" Source="{StaticResource user}" UpdateSourceTrigger="PropertyChanged">
  50.                     <Binding.ValidationRules>
  51.                         <c:RequiredFiedValidationRule></c:RequiredFiedValidationRule>
  52.                     </Binding.ValidationRules>
  53.                 </Binding>
  54.             </TextBox.Text>
  55.         </TextBox>
  56.
  57.         <TextBox HorizontalAlignment="Left" Height="23" Margin="159,130,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="258"
  58.                  Validation.ErrorTemplate="{StaticResource validationTemplate}" Style="{StaticResource InputControlErrors}"
  59.                  Name="txtMobileNo">
  60.             <TextBox.Text>
  61.                 <Binding Path="MobileNo" Source="{StaticResource user}" UpdateSourceTrigger="PropertyChanged">
  62.                     <Binding.ValidationRules>
  63.                         <c:RequiredFiedValidationRule></c:RequiredFiedValidationRule>
  64.                     </Binding.ValidationRules>
  65.                 </Binding>
  66.             </TextBox.Text>
  67.
  68.         </TextBox>
  69.
  70.     </Grid>
  71. </Window>
If you face any issue regarding this code please feel free to ask me.
