Building a web based C# compiler using ASP.NET and TDD




Introduction

This tutorial is an introduction to Test Driven Development (TDD) in Visual Studio 2010 (VS2010) with C# 4 and ASP.NET 4. This will focus on as using the tool and coding as much as possible and not a great deal of words so enjoy the ride.

We are covering some material that was presented in my earlier tutorial http://domscode.com/2010/05/21/net-tutorial-c4-0-and-test-driven-development-cannonattack/  so if you haven't used VS2010 and TDD have a look.

The WebSharpCompiler Requirements/Specs:

The following is a combination of requirements and specifications that will give us an idea of what we are trying to build:

  1. ASP.NET Application;
  2. Textbox will contain code to compile
  3. Empty Textbox is not allowed to be compiled
  4. A Compile button will trigger compile
  5. A Clear button will clear the textbox
  6. When [Compile] is clicked, text from textbox will be compiled using a C# compiler and messages from compile displayed in a Listbox

Iteration 1

We are going to setup the project and build our first test.

Iteration 1 - Creating the Solution and our first test

  • Start Visual Studio
  • Click the File menu
  • Click New Project...

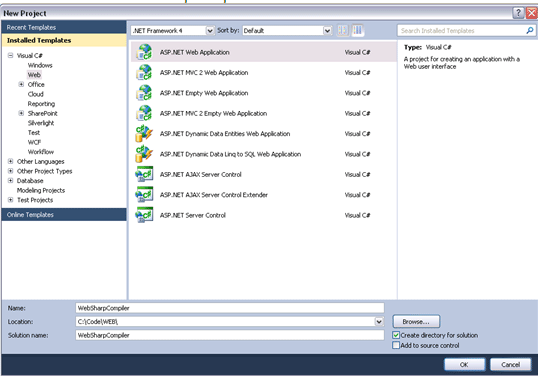

  • Click Web
  • Select ASP.NET Web Application
  • Name it WebSharpCompiler

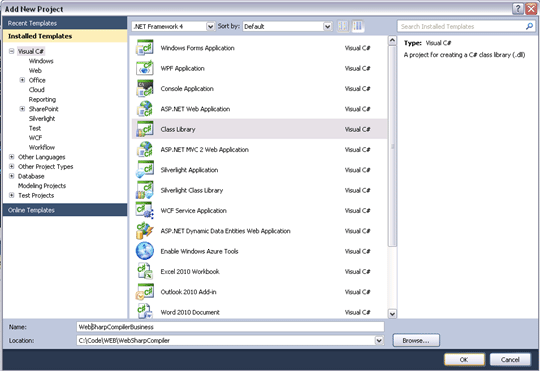

  • Now add a Class library project (right click on the solution and select ADD->New Project) as below, call it WebSharpCompilerBusiness:

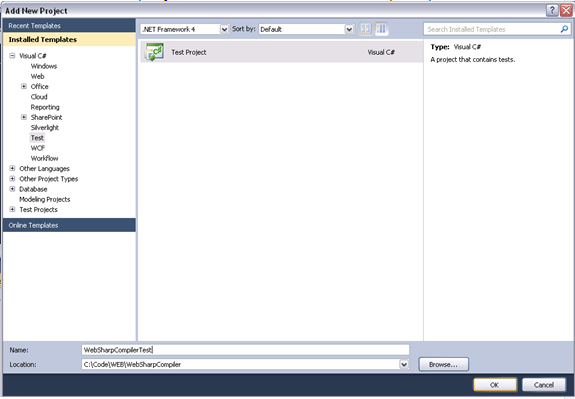

  • Now add a test project as below, call it WebSharpCompilerTest

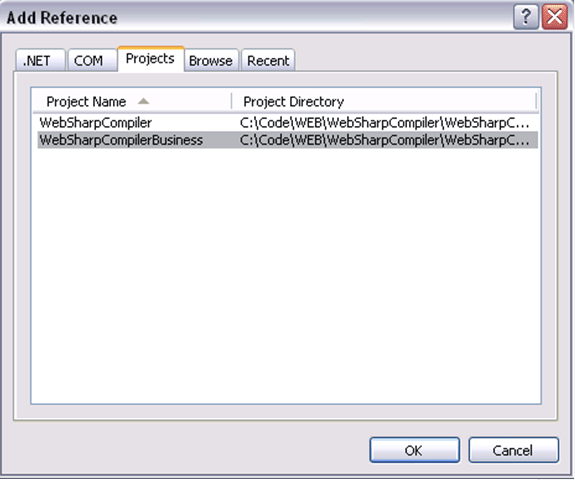

  • Add a reference to the WebSharpCompilerBusiness class library project from the WebSharpCompilerTest project (click on References in WebSharpCompilerTest and select ADD Reference...)


  • Also add a reference from the WebSharpCompiler web project to the WebSharpCompilerBusiness(we need this when we create the web page later on).
  • In WebSharpCompilerTest rename the file UnitTest1.cs to WebSharpCompilerTest.cs.

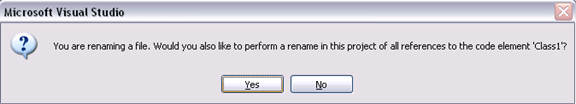

  • Rename Class1 in WebSharpCompilerBusiness to WebSharpCompiler - if you see the following message for either rename actions:


  • Click Yes
  • Right click on the WebSharpCompilerTest and select Set as Startup Project.

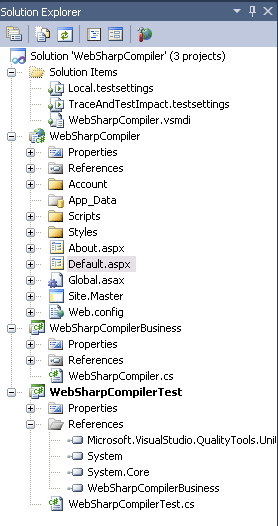

  • Solution should now look like


  • We need to add our first test so double click on WebSharpCompilerTest.cs.
  • Add the following at the top of the file :

    Using WebSharpCompilerBusiness ;

  • Replace existing TestMethod1 with the following code:

    [TestMethod]
    public void TestCompilerNotNull()
    {    WebSharpCompiler compiler = new WebSharpCompiler();
        Assert.IsNotNull(compiler.Compile(""));
    }


  • As you can see we call Compile but it doesn't exist so lets add a new method
  • Right click on the Compile text and select Generate -> Method Stub
  • If we look at the generated code in WebCompilerTest.cs we see:

    public object Compile(string p)
    {
        List<string> messages = new List<string>();
        if (string.IsNullOrEmpty(p))

        {
            messages.Add("program text cannot be null or empty");
        }

        return messages;
    }


  • Now if we try to run the test [CTRL-F5} we should see


  • So that's RED in our good old Red Green Refactor process. Now its time to fix this method as follows:

    public object Compile(string p)
    {
        List<string> messages = new List<string>();
        if (string.IsNullOrEmpty(p))
        {
            messages.Add("program text cannot be null or empty");
        }
        return messages;
    }

  • If we run the test now we find...


  • OK so that's the green we wanted, so now time to refactor. So we'll clean up the usings, rename the parameter and replace the return type with a more specific type as follows:

    public List<string> Compile(string programText)
    {
        List<string> messages = new List<string>();
        if (String.IsNullOrEmpty(programText))
        {
            messages.Add("program text cannot be null or                        empty");
        }
        CompilerResults compilerResults = ProcessCompilation(programText);
        foreach (CompilerError error in compilerResults.Errors)
        {
            messages.Add(String.Format("Line {0} Error No:{1} -       {2}", error.Line, error.ErrorNumber, error.ErrorText));
        }

        return messages;
    }

Just remember you can use some cool VS2010 features to make these changes including:

  • Right click on the code window and click organize usings->Remove and Sort
  • Right click on a variable and click refactor->Rename

Iteration 2

  • Lets add another test

    [TestMethod]
      public void TestCompilerSingleError()
      {
          WebSharpCompiler compiler = new WebSharpCompiler();
          string programText= @"
              using **** System;
              namespace HelloWorld
              {
                  class HelloWorldClass
                  {
                      static void Main(string[] args)
                      {
                          Console.ReadLine();
                      }
                  }
              }";
          List<string> compilerErrors = compiler.Compile(programText);
          Assert.AreEqual(compilerErrors.Count, 1);
      }


  • We run the tests and find it fails so lets add the code needed to make it pass:

    namespace WebSharpCompilerBusiness
    {
        public class WebSharpCompiler
        {
            public object Compile(string p)
            {
                List<string> messages = new List<string>();
                 if (string.IsNullOrEmpty(p))
                {
                    messages.Add("program text cannot be null or empty");
                }
                 messages.Add("program contains 1 error");
                return messages;
            }
        }
    }


  • Now when we run the tests we see that they work
  • Of course its time to refactor so lets do it properly as follows:

    using System;
    using System.CodeDom.Compiler;
    using System.Collections.Generic;
    namespace WebSharpCompilerBusiness
    {
        public class WebSharpCompiler
        {
            public List<string> Compile(string programText)
            {
                List<string> messages = new List<string>();
                if (String.IsNullOrEmpty(programText))
                {
                    messages.Add("program text cannot be null or empty");
                }
                CompilerResults compilerResults = ProcessCompilation(programText);
                foreach (CompilerError error in compilerResults.Errors)
                {
                    messages.Add(String.Format("Line {0} Error No:{1} -  {2}", error.Line, error.ErrorNumber, error.ErrorText));
                }

                return messages;
            }

             public CompilerResults ProcessCompilation(string programText)
            {
                CodeDomProvider codeDomProvider = CodeDomProvider.CreateProvider("CSharp");
                System.CodeDom.Compiler.CompilerParameters parameters = new CompilerParameters();
                parameters.GenerateExecutable = false;
                System.Collections.Specialized.StringCollection assemblies = new System.Collections.Specialized.StringCollection();
                return codeDomProvider.CompileAssemblyFromSource(parameters, programText);
            }
        }
    }

    So that's almost the end of the 2nd iteration

    It is worthwhile adding some more tests at this time although I wont walk through the process anymore but I'll show you the tests we added:

    [TestMethod]

    public void TestCompilerFiveErrors()

        WebSharpCompiler compiler = new WebSharpCompiler();

        string programText = @"

            using **** System;

            namesp8ce HelloWorld

            {
                clas HelloWorldClass
                {
                    static void Main(string[] args)

                    {
                        Console.ReadLine();

                    }

                }";
        List<string> compilerErrors = compiler.Compile(programText);

        Assert.AreEqual(compilerErrors.Count, 5);

    [TestMethod]

    public void TestCompilerSuccessfulCompilation()

        WebSharpCompiler compiler = new WebSharpCompiler();
        string programText = @"

            using System;

            namespace HelloWorld

            {
                class HelloWorldClass
                        {
                     static void Main(string[] args)
                     {
                         Console.ReadLine();
                     }
                 }

             }";
         List<string> compilerErrors = compiler.Compile((programText));
         Assert.AreEqual(compilerErrors.Count, 0);
     }

3rd Iteration

The third iteration of work is to complete the web site and given that the UI is very simple this won't take very long.

  • Now creating the website is very simple, first right click on the Web Application project and select Set as startup project.

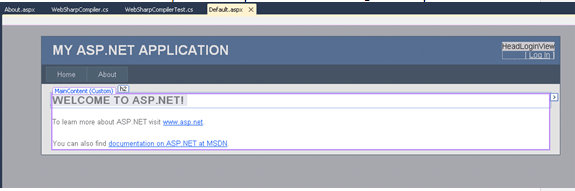

  • Now click on default.aspx and if you click on design view you will see:


  • Lets make all the changes to the markup we need and our markup of default.aspx should look like:

    <%@ Page Title="Home Page" Language="C#" MasterPageFile="~/Site.master" AutoEventWireup="true"
        CodeBehind="Default.aspx.cs" Inherits="WebSharpCompiler._Default" %>
    <asp:Content ID="HeaderContent" runat="server" ContentPlaceHolderID="HeadContent">
    </asp:Content>
    <asp:Content ID="BodyContent" runat="server" ContentPlaceHolderID="MainContent">
        <h2>Code</h2>
        <p>

            <asp:TextBox ID="txtCode" runat="server" Height="240px" Width="100%"
                TextMode="MultiLine">
    using System;
    namespace ConsoleApplication1
    {
        class Program
        {
            static void Main(string[] args)
            {
                Console.WriteLine(&quot;Hello World&quot;);
            }
        }
    }
    </asp:TextBox>
        </p>
        <p>
            <asp:Button ID="btnCompile" runat="server" onclick="btnCompile_Click" Text="Compile" />
            <asp:Button ID="btnClear" runat="server"  onclick="btnClear_Click" Text="Clear" />
        </p>
        <h2>Compiler Output</h2>
        <p>
            <asp:ListBox ID="lstCompilerOutput" runat="server" Width="100%"></asp:ListBox>
        </p>
    </asp:Content
    >

  • And if we now go to the default.aspx.cs and replace with

    using System;
    using System.Collections.Generic;

    namespace
     WebSharpCompiler
    {
        public partial class _Default : System.Web.UI.Page
        {
            protected void btnCompile_Click(object sender, EventArgs e)
            {
                lstCompilerOutput.Items.Clear();
                WebSharpCompilerBusiness.WebSharpCompiler compiler = new
                WebSharpCompilerBusiness.WebSharpCompiler();
                List<string> compilerErrors = compiler.Compile(txtCode.Text);

                if (compilerErrors.Count == 0)
                {
                    lstCompilerOutput.Items.Add("No Errors");
                }

                foreach (string error in compilerErrors)
                {
                    lstCompilerOutput.Items.Add(error);
                }
            }

             protected void btnClear_Click(object sender, EventArgs e)
            {
                txtCode.Text = string.Empty;
            }
        }
    }

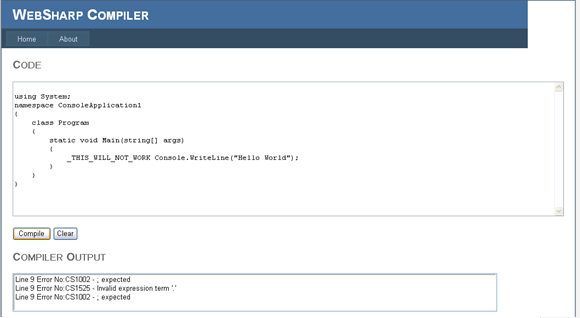

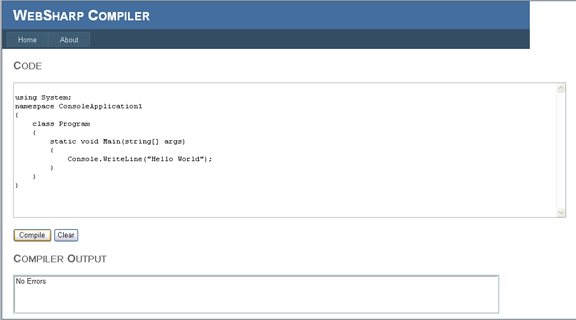

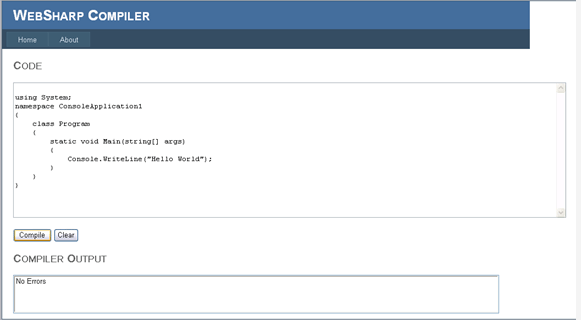

  • You can also make some changes to the master file if you wish and you should see something like this:


Or


In Conclusion

So there we have our C# compiler. Source code link is below and feel free to drop me a line here if you have any thoughts/advice on this.

All the best

Dom.

References

http://msdn.microsoft.com/en-us/library/system.codedom.compiler.codedomprovider.aspx
