ASP.NET

Bind GridView Using Dataset in ASP.Net

In my previous tutorials I have bound the data using a datatable, but here we will use a dataset. It is easy to use but for some reason I thought that this will be beneficial for .NET beginners who have no idea about dataset and datatable.

Initial Chamber

Step 1

Open your Visual Studio 2010 and create an Empty Website, provide a suitable name (gridview_demo).

Step 2

In Solution Explorer you get your empty website, then add a web form and a SQL Server database as in the following.

For Web Form:

gridview_demo (your empty website) then right-click then select Add New Item -> Web Form. Name it gridview_demo.aspx.

For SQL Server Database

gridview_demo (your empty website) then right-click then select Add New Item -> SQL Server Database. (Add a database inside the App_Data_folder.)

DATABASE CHAMBER

Step 3

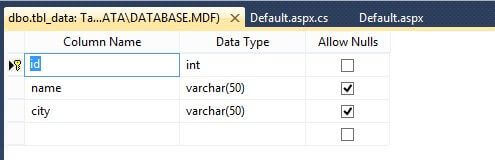

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this.

Table tbl_data (Don't Forget to make ID as IS Identity -- True)

Table

Design Chamber

Step 4

Now open the gridview_demo.aspx file where we will create our design for binding a GridView using a dataset.

Gridview_demo.aspx:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default2.aspx.cs" Inherits="Default2" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <table style="width:100%;">
  12.         <tr>
  13.             <td>
  14.                  </td>
  15.             <td>
  16.                  </td>
  17.             <td>
  18.                  </td>
  19.         </tr>
  20.         <tr>
  21.             <td>
  22.                 <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
  23.                     BackColor="White" BorderColor="#3366CC" BorderStyle="None" BorderWidth="1px"
  24.                     CellPadding="4" DataKeyNames="id">
  25.                     <Columns>
  26.                         <asp:TemplateField HeaderText="Name">
  27.                             <EditItemTemplate>
  28.                                 <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("name") %>'></asp:TextBox>
  29.                             </EditItemTemplate>
  30.                             <ItemTemplate>
  31.                                 <asp:Label ID="Label1" runat="server" Text='<%# Bind("name") %>'></asp:Label>
  32.                             </ItemTemplate>
  33.                         </asp:TemplateField>
  34.                         <asp:TemplateField HeaderText="City">
  35.                             <EditItemTemplate>
  36.                                 <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
  37.                             </EditItemTemplate>
  38.                             <ItemTemplate>
  39.                                 <asp:Label ID="Label2" runat="server" Text='<%# Bind("city") %>'></asp:Label>
  40.                             </ItemTemplate>
  41.                         </asp:TemplateField>
  42.                     </Columns>
  43.                     <FooterStyle BackColor="#99CCCC" ForeColor="#003399" />
  44.                     <HeaderStyle BackColor="#003399" Font-Bold="True" ForeColor="#CCCCFF" />
  45.                     <PagerStyle BackColor="#99CCCC" ForeColor="#003399" HorizontalAlign="Left" />
  46.                     <RowStyle BackColor="White" ForeColor="#003399" />
  47.                     <SelectedRowStyle BackColor="#009999" Font-Bold="True" ForeColor="#CCFF99" />
  48.                     <SortedAscendingCellStyle BackColor="#EDF6F6" />
  49.                     <SortedAscendingHeaderStyle BackColor="#0D4AC4" />
  50.                     <SortedDescendingCellStyle BackColor="#D6DFDF" />
  51.                     <SortedDescendingHeaderStyle BackColor="#002876" />
  52.                 </asp:GridView>
  53.             </td>
  54.             <td>
  55.                  </td>
  56.             <td>
  57.                  </td>
  58.         </tr>
  59.         <tr>
  60.             <td>
  61.                  </td>
  62.             <td>
  63.                  </td>
  64.             <td>
  65.                  </td>
  66.         </tr>
  67.     </table>
  68.     <div>
  69.
  70.     </div>
  71.     </form>
  72. </body>
  73. </html>
Your design will look like the following:

Design

Code Chamber

Step 5

Open the gridview_demo.aspx.cs file and write some code so that our application works.

Gridview_demo.cs:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class Default2 : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!Page.IsPostBack)
  15.         {
  16.             refreshdata();
  17.         }
  18.     }
  19.
  20.     public void refreshdata()
  21.     {
  22.         SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  23.         SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  24.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
  25.         DataSet ds = new DataSet();
  26.         sda.Fill(ds);
  27.         GridView1.DataSource = ds;
  28.         GridView1.DataBind();
  29.
  30.
  31.     }
  32.
  33. }

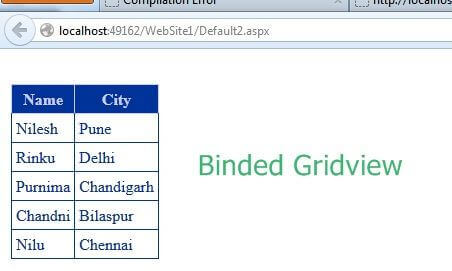

Output Chamber

GridView

I hope you liked it. Thank you for reading, Have a good day.
