Bind ListView Control In ASP.NET using C#

We will bind some data from the database and we are using SQLDataSource.

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty website. Give a suitable name Listview_demo.

Step 2: In Solution Explorer you will get your empty website. Add a web form, SQL Database. By going like the following:

For Web Form:

Listview_demo (Your Empty Website) - Right Click, Add New Item, then Web Form. Name it Listview_demo.aspx.

For SQL Server Database:

Listview_demo (Your Empty Website) - Right Click, Add New Item, then SQL Server Database. Add Database inside the App_Data_folder.

Database chamber

Step 3: Go to your database Database.mdf, we will create a table - tbl_Data. Go to database.mdf - Table and add New table. Design your table like the following:

Table - tbl_data (Don’t forget to make ID, Identity Specification - Yes)

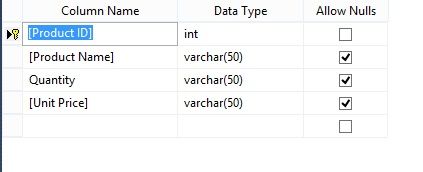

table design

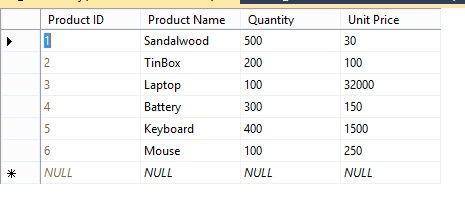

Show Table Data


table

Design chamber

Step 5: Now open your Listview_demo.aspx file, where we create our design for BINDING ListView using SQLDataSource.

ListView_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.
  13.         <asp:ListView ID="ListView1" runat="server" DataKeyNames="Product ID"
  14.             DataSourceID="SqlDataSource1">
  15.             <AlternatingItemTemplate>
  16.                 <li style="">Product ID:
  17.                     <asp:Label ID="Product_IDLabel" runat="server"
  18.                         Text='<%# Eval("[Product ID]") %>' />
  19.                     <br />
  20.                     Product Name:
  21.                     <asp:Label ID="Product_NameLabel" runat="server"
  22.                         Text='<%# Eval("[Product Name]") %>' />
  23.                     <br />
  24.                     Quantity:
  25.                     <asp:Label ID="QuantityLabel" runat="server" Text='<%# Eval("Quantity") %>' />
  26.                     <br />
  27.                     Unit Price:
  28.                     <asp:Label ID="Unit_PriceLabel" runat="server"
  29.                         Text='<%# Eval("[Unit Price]") %>' />
  30.                     <br />
  31.                 </li>
  32.             </AlternatingItemTemplate>
  33.             <EditItemTemplate>
  34.                 <li style="">Product ID:
  35.                     <asp:Label ID="Product_IDLabel1" runat="server"
  36.                         Text='<%# Eval("[Product ID]") %>' />
  37.                     <br />
  38.                     Product Name:
  39.                     <asp:TextBox ID="Product_NameTextBox" runat="server"
  40.                         Text='<%# Bind("[Product Name]") %>' />
  41.                     <br />
  42.                     Quantity:
  43.                     <asp:TextBox ID="QuantityTextBox" runat="server"
  44.                         Text='<%# Bind("Quantity") %>' />
  45.                     <br />
  46.                     Unit Price:
  47.                     <asp:TextBox ID="Unit_PriceTextBox" runat="server"
  48.                         Text='<%# Bind("[Unit Price]") %>' />
  49.                     <br />
  50.                     <asp:Button ID="UpdateButton" runat="server" CommandName="Update"
  51.                         Text="Update" />
  52.                     <asp:Button ID="CancelButton" runat="server" CommandName="Cancel"
  53.                         Text="Cancel" />
  54.                 </li>
  55.             </EditItemTemplate>
  56.             <EmptyDataTemplate>
  57.                 No data was returned.
  58.             </EmptyDataTemplate>
  59.             <InsertItemTemplate>
  60.                 <li style="">Product Name:
  61.                     <asp:TextBox ID="Product_NameTextBox" runat="server"
  62.                         Text='<%# Bind("[Product Name]") %>' />
  63.                     <br />
  64.                     Quantity:
  65.                     <asp:TextBox ID="QuantityTextBox" runat="server"
  66.                         Text='<%# Bind("Quantity") %>' />
  67.                     <br />
  68.                     Unit Price:
  69.                     <asp:TextBox ID="Unit_PriceTextBox" runat="server"
  70.                         Text='<%# Bind("[Unit Price]") %>' />
  71.                     <br />
  72.                     <asp:Button ID="InsertButton" runat="server" CommandName="Insert"
  73.                         Text="Insert" />
  74.                     <asp:Button ID="CancelButton" runat="server" CommandName="Cancel"
  75.                         Text="Clear" />
  76.                 </li>
  77.             </InsertItemTemplate>
  78.             <ItemSeparatorTemplate>
  79.                 <br />
  80.             </ItemSeparatorTemplate>
  81.             <ItemTemplate>
  82.                 <li style="">Product ID:
  83.                     <asp:Label ID="Product_IDLabel" runat="server"
  84.                         Text='<%# Eval("[Product ID]") %>' />
  85.                     <br />
  86.                     Product Name:
  87.                     <asp:Label ID="Product_NameLabel" runat="server"
  88.                         Text='<%# Eval("[Product Name]") %>' />
  89.                     <br />
  90.                     Quantity:
  91.                     <asp:Label ID="QuantityLabel" runat="server" Text='<%# Eval("Quantity") %>' />
  92.                     <br />
  93.                     Unit Price:
  94.                     <asp:Label ID="Unit_PriceLabel" runat="server"
  95.                         Text='<%# Eval("[Unit Price]") %>' />
  96.                     <br />
  97.                 </li>
  98.             </ItemTemplate>
  99.             <LayoutTemplate>
  100.                 <ul ID="itemPlaceholderContainer" runat="server" style="">
  101.                     <li runat="server" id="itemPlaceholder" />
  102.                 </ul>
  103.                 <div style="">
  104.                 </div>
  105.             </LayoutTemplate>
  106.             <SelectedItemTemplate>
  107.                 <li style="">Product ID:
  108.                     <asp:Label ID="Product_IDLabel" runat="server"
  109.                         Text='<%# Eval("[Product ID]") %>' />
  110.                     <br />
  111.                     Product Name:
  112.                     <asp:Label ID="Product_NameLabel" runat="server"
  113.                         Text='<%# Eval("[Product Name]") %>' />
  114.                     <br />
  115.                     Quantity:
  116.                     <asp:Label ID="QuantityLabel" runat="server" Text='<%# Eval("Quantity") %>' />
  117.                     <br />
  118.                     Unit Price:
  119.                     <asp:Label ID="Unit_PriceLabel" runat="server"
  120.                         Text='<%# Eval("[Unit Price]") %>' />
  121.                     <br />
  122.                 </li>
  123.             </SelectedItemTemplate>
  124.         </asp:ListView>
  125.         <asp:SqlDataSource ID="SqlDataSource1" runat="server"
  126.             ConnectionString="<%$ ConnectionStrings:ConnectionString %>"
  127.             SelectCommand="SELECT * FROM [tbl_data]"></asp:SqlDataSource>
  128.
  129.     </div>
  130.     </form>
  131. </body>
  132. </html>
Output chamber

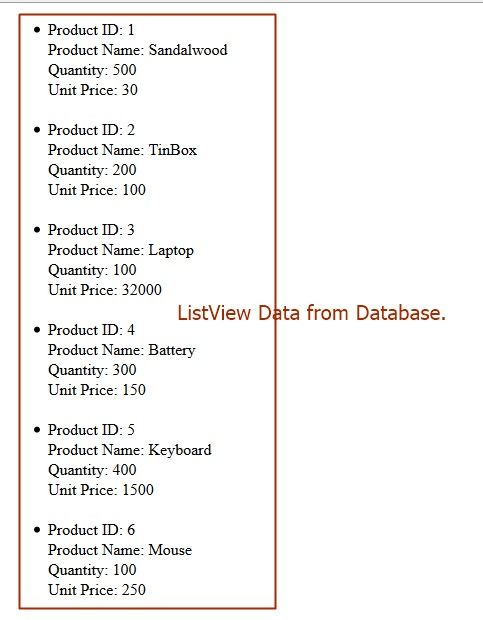

listview from database

Hope you liked this. Thank you for reading.
