Bind the CheckBoxList in ASP.Net Using C#

We will use a bunch of CheckBoxLists and bind them using SQL Server.

Initial Chamber

Step 1

Open Visual Studio 2010 and create an empty website, name it CheckBoxList_demo.

Step 2

In Solution Explorer, you will get your empty website. Add a web form and SQL Database using the following procedure.

For Web Form:

CheckBoxList_demo (your empty website): right-click and select Add New Item Web Form. Name it CheckBoxList_demo.aspx.

For SQL Server Database:

CheckBoxList_demo (your empty website): right-click and select Add New Item SQL Server Database. Add Database inside the App_Data_folder.

Database Chamber

Step 3

In Server Explorer, click on your database Database.mdfTables and  Add New Table. Form a table as in the following:

Table, got tp tbl_data [don't forget to make ID as IS Identity -- True]

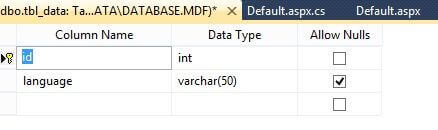

ID

table design

This is our data that we will bind to the CheckBoxList and show at run time.

Design Chamber

Step 4

Open your CheckBoxList_demo.aspx file from Solution Explorer and start designing your application.

Here's the code:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.         <style type="text/css">
  8.         .style1
  9.         {
  10.             text-decoration: underline;
  11.             font-size: large;
  12.         }
  13.         .style2
  14.         {
  15.             width: 128px;
  16.         }
  17.         .style3
  18.         {
  19.             width: 407px;
  20.         }
  21.     </style>
  22.     </head>
  23.     <body>
  24.         <form id="form1" runat="server">
  25.             <div>
  26.                 <br />
  27.                 <br />
  28.                 <br />
  29.                 <table style="width:100%;">
  30.                     <tr>
  31.                         <td class="style2">
  32.                      </td>
  33.                         <td class="style3">
  34.                             <span class="style1">
  35.                                 <strong>Select your Language</strong>
  36.                             </span>
  37.                         </td>
  38.                         <td></td>
  39.                     </tr>
  40.                     <tr>
  41.                         <td class="style2">
  42.                      </td>
  43.                         <td class="style3">
  44.                      </td>
  45.                         <td>
  46.                      </td>
  47.                     </tr>
  48.                     <tr>
  49.                         <td class="style2">
  50.                      </td>
  51.                         <td class="style3">
  52.                             <asp:CheckBoxList ID="CheckBoxList1" runat="server" DataTextField="language"
  53.             DataValueField="language" AutoPostBack="True" RepeatLayout="OrderedList" Width="432px">
  54.                                 <asp:ListItem>COBOL</asp:ListItem>
  55.                                 <asp:ListItem>PERL</asp:ListItem>
  56.                                 <asp:ListItem>JAVA</asp:ListItem>
  57.                                 <asp:ListItem>C#</asp:ListItem>
  58.                                 <asp:ListItem>PHP</asp:ListItem>
  59.                                 <asp:ListItem>C++</asp:ListItem>
  60.                             </asp:CheckBoxList>
  61.                         </td>
  62.                         <td>
  63.                             <asp:Label ID="lbmsg" runat="server"></asp:Label>
  64.                         </td>
  65.                     </tr>
  66.                     <tr>
  67.                         <td class="style2">
  68.                      </td>
  69.                         <td class="style3">
  70.                             <asp:Button ID="Button1" runat="server" onclick="Button1_Click"
  71.                         Text="Click here to show the Data" />
  72.                         </td>
  73.                         <td>
  74.                      </td>
  75.                     </tr>
  76.                 </table>
  77.                 <br />
  78.                 <br />
  79.                 <br />
  80.                 <p>
  81.          </p>
  82.                 <br />
  83.                 <br />
  84.             </div>
  85.         </form>
  86.     </body>
  87. </html>

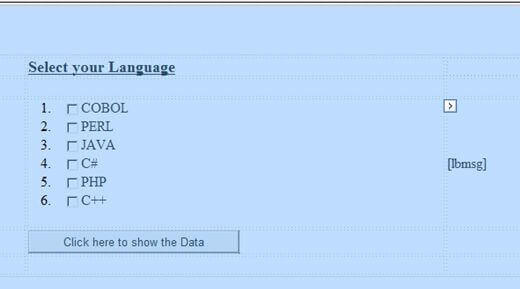

This is how your design looks.

design looks

Code Chamber

Finally open your CheckBoxList_demo.aspx.cs file to write the code for making the list box like we assumed.

Here's the code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!Page.IsPostBack)
  15.         {
  16.             SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  17.             SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  18.             SqlDataAdapter sda = new SqlDataAdapter(cmd);
  19.
  20.             DataTable dt = new DataTable();
  21.             sda.Fill(dt);
  22.             CheckBoxList1.DataSource = dt;
  23.             CheckBoxList1.DataBind();
  24.         }
  25.     }
  26.     protected void Button1_Click(object sender, EventArgs e)
  27.     {
  28.         string k = "";
  29.         for (int i = 0; i < CheckBoxList1.Items.Count; i++)
  30.         {
  31.             if (CheckBoxList1.Items[i].Selected)
  32.             {
  33.
  34.                 k = k + CheckBoxList1.Items[i].Text + "</br>";
  35.             }
  36.
  37.         }
  38.         lbmsg.Text = k;
  39.         lbmsg.ForeColor = System.Drawing.Color.ForestGreen;
  40.
  41.     }
  42. }

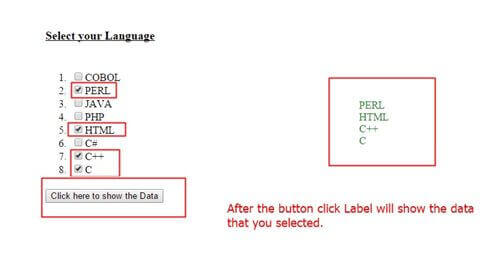

Output Chamber

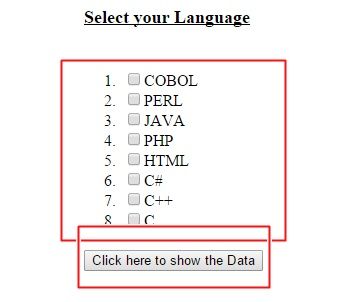

select language



I hope you liked it. Thank you for reading. Have a good day.
