Get Data From Database by Selected IDs in ASP.Net

This article shows how to get data from a database using select ids from a dropdown list, where you select the ids from the dropdown list and when you click on the button you get the id's necessary information (well I include only name and city :P).

INITIAL CHAMBER


Step 1

Open Your Visual Studio 2010 and create an empty website. Provide a suitable name (gridview_demo).

Step 2

In Solution Explorer you get your empty website, then add a Web Form and SQL Server Database. By going like this.

For Web Form:

gridview_demo (your empty website) then right-click then select Add New Item -> Web Form. Name it as -> gridviewid_demo.aspx.

For SQL Server Database:

gridview_demo (your empty website) then right-click then select Add New Item -> SQL Server database. (Add the database inside the App_Data_folder).

DATABASE CHAMBER

Step 3

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this.

Table -> tbl_data (Don't forget to make the ID as IS Identity -- True.)

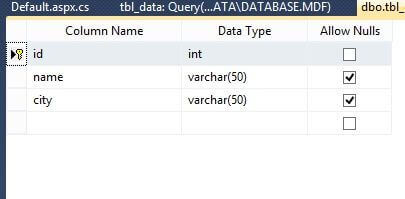

Figure 1: Data Table

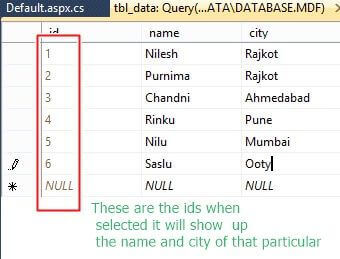

Make some entries in the database by going to Table -> tbl_data then right-click then Show Table Data. Don't copy my entries, make yours something else.


Figure 2: Database

DESIGN CHAMBER

Step 4

Now make some design for your application by going to gridviewid_demo.aspx and try the code like this.

Gridviewid_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.         <style type="text/css">
  8. .style1
  9. {
  10. font-size: large;
  11. text-align: center;
  12. }
  13. .style2
  14. {
  15. width: 272px;
  16. }
  17. .style3
  18. {
  19. width: 264px;
  20. }
  21. </style>
  22.     </head>
  23.     <body>
  24.         <form id="form1" runat="server">
  25.             <div class="style1">
  26.                 <strong>Get Data From Database using Seleceted IDs</strong>
  27.             </div>
  28.             <table style="width:100%;">
  29.                 <tr>
  30.                     <td class="style2">
  31.  </td>
  32.                     <td class="style3">
  33.  </td>
  34.                     <td>
  35.  </td>
  36.                 </tr>
  37.                 <tr>
  38.                     <td class="style2">
  39.  </td>
  40.                     <td class="style3">
  41.                         <asp:DropDownList ID="DropDownList1" runat="server" AppendDataBoundItems="True"
  42. AutoPostBack="True" DataTextField="id" DataValueField="id" Height="16px"
  43. Width="118px">
  44.                             <asp:ListItem Value="0">-- Select Id--</asp:ListItem>
  45.                         </asp:DropDownList>
  46.                     </td>
  47.                     <td>
  48.                         <asp:Button ID="Button1" runat="server" BackColor="#FFFF66"
  49. BorderColor="#CC3300" ForeColor="#6600FF" onclick="Button1_Click"
  50. Text="Click Here to show the Data" />
  51.                     </td>
  52.                 </tr>
  53.                 <tr>
  54.                     <td class="style2">
  55.  </td>
  56.                     <td class="style3">
  57.  </td>
  58.                     <td>
  59.  </td>
  60.                 </tr>
  61.                 <tr>
  62.                     <td class="style2">
  63.  </td>
  64.                     <td class="style3">
  65.                         <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
  66. BackColor="White" BorderColor="#336666" BorderStyle="Double" BorderWidth="3px"
  67. CellPadding="4" DataKeyNames="id" GridLines="Horizontal">
  68.                             <Columns>
  69.                                 <asp:TemplateField HeaderText="UserId">
  70.                                     <EditItemTemplate>
  71.                                         <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("id") %>'>
  72.                                         </asp:TextBox>
  73.                                     </EditItemTemplate>
  74.                                     <ItemTemplate>
  75.                                         <asp:Label ID="Label2" runat="server" Text='<%# Bind("id") %>'>
  76.                                         </asp:Label>
  77.                                     </ItemTemplate>
  78.                                 </asp:TemplateField>
  79.                                 <asp:TemplateField HeaderText="Name">
  80.                                     <EditItemTemplate>
  81.                                         <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("name") %>'>
  82.                                         </asp:TextBox>
  83.                                     </EditItemTemplate>
  84.                                     <ItemTemplate>
  85.                                         <asp:Label ID="Label1" runat="server" Text='<%# Bind("name") %>'>
  86.                                         </asp:Label>
  87.                                     </ItemTemplate>
  88.                                 </asp:TemplateField>
  89.                                 <asp:TemplateField HeaderText="City">
  90.                                     <EditItemTemplate>
  91.                                         <asp:TextBox ID="TextBox3" runat="server" Text='<%# Bind("city") %>'>
  92.                                         </asp:TextBox>
  93.                                     </EditItemTemplate>
  94.                                     <ItemTemplate>
  95.                                         <asp:Label ID="Label3" runat="server" Text='<%# Bind("city") %>'>
  96.                                         </asp:Label>
  97.                                     </ItemTemplate>
  98.                                 </asp:TemplateField>
  99.                             </Columns>
  100.                             <FooterStyle BackColor="White" ForeColor="#333333" />
  101.                             <HeaderStyle BackColor="#336666" Font-Bold="True" ForeColor="White" />
  102.                             <PagerStyle BackColor="#336666" ForeColor="White" HorizontalAlign="Center" />
  103.                             <RowStyle BackColor="White" ForeColor="#333333" />
  104.                             <SelectedRowStyle BackColor="#339966" Font-Bold="True" ForeColor="White" />
  105.                             <SortedAscendingCellStyle BackColor="#F7F7F7" />
  106.                             <SortedAscendingHeaderStyle BackColor="#487575" />
  107.                             <SortedDescendingCellStyle BackColor="#E5E5E5" />
  108.                             <SortedDescendingHeaderStyle BackColor="#275353" />
  109.                         </asp:GridView>
  110.                     </td>
  111.                     <td>
  112.  </td>
  113.                 </tr>
  114.                 <tr>
  115.                     <td class="style2">
  116.  </td>
  117.                     <td class="style3">
  118.  </td>
  119.                     <td>
  120.  </td>
  121.                 </tr>
  122.             </table>
  123.         </form>
  124.     </body>
  125. </html>

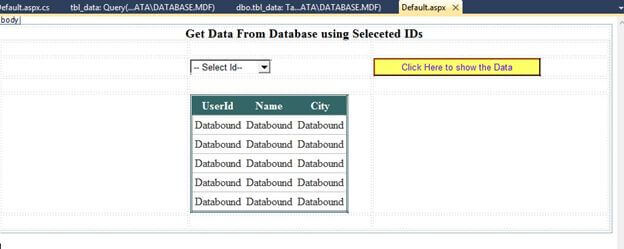

Your design will look like this:


Figure 3: Get Data from database

CODE CHAMBER

Step 5

Now it's time for server-side coding so that our application works. Open your gridviewid_demo.aspx.cs file and code it as in the following.

Gridviewid_demo.aspx.cs

Don't forget the namespaces as in the following:


Figure 4: Namespace

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9. public partial class _Default: System.Web.UI.Page {
  10.     protected void Page_Load(object sender, EventArgs e) {
  11.         if (!Page.IsPostBack) {
  12.             SqlConnection con = new SqlConnection(@
  13.             "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  14.             SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  15.             SqlDataAdapter sda = new SqlDataAdapter(cmd);
  16.             DataTable dt = new DataTable();
  17.             sda.Fill(dt);
  18.             DropDownList1.DataSource = dt;
  19.             DropDownList1.DataBind();
  20.         }
  21.     }
  22.     protected void Button1_Click(object sender, EventArgs e) {
  23.
  24.         SqlConnection con = new SqlConnection(@
  25.         "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  26.         SqlCommand cmd = new SqlCommand("select * from tbl_data where id=" + DropDownList1.SelectedItem.Value, con);
  27.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
  28.         DataTable dt = new DataTable();
  29.         sda.Fill(dt);
  30.         GridView1.DataSource = dt;
  31.         GridView1.DataBind();
  32.     }
  33. }
OUTPUT CHAMBER

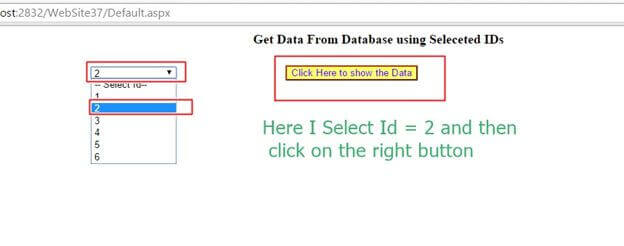

Figure 5: Output

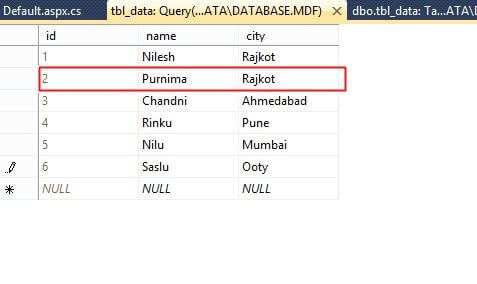

Check out the database, that who is ID=2. We will get ID=2 (purnima's data in GridView).


Figure 6: Get Data

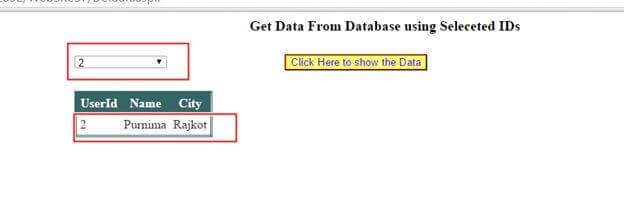

Figure 7: Complete output

I hope you Like it, thank you for reading. Have a good day.
