Paging in GridView in ASP.Net Using C#

This article shows how to do paging in a GridView in ASP.NET using C#, where we take one GridView and SQL Server. We insert a large amount of data into the table to show how the paging works.

INITIAL CHAMBER

Step 1

Open your Visual Studio 2010 and create an empty website, provide a suitable name such as gridview_paging_demo.

Step 2

In Solution Explorer you get your empty website, then add web forms and a SQL Server database as in the following.

For Web Form

gridview_paging_demo (your empty website). Right-click and select Add New Item -> Web Form. Name it gridview_paging_demo.aspx.

For SQL Server database

gridview_paging_demo (your empty website). Right-click and select Add New Item -> SQL Server database. Add a database inside the App_Data_folder.

DATABASE CHAMBER

Step 3

In Server Explorer, click on your database (Database.mdf), then select Tables -> Add New Table. Form the table like the following:

Table tbl_data (Don't forget to make the ID as IS Identity -- True)

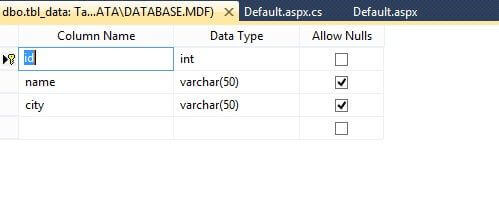

Figure 1: Tbl_Data

DESIGN CHAMBER

Step 4

Open the gridview_paging_demo.aspx file and write some code for the design of the application.

  1. <%@PageLanguage="C#"AutoEventWireup="true"CodeFile="Default.aspx.cs"Inherits="_Default"%>
  2. <!DOCTYPEhtmlPUBLIC"-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <headrunatheadrunat="server">
  6.         <title></title>
  7.         <styletypestyletype="text/css">
  8. .style1
  9. {
  10. text-decoration: underline;
  11. text-align: center;
  12. }
  13.         </style>
  14.     </head>
  15.     <body>
  16.         <formidformid="form1"runat="server">
  17.             <div>
  18.                 <tablestyletablestyle="width:100%;">
  19.                     <tr>
  20.                         <td>
  21.  </td>
  22.                         <tdclasstdclass="style1">
  23.                             <strong>GridView Paging Example</strong>
  24.                         </td>
  25.                         <td>
  26.  </td>
  27.                     </tr>
  28.                     <tr>
  29.                         <td>
  30.  </td>
  31.                         <td>
  32.                             <asp:GridViewIDasp:GridViewID="GridView1"runat="server"AllowPaging="True"
  33. AutoGenerateColumns="False"BackColor="White"BorderColor="#E7E7FF"
  34. BorderStyle="None"BorderWidth="1px"CellPadding="3"DataKeyNames="id"
  35. GridLines="Horizontal"onpageindexchanging="GridView1_PageIndexChanging"
  36. PageSize="4"style="margin-left: 239px">
  37.                                 <AlternatingRowStyleBackColorAlternatingRowStyleBackColor="#F7F7F7"/>
  38.                                 <Columns>
  39.                                     <asp:TemplateFieldHeaderTextasp:TemplateFieldHeaderText="Student ID">
  40.                                         <EditItemTemplate>
  41.                                             <asp:TextBoxIDasp:TextBoxID="TextBox1"runat="server"Text='<%# Bind("id") %>'>
  42.                                             </asp:TextBox>
  43.                                         </EditItemTemplate>
  44.                                         <ItemTemplate>
  45.                                             <asp:LabelIDasp:LabelID="Label1"runat="server"Text='<%# Bind("id") %>'>
  46.                                             </asp:Label>
  47.                                         </ItemTemplate>
  48.                                     </asp:TemplateField>
  49.                                     <asp:TemplateFieldHeaderTextasp:TemplateFieldHeaderText="Student Name">
  50.                                         <EditItemTemplate>
  51.                                             <asp:TextBoxIDasp:TextBoxID="TextBox2"runat="server"Text='<%# Bind("name") %>'>
  52.                                             </asp:TextBox>
  53.                                         </EditItemTemplate>
  54.                                         <ItemTemplate>
  55.                                             <asp:LabelIDasp:LabelID="Label2"runat="server"Text='<%# Bind("name") %>'>
  56.                                             </asp:Label>
  57.                                         </ItemTemplate>
  58.                                     </asp:TemplateField>
  59.                                     <asp:TemplateFieldHeaderTextasp:TemplateFieldHeaderText="Address">
  60.                                         <EditItemTemplate>
  61.                                             <asp:TextBoxIDasp:TextBoxID="TextBox3"runat="server"Text='<%# Bind("city") %>'>
  62.                                             </asp:TextBox>
  63.                                         </EditItemTemplate>
  64.                                         <ItemTemplate>
  65.                                             <asp:LabelIDasp:LabelID="Label3"runat="server"Text='<%# Bind("city") %>'>
  66.                                             </asp:Label>
  67.                                         </ItemTemplate>
  68.                                     </asp:TemplateField>
  69.                                 </Columns>
  70.                                 <FooterStyleBackColorFooterStyleBackColor="#B5C7DE"ForeColor="#4A3C8C"/>
  71.                                 <HeaderStyleBackColorHeaderStyleBackColor="#4A3C8C"Font-Bold="True"ForeColor="#F7F7F7"/>
  72.                                 <PagerStyleBackColorPagerStyleBackColor="#E7E7FF"ForeColor="#4A3C8C"HorizontalAlign="Right"/>
  73.                                 <RowStyleBackColorRowStyleBackColor="#E7E7FF"ForeColor="#4A3C8C"/>
  74.                                 <SelectedRowStyleBackColorSelectedRowStyleBackColor="#738A9C"Font-Bold="True"ForeColor="#F7F7F7"/>
  75.                                 <SortedAscendingCellStyleBackColorSortedAscendingCellStyleBackColor="#F4F4FD"/>
  76.                                 <SortedAscendingHeaderStyleBackColorSortedAscendingHeaderStyleBackColor="#5A4C9D"/>
  77.                                 <SortedDescendingCellStyleBackColorSortedDescendingCellStyleBackColor="#D8D8F0"/>
  78.                                 <SortedDescendingHeaderStyleBackColorSortedDescendingHeaderStyleBackColor="#3E3277"/>
  79.                             </asp:GridView>
  80.                         </td>
  81.                         <td>
  82.  </td>
  83.                     </tr>
  84.                     <tr>
  85.                         <td>
  86.  </td>
  87.                         <td>
  88.  </td>
  89.                         <td>
  90.  </td>
  91.                     </tr>
  92.                 </table>
  93.             </div>
  94.         </form>
  95.     </body>
  96. </html>

This is the GridView design and the properties window where you need to include the even–page changing index and page size = 4.

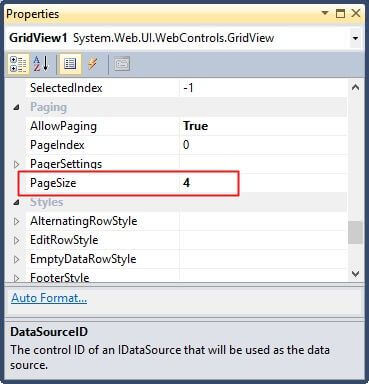

Figure 2: Properties

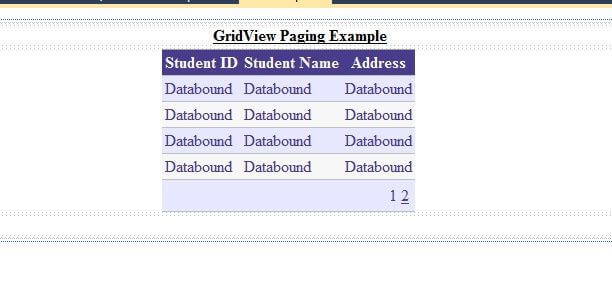

Figure 3: GridView Paging

CODE CHAMBER

Step 5

In the code chamber we will write some code so that our application works.

gridview_paging_demo.aspx.cs

  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.Linq;
  4. usingSystem.Web;
  5. usingSystem.Web.UI;
  6. usingSystem.Web.UI.WebControls;
  7. usingSystem.Data;
  8. usingSystem.Data.SqlClient;
  9. publicpartialclass_Default: System.Web.UI.Page
  10. {
  11.     protectedvoidPage_Load(object sender, EventArgs e)
  12.     {
  13.         if (!Page.IsPostBack)
  14.         {
  15.             refreshdata();
  16.         }
  17.
  18.     }
  19.
  20.
  21.     publicvoidrefreshdata()
  22.     {
  23.
  24.         SqlConnection con = newSqlConnection(@
  25.         "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  26.         SqlCommandcmd = newSqlCommand("select * from tbl_data", con);
  27.         SqlDataAdaptersda = newSqlDataAdapter(cmd);
  28.
  29.         DataTabledt = newDataTable();
  30.         sda.Fill(dt);
  31.
  32.         GridView1.DataSource = dt;
  33.         GridView1.DataBind();
  34.     }
  35.     protectedvoid GridView1_PageIndexChanging(object sender, GridViewPageEventArgs e)
  36.     {
  37.         GridView1.PageIndex = e.NewPageIndex;
  38.         refreshdata();
  39.     }
  40. }
OUTPUT CHAMBER

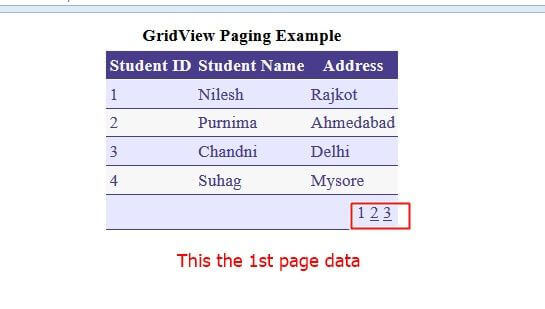

Figure 4: Output 1

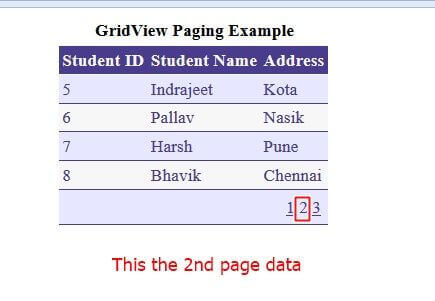

Figure 5: Output 2

I hope you liked this. Have a good day. Thank you for reading.
