How to Use NumericUpDown Control Of Ajax In ASP.NET Using C#

In this tutorial I will show you how to use NumericUpDown control of AJAX Toolkit in ASP.NET using C#, where we take two textbox and make that textbox to work as a numeric up control.

INITIAL CHAMBER:


Step 1: Open Visual Studio 2010 and create an empty website. Give it a suitable name: numericup_demo.

Step 2: In Solution Explorer you will get your empty website and then add a Web Form and SQL Server Database. By going like the following:

For Web Form:

numericup_demo (Your Empty Website) - Right Click, Add New Item, then click Web Form. Name it insertdata_demo.aspx.

For SQL Server Database:

numericup_demo (Your Empty Website) - Right Click, Add New Item, then SQL Server Database. Add Database inside the App_Data_folder.

DATABASE CHAMBER:

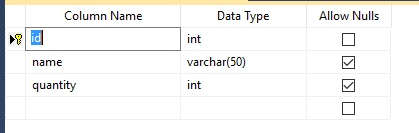

Step 3: In Server Explorer click on your database Database.mdf - Tables, then Add New Table. Make table like the following:

Table - tbl_data [Don’t Forget to make ID as IS Identity - True]



Figure 1: Table

Design Chamber

Step 4: Now make some design for your application by going to numericup_demo.aspx and try the following code:

numericup_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %><%@ Register assembly="AjaxControlToolkit" namespace="AjaxControlToolkit" tagprefix="asp" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.         <style type="text/css">
  8. .style1
  9. {
  10. width: 144px;
  11. }
  12. .style2
  13. {
  14. width: 224px;
  15. }
  16. </style>
  17.     </head>
  18.     <body>
  19.         <form id="form1" runat="server">
  20.             <asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server"></asp:ToolkitScriptManager>
  21.             <table style="width:100%;">
  22.                 <tr>
  23.                     <td class="style1">
  24. Your Product :</td>
  25.                     <td class="style2">
  26.                         <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  27.                         <asp:NumericUpDownExtender ID="TextBox1_NumericUpDownExtender" runat="server"
  28. Enabled="True" Maximum="0"
  29. Minimum="0" RefValues="Football;Basketball;Shoes;Wallet;Watches;Novels" ServiceDownMethod=""
  30. ServiceDownPath="" ServiceUpMethod="" Tag="" TargetButtonDownID=""
  31. TargetButtonUpID="" TargetControlID="TextBox1" Width="200"></asp:NumericUpDownExtender>
  32.                     </td>
  33.                     <td>
  34.  </td>
  35.                 </tr>
  36.                 <tr>
  37.                     <td class="style1">
  38. Quantity :</td>
  39.                     <td class="style2">
  40.                         <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  41.                         <asp:NumericUpDownExtender ID="TextBox2_NumericUpDownExtender" runat="server"
  42. Enabled="True" Maximum="20"
  43. Minimum="0" RefValues="" ServiceDownMethod=""
  44. ServiceDownPath="" ServiceUpMethod="" Tag="" TargetButtonDownID=""
  45. TargetButtonUpID="" TargetControlID="TextBox2" Width="200"></asp:NumericUpDownExtender>
  46.                     </td>
  47.                     <td>
  48.                         <asp:Label ID="Label1" runat="server"></asp:Label>
  49.                     </td>
  50.                 </tr>
  51.                 <tr>
  52.                     <td class="style1">
  53.  </td>
  54.                     <td class="style2">
  55.                         <asp:Button ID="Button1" runat="server" Text="Submit" onclick="Button1_Click" />
  56.                     </td>
  57.                     <td>
  58.  </td>
  59.                 </tr>
  60.             </table>
  61.         </form>
  62.     </body>
  63. </html>

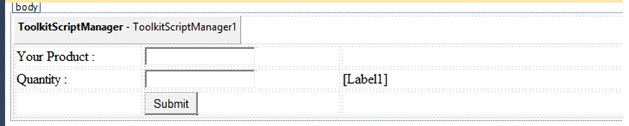

Your design will look like the following image



Figure 2: Design

CODE CHAMBER


Step 5: Now the time is for server side coding so that our application works. Open your numericup_demo.aspx.cs file and code it like the following:

numericup_demo.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9. public partial class _Default: System.Web.UI.Page
  10. {
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.
  14.     }
  15.     protected void Button1_Click(object sender, EventArgs e)
  16.     {
  17.         SqlConnection con = new SqlConnection(@
  18.         "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  19.         SqlCommand cmd = new SqlCommand("insert into tbl_data values(@name,@quantity)", con);
  20.         cmd.Parameters.AddWithValue("@name", TextBox1.Text);
  21.         cmd.Parameters.AddWithValue("quantity", TextBox2.Text);
  22.         con.Open();
  23.         int k = cmd.ExecuteNonQuery();
  24.         con.Close();
  25.         if (k != 0)
  26.         {
  27.             Label1.Text = "Data Inserted";
  28.             Label1.ForeColor = System.Drawing.Color.ForestGreen;
  29.         }
  30.         else
  31.         {
  32.             Label1.Text = "Data is not Inserted";
  33.             Label1.ForeColor = System.Drawing.Color.Red;
  34.         }
  35.     }
  36. }
Output Chamber


Figure 3: Output

Show table data- [tbl_data]



Figure 4: Table data

Hope you liked it. Thank you for reading.
