Insert Data Into Database by Stored Procedure in ASP.Net C#

This article shows how to insert data into a database using ASP.Net C# and a Stored Procedure. I used several textboxes and a button. When the user clicks on the “Insert” button the data is saved into the database.

INITIAL CHAMBER

Step 1

Open your Visual Studio 2010 and create an Empty Website, provide a suitable name (insert_demo).

Step 2

In Solution Explorer you get your empty website, then add a Web Form and SQL Server Database as in the following.

For Web Form:

insert_demo (Your Empty Website) then right-click then select Add New Item -> Web Form. Name it insertdata_demo.aspx.

For SQL Server Database:

insert_demo (Your Empty Website) then right-click then select Add New Item -> SQL Server Database. (Add the database inside the App_Data_folder.)

DATABASE CHAMBER

Step 3

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this:

Table -> tbl_data (Don't Forget to make ID as IS Identity -- True)

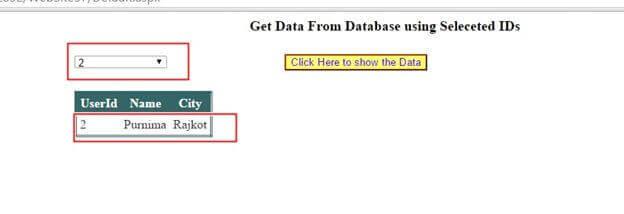

Figure 1: Data Table

Make one Stored Procedure for inserting data into the database, by going to database.mdf then seelct Store Procedures then right-click then select Add New Store Procedure.

Sp_insert

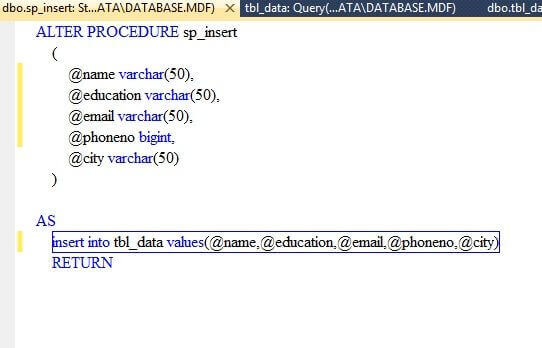

Figure 2: Sp Insert

DESIGN CHAMBER

Step 4

Now make some design for your application by going to insertdata_demo.aspx and try the code like this.

insertdata_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.         <style type="text/css">
  8. .style1
  9. {
  10. width: 139px;
  11. }
  12. .style2
  13. {
  14. width: 158px;
  15. }
  16. .style3
  17. {
  18. width: 139px;
  19. height: 23px;
  20. }
  21. .style4
  22. {
  23. width: 158px;
  24. height: 23px;
  25. }
  26. .style5
  27. {
  28. height: 23px;
  29. }
  30. .style6
  31. {
  32. font-size: large;
  33. text-decoration: underline;
  34. }
  35. </style>
  36.     </head>
  37.     <body>
  38.         <form id="form1" runat="server">
  39.             <div>
  40.                 <strong>
  41.                     <span class="style6">Insert Data into Database</span>
  42.                 </strong>
  43.                 <br />
  44.                 <table style="width:100%;">
  45.                     <tr>
  46.                         <td class="style1">
  47.  </td>
  48.                         <td class="style2">
  49.  </td>
  50.                         <td>
  51.  </td>
  52.                     </tr>
  53.                     <tr>
  54.                         <td class="style1">
  55. Name</td>
  56.                         <td class="style2">
  57.                             <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  58.                         </td>
  59.                         <td>
  60.  </td>
  61.                     </tr>
  62.                     <tr>
  63.                         <td class="style1">
  64. Education</td>
  65.                         <td class="style2">
  66.                             <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  67.                         </td>
  68.                         <td>
  69.  </td>
  70.                     </tr>
  71.                     <tr>
  72.                         <td class="style1">
  73. Email</td>
  74.                         <td class="style2">
  75.                             <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  76.                         </td>
  77.                         <td>
  78.  </td>
  79.                     </tr>
  80.                     <tr>
  81.                         <td class="style3">
  82. Phoneno</td>
  83.                         <td class="style4">
  84.                             <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  85.                         </td>
  86.                         <td class="style5"></td>
  87.                     </tr>
  88.                     <tr>
  89.                         <td class="style1">
  90. City</td>
  91.                         <td class="style2">
  92.                             <asp:TextBox ID="TextBox5" runat="server"></asp:TextBox>
  93.                         </td>
  94.                         <td>
  95.  </td>
  96.                     </tr>
  97.                     <tr>
  98.                         <td class="style1">
  99.  </td>
  100.                         <td class="style2">
  101.  </td>
  102.                         <td>
  103.  </td>
  104.                     </tr>
  105.                     <tr>
  106.                         <td class="style1">
  107.  </td>
  108.                         <td class="style2">
  109.                             <asp:Button ID="Button1" runat="server" BorderColor="#CCFF66"
  110. ForeColor="#0066FF" onclick="Button1_Click" Text="Insert Data" />
  111.                         </td>
  112.                         <td>
  113.                             <asp:Label ID="Label1" runat="server" Text="Label"></asp:Label>
  114.                         </td>
  115.                     </tr>
  116.                 </table>
  117.             </div>
  118.         </form>
  119.     </body>
  120. </html>

Your design will look like this:

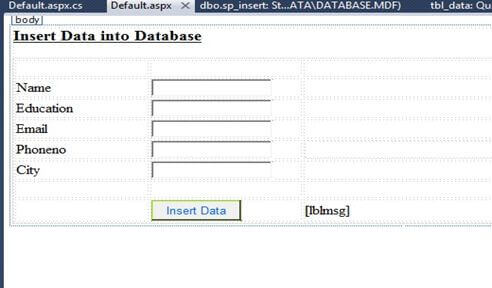

Figure 3: Design Page

CODE CHAMBER

Step 5

Now it's time for server-side coding so that our application works. Open your insertdata_demo.aspx.cs file and code it as in the following.

insertdata_demo.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9. public partial class _Default: System.Web.UI.Page
  10. {
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.     }
  14.     protected void Button1_Click(object sender, EventArgs e)
  15.     {
  16.         SqlConnection con = new SqlConnection(@
  17.         "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  18.         SqlCommand cmd = new SqlCommand("sp_insert", con);
  19.         cmd.CommandType = CommandType.StoredProcedure;
  20.         cmd.Parameters.AddWithValue("name", TextBox1.Text);
  21.         cmd.Parameters.AddWithValue("email", TextBox2.Text);
  22.         cmd.Parameters.AddWithValue("education", TextBox3.Text);
  23.         cmd.Parameters.AddWithValue("phoneno", TextBox4.Text);
  24.         cmd.Parameters.AddWithValue("city", TextBox5.Text);
  25.         con.Open();
  26.         int k = cmd.ExecuteNonQuery();
  27.         if (k != 0) {
  28.             lblmsg.Text = "Record Inserted Succesfully into the Database";
  29.             lblmsg.ForeColor = System.Drawing.Color.CornflowerBlue;
  30.         }
  31.         con.Close();
  32.     }
OUTPUT CHAMBER

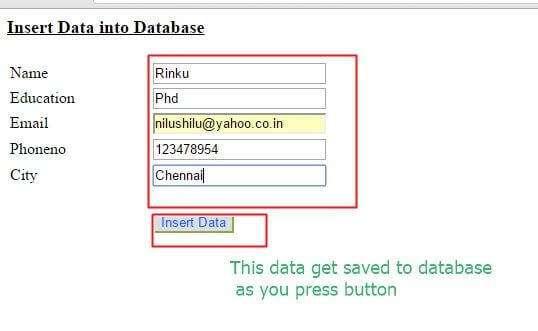

Figure 4: Output

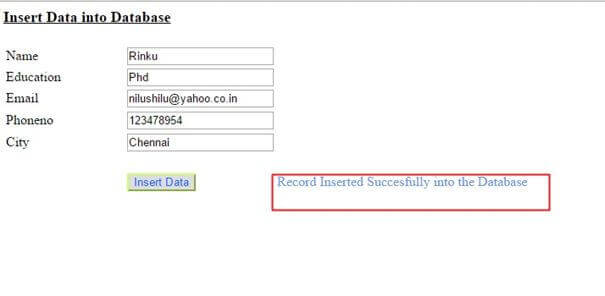

Figure 5: Insert Data

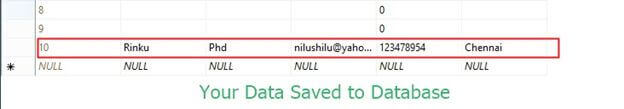

Figure 6: Save Data

I hope you like it, thank you for the reading. Have a good Day.
