Use DropDownlist In GridView In ASP.NET Using C#

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty Website. Give a suitable name [gridview_demo].

Step 2: In Solution Explorer you will get your empty website, Add a web form, SQL Database. Here are the steps:

For Web Form:

gridview_demo (Your Empty Website) - Right Click, Add New Item, Web Form. Name it gridview_demo.aspx.

For SQL Server Database:

gridview_demo (Your Empty Website) - Right Click, Add New Item, SQL Server Database. [Add Database inside the App_Data_folder].

Database chamber

Step 3: Get to your Database [Database.mdf], we will create two table, then tbl_employee, Go to the database.mdf, Table, Add New table, design your table like this:

Table - tbl_employee [Don’t forget to make ID, Identity Specification - Yes]

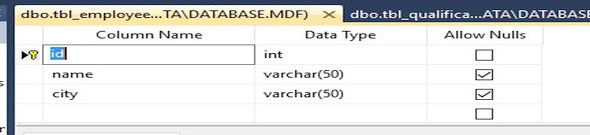

Tbl_employee:

table design

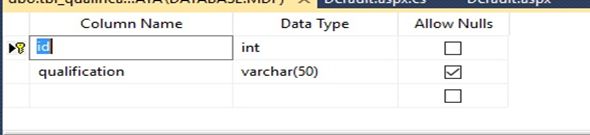

Tbl_qualification:

table

Design chamber

Step 4: Now open your gridview_demo.aspx file, where we create our design so that our application works.

gridview_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.
  13.         <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
  14.             BackColor="White" BorderColor="#999999" BorderStyle="None" BorderWidth="1px"
  15.             CellPadding="3" DataKeyNames="id" GridLines="Vertical"
  16.             onrowdatabound="GridView1_RowDataBound">
  17.             <AlternatingRowStyle BackColor="#DCDCDC" />
  18.             <Columns>
  19.                 <asp:TemplateField HeaderText="Employee ID">
  20.                     <EditItemTemplate>
  21.                         <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("id") %>'></asp:TextBox>
  22.                     </EditItemTemplate>
  23.                     <ItemTemplate>
  24.                         <asp:Label ID="Label1" runat="server" Text='<%# Bind("id") %>'></asp:Label>
  25.                     </ItemTemplate>
  26.                 </asp:TemplateField>
  27.                 <asp:TemplateField HeaderText="Emloyee Name">
  28.                     <EditItemTemplate>
  29.                         <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("name") %>'></asp:TextBox>
  30.                     </EditItemTemplate>
  31.                     <ItemTemplate>
  32.                         <asp:Label ID="Label2" runat="server" Text='<%# Bind("name") %>'></asp:Label>
  33.                     </ItemTemplate>
  34.                 </asp:TemplateField>
  35.                 <asp:TemplateField HeaderText="Qualification">
  36.                     <EditItemTemplate>
  37.                         <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  38.                     </EditItemTemplate>
  39.                     <ItemTemplate>
  40.                         <asp:DropDownList ID="DropDownList1" runat="server">
  41.                         </asp:DropDownList>
  42.                     </ItemTemplate>
  43.                 </asp:TemplateField>
  44.                 <asp:TemplateField HeaderText="Employee City">
  45.                     <EditItemTemplate>
  46.                         <asp:TextBox ID="TextBox4" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
  47.                     </EditItemTemplate>
  48.                     <ItemTemplate>
  49.                         <asp:Label ID="Label4" runat="server" Text='<%# Bind("city") %>'></asp:Label>
  50.                     </ItemTemplate>
  51.                 </asp:TemplateField>
  52.             </Columns>
  53.             <FooterStyle BackColor="#CCCCCC" ForeColor="Black" />
  54.             <HeaderStyle BackColor="#000084" Font-Bold="True" ForeColor="White" />
  55.             <PagerStyle BackColor="#999999" ForeColor="Black" HorizontalAlign="Center" />
  56.             <RowStyle BackColor="#EEEEEE" ForeColor="Black" />
  57.             <SelectedRowStyle BackColor="#008A8C" Font-Bold="True" ForeColor="White" />
  58.             <SortedAscendingCellStyle BackColor="#F1F1F1" />
  59.             <SortedAscendingHeaderStyle BackColor="#0000A9" />
  60.             <SortedDescendingCellStyle BackColor="#CAC9C9" />
  61.             <SortedDescendingHeaderStyle BackColor="#000065" />
  62.         </asp:GridView>
  63.
  64.     </div>
  65.     </form>
  66. </body>
  67. </html>

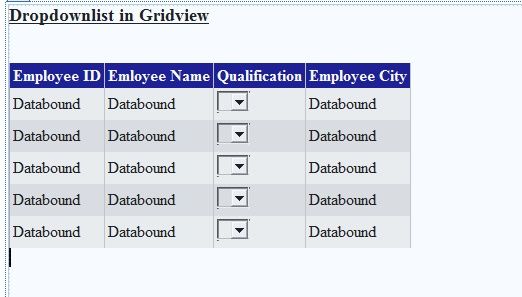

Your design looks like the following image:

design

Code chamber

Step 5: Open gridview_demo.aspx.cs and write some code so that our application works.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12.     SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  13.     protected void Page_Load(object sender, EventArgs e)
  14.     {
  15.         if (!Page.IsPostBack)
  16.         {
  17.             refreshdata();
  18.         }
  19.     }
  20.
  21.
  22.
  23.     public void refreshdata()
  24.     {
  25.
  26.         con.Open();
  27.
  28.         SqlCommand cmd = new SqlCommand("select * from tbl_employee", con);
  29.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
  30.         DataTable dt = new DataTable();
  31.         sda.Fill(dt);
  32.         con.Close();
  33.         GridView1.DataSource = dt;
  34.         GridView1.DataBind();
  35.
  36.
  37.
  38.     }
  39.
  40.     protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
  41.     {
  42.         if (e.Row.RowType == DataControlRowType.DataRow)
  43.         {
  44.             con.Open();
  45.             DropDownList DropDownList1 = (e.Row.FindControl("DropDownList1"as DropDownList);
  46.
  47.
  48.             SqlCommand cmd = new SqlCommand("select * from tbl_qualification", con);
  49.             SqlDataAdapter sda = new SqlDataAdapter(cmd);
  50.             DataTable dt = new DataTable();
  51.             sda.Fill(dt);
  52.             con.Close();
  53.             DropDownList1.DataSource = dt;
  54.
  55.             DropDownList1.DataTextField = "qualification";
  56.             DropDownList1.DataValueField = "qualification";
  57.             DropDownList1.DataBind();
  58.             DropDownList1.Items.Insert(0, new ListItem("--Select Qualification--""0"));
  59.
  60.
  61.         }
  62.
  63.     }
  64. }
Output chamber

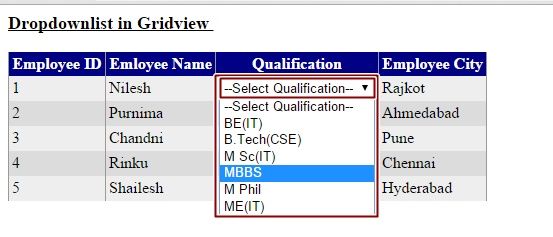

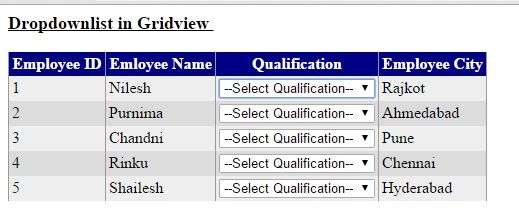

Output

dropdown list

Hope you liked this. Thank you for reading. Have a good day.
