ASP.NET

Use ListSearchExtender Of Ajax In ASP.NET

We use this extender on binded Dropdownlist.

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty website. Give a suitable name dropdownlist_demo.

Step 2: In Solution Explorer you will get your empty website. Add a web form SQL Database. Follow these steps:

For Web Form:

dropdownlist_demo (Your Empty Website) - Right Click, Add New Item, then Web Form. Name it dropdownlist_demo.aspx.

For SQL Server Database:

dropdownlist_demo (Your Empty Website) - Right Click, Add New Item, then SQL Server Database. Add Database inside the App_Data_folder.

Database chamber

Step 3: Go to your Database [Database.mdf], we will create two tables - tbl_Data and tbl_save. Go to the database.mdf - Table and Add New table, Design your table like the following:

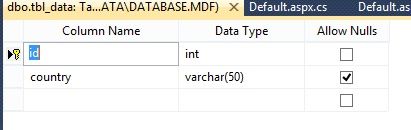

Table - tbl_data (Don’t forget to make ID - Identity Specification - Yes)

table design

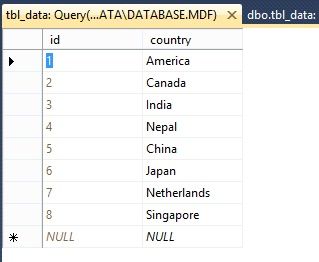

Show table data

table

Design chamber

Step 4: Now open your dropdownlist_demo.aspx file, where we create our design for Dropdownlist in ASP.NET.

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.     <%@ Register assembly="AjaxControlToolkit" namespace="AjaxControlToolkit" tagprefix="asp" %>
  3.         <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.         <html xmlns="http://www.w3.org/1999/xhtml">
  5.
  6.         <head runat="server">
  7.             <title></title>
  8.             <style type="text/css">
  9.                 .style1 {
  10.                     width: 576px;
  11.                 }
  12.             </style>
  13.         </head>
  14.
  15.         <body>
  16.             <form id="form1" runat="server">
  17.                 <asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server"> </asp:ToolkitScriptManager>
  18.                 <div>
  19.                     <table style="width:100%;">
  20.                         <tr>
  21.                             <td>  </td>
  22.                             <td class="style1">  </td>
  23.                             <td>  </td>
  24.                         </tr>
  25.                         <tr>
  26.                             <td>  </td>
  27.                             <td class="style1">
  28.                                 <asp:DropDownList ID="DropDownList1" runat="server" AppendDataBoundItems="True" DataTextField="country" DataValueField="country" Height="33px" style="margin-left: 267px">
  29.                                     <asp:ListItem>--Select Country--</asp:ListItem>
  30.                                 </asp:DropDownList>
  31.                                 <asp:ListSearchExtender ID="DropDownList1_ListSearchExtender" runat="server" Enabled="True" PromptPosition="Top" PromptText="Type to Search" TargetControlID="DropDownList1"> </asp:ListSearchExtender>
  32.                             </td>
  33.                             <td>  </td>
  34.                         </tr>
  35.                         <tr>
  36.                             <td>  </td>
  37.                             <td class="style1">  </td>
  38.                             <td>  </td>
  39.                         </tr>
  40.                     </table>
  41.                 </div>
  42.             </form>
  43.         </body>
  44.
  45.      </html>
Code chamber

Step 5: Open your dropdownlist_demo.aspx.cs and write some code so that our application starts working.

dropdownlist_demo.aspx.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class _Default : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!Page.IsPostBack)
  15.         {
  16.             refreshdata();
  17.         }
  18.     }
  19.
  20.
  21.     public void refreshdata()
  22.     {
  23.
  24.         SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  25.
  26.         SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
  27.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
  28.         DataTable dt = new DataTable();
  29.         sda.Fill(dt);
  30.
  31.         DropDownList1.DataSource = dt;
  32.         DropDownList1.DataBind();
  33.
  34.     }
  35. }
Output chamber

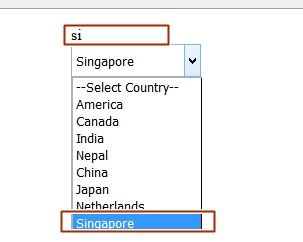

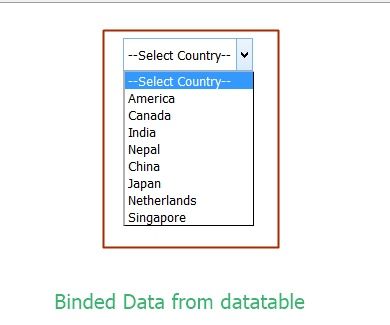

Output

select country

Hope you liked this. Have a good day!
Thank you for reading.
