WPF 4.5: Live Shaping

Live Shaping

live shaping

Properties required for Live Shaping

  1. IsLiveFiltering = true;
  2. LiveFilteringProperties.Add("Value");
Example Live Sorting

In the following example, we have created a class named student. The class implements an INotifyPropertyChanged interface and is used for the Property’s value changes. Also a StudentCollection was created that populates the student information at runtime. On a Window_Loaded event we created an object of StudentCollection that is already populated with the student information and binds it with a dataGrid.

Also created a:
  1. DispatcherTimer dispTimer = new DispatcherTimer();
The dispatcher times that will update the Price property after a specific duration? On the click on the button the Sorting will start. It uses the following programming features:
  • ICollectionView: Enable collections to apply Custom Sorting, Filtering and Grouping.

  • ICollectionViewLiveShaping: Defining Sorting, Grouping, Filtering on ColectionView in Real Time.
  1. public class Student : INotifyPropertyChanged
  2. {
  3.    int _StudentId;
  4.    public int StudentId
  5.    {
  6.       get { return _StudentId; }
  7.       set
  8.       {
  9.          _StudentId = value;
  10.          OnPropertychanged("StudentId");
  11.       }
  12.    }
  13.
  14.    string _StudentName;
  15.    public string StudentName
  16.    {
  17.       get { return _StudentName; }
  18.    set
  19.       {
  20.          _StudentName = value;
  21.          OnPropertychanged("StudentName");
  22.       }
  23.    }
  24.
  25.
  26.    string _StudentCity;
  27.    public string StudentCity
  28.    {
  29.       get { return _StudentCity; }
  30.       set
  31.       {
  32.          _StudentCity = value;
  33.       OnPropertychanged("StudentCity");
  34.       }
  35.    }
  36.
  37.    decimal _StudentFee;
  38.    public decimal StudentFee
  39.    {
  40.       get { return _StudentFee; }
  41.       set
  42.       {
  43.          _StudentFee = value;
  44.          OnPropertychanged("StudentFee");
  45.       }
  46.    }
  47.
  48.
  49.    public event PropertyChangedEventHandler PropertyChanged;
  50.    private void OnPropertychanged(string pName)
  51.    {
  52.       if (PropertyChanged != null)
  53.       {
  54.          PropertyChanged(thisnew PropertyChangedEventArgs(pName));
  55.       }
  56.    }
  57.
  58. }
  59. public class StudentCollection : ObservableCollection<Student>
  60. {
  61.    public StudentCollection()
  62.    {
  63.       Add(new Student() { StudentId = 1,StudentName = "Pete Brown", StudentCity = "Chicago", StudentFee = 100 });
  64.       Add(new Student() { StudentId = 2, StudentName = "Mikey Aurthor", StudentCity = "Phoenix", StudentFee = 150 });
  65.       Add(new Student() { StudentId = 3, StudentName = "Dyna Mike", StudentCity = "Chicago", StudentFee = 800 });
  66.       Add(new Student() { StudentId = 4, StudentName = "Rachel Dave", StudentCity = "Phoenix", StudentFee = 200 });
  67.       Add(new Student() { StudentId = 5, StudentName = "Nikky Chre", StudentCity = "Phoenix", StudentFee = 180 });
  68.       Add(new Student() { StudentId = 6, StudentName = "Karl Nas", StudentCity = "Chicago", StudentFee = 2200 });
  69.       Add(new Student() { StudentId = 7, StudentName = "Bruce Wayne", StudentCity = "Seattle", StudentFee = 100 });
  70.       Add(new Student() { StudentId = 9, StudentName = "Johan Surg", StudentCity = "Austin", StudentFee = 300 });
  71.       Add(new Student() { StudentId = 10, StudentName = "Tony ", StudentCity = "Austin", StudentFee = 300 });
  72.       Add(new Student() { StudentId = 11, StudentName = "Peterson J", StudentCity = "Seattle", StudentFee = 300 });
  73.       Add(new Student() { StudentId = 12, StudentName = "Jack Russel", StudentCity = "Chicago", StudentFee = 300 });
  74.    }
  75. }
XAML Design
  1. <Window x:Class="Wpf_Live_Shaping.LiveSorting"
  2.         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.         Title="LiveSorting" Height="400" Width="500" Loaded="Window_Loaded">
  5.     <Grid>
  6.         <DataGrid Name="DGData" Margin="10,40,10,10"></DataGrid>
  7.         <Button Content="Start Sorting" HorizontalAlignment="Left" Margin="10,10,0,0" VerticalAlignment="Top" Width="75" Click="ButtonStartSirting_Click"/>
  8.         <Button Content="Stop Sorting" HorizontalAlignment="Left" Margin="100,10,0,0" VerticalAlignment="Top" Width="75" Click="ButtonStopSorting_Click"/>
  9.
  10.     </Grid>
  11. </Window>
Code Behind
  1. public partial class LiveSorting : Window
  2. {
  3.    DispatcherTimer dispTimer = new DispatcherTimer();
  4.    ObservableCollection<Student> ListStudent = new ObservableCollection<Student>();
  5.    public LiveSorting()
  6.    {
  7.       InitializeComponent();
  8.    }
  9.
  10.    private void Window_Loaded(object sender, RoutedEventArgs e)
  11.    {
  12.       var studentCollection = new StudentCollection();
  13.       DGData.ItemsSource = studentCollection;
  14.       Random random = new Random();
  15.       var Students = new StudentCollection();
  16.       foreach (var item in Students)
  17.       {
  18.          ListStudent.Add(new Student()
  19.          {
  20.             StudentId = item.StudentId,
  21.             StudentName = item.StudentName,
  22.             StudentCity = item.StudentCity,
  23.             StudentFee = item.StudentFee
  24.          });
  25.       }
  26.       DGData.ItemsSource = ListStudent;
  27.    }
  28.
  29.    void dispTimer_Tick(object sender, EventArgs e)
  30.    {
  31.       Random random = new Random();
  32.       foreach (var pc in ListStudent)
  33.       {
  34.          pc.StudentFee += random.Next(100) - 5;
  35.       }
  36.    }
  37.
  38.    private void ButtonStartSirting_Click(object sender, RoutedEventArgs e)
  39.    {
  40.       ICollectionView pView = CollectionViewSource.GetDefaultView(ListStudent);
  41.       pView.SortDescriptions.Add(new SortDescription("StudentFee", ListSortDirection.Ascending));
  42.       var productview = (ICollectionViewLiveShaping)CollectionViewSource.GetDefaultView(ListStudent);
  43.       productview.IsLiveSorting = true;
  44.       dispTimer.Interval = TimeSpan.FromMilliseconds(600);
  45.       dispTimer.Tick += dispTimer_Tick;
  46.       dispTimer.Start();
  47.    }
  48.
  49.    private void ButtonStopSorting_Click(object sender, RoutedEventArgs e)
  50.    {
  51.       dispTimer.Stop();
  52.
  53.    }
  54. }
Result

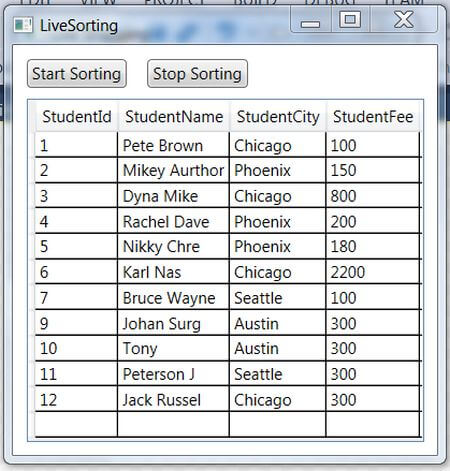

live sorting

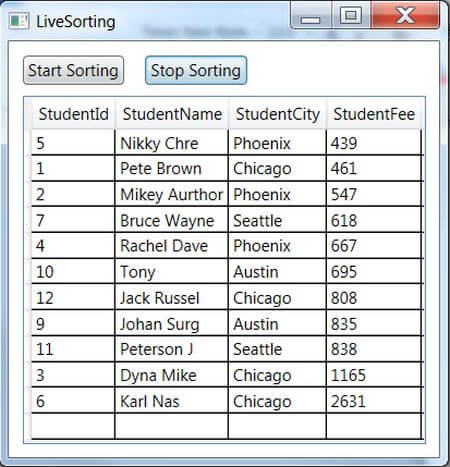

live sorting image

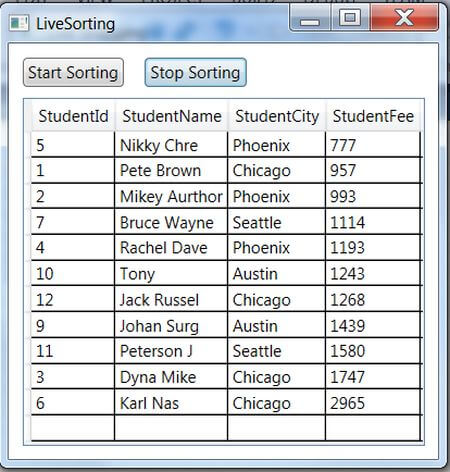

table

Example Live Filtering

In this example we will filter information that exists in a datagrid on the basis of StudentCity.

XAML Design
  1. <Grid>
  2.         <Grid.RowDefinitions>
  3.             <RowDefinition  Height="100*"></RowDefinition>
  4.         </Grid.RowDefinitions>
  5.         <Grid.ColumnDefinitions>
  6.             <ColumnDefinition  Width="80*"></ColumnDefinition>
  7.             <ColumnDefinition  Width="30*"></ColumnDefinition>
  8.         </Grid.ColumnDefinitions>
  9.
  10.         <DataGrid Name="DGData" Margin="10,40,10,10" Grid.Row="0" Grid.Column="0"></DataGrid>
  11.         <ListBox x:Name="lstCity"
  12.                  Height="160" Grid.Row="0" Grid.Column="1"
  13.                  SelectionChanged="lstCity_SelectionChanged"/>
  14.     </Grid>
Code Behind
  1. public partial class LiveFilterWindow : Window
  2. {
  3.         StudentCollection Students;
  4.         List<string> Cities;
  5.         public string CityName { getset; }
  6.         public LiveFilterWindow()
  7.         {
  8.             InitializeComponent();
  9.         }
  10.
  11.         private void Window_Loaded(object sender, RoutedEventArgs e)
  12.         {
  13.             Students = new StudentCollection();
  14.             DGData.ItemsSource = Students;
  15.
  16.             Cities = Students.Select(d => d.StudentCity).Distinct().ToList();
  17.             lstCity.ItemsSource = Cities;
  18.
  19.         }
  20.
  21.         private void lstCity_SelectionChanged(object sender, SelectionChangedEventArgs e)
  22.         {
  23.             ListCollectionView studentView = CollectionViewSource.GetDefaultView(DGData.ItemsSource) as ListCollectionView;
  24.             studentView.IsLiveFiltering = true;
  25.             studentView.LiveFilteringProperties.Add("StudentCity");
  26.             CityName = lstCity.SelectedItem.ToString();
  27.             studentView.Filter = new Predicate<object>(IsCityFound);
  28.             studentView.Refresh();
  29.         }
  30.
  31.         bool IsCityFound(object d)
  32.         {
  33.             bool result = false;
  34.             Student std = d as Student;
  35.             if (std.StudentCity == CityName)
  36.             {
  37.                 result = true;
  38.             }
  39.             return result;
  40.         }
  41.     }
Output

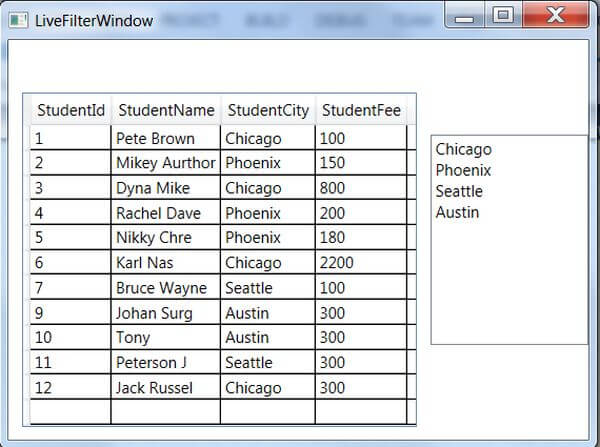

chicago

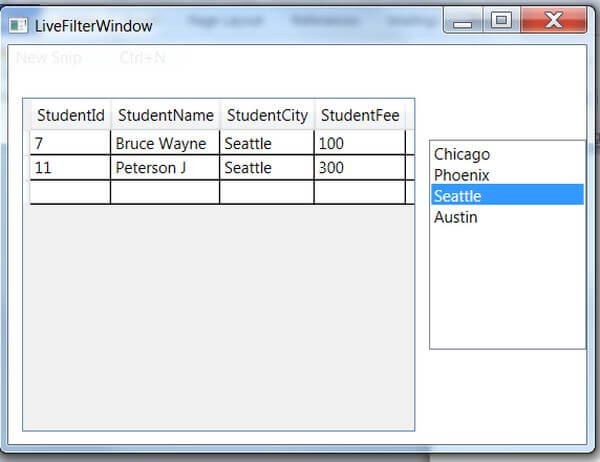

seattle

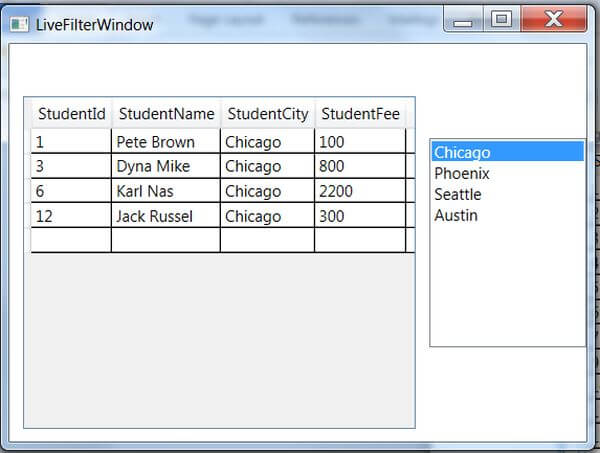

chicago filter
