Windows Phone: Package.appxmanifest

Introduction

Welcome again! Today I'll talk about Windows Phone “Package.appxmanifest”. It's really very important to make your app fully complete. Because simply designing and writing lots of code doesn't make a good app, the look of the app must be very attractive. Look and feel is very important to attract a customer. Moreover, not only the look but also the capabilities and dependencies of the app must be set in the “Package.appxmanifest”.

Exploring Package.appxmanifest

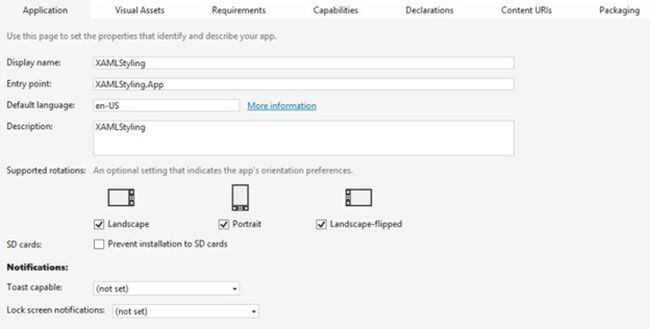

So let's explore the Windows Phone “Package.appxmanifest”. Just open the “Package.appxmanifest” from your “Solution Explorer”, and you can see the similar picture below.

application status
                                                                           Figure 1

I've used my previous example of Windows Phone XAML Styling here. You can use any of the existing applications or just create a new one.

Changing Application Title

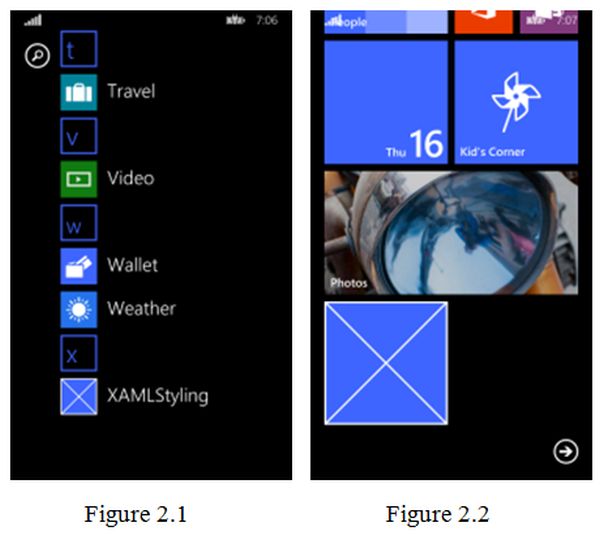

If you have a look at the picture, “Display name” and “Description” have that same content “XAMLStyling”. Yes, it's our app name, the same as what we gave before. But does it look good, when we run the application?

show apps

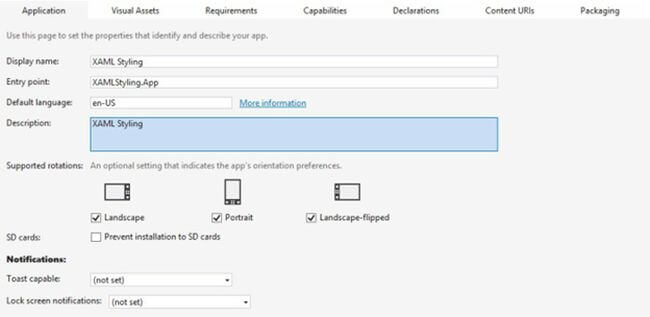

The answer is obviously “No”. So we just need a little bit of work. Just provide a space between “XAML” and “Style”, so it'll be “XAML Style”.

xamal styling
                                                                        Figure 3

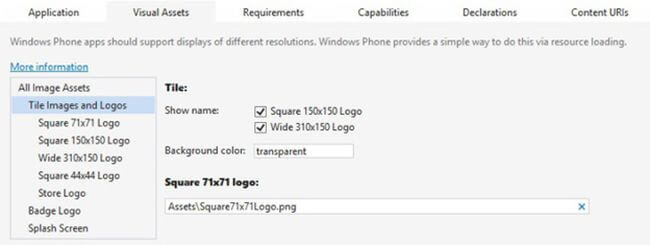

One more thing we need to do is, switch to the “Visual Assets” tab and check the “Check Box” below “Title”.

image title and logos
                                                                     Figure 4

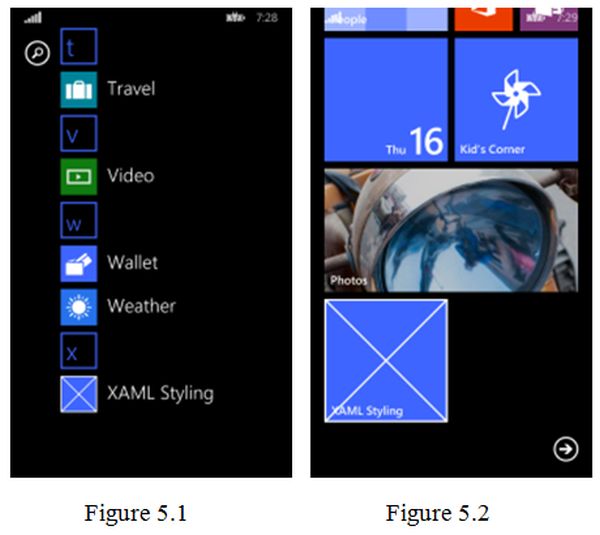

After that you'll get some good visualization of your app's tiles.

image visualzation

Changing Application Logo

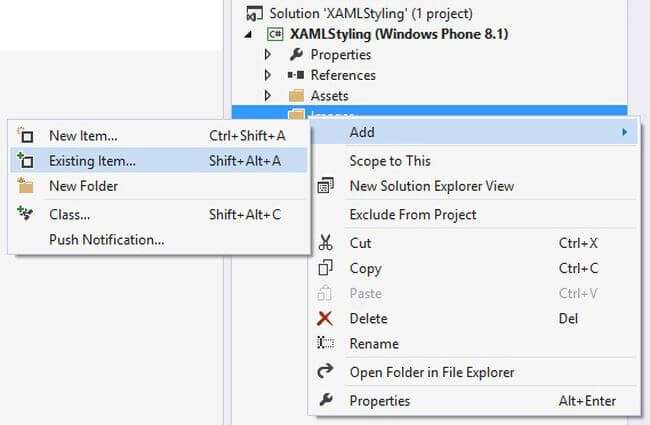

The very important thing is to change the application logo. It's your app's unique identity. So, select the list item one by one and change your logo. But before that you need to upload your logo to your project solution. To do that, right-click on the project and add a new folder. Give it the name “Images”. Right-click on the folder and click Add >> Existing Item.

add existing item
                                                                  Figure 6

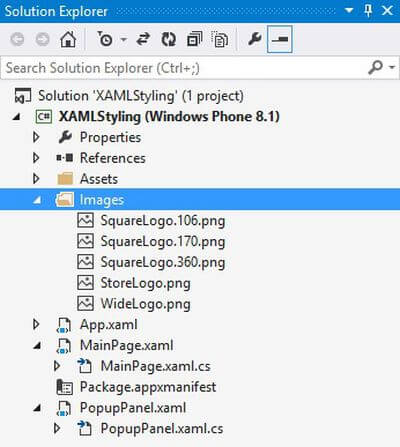

Upload all the required logos of the corresponding resolution.

image folder
                                    Figure 7

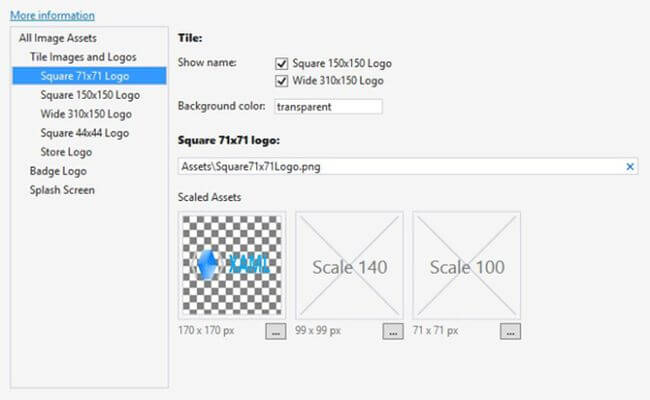

Now, locate all the logos in the “Visual Assets” section.

square logo
                                                                        Figure 8

Format of Logo

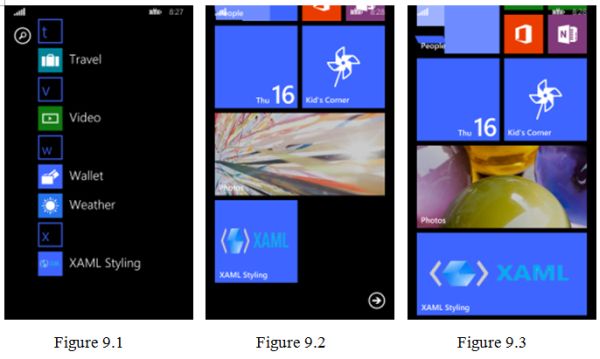

The logo must be in “png” format and if it's transparent then it'll be better for visualizing some information. Locate all these logos one by one. After you've changed the logos, save it. If you run the application, it'll look like this.

format of logo

Other options

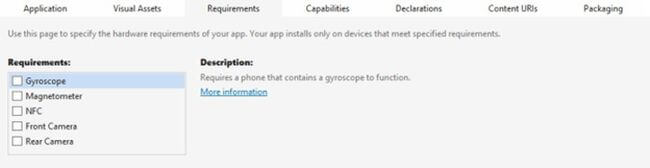

Well, we've done some major modification of our application. There're some other parts like “Requirements”.

gyroscope
                                                                     Figure 10

If you use the sensors and camera API then you need to check the option you've used in your application.

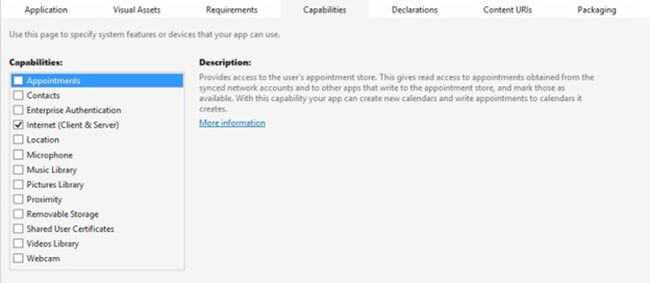

One more thing is “Capabilities”.

internet option
                                                                        Figure 11

If you use a microphone, location service, internet, proximity or any other things, you need to check these options as well. Otherwise your application will not work.

There're some other options like “Declaration”, “Content URls” and “Packaging”. You can also change these things as well. I've shown the common things here.

Summary

So, that's it. I hope you now have an understanding of the Windows Phone “package.appxmanifest”. Keep digging with Visual Studio and try to learn new things everyday. I'll be here with a new topic soon. Until then good bye. Have a nice day.

Happy coding!
