Create a screen which Edit and Add Records in a LightSwitch Application


Here you will learn step by step how to create a screen that can Edit and Add Records in a LightSwitch Application:

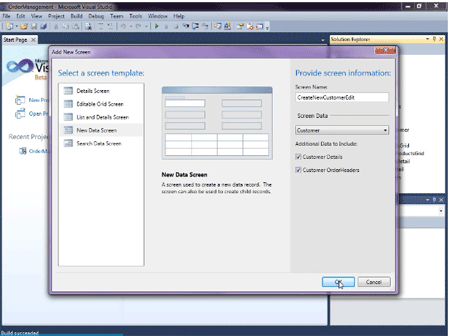

Step 1: Add screen->New data screen->Change screen name (CreateNewCustomerEdit)->Check Customer HeaderOrders->Ok.

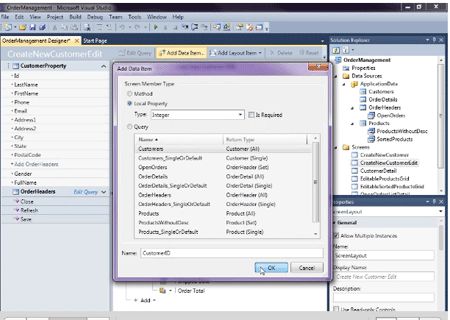

Step 2: Add data item->Click local property->Type (Integer) and uncheck Is Required->Ok.

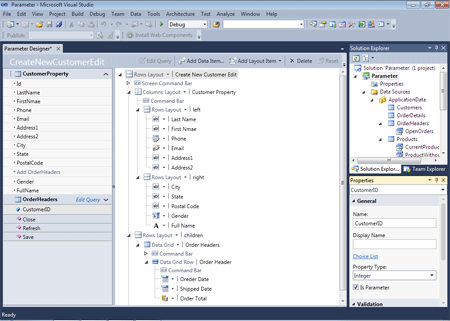

Step 3: Go to CustomerID properties->Check Is Parameter.

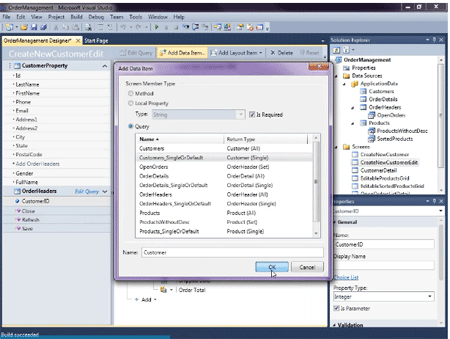

Step 4: Add data item->Click query->Select Customer_SingleOrDefault->Ok.

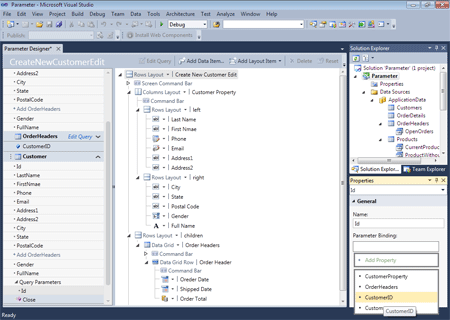

Step 5: Go to Id properties->Select parameter binding (CustomerID).

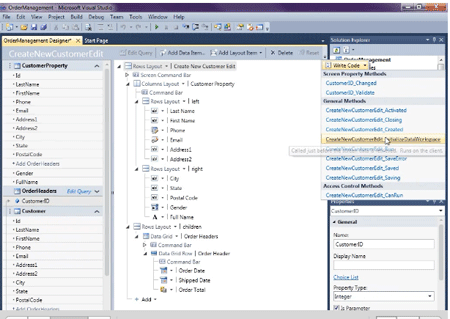

Step 6: Go to write code->Select CreateNewCustomerEditInitializeDataWorkSpace.


using System;
using System.Linq;
using System.IO;
using System.IO.IsolatedStorage;
using System.Collections.Generic;
using Microsoft.LightSwitch;
using Microsoft.LightSwitch.Framework.Client;
using Microsoft.LightSwitch.Presentation;
using Microsoft.LightSwitch.Presentation.Extensions;
using System.Collections.Generic;
namespace LightSwitchApplication
{
    public partial class CreateNewCustomerEdit
    {
        partial void CreateNewCustomerEdit_InitializeDataWorkspace(List<IDataService> saveChangesTo)
        {
            // Write your code here.
            if (this.CustomerID.HasValue)
            {
                this.CustomerProperty = this.Customer;
            }
            else
            {
                this.CustomerProperty = new Customer();
            }
        }
        partial void CreateNewCustomerEdit_Saved()
        {
            // Write your code here.
            this.Close(false);
            Application.Current.ShowDefaultScreen(this.CustomerProperty);
        }
    }
}

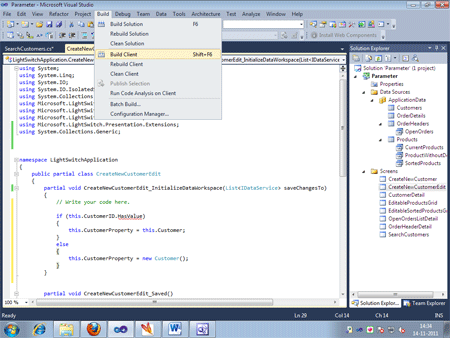

Step 7: Save->Build client.

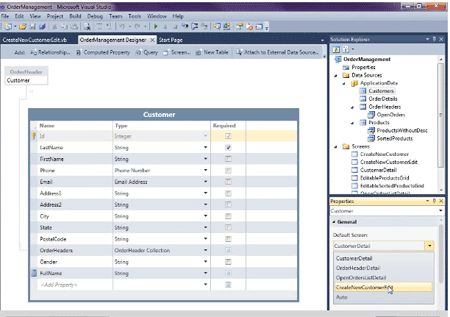

Step 8: Open customer table->properties->Select default screen (CreateNewCustomerEdit).

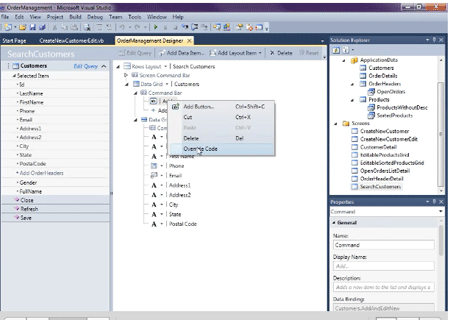

Step 9: Open search customer screen->Add..->Right click->Override code.


using System;
using System.Linq;
using System.IO;
using System.IO.IsolatedStorage;
using System.Collections.Generic;
using Microsoft.LightSwitch;
using Microsoft.LightSwitch.Framework.Client;
using Microsoft.LightSwitch.Presentation;
using Microsoft.LightSwitch.Presentation.Extensions;
namespace LightSwitchApplication
{
    public partial class SearchCustomers
    {
        partial void gridAddAndEditNew_CanExecute(ref bool result)
        {
            // Write your code here.
        }
        partial void gridAddAndEditNew_Execute()
        {
            // Write your code here.
            this.Application.ShowCreateNewCustomerEdit();
        }
    }
}

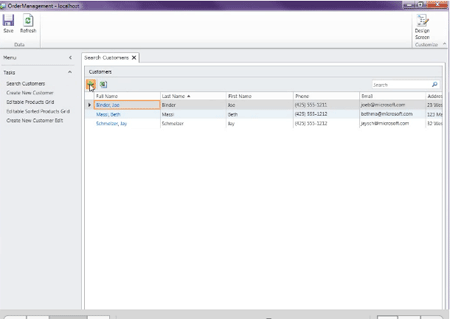

Step 10: Run application->Click + sign.

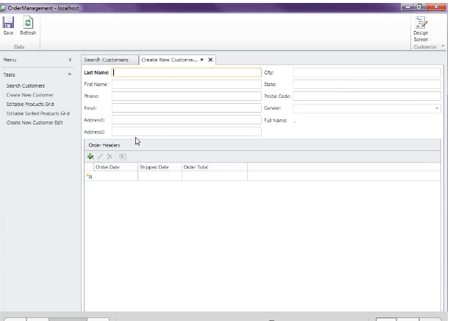

Step 11: Now you can add and edit any records->Save.
