Introduction

In this article we will explore how to use tiles in a Windows Phone 7 application. Here we create two types of tiles; the first one is Default tiles and the other one is User Defined tiles. To start the article, the first question that probably comes to your mind is: what are tiles in a Windows Phone application? Tiles are nothing but a link to an application from the home screen with some options to update the status. To create this application we will use two buttons in the MainPage.xaml file and the click event is used to create the tiles. We will create an instance of the StandardTileData class and set their property Title and BackgroundImage properety. Here we have 2 types of Tile development available:

Default Tile: This type is used when the application is pinned to the Start screen by the user for easy access to the application Icon in the application list. Clicking on the tile will navigate directly to the application for easy accessibility.
User Define Tile: This type is basically created programmatically by the application based on the user interaction. This type of Tile will be used to navigate to the application and only one instance can be created. We need to use the Create(Uri, ShellTileData) method to create a secondary tile.

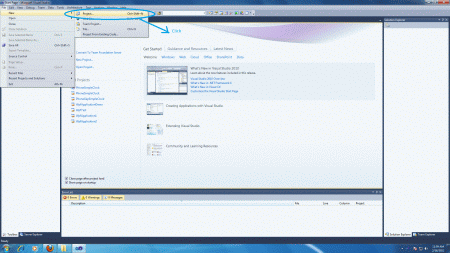

Step 1 : Open Visual Studio.

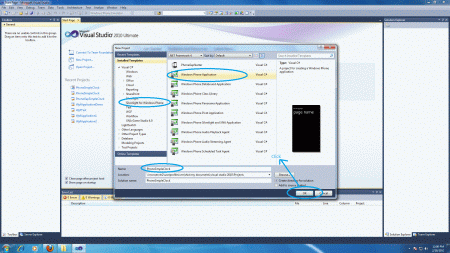

Select new -> project
Select your preferred language
Select Silverlight for Windows Phone application
Name the project
Now the name of the project is "WindowsPhoneApplicationTiles"

Step 2 : Open the Toolbox of the Windows Phone application.

Drag and Drop from the ToolBox two button controls onto the MainPage.xaml file.

Code

Step 3 : The whole code of the MainPage.xaml page is:

Code

<phone:PhoneApplicationPage
   x:Class="F5debugWp7Tiles.MainPage"
   xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
   xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
   xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
   FontFamily="{StaticResource PhoneFontFamilyNormal}"
   FontSize="{StaticResource PhoneFontSizeNormal}"
   Foreground="{StaticResource PhoneForegroundBrush}"
   SupportedOrientations="Portrait" Orientation="Portrait"
   shell:SystemTray.IsVisible="True">


    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>


        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
         <TextBlock x:Name="PageTitle" Text="Tiles" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>


        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Default" Height="226" HorizontalAlignment="Left" Margin="86,48,0,0" Name="button1" VerticalAlignment="Top" Width="300" Click="button1_Click" />
            <Button Content="User Define" Height="226" HorizontalAlignment="Left" Margin="86,0,0,88" Name="button2" VerticalAlignment="Bottom" Width="300" Click="button2_Click" />
        </Grid>
    </Grid>
</phone:PhoneApplicationPage>

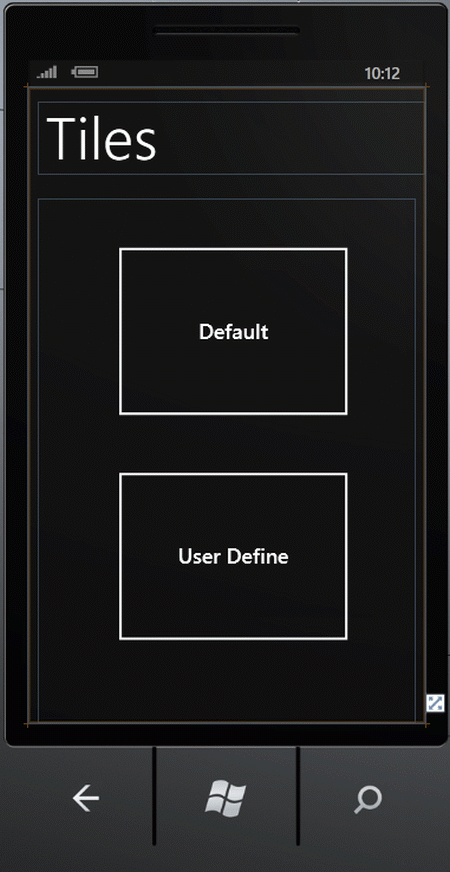

At design time

Step 4 : To manipulate the Click event of buttons, we will customize the source code of the MainPage.xaml.cs file.

Code

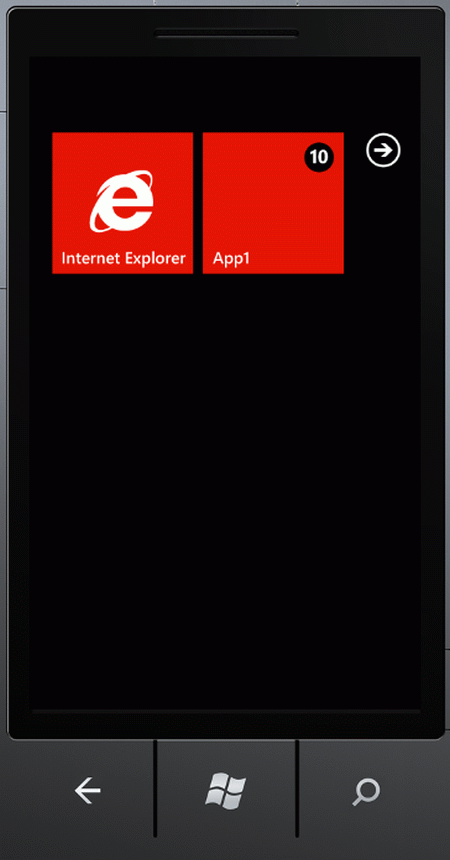

   private void button1_Click(object sender, RoutedEventArgs e)
        {
            ShellTile AppShell = ShellTile.ActiveTiles.First();
            StandardTileData AppTile = new StandardTileData();
            AppTile.Title = "App1";
            AppTile.BackgroundImage = new Uri("RedTile.jpg", UriKind.Relative);
            AppTile.Count= 10;
            var URINav1 = "/Page2.xaml?state=App Tile";
            ShellTile.Create(new Uri(URINav1, UriKind.Relative), AppTile);
            AppShell.Update(AppTile);
        }

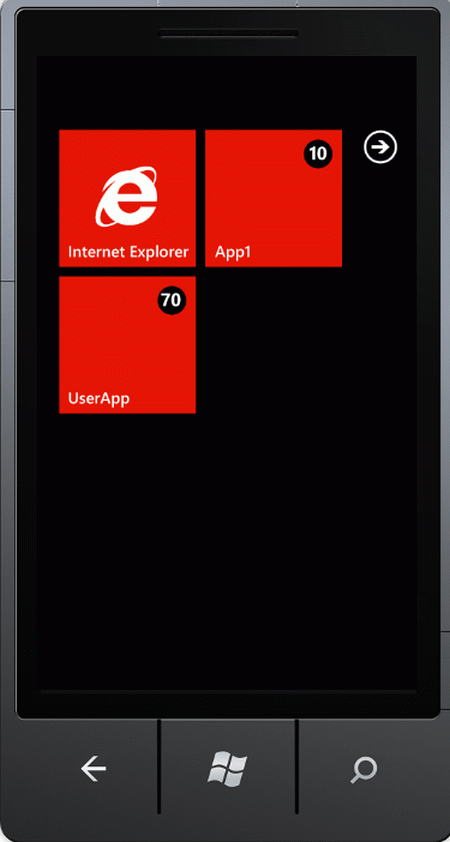

     private void button2_Click(object sender, RoutedEventArgs e)
        {
            StandardTileData SecTitle = new StandardTileData();
            SecTitle.Title = "UserApp";
            SecTitle.BackgroundImage = new Uri("BlueTile.jpg", UriKind.Relative);
            SecTitle.Count = 70;
            var URINav = "/Page1.xaml?state=Sec Tile";
            ShellTile.Create(new Uri(URINav, UriKind.Relative), SecTitle);
       }

Step 5 : The final source code of the MainPage.xaml.cs file is:

Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Shell;

namespace WindowsPhoneApplicationTiles
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();
       }
       private void button1_Click(object sender, RoutedEventArgs e)
        {
            ShellTile AppShell = ShellTile.ActiveTiles.First();
            StandardTileData AppTile = new StandardTileData();
            AppTile.Title = "App1";
            AppTile.BackgroundImage = new Uri("RedTile.jpg", UriKind.Relative);
            AppTile.Count= 10;
            var URINav1 = "/Page2.xaml?state=App Tile";
            ShellTile.Create(new Uri(URINav1, UriKind.Relative), AppTile);
            AppShell.Update(AppTile);
        }

        private void button2_Click(object sender, RoutedEventArgs e)
        {
            StandardTileData SecTitle = new StandardTileData();
            SecTitle.Title = "UserApp";
            SecTitle.BackgroundImage = new Uri("BlueTile.jpg", UriKind.Relative);
            SecTitle.Count = 70;
            var URINav = "/Page1.xaml?state=Sec Tile";
            ShellTile.Create(new Uri(URINav, UriKind.Relative), SecTitle);
        }
    }
}
