Let's return to the ASP.NET tips and trick series. We are once again going to learn a new trick related to GridView. Previously I posted the following articles related to GridView.
Requirements
Suppose you have a page where you are displaying some data to the user. You want to add functionality to print these records. But the problem with the Browsers Default Print options (Ctrl+P) is that, it will print an entire page. All header images, footers, sidebars and colors will be printed, which is not required. You have two options, either create a new page for a print view and redirect the user to that page or just print the required area, in our case it is the GridView.
Most developers working in a web applications have a MasterPage for their web application. A MasterPage is similar to templates in normal HTML having some advanced functionality and customized code for maintaining an easier and common look of a website or application.

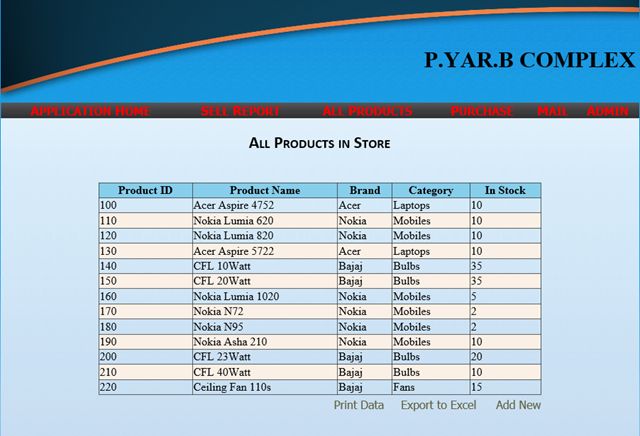

Let's have a look at the following screen to make our requirements more clear.
![MasterPage]()
Code for Default.aspxThis is the code for the GridView.
<asp:GridView runat="server" ID="gvProducts" AutoGenerateColumns="false" AllowPaging="false"
AlternatingRowStyle-BackColor="Linen" HeaderStyle-BackColor="SkyBlue" Width="100%"
OnPageIndexChanging="gvProducts_PageIndexChanging" EmptyDataText="Sorry! No Products to List. First Add from Add Product Link.">
<Columns>
<asp:TemplateField HeaderText="Product ID">
<ItemTemplate>
<asp:Label ID="lblProductID" runat="server" Text='<%#Eval("ProductID")%>' ToolTip="ID of Product as stored in Database."></asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
<Columns>
<asp:TemplateField HeaderText="Product Name">
<ItemTemplate>
<asp:Label ID="lblProductName" runat="server" ToolTip="Name of Product" Text='<%#Eval("ProductName")%>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
<Columns>
<asp:TemplateField HeaderText="Brand">
<ItemTemplate>
<asp:Label ID="lblBrandName" runat="server" ToolTip="Brand of Product" Text='<%#Eval("BrandName")%>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
<Columns>
<asp:TemplateField HeaderText="Category">
<ItemTemplate>
<asp:Label ID="lblProductCat" runat="server" ToolTip="Category of Product" Text='<%#Eval("CategoryName")%>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
<Columns>
<asp:TemplateField HeaderText="In Stock">
<ItemTemplate>
<asp:Label ID="lblProductinStock" runat="server" ToolTip="Quantity available in Stock"
Text='<%#Eval("UnitsInStock")%>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
Code for Default.aspx.cs
We do not have much more at the backend, we are just going to bind data to the GridView.
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["ConToStore"].ConnectionString);
SqlDataAdapter adp = new SqlDataAdapter("Select * from Products,Brands,Category where Products.BrandID=Brands.BrandID and Products.CategoryID=Category.CategoryID", con);
DataSet ds = new DataSet();
adp.Fill(ds);
gvProducts.DataSource = ds.Tables[0];
gvProducts.DataBind();
}
}
Printing the Page

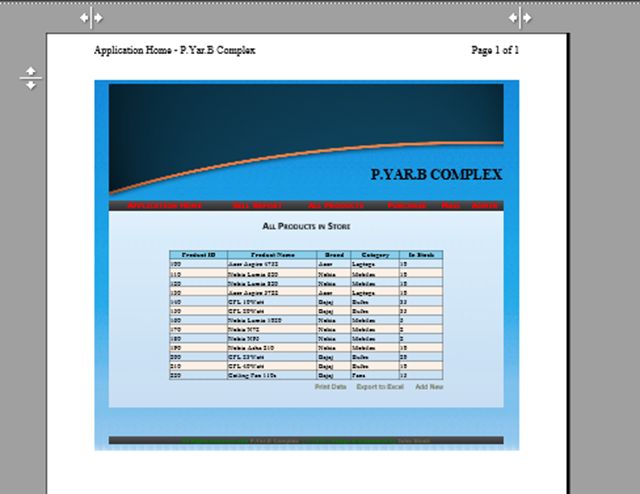

Let's press the Ctrl+P key combination to print the page, before printing see the Preview.
![Printing Page]()
Printing GridView Only
We need to make the following change to print the GridView only. Let's start with the HTML.
Wrap the GridView inside a Table or Panel. I am using a table. Alternatively you can use a Panel.
<table width="70%" id="pnlGridView" runat="server" align="center" class="ContentTable">
<tr>
<td colspan="2" align="center">
<h1>
All Products in Store</h1>
</td>
</tr>
<tr>
<td>
</td>
</tr>
<tr>
<td colspan="2">
<asp:gridview runat="server" id="gvProducts" autogeneratecolumns="false" allowpaging="false"
alternatingrowstyle-backcolor="Linen" headerstyle-backcolor="SkyBlue" width="100%"
onpageindexchanging="gvProducts_PageIndexChanging" emptydatatext="Sorry! No Products to List. First Add from Add Product Link.">
...............
.............
</asp:gridview>
</td>
</tr>
<tr>
<td align="right">
<asp:linkbutton id="lnkPrint" runat="server" tooltip="Click to Print All Records"
text="Print Data" onclick="lnkPrint_Click"></asp:linkbutton>
<asp:linkbutton id="lnkExportAll" runat="server" tooltip="Export this List" text="Export to Excel"
onclick="lnkExportAll_Click"></asp:linkbutton>
<asp:linkbutton id="lnkAddNew" runat="server" tooltip="Add New Product" text="Add New"
onclick="lnkAddNew_Click"></asp:linkbutton>
</td>
</tr>
</table>
Now just add following JavaScript function in head section and assign that function to Print linkbutton.
<script language="javascript" type="text/javascript">
function PrintPage() {
var printContent = document.getElementById('<%= pnlGridView.ClientID %>');
var printWindow = window.open("All Records", "Print Panel", 'left=50000,top=50000,width=0,height=0');
printWindow.document.write(printContent.innerHTML);
printWindow.document.close();
printWindow.focus();
printWindow.print();
}
</script>

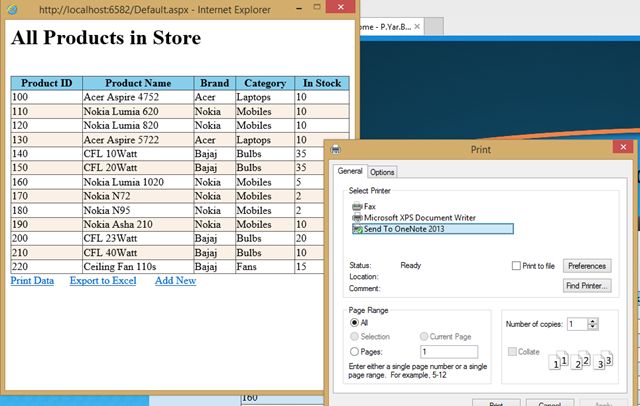

Now let's click on the Print Link button that we created. The following will be the output of the code above.
![Printing GridView Only]()
Bingo! It satisfies the requirements.
I hope you enjoyed reading this. If you have any feedback or suggestions then please send us as comment or use the contact options. Keep sharing.
