Export GridView Records to CSV Using ASP.Net C#

Background

There is often a need in a project's reporting module to export Grid View records to CSV, So by considering that requirement I decided to write this article especially focusing on beginners and those who want to learn how to export a Grid View to CSV using ASP.NET C#.

Now before creating the application, let us create a table named employee in a database from where we show the records in a Grid View, the table has the following fields (shown in the following image):



I hope you have created the same type of table.

Now create the project as:
  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".

  2. "File" - "New Project" - "C#" - "Empty Project" (to avoid adding a master page).

  3. Provide the Project name such as ExportGridRecordsToCSV or another as you wish and specify the location.

  4. Then right-click on Solution Explorer and select "Add New Item" then select Default.aspx page.

  5. One Button and a grid view.
Now the Default.aspx source code will be as follows:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ExPortGridviewToXML.Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html>
  5. <head id="Head1" runat="server">
  6.     <title></title>
  7. </head>
  8. <body bgcolor="Silver">
  9.     <form id="form1" runat="server">
  10.     <br />
  11.     <h2 style="color: #808000; font-size: x-large; font-weight: bolder;">
  12.         Article by Vithal Wadje</h2>
  13.     <br />
  14.     <div>
  15.         <asp:GridView ID="GridView1" AutoGenerateColumns="false" runat="server" CellPadding="6"
  16.             ForeColor="#333333" GridLines="None">
  17.             <AlternatingRowStyle BackColor="White" />
  18.             <EditRowStyle BackColor="#7C6F57" />
  19.             <FooterStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  20.             <HeaderStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  21.             <PagerStyle BackColor="#666666" ForeColor="White" HorizontalAlign="Center" />
  22.             <RowStyle BackColor="#E3EAEB" />
  23.             <SelectedRowStyle BackColor="#C5BBAF" Font-Bold="True" ForeColor="#333333" />
  24.             <SortedAscendingCellStyle BackColor="#F8FAFA" />
  25.             <SortedAscendingHeaderStyle BackColor="#246B61" />
  26.             <SortedDescendingCellStyle BackColor="#D4DFE1" />
  27.             <SortedDescendingHeaderStyle BackColor="#15524A" />
  28.             <Columns>
  29.                 <asp:BoundField DataField="id" HeaderText="id" />
  30.                 <asp:BoundField DataField="Name" HeaderText="Name" />
  31.                 <asp:BoundField DataField="City" HeaderText="City" />
  32.                 <asp:BoundField DataField="Address" HeaderText="Address" />
  33.                 <asp:BoundField DataField="Designation" HeaderText="Designation" />
  34.             </Columns>
  35.         </asp:GridView>
  36.         <br />
  37.                    <asp:Button ID="Button1" runat="server"
  38.             Text="Export" OnClick="Button1_Click" />
  39.     </div>
  40.     </form>
  41. </body>
  42. </html>

Now let us create a function to bind the records to the Grid View from the database. If you are a beginner and don't understand in detail how to bind a Grid View from a database then refer to my following article.

Now, for this article create the following function in the default.aspx.cs page to bind the Grid View:
  1. private void Bindgrid()
  2.       {
  3.           connection();
  4.           query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  5.           com = new SqlCommand(query, con);
  6.           SqlDataAdapter da = new SqlDataAdapter(query, con);
  7.           DataSet ds = new DataSet();
  8.           da.Fill(ds);
  9.           GridView1.DataSource = ds;
  10.           GridView1.DataBind();
  11.           con.Close();
  12.
  13.       }
Now, call the preceding function on page load as:
  1. protected void Page_Load(object sender, EventArgs e)
  2.        {
  3.            if (!IsPostBack)
  4.            {
  5.                Bindgrid();
  6.
  7.            }
  8.        }
Now create the following function to export the Grid View records to CSV:
  1. private void ExportGridToCSV()
  2.        {
  3.            Bindgrid();
  4.            Response.Clear();
  5.            Response.Buffer = true;
  6.            Response.AddHeader("content-disposition", "attachment;filename=Vithal_Wadje.csv");
  7.            Response.Charset = "";
  8.            Response.ContentType = "application/text";
  9.            GridView1.AllowPaging = false;
  10.            GridView1.DataBind();
  11.
  12.            StringBuilder columnbind = new StringBuilder();
  13.            for (int k = 0; k < GridView1.Columns.Count; k++)
  14.            {
  15.
  16.                columnbind.Append(GridView1.Columns[k].HeaderText + ',');
  17.            }
  18.
  19.            columnbind.Append("\r\n");
  20.            for (int i = 0; i < GridView1.Rows.Count; i++)
  21.            {
  22.                for (int k = 0; k < GridView1.Columns.Count; k++)
  23.                {
  24.
  25.                    columnbind.Append(GridView1.Rows[i].Cells[k].Text + ',');
  26.                }
  27.
  28.                columnbind.Append("\r\n");
  29.            }
  30.            Response.Output.Write(columnbind.ToString());
  31.            Response.Flush();
  32.            Response.End();
  33.
  34.        }
We have created the preceding function to export GridView Records to CSV. Now call the preceding function on the Export button click as:
  1. protected void Button1_Click(object sender, EventArgs e)
  2.        {
  3.
  4.            ExportGridToCSV();
  5.
  6.        }
The entire code of the default.aspx page will look as follows:
  1. using System;
  2. using System.IO;
  3. using System.Data;
  4. using System.Threading;
  5. using System.Data.SqlClient;
  6. using System.Configuration;
  7. using System.Text;
  8. using System.Web.UI.WebControls;
  9.
  10. namespace ExPortGridviewToXML
  11. {
  12.     public partial class Default : System.Web.UI.Page
  13.     {
  14.         private SqlConnection con;
  15.         private SqlCommand com;
  16.         private string constr, query;
  17.         private void connection()
  18.         {
  19.             constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
  20.             con = new SqlConnection(constr);
  21.             con.Open();
  22.
  23.         }
  24.         protected void Page_Load(object sender, EventArgs e)
  25.         {
  26.             if (!IsPostBack)
  27.             {
  28.                 Bindgrid();
  29.
  30.             }
  31.         }
  32.
  33.
  34.         private void Bindgrid()
  35.         {
  36.             connection();
  37.             query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  38.             com = new SqlCommand(query, con);
  39.             SqlDataAdapter da = new SqlDataAdapter(query, con);
  40.             DataSet ds = new DataSet();
  41.             da.Fill(ds);
  42.             GridView1.DataSource = ds;
  43.             GridView1.DataBind();
  44.             con.Close();
  45.
  46.         }
  47.
  48.         protected void Button1_Click(object sender, EventArgs e)
  49.         {
  50.
  51.             ExportGridToCSV();
  52.
  53.         }
  54.         private void ExportGridToCSV()
  55.         {
  56.             Bindgrid();
  57.             Response.Clear();
  58.             Response.Buffer = true;
  59.             Response.AddHeader("content-disposition", "attachment;filename=Vithal_Wadje.csv");
  60.             Response.Charset = "";
  61.             Response.ContentType = "application/text";
  62.             GridView1.AllowPaging = false;
  63.             GridView1.DataBind();
  64.
  65.             StringBuilder columnbind = new StringBuilder();
  66.             for (int k = 0; k < GridView1.Columns.Count; k++)
  67.             {
  68.
  69.                 columnbind.Append(GridView1.Columns[k].HeaderText + ',');
  70.             }
  71.
  72.             columnbind.Append("\r\n");
  73.             for (int i = 0; i < GridView1.Rows.Count; i++)
  74.             {
  75.                 for (int k = 0; k < GridView1.Columns.Count; k++)
  76.                 {
  77.
  78.                     columnbind.Append(GridView1.Rows[i].Cells[k].Text + ',');
  79.                 }
  80.
  81.                 columnbind.Append("\r\n");
  82.             }
  83.             Response.Output.Write(columnbind.ToString());
  84.             Response.Flush();
  85.             Response.End();
  86.
  87.         }
  88.
  89.
  90.     }
  91. }

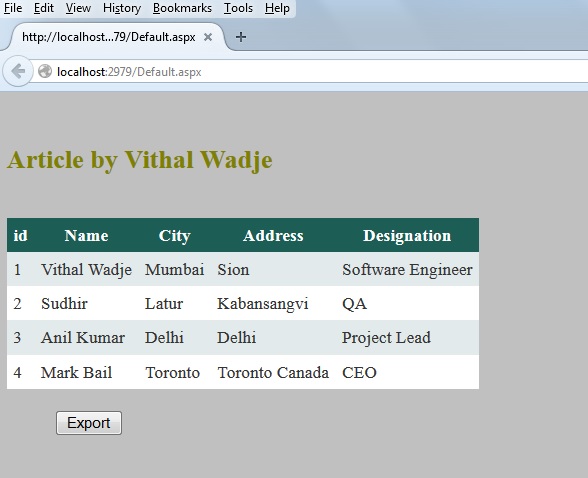

Now run the application and then we can see the following records in the Grid view:

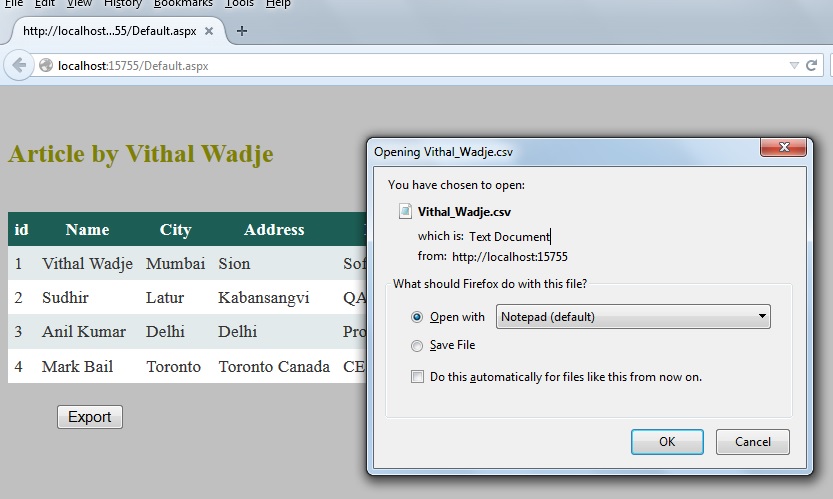

Now click on the export button, the following Popup will appear:

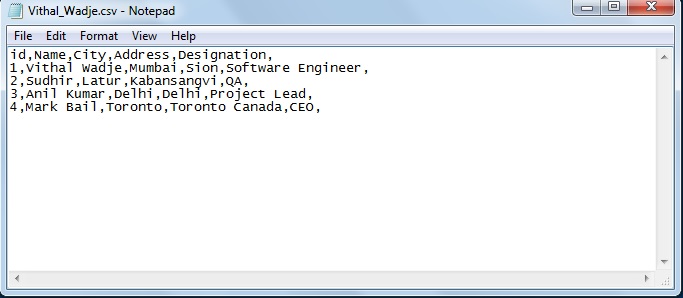

 Now click the OK button, the following records are exported to the CSV file:



Now you see that all the records of the Grid View are exported to  CSV file.

Notes
  • Download the Zip file from the attachment for the full source code of the application.
  • Change the connection string in the web.config file to specify your server location.
Summary

I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
