Export GridView Records to XML Using ASP.Net C#

Background


There is often a need in a project's reporting module to export GridView Records to XML. So by considering that requirement I decided to write this article especially focusing on beginners and those who want to learn how to export a GridView to XML using ASP.NET C#.

Now before creating the application, let us create a table named employee in a database from where we show the records in a Grid view, the table has the following fields (shown in the following image):


I hope you have created the same type of table.

Now create the project as:
  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".
  2. "File" - "New Project" - "C#" - "Empty Project" (to avoid adding a master page).
  3. Provide the Project name such as ExportGridRecordsToXML or another as you wish and specify the location.
  4. Then right-click on Solution Explorer - "Add New Item" - Default.aspx page.
  5. One Button and a grid view.

Now the default.aspx source code will be such as follows:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ExPortGridviewToXML.Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html>
  5. <head id="Head1" runat="server">
  6.     <title></title>
  7. </head>
  8. <body bgcolor="Silver">
  9.     <form id="form1" runat="server">
  10.     <br />
  11.     <h2 style="color: #808000; font-size: x-large; font-weight: bolder;">
  12.         Article by Vithal Wadje</h2>
  13.     <br />
  14.     <div>
  15.         <asp:GridView ID="GridView1" runat="server" CellPadding="6" ForeColor="#333333" GridLines="None">
  16.             <AlternatingRowStyle BackColor="White" />
  17.             <EditRowStyle BackColor="#7C6F57" />
  18.             <FooterStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  19.             <HeaderStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  20.             <PagerStyle BackColor="#666666" ForeColor="White" HorizontalAlign="Center" />
  21.             <RowStyle BackColor="#E3EAEB" />
  22.             <SelectedRowStyle BackColor="#C5BBAF" Font-Bold="True" ForeColor="#333333" />
  23.             <SortedAscendingCellStyle BackColor="#F8FAFA" />
  24.             <SortedAscendingHeaderStyle BackColor="#246B61" />
  25.             <SortedDescendingCellStyle BackColor="#D4DFE1" />
  26.             <SortedDescendingHeaderStyle BackColor="#15524A" />
  27.         </asp:GridView>
  28.         <br />
  29.                    <asp:Button ID="Button1" runat="server"
  30.             Text="Export" OnClick="Button1_Click" />
  31.     </div>
  32.     </form>
  33. </body>
  34. </html>

Now let us create a function to bind the records to the Grid view from the database. If you are a beginner and don't understand in detail how to bind a Grid view from a database then refer to my following article.

Now, for this article create the following function in the default.aspx.cs page to bind the Grid view:

  1. private void Bindgrid()
  2.        {
  3.            connection();
  4.            query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  5.            com = new SqlCommand(query, con);
  6.            SqlDataAdapter da = new SqlDataAdapter(query, con);
  7.            DataSet ds = new DataSet();
  8.
  9.            da.Fill(ds);
  10.            DataTable GridSource = ds.Tables[0];
  11.            GridView1.DataSource = GridSource;
  12.            GridView1.DataBind();
  13.            con.Close();
  14.            ViewState["Data"] = GridSource;
  15.        }
 Now, call the preceding function on page load as:
  1. protected void Page_Load(object sender, EventArgs e)
  2.        {
  3.            if (!IsPostBack)
  4.            {
  5.                Bindgrid();
  6.
  7.            }
  8.        }
 Now create the following function to export the Grid view records to XML:
  1. private void ExportGridToXML()
  2.        {
  3.
  4.            SaveFileDialog SaveXMLFileDialog = new SaveFileDialog();
  5.            SaveXMLFileDialog.Filter = "Xml files (*.xml)|*.xml";
  6.            SaveXMLFileDialog.FilterIndex = 2;
  7.            SaveXMLFileDialog.RestoreDirectory = true;
  8.            SaveXMLFileDialog.InitialDirectory = "C:\\";
  9.            SaveXMLFileDialog.FileName = "Vithal_Wadje";
  10.            SaveXMLFileDialog.Title = "XML Export";
  11.            if (SaveXMLFileDialog.ShowDialog() == DialogResult.OK)
  12.            {
  13.
  14.                DataSet ds = new DataSet();
  15.                DataTable dtxml = (DataTable)ViewState["Data"];
  16.                ds.Tables.Add(dtxml);
  17.                ds.WriteXml(File.OpenWrite(SaveXMLFileDialog.FileName));
  18.
  19.            }
  20.            XMLFileThread.Abort();
  21.
  22.        }
We have created the preceding function that is used to export the dataTable to XML that is used for a GridView as a DataSource.

Now call the preceding function on the Export button click as:
  1. protected void Button1_Click(object sender, EventArgs e)
  2.       {
  3.            XMLFileThread = new Thread(new ThreadStart(ExportGridToXML));
  4.           XMLFileThread.ApartmentState = ApartmentState.STA;
  5.           XMLFileThread.Start();
  6.
  7.
  8.       }
 The entire code of the default.aspx page will look such as follows:
  1. using System;
  2. using System.IO;
  3. using System.Windows.Forms;
  4. using System.Data;
  5. using System.Threading;
  6. using System.Data.SqlClient;
  7. using System.Configuration;
  8.
  9. namespace ExPortGridviewToXML
  10. {
  11.     public partial class Default : System.Web.UI.Page
  12.     {
  13.         private SqlConnection con;
  14.         private SqlCommand com;
  15.         private string constr, query;
  16.         Thread XMLFileThread;
  17.         private void connection()
  18.         {
  19.             constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
  20.             con = new SqlConnection(constr);
  21.             con.Open();
  22.
  23.         }
  24.         protected void Page_Load(object sender, EventArgs e)
  25.         {
  26.             if (!IsPostBack)
  27.             {
  28.                 Bindgrid();
  29.
  30.             }
  31.         }
  32.
  33.
  34.         private void Bindgrid()
  35.         {
  36.             connection();
  37.             query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  38.             com = new SqlCommand(query, con);
  39.             SqlDataAdapter da = new SqlDataAdapter(query, con);
  40.             DataSet ds = new DataSet();
  41.
  42.             da.Fill(ds);
  43.             DataTable GridSource = ds.Tables[0];
  44.             GridView1.DataSource = GridSource;
  45.             GridView1.DataBind();
  46.             con.Close();
  47.             ViewState["Data"] = GridSource;
  48.         }
  49.         protected void Button1_Click(object sender, EventArgs e)
  50.         {
  51.              XMLFileThread = new Thread(new ThreadStart(ExportGridToXML));
  52.             XMLFileThread.ApartmentState = ApartmentState.STA;
  53.             XMLFileThread.Start();
  54.
  55.
  56.         }
  57.         private void ExportGridToXML()
  58.         {
  59.
  60.             SaveFileDialog SaveXMLFileDialog = new SaveFileDialog();
  61.             SaveXMLFileDialog.Filter = "Xml files (*.xml)|*.xml";
  62.             SaveXMLFileDialog.FilterIndex = 2;
  63.             SaveXMLFileDialog.RestoreDirectory = true;
  64.             SaveXMLFileDialog.InitialDirectory = "C:\\";
  65.             SaveXMLFileDialog.FileName = "Vithal_Wadje";
  66.             SaveXMLFileDialog.Title = "XML Export";
  67.             if (SaveXMLFileDialog.ShowDialog() == DialogResult.OK)
  68.             {
  69.
  70.                 DataSet ds = new DataSet();
  71.                 DataTable dtxml = (DataTable)ViewState["Data"];
  72.                 ds.Tables.Add(dtxml);
  73.                 ds.WriteXml(File.OpenWrite(SaveXMLFileDialog.FileName));
  74.
  75.             }
  76.             XMLFileThread.Abort();
  77.
  78.         }
  79.
  80.
  81.     }

Now run the application and then we can see the following records in the Grid view:


Now click on the export button. The XML file that is created will be saved on my Desktop because I have given the C drive path in the code, however you can specify any path as you wish, the file will look such as follows:

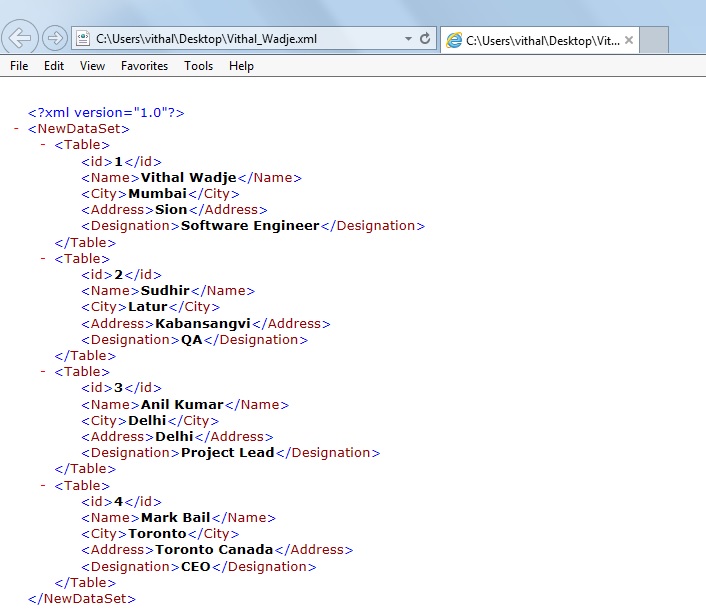

Now open the file using Visual Studio or any browser. I will open it with the IE browser then the records will look such as follows:


Now you see that all the records of the Grid view are exported to an XML file.

Notes
  • Download the Zip file from the attachment for the full source code of the application.
  • Change the connection string in the web.config file to specify your server location.
  • You can save the XML file that is created to any location.
  • We are actually exporting the Data Table to XML that is used for a Grid view as a Data Source.

Summary

I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
