JQuery

Save Records Using jQuery, Web Services, and JSON Objects

Introduction

Before going in detail of this article I would like to introduce you the technologies used in the example.

Jquery: JQuery is a JavaScript Library, it greatly simplifies JavaScript programming.

Web Services: A web service is the communication platform between two different platform applications that allows using their web method.

JSON:

  • JSON stands for JavaScript Object Notation
  • JSON is a lightweight data-interchange format
  • JSON is language independent *
  • JSON is "self-describing" and easy to understand

Note: For better understanding of jQuery you must have the knowledge of CSS and JavaScripts.

Descriptions

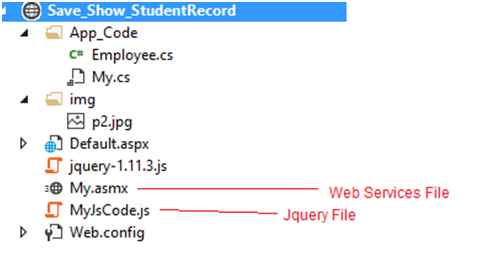

Here are the files we have to create:

Files

Step 1: Create an HTML Page Design Page:

  1. <!DOCTYPE html>
  2. <html xmlns="http://www.w3.org/1999/xhtml">
  3. <head>
  4.     <title></title>
  5.     <script src="jquery-1.11.3.js"></script>
  6.     <script src="MyJsCode.js"></script>
  7.     <style type="text/css">
  8.         .auto-style1 {
  9.             width: 72px;
  10.         }
  11.         .auto-style2 {
  12.             width: 53px;
  13.         }
  14.     </style>
  15. </head>
  16. <body style="background-color:ActiveBorder">
  17.     <form id="form1" style="height: 500px; width: 500px;background-image:url('img/p2.jpg'); border:solid;
  18.  border-collapse:collapse;margin-top:120px; margin-left:400px;">
  19.         <div id="div1" style="height: 170px; width: 500px;">
  20.             <p style="margin-left:100px; font-family:Algerian;">Enter Name and Salary Below !</p>
  21.             <table id="tbl1" border="1" style="margin-left: 130px; margin-top: 30px">
  22.                 <tr>
  23.                     <td>Name</td>
  24.                     <td>
  25.                         <input id="txtname" type="text" /></td>
  26.                 </tr>
  27.                 <tr>
  28.                     <td>Salary</td>
  29.                     <td>
  30.                         <input id="txtsalary" type="text" /></td>
  31.                 </tr>
  32.                 <tr>
  33.                     <td colspan="2">
  34.                         <input id="btnSave" type="button" value="Save" style="margin-left: 10px; width: 150px" />
  35.                     </td>
  36.                 </tr>
  37.             </table>
  38.             <br />
  39.         </div>
  40.         <div id="div2" style="height: 250px; width: 500px">
  41.             <p style="margin-left:150px; font-family:Algerian;">Employee Records</p>
  42.             <table id="tbl2" border="1" style="border-collapse: collapse; margin-left: 135px; width: 200px;">
  43.                 <thead>
  44.                     <tr>
  45.                         <th class="auto-style2">ID</th>
  46.                         <th>Name</th>
  47.                         <th class="auto-style1">Salary</th>
  48.                     </tr>
  49.                 </thead>
  50.                 <tbody>
  51.                 </tbody>
  52.             </table>
  53.         </div>
  54.     </form>
  55. </body>
  56. </html>

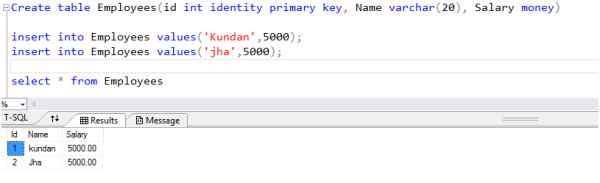

Step 2: After designing the Web Page, let's create a table in SQL Server to save data.

result

Step 3: Create a user defined type (or class) to accept the user value:

  1. public class Employee
  2. {
  3.    public int ID { get; set; }
  4.    public string Name { get; set; }
  5.
  6.    public int Salary { get; set; }
  7.
  8. }

Step 4: We have created a web service having two Web Methods with ADO.NET class to communicate with SQL Server from HTML Page.

  1. public class My : System.Web.Services.WebService
  2. {
  3.     string CS = ConfigurationManager.ConnectionStrings["MyCon"].ConnectionString;
  4.     //Below method will accept employee type object and save it DB.
  5.     [WebMethod]
  6.     public void saveData(Employee emp1)
  7.     {
  8.         SqlConnection _con = new SqlConnection(CS);
  9.         SqlCommand _cmd = new SqlCommand("insert into Employees values(@name,@salary)", _con);
  10.         _cmd.Parameters.AddWithValue("@name", emp1.Name);
  11.         _cmd.Parameters.AddWithValue("@salary", emp1.Salary);
  12.         _con.Open();
  13.         int i = _cmd.ExecuteNonQuery();
  14.         _con.Close();
  15.     }
  16.     //This method has used to select the employee record and store in collection.
  17.     [WebMethod]
  18.     public void GetEmployeeRecord()
  19.     {
  20.         List<Employee> _li = new List<Employee>();
  21.         SqlConnection _con = new SqlConnection(CS);
  22.         SqlCommand _cmd = new SqlCommand("select * from Employees", _con);
  23.         _con.Open();
  24.         SqlDataReader dr = _cmd.ExecuteReader();
  25.         while (dr.Read())
  26.         {
  27.             Employee emp = new Employee();
  28.             emp.ID = Convert.ToInt32(dr[0]);
  29.             emp.Name = dr[1].ToString();
  30.             emp.Salary = Convert.ToInt32(dr[2]);
  31.
  32.             _li.Add(emp);
  33.         }
  34.         _con.Close();
  35. //JavaScriptSerializer class has used to convert list collection to JSON array.
  36.         JavaScriptSerializer js = new JavaScriptSerializer();
  37.         Context.Response.Write(js.Serialize(_li));
  38.     }
  39.
  40. }

Web Services will look like.

Step 5: Finally, create a javascript file for jQuery functions.

Here we have created two functions like webservices:

  1. //TO Save the User Data
  2. $(document).ready(function () {
  3.     $("#btnSave").click(function () {
  4.         var employee = {};
  5.         employee.Name = $("#txtname").val();
  6.         employee.Salary = $("#txtsalary").val();
  7.
  8.         $.ajax({
  9.             url: 'My.asmx/saveData',
  10.             method: 'post',
  11.             contentType: 'application/json;Charset=utf-8',
  12.             data: '{emp1:' + JSON.stringify(employee) + '}',
  13.             success: function () {
  14.                 show();
  15.                 $("#txtname").val("");
  16.                 $("#txtsalary").val("");
  17.             },
  18.             error: function (err) {
  19.                 alert("Please Enter Name and Salary");
  20.
  21.             }
  22.         });
  23.     });
  24. });
  25. //TO Display the Records
  26. function show() {
  27.     $.ajax({
  28.         url: 'My.asmx/GetEmployeeRecord',
  29.         dataType: "json",
  30.         method: 'post',
  31.         success: function (data) {
  32.             var employee = $("#tbl2 tbody");
  33.             employee.empty();
  34.             $(data).each(function (index, emp) {
  35.                 employee.append('<tr><td>' + emp.ID + '</td><td>' + emp.Name + '</td><td>' + emp.Salary + '</td></tr>');
  36.             });
  37.         },
  38.         error: function (err) {
  39.             alert(err);
  40.         }
  41.     });
  42. }

To successfully execution of jQuery codes, please download the latest jQuery script file form jquery.com.

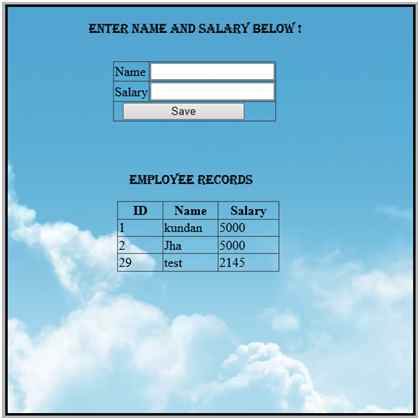

Output:

Output

Hope you liked this article.
