Use of Master Page in
ASP.NET MVC Application
As we know, to develop any application which is a combination of various pages having different functions but some part remains the same on all the pages of maximum pages hence to overcome the workload of doing same work again and again for all the pages we can use the facility of view master page in MVC .As in an application their are total ten views and five of them are having same structure and other five are having different structure hence in that case we can use two different master pages and can overcome the workload.
Let's starts with creating the View
Master Page in an application in which the user requires the same structure to be used
on all pages.
Steps to add Master Page to MVC project :

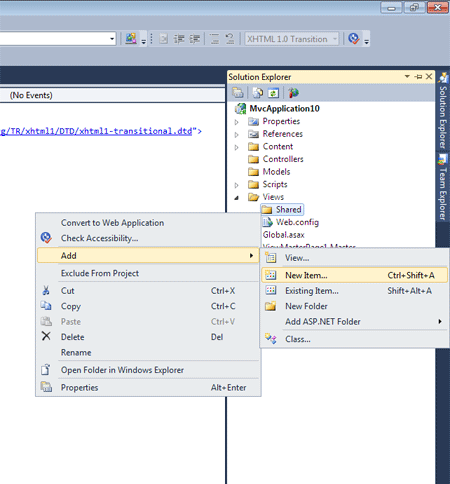

Right-click the Shared (View) folder
![1n.gif]()
Then select on Add>New Item

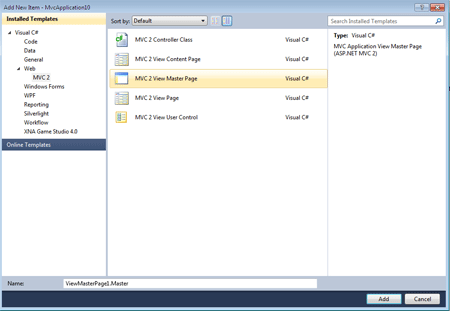

After that select the MVC View Master Page template
![2.gif]()
Now if user requirements are different for some pages then he/she can create another master pages as per requirement and can overcome the workload.

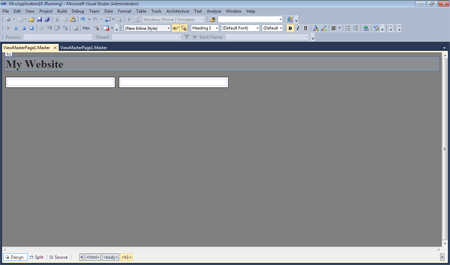

Now Code of the Master Page
<%@
Master Language="C#" AutoEventWireup="true" CodeBehind="Site.Master.cs" Inherits="MvcApplication10.Views.Shared.Main" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD
XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head2" runat="server">
<title></title>
<style type="text/css">
html
{
background-color: gray;
}
.column
{
float: left;
width: 300px;
border: solid 1px black;
margin-right: 10px;
padding: 5px;
background-color: white;
min-height: 500px;
}
</style>
<asp:ContentPlaceHolder
ID="head"
runat="server">
</asp:ContentPlaceHolder>
</head>
<body>
<h1>
My
Website</h1>
<div
class="column">
<asp:ContentPlaceHolder
ID="ContentPlaceHolder1"
runat="server">
</asp:ContentPlaceHolder>
</div>
<div class="column">
<asp:ContentPlaceHolder
ID="ContentPlaceHolder2"
runat="server">
</asp:ContentPlaceHolder>
</div>
</body>
</html>
![3.gif]()
Now
implementation of View Master Page in Content View Page
Step to Create a View Content Page
based on master page

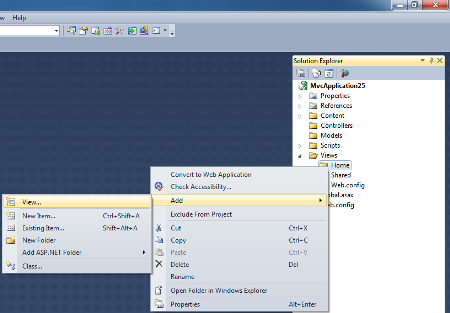

- Right
click on Home (Views) folder
![New Picture.bmp]()

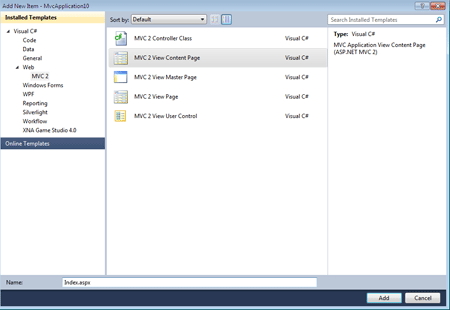

- After that Select New Item and select MVC View Content Page
- Now enter the name and Click on Add button
![4.gif]()
Code of the View Content Page
<%@ Page
Title=""
Language="C#"
MasterPageFile="~/Views/Shared/Site.Master"
AutoEventWireup="true" CodeBehind="Index.aspx.cs"
Inherits="MvcApplication10.Views.Home.Index"
%><asp:content id="Content1" contentplaceholderid="head" runat="server">
</asp:content>
<asp:content id="Content2" contentplaceholderid="ContentPlaceHolder1" runat="server">
</asp:content>
<asp:content id="Content3" contentplaceholderid="ContentPlaceHolder2" runat="server">
</asp:content>
Conclusion: Using master page we can work efficiently, easily and this feature makes working more user friendly while developing an application.
