Creating a Local Property in LightSwitch Visual Studio 2012

To create a local property in LightSwitch Visual Studio 2012

In this article describe how to create a local property in LightSwitch Visual Studio 2012.

Steps for creating a local property

Step 1

Open the Solution Explorer.

solu explo.jpg

Step 2

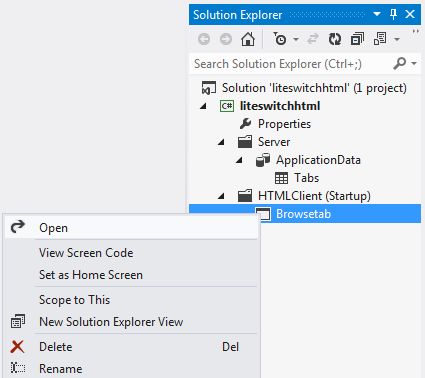

In Solution Explorer, open the HTML client screen to which you want to add a group of information.

htmlscreen open.jpg

Step 3

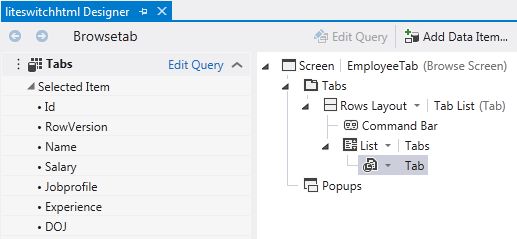

The Screen Designer appears.


Step 4

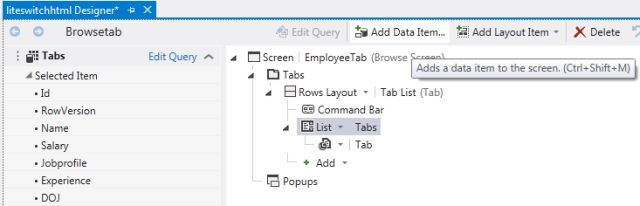

In the Screen designer, choose the Add Data Item option.

add data item.jpg

Step 5

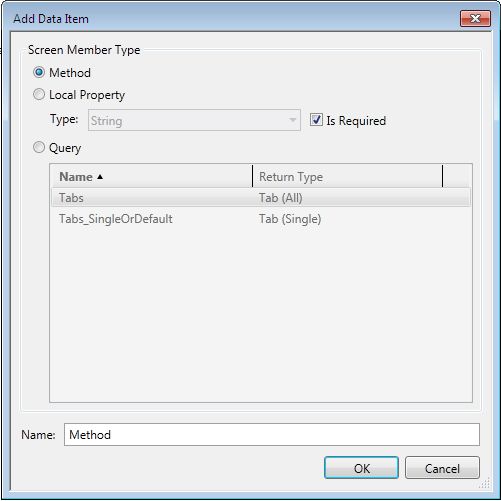

The Add Data Item dialog box appears.

add data item dialog box.jpg

Step 6

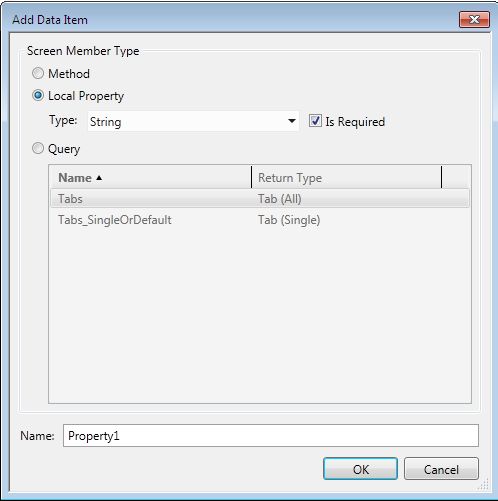

In the Add Data Item dialog box, choose the Local Property option.

local prop.jpg

Step 7

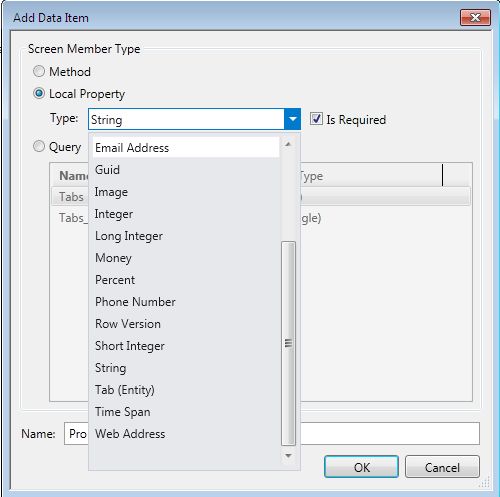

In the Type list, choose a type for the local property. You can choose any of the types, such as String, Integer, Email Address, etcetera.

type local prop.jpg

Step 8

Select the "Is Required" check box if you want that this field must contain a value.

local prop.jpg

Step 9

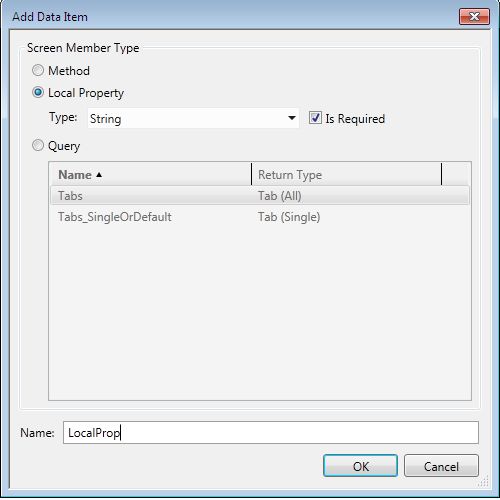

In the Name text box, enter a name for the property, and then select the "OK" button.


Step 10

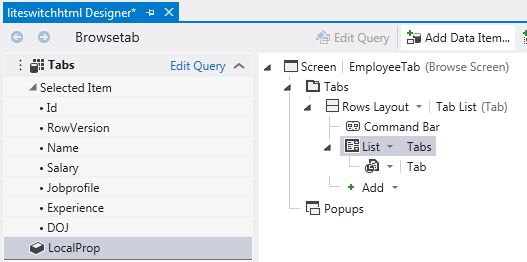

The local property appears in the Screen Members List.
