Customizing Search Screen in LightSwitch 2012

This article describes how to customize a search screen in a LightSwitch application using Visual Studio 2012.

I described in my previous article (http://www.c-sharpcorner.com/uploadfile/18ddf7/creating-a-search-screen-in-lightswitch-using-visual-studio/) how to create a search screen.

The following is the procedure for customizing a search screen.

Step 1

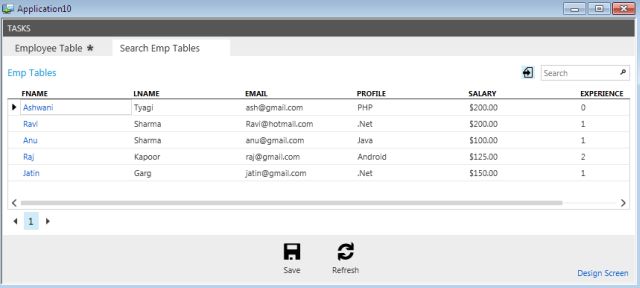

Open the Search Screen.

search output.jpg

Step 2

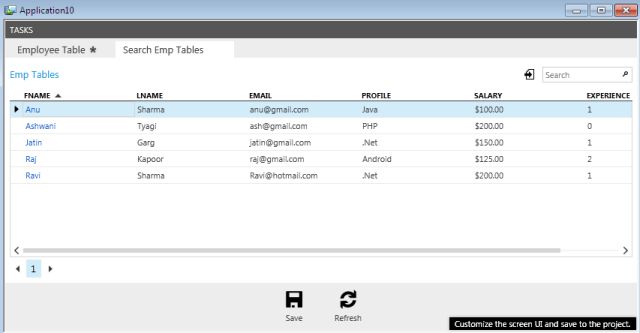

At the bottom-right corner of the Search Screen, you will see a "Design Screen" button. You can click it to start customizing the Search Screen.

design screen.jpg

Step 3

We can easily sort the records, since the DataGrid consists of a mechanism that automatically sorts the records. Suppose we want to sort any kind of data on the basis of the column value. We can easily sort it by clicking on the column that we want to sort.

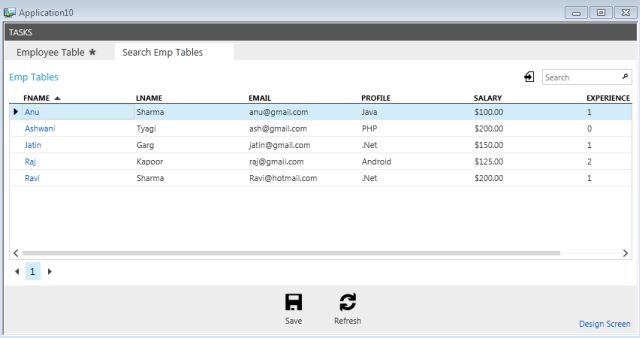

Now let's sort the record by clicking on the FName column.

Search Screen.jpg

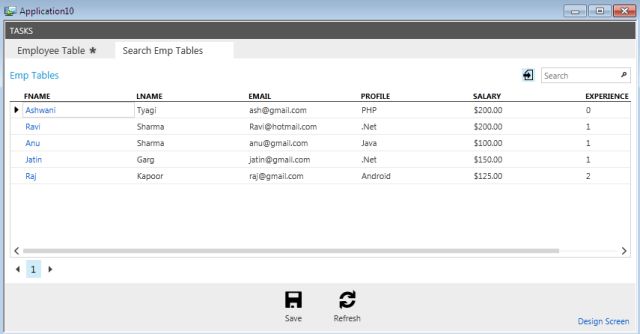

We once again sort the record by clicking on the Experience Column Header.


Step 4

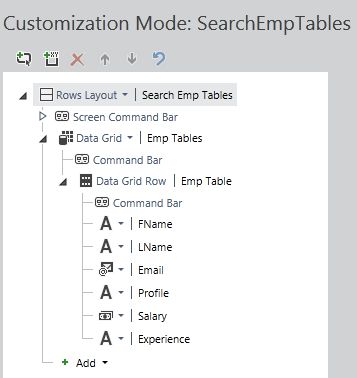

We can also change the Title of the Search Screen. Select the First Item from the left panel (Row Layout | Search Emp Tables).

search emp tables.jpg

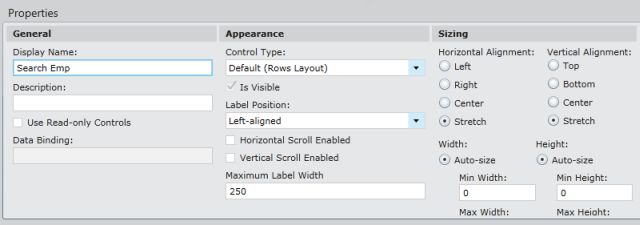

Now go to the Properties option, in the Display Name field, change the name from Search Emp Table to Search Emp.

property win.jpg

Step 5

A navigation panel works only if you have a large number of records in a table.

navigation panel.jpg

Step 6

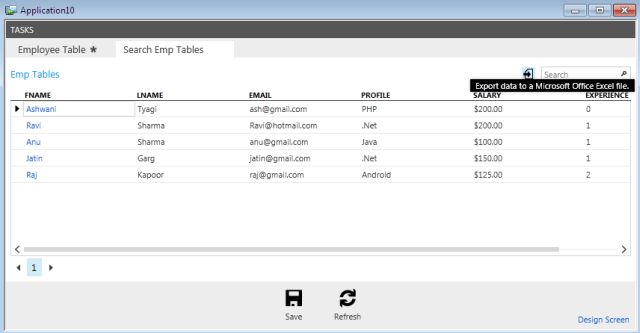

The Screen consists of an Export To Excel Button.

export to excel.jpg

Step 7

This will do nothing but it will automatically export our records to the Excel Work Sheet.
