Editing and Deleting Records Using Editable DataGrid Screen in LightSwitch 2012

Here you will see how to edit or delete a record using Editable Datagrid Screen in a LightSwitch application using Visual Studio 2012.

In my previous article I described how to add a record using Editable DataGrid Screen (see http://www.c-sharpcorner.com/UploadFile/18ddf7/adding-new-records-using-editable-datagrid-screen-in-lightsw/),

The following is the procedure for editing a record in the Editable DataGrid Screen.

There are two ways by which you can edit a record.

Step 1

In the first way, select a record and double-click on that record that you want to edit as in the following.

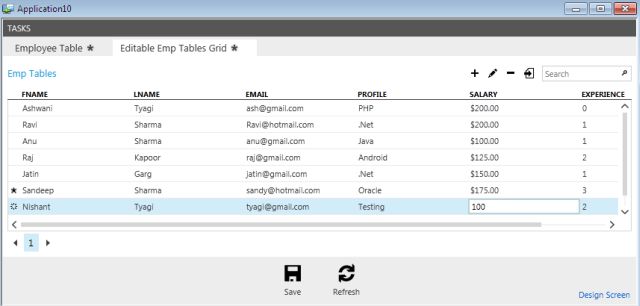

doubleclick to edit.jpg

Step 2

Now place the different value in the field. If you want to modify any other column then press Tab Key. Once you edit the records, click on the "Save" button to save the modified records.

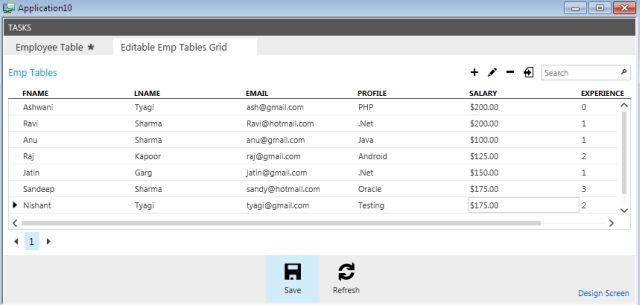

edit result.jpg

Step 3

In the second way, select the row that you want to modify and click on the Edit Button.

edit button.jpg

Step 4

A child window appears, modify the record that you want and click the "OK" button.

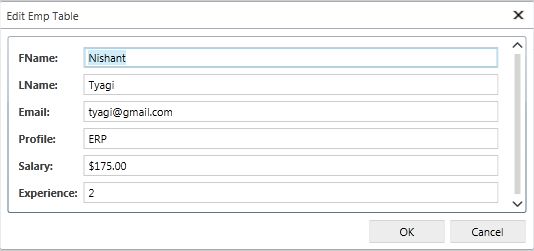

editing emp table.jpg

Step 5

Press the "Save" button to update the records and you will notice that the record has been modified successfully in the Editable Emp Tables Grid.

table after editing.jpg

Delete a Record

There are two ways to delete a record.

Step 6

In the first way, select the record that you want to delete and press Delete.

table after editing.jpg

Step 7

We will see that the record has been deleted.

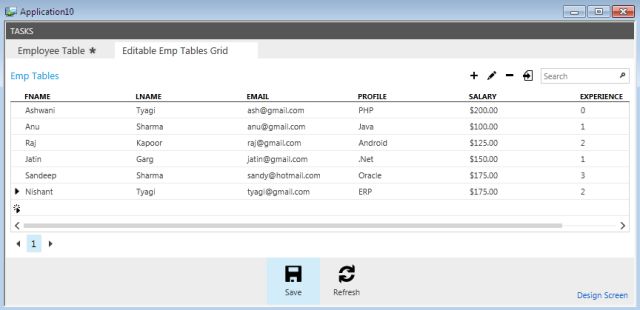

row deleted.jpg

Step 8

In the second way, select the row that you want to delete and click on the Delete button.

delete button.jpg

Step 9

You will see that the record has been deleted and there is a "x" mark placed at the starting side of the record, which means that the record has been deleted.

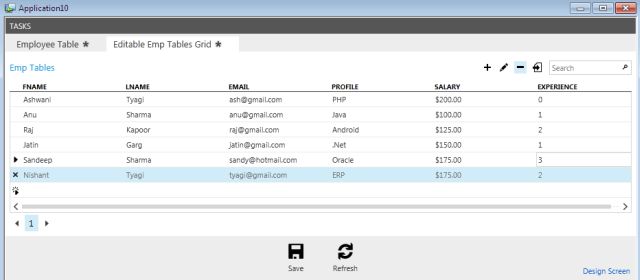

cross delete mark.jpg

Step 10

Press the Save button and you will see that the record has been successfully removed.

record successfully removed.jpg
