Establish a Relationship Between Two Tables Using LightSwitch 2012

This article shows how to establish a relationship between two tables in a LightSwitch application using Visual Studio 2012.

In my previous article I described how to simply create a List and Detail Screen; see:
http://www.c-sharpcorner.com/uploadfile/18ddf7/creating-list-and-detail-screen-application-in-lightswitch-2/,

The following is the procedure for establishing a relationship between two tables.

Step 1

Right-click on the Application Data to add another table.

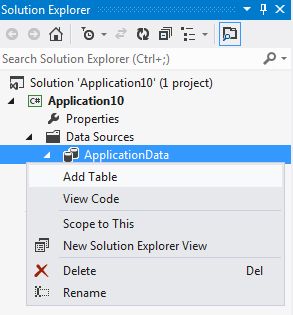

add table.jpg

Step 2

The table appears.

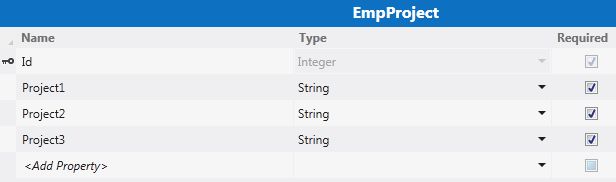

empproject table.jpg

Step 3

Click on the "Relationship" button placed at the top of the table designer screen.


Step 4

The Add New Relationship dialog box appears on the screen.

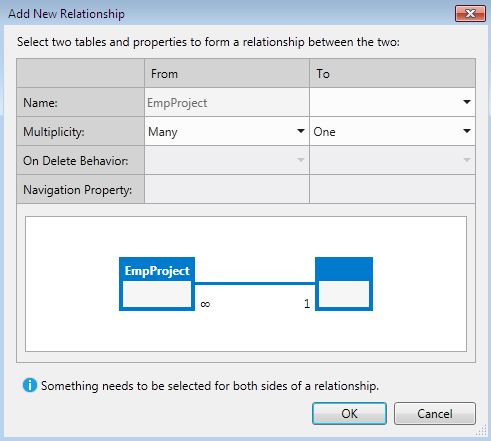

add new relationship.jpg

Step 5

Establish the relationship between the two tables and then click the "OK" button.

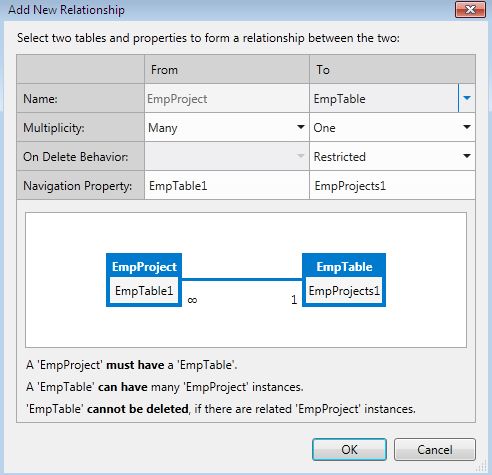

relationship table complete.jpg

Step 6

Now we can easily see the relationship diagram.

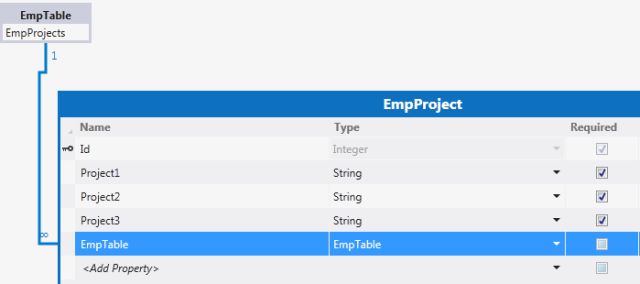

relationship diagram.jpg

Step 7

In order to remove the previous List Detail Screen, go to the Solution Explorer and right-click on the EmpTablesListDetail screen and choose the "Delete" option.

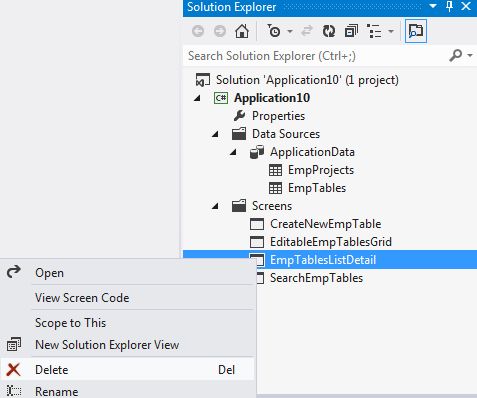

delete list detail src.jpg

Step 8

Now once again add a new List and Detail Screen. Select all the Tables from the Screen and click the "OK" button.

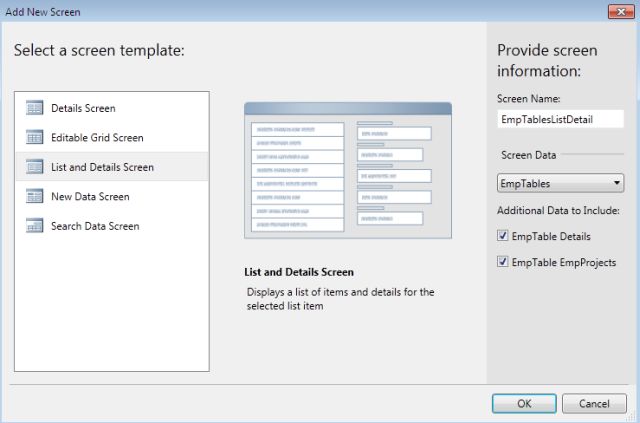

add new list src.jpg

Step 9

Once you have clicked the "OK" button, the screen designer appears inside the Visual Studio IDE and we will see that the EmpProject also has been added to the screen.

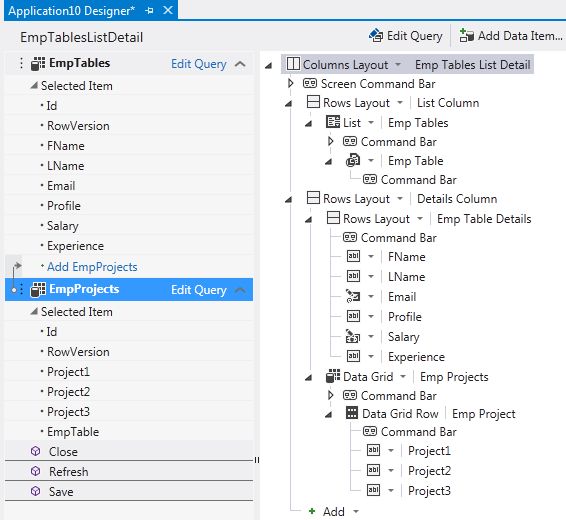

list src designer1.jpg

Step 10

Press F5 to run the application.

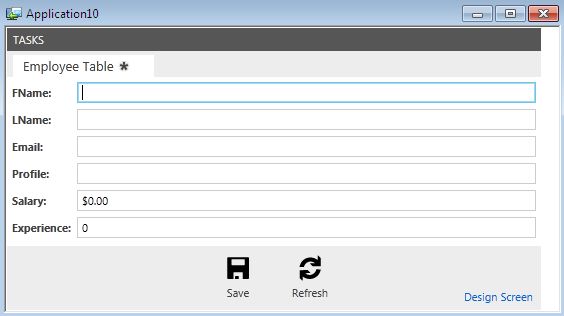

Running Employee tab.jpg

Step 11

Click on the Tasks option in the menu and choose the Emp Tables List Detail.

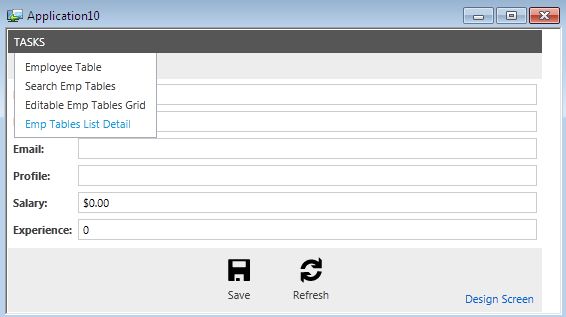

Emp Table List Detail.jpg

Step 12

This will open the "Emp Tables List Detail" screen as a new Tab.

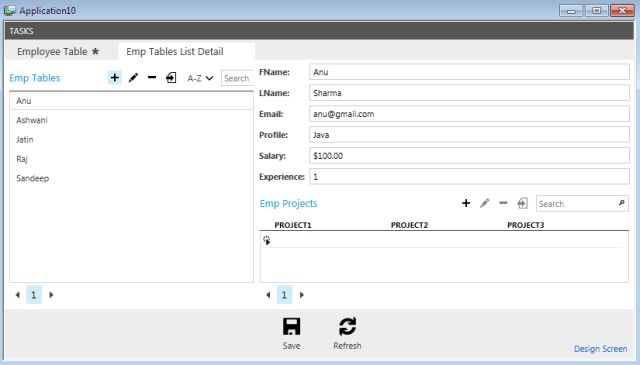

empty project field.jpg

The left side panel only shows the FName from the table. and the right panel, is divided into two sections. The top section shows the records of the selected one. The following section shows the records from the second table.

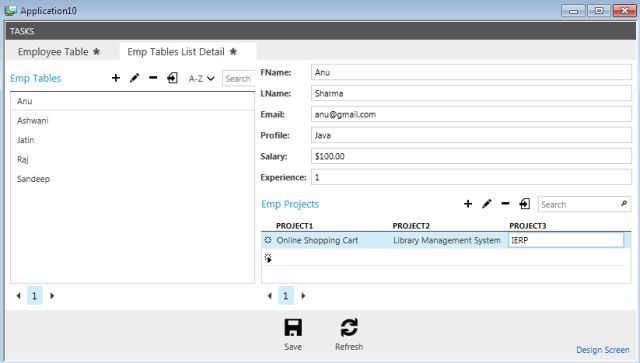

pro insert.jpg
