In this article I describe the use of the percent
datatype in LightSwitch using Visual Studio 2012.
The following is the procedure for using the
percent type in LightSwitch 2012.
Step 1
Open the Solution Explorer.
![solution.jpg]()
Step 2

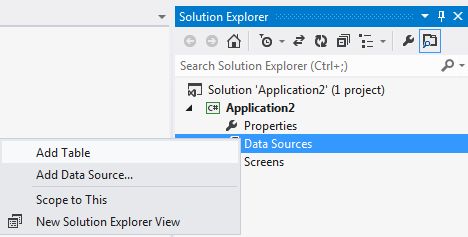

In the Solution Explorer, right-click on the data
source and choose "Add Table".
![data source add tbl.jpg]()
Step 3

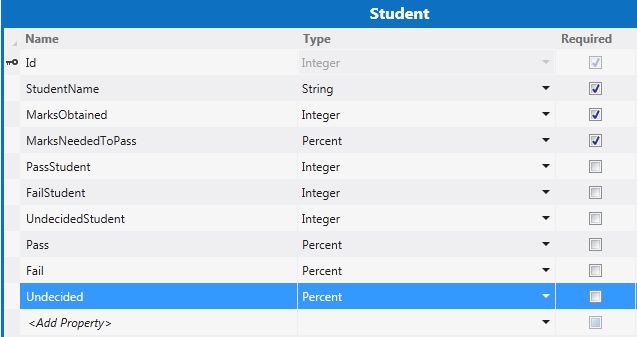

The table appears.
![student table.jpg]()
Step 4
In the table you can add a computed property to the Field by
selecting the IsComputed property in the Property Window.
![is computed.jpg]()
Follow the same process for the remaining two fields (in other
words for Fail and Undecided fields) in order to add a computed property.
Step 5

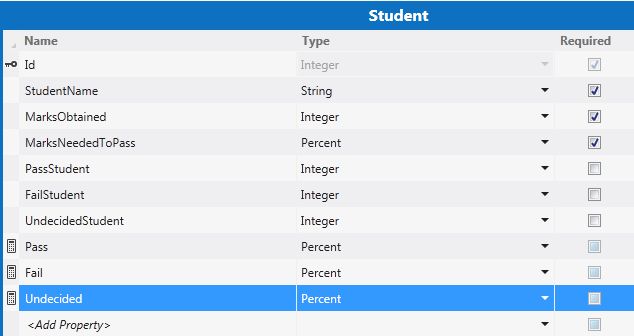

Now the table appears in the following manner:
![iscomputed table.jpg]()
Step 6
Go to the Menu Bar under the write code option. Select the
_Compute method for the three fields in other words for the , Fail and
Undecided fields.
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.LightSwitch;
namespace
LightSwitchApplication
{
public
partial
class
Student
{
private
decimal
totalmarks
{
get
{
decimal
totalmarks = 0;
if
((this.Student
!=
null)
&& (this.FailStudent
!=
null)
&& (this.UndecidedStudent
!=
null))
{
totalmarks = (decimal)(this.Student
+
this.FailStudent
+
this.UndecidedStudent);
}
return
totalmarks;
}
}
partial
void
_Compute(ref
decimal?
result)
{
// Set result to the desired field value
if
(totalmarks > 0)
{
result =
Decimal.Round((decimal)this.Student
/ totalmarks, 5);
}
else
{
result = 0;
}
}
partial
void
Fail_Compute(ref
decimal?
result)
{
// Set result to the desired field value
if
(totalmarks > 0)
{
result =
Decimal.Round((decimal)this.FailStudent
/ totalmarks, 5);
}
else
{
result = 0;
}
}
partial
void
Undecided_Compute(ref
decimal?
result)
{
// Set result to the desired field value
if
(totalmarks > 0)
{
result =
Decimal.Round((decimal)this.UndecidedStudent
/ totalmarks, 5);
}
else
{
result = 0;
}
}
}
}
Step 7
Right-click on the Screens and choose "Add Screen".
![add src.jpg]()
Step 8

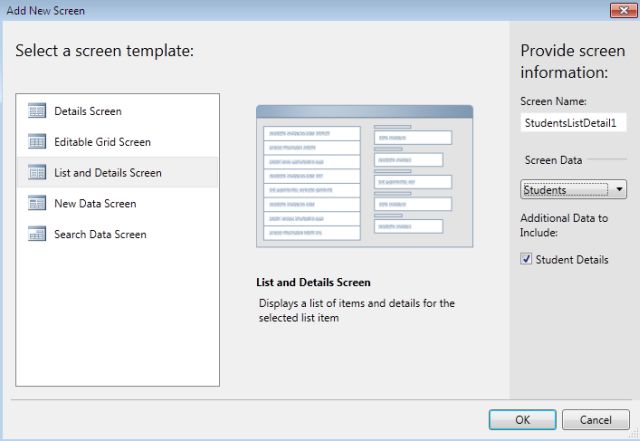

Select the List and Details Screen from the Screen Template.
Under Screen Information we provide the Screen Name and Screen Data and then
click OK.
![list and detail src.jpg]()
Step 9

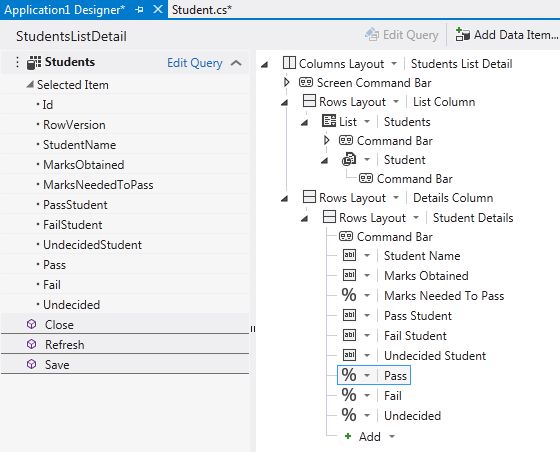

The Screen Designer appears.
![src designer.jpg]()
Step 10

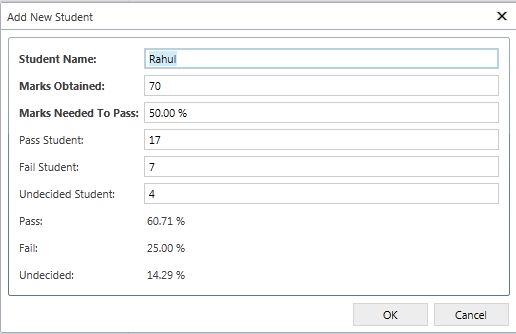

Press F5 to run the application.
![add new student output.jpg]()

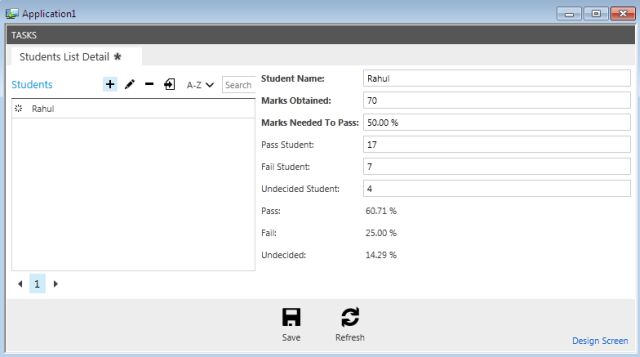

Clicking the OK button we get:
![application output1.jpg]()
