Custom Modal Control using Bootstrap CSS and AngularJS

When we want to develop a web-based application using AngularJs, it often requires a modal dialog box control with some extra features like height, width, title and so on. But like classic ASP.NET, a ready-made control is not always available in the AngularJs framework. If we want to create a custom modal dialog control, we can create it easily. Using this article, we will learn how to create a custom modal dialog control.
For that, we will first open Visual Studio and create a blank ASP.NET web application. We then need to install some NuGet packages such as AngularJs, Bootstrap and AngularUI.

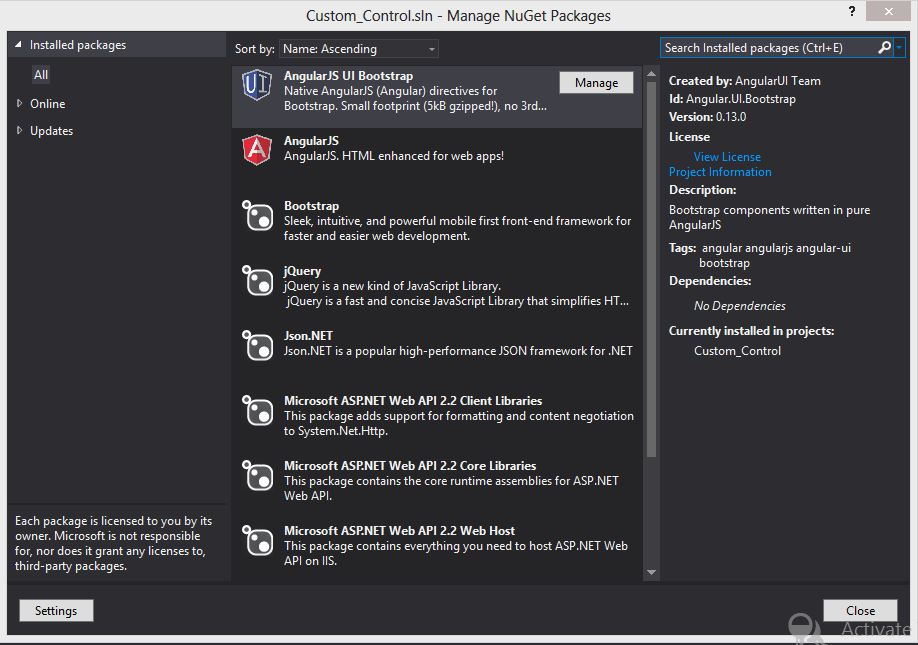

Figure 1: AngularJs UI Bootstrap

First we will create a modal directory with the attributes. For this, create an HTML file named modal.html and add the following code to that file:
  1. <div class="modal-dialog" ng-show="showModal">
  2.     <div class="modal-backdrop"></div>
  3.     <div class="modal-content" >"height:{{height}};width:{{width}};left:{{left}};top:{{top}};">
  4.         <div class="modal-header">
  5.             <button type="button" class="close" data-dismiss="modal" aria-hidden="true" ng-click="close();" ng-hide="HideCloseButton">×</button>
  6.             <h4>{{ModalParam.title}}</h4>
  7.         </div>
  8.         <div class="modal-body" ng-transclude >"height:{{BodyHeight}};">
  9.         </div>
  10.     </div>
  11. </div>
First, we need to define the Angular app as in the following:
  1. var CustomCtrlApp = angular.module('CustomCtrlApp', ['ui.bootstrap']);
In the script folder, add a JavaScript file named Modal.js that is basically the controller file of the modaldirectory. In the JavaScript file, add the following code:
  1. CustomCtrlApp.directive('modal'function () {
  2.     return {
  3.         restrict: 'EA',
  4.         scope: {
  5.             ModalParam: '=modalSetting'
  6.         },
  7.         transclude: true,
  8.         replace: true,
  9.         templateUrl: '../HTMLTemplate/Modal.html',
  10.         controller: function ($scope, $element, $attrs) {
  11.             $scope.showModal = false;
  12.             if ($scope.ModalParam == undefined) {
  13.                 $scope.ModalParam = {};
  14.             }
  15.
  16.             if ($scope.ModalParam.width == undefined) {
  17.                 $scope.width = '500px'
  18.                 $scope.ModalParam.width = 500;
  19.             }
  20.             else {
  21.                 if ($scope.ModalParam.width > 1000) {
  22.                     $scope.ModalParam.width = 1000;
  23.                 }
  24.                 $scope.width = $scope.ModalParam.width + 'px';
  25.             }
  26.
  27.             if ($scope.ModalParam.height == undefined) {
  28.                 $scope.height = '400px'
  29.                 $scope.ModalParam.height = 400;
  30.             }
  31.             else {
  32.                 if ($scope.ModalParam.height > 900) {
  33.                     $scope.ModalParam.height = 900;
  34.                 }
  35.                 $scope.height = $scope.ModalParam.height + 'px';
  36.             }
  37.
  38.             if ($scope.ModalParam.showCloseButton == undefined) {
  39.                 $scope.ModalParam.showCloseButton = true;
  40.             }
  41.
  42.             if ($scope.ModalParam.showCloseButton == true) {
  43.                 $scope.HideCloseButton = false;
  44.             }
  45.             else {
  46.                 $scope.HideCloseButton = true;
  47.             }
  48.
  49.             $scope.left = Math.round((screen.availWidth - $scope.ModalParam.width) / 2, 0) + 'px';
  50.             $scope.top = Math.round((screen.availHeight - $scope.ModalParam.height - 20) / 2, 0) + 'px';
  51.             $scope.BodyHeight = ($scope.ModalParam.height - 40) + 'px';
  52.
  53.             function assignModalMethod() {
  54.                 $scope.ModalParam.method = {
  55.                     show: function () {
  56.                         $scope.show();
  57.                     },
  58.                     close: function () {
  59.                         $scope.close();
  60.                     },
  61.                     setTitle: function (args) {
  62.                         $scope.ModalParam.Title = args;
  63.                     }
  64.                 }
  65.             }
  66.
  67.             $scope.show = function () {
  68.                 $scope.showModal = true;
  69.             }
  70.
  71.             $scope.close = function () {
  72.                 $scope.showModal = false;
  73.             }
  74.
  75.             assignModalMethod();
  76.         }
  77.     };
  78. });
Next, add an HTML page in the HTML folder named ModalDemo.html and add the following code there:
  1. <!DOCTYPE html>
  2. <html xmlns="http://www.w3.org/1999/xhtml">
  3. <head>
  4.     <title>Model Demo</title>
  5.     <script src="../RefScript/angular.min.js"></script>
  6.     <script src="../RefScript/ui-bootstrap.min.js"></script>
  7.
  8.     <script src="../PageScript/CustomCtrlApp.js"></script>
  9.     <script src="../DirectiveScript/Modal.js"></script>
  10.     <script src="../PageScript/ModalDemo.js"></script>
  11.
  12.     <link href="../Ref/bootstrap.min.css" rel= />
  13.     < type="text/css">
  14.         .modal-backdrop {
  15.             opacity: 0.6;
  16.         }
  17.
  18.         .modal-content {
  19.             position: fixed;
  20.             z-index: 1041;
  21.             border-radius: 0;
  22.         }
  23.
  24.         .modal-header {
  25.             padding: 0px 10px;
  26.         }
  27.
  28.         .modal-body {
  29.             overflow-y: auto;
  30.             overflow-x: hidden;
  31.         }
  32.     </>
  33. </head>
  34. <body ng-app="CustomCtrlApp">
  35.     <div ng-controller="ModalDemo">
  36.         <h1>Modal example</h1>
  37.         <button class="btn btn-default" ng-click="toggleModal()">Open modal</button>
  38.         <div>
  39.             <modal modal-setting="ModalArgs">
  40.                 <table>
  41.                     <tr>
  42.                         <td>Welcome to Login Form</td>
  43.                     </tr>
  44.                 </table>
  45.                 <p>hello</p>
  46.             </modal>
  47.         </div>
  48.     </div>
  49. </body>
  50. </html>
Now to define the modaldemo controller, add another JavaScript file in the script folder named modaldemo.js with the following code:
  1. CustomCtrlApp.controller("ModalDemo", ['$scope''$http',
  2.     function ($scope, $http) {
  3.         $scope.ModalArgs = {
  4.             title: 'Modal Window',
  5.             width: 750,
  6.             height: 550,
  7.             showCloseButton: true
  8.         };
  9.
  10.
  11.         $scope.toggleModal = function () {
  12.             $scope.ModalArgs.method.show();
  13.         };
  14.
  15.     }]);
Now, run the project and the output will be as in the following:

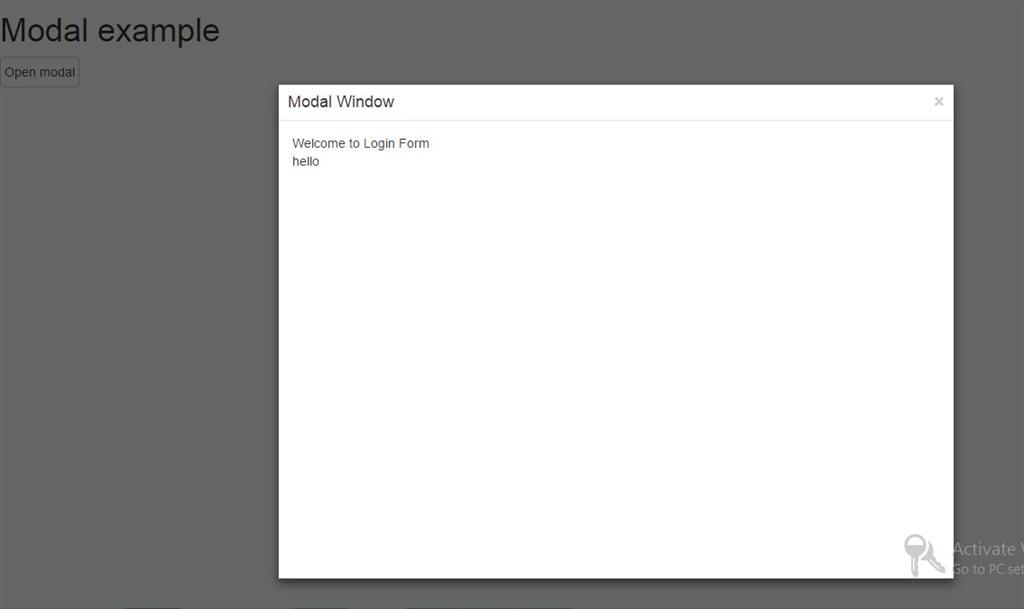

Figure 2: Output Window
