Introduction
JSON is an acronym for JavaScript Object Notation. JSON is used for data exchange and is a very condensed data exchange format. JSON is used for storing data in files and it is a very easy method to parse data. Android provides support to parse JSON objects and arrays.
Advantages of JSON over XML
JSON is faster than XML.
It uses arrays.
JSON is very easy to read and write .
Http Client
When we want to send and receive data over the internet then we use HttpClient. The following is the general procedure for using Httpclient.
Create the instance of Http Client
Tell HttpClient to execute the Method
Read the Response
Release the connection
Deal with the response

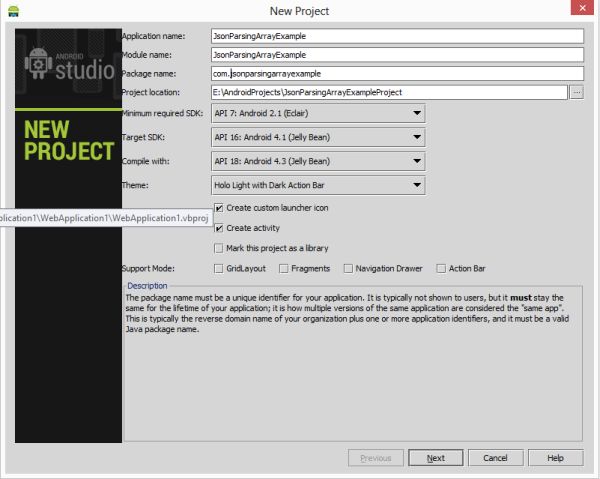

Step 1
Create a project like this:
![CreateProjectJsonParsing]()
Step 2
Create an XML file and write this:
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:paddingBottom="@dimen/activity_vertical_margin"
tools:context=".MainActivity"
android:background="#ddcc12">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:id="@+id/textView1"
android:textStyle="bold"
/>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:id="@+id/textView2"
android:textStyle="bold"
android:layout_marginTop="100dp"
/>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:id="@+id/textView3"
android:textStyle="bold"
android:layout_marginTop="200dp"
/>
</RelativeLayout>
Step 3
Create a Java file and write this:
package com.jsonprsing4;
import android.annotation.TargetApi;
import android.os.Build;
import android.os.Bundle;
import android.app.Activity;
import android.os.StrictMode;
import android.util.Log;
import android.view.Menu;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import java.io.IOException;
import java.util.ArrayList;
public class MainActivity extends Activity {
TextView textView1,textView2,textView3;
String str1,str2;
String name1,name2,name3;
String experiencePoints1,experiencePoints2,experiencePoints3;
String vehicleColor,vehicleType,fuel;
private static String url = "http://docs.blackberry.com/sampledata.json";
@TargetApi(Build.VERSION_CODES.GINGERBREAD)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
textView1=(TextView)findViewById(R.id.textView1);
textView2=(TextView)findViewById(R.id.textView2);
textView3=(TextView)findViewById(R.id.textView3);
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
try {
JsonParser jsonParser=new JsonParser();
JSONArray jsonArray=jsonParser.getJSONFromUrl(url);
JSONObject jsonObject=jsonArray.getJSONObject(1);
vehicleType=jsonObject.getString("vehicleType");
vehicleColor=jsonObject.getString("vehicleColor");
fuel=jsonObject.getString("fuel");
JSONArray jsonArray1=jsonObject.getJSONArray("approvedOperators");
JSONObject jsonObject1=jsonArray1.getJSONObject(0);
name1 = jsonObject1.getString("name");
experiencePoints1=jsonObject1.getString("experiencePoints");
JSONObject jsonObject2=jsonArray1.getJSONObject(1);
name2 = jsonObject2.getString("name");
experiencePoints2=jsonObject2.getString("experiencePoints");
JSONObject jsonObject3=jsonArray1.getJSONObject(2);
name3 = jsonObject3.getString("name");
experiencePoints3=jsonObject3.getString("experiencePoints");
String str1="\nvehicleColor: "+vehicleColor+"\nvehicleType: "+vehicleColor+"\nfuel: "+fuel+"\nname: "+name1+"\nexperiencePoints: "+experiencePoints1;
String str2="\nvehicleColor: "+vehicleColor+"\nvehicleType: "+vehicleColor+"\nfuel: "+fuel+"\nname: "+name2+"\nexperiencePoints: "+experiencePoints2;
String str3="\nvehicleColor: "+vehicleColor+"\nvehicleType: "+vehicleColor+"\nfuel: "+fuel+"\nname: "+name3+"\nexperiencePoints: "+experiencePoints3;
textView1.setText(str1);
textView2.setText(str2);
textView3.setText(str3);
/* array[1]=vehicleColor;
array[2]=vehicleType;
array[3]=fuel;
array[4]=name1;
array[5]=experiencePoints1;
array[6]=name2;
array[7]=experiencePoints2;
array[8]=name3;
array[9]=experiencePoints3;*/
/* arrayList1=new ArrayList();
arrayList1.add(vehicleType);
arrayList1.add(fuel);
arrayList1.add(vehicleColor);
arrayList1.add(name);
arrayList1.add(experiencePoints);*/
/* else if(i==1)
{
Log.i("","ADil");
JSONObject jsonObject=jsonArray.getJSONObject(i);
vehicleType= jsonObject.getString("vehicleType");
vehicleColor= jsonObject.getString("vehicleColor");
fuel=jsonObject.getString("fuel");
JSONArray jsonArray1=jsonObject.getJSONArray("approvedOperator");
for(int j=0;j<jsonArray.length();j++)
{
JSONObject jsonObject1=jsonArray1.getJSONObject(j);
jsonObject1.getString("name");
jsonObject1.getString("experienceoperator");
}
/*arrayList2=new ArrayList();
arrayList2.add(vehicleType);
arrayList2.add(fuel);
arrayList2.add(vehicleColor);
arrayList2.add(name);
arrayList2.add(experiencePoints);*/
/* else if(i==2)
{
Log.i("","Kashif");
JSONObject jsonObject=jsonArray.getJSONObject(i);
vehicleType=jsonObject.getString("vehicleType");
vehicleColor=jsonObject.getString("vehicleColor");
fuel=jsonObject.getString("fuel");
JSONArray jsonArray1=jsonObject.getJSONArray("approvedOperator");
for(int j=0;j<jsonArray1.length();j++)
{
JSONObject jsonObject1=jsonArray1.getJSONObject(j);
jsonObject1.getString("name");
jsonObject1.getString("experienceOperator");
}
/* arrayList3=new ArrayList();
arrayList3.add(vehicleType);
arrayList3.add(fuel);
arrayList3.add(vehicleColor);
arrayList3.add(name);
arrayList3.add(experiencePoints);*/
}
/*arrayList.add(arrayList1);
arrayList.add(arrayList2);
arrayList.add(arrayList3);*/
catch (JSONException e) {
e.printStackTrace();
}
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
}
Step 4
In this step you will first create an instance of HttpClient because HttpClient is used when you want to retrieve and send data over the internet. Now you will get all the data using the HttpGet class and by ing the URL to the constructor you will get all the data. Get the response by calling the execute() method of HttpClient.
When we want to send and receive data over the internet we use HttpClient. The following is the general procedure for using Httpclient.
Create the instance of HttpClient
Tell HttpClient to execute the method
Read the Response
Release the connection
Deal with the response
Create a Java file and write this:
package com.jsonprsing4;
import android.os.AsyncTask;
import android.util.Log;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
public class JsonParser extends AsyncTask {
static InputStream is = null;
static JSONArray jarray = null;
static String json = "";
public JsonParser() {
}
@Override
protected Object doInBackground(Object[] params) {
return null;
}
public JSONArray getJSONFromUrl(String url) {
StringBuilder builder = new StringBuilder();
try {
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) {
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
builder.append(line);
}
} else {
Log.e("Error....", "Failed to download file");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
try {
jarray = new JSONArray( builder.toString());
} catch (JSONException e) {
Log.e("JSON Parser", "Error parsing data " + e.toString());
}
return jarray;
}
}
Step 5
Android Manifest.xml file
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.jsonprsing4"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="7"
android:targetSdkVersion="16" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="com.jsonprsing4.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
<uses-permission android:name="android.permission.INTERNET"/>
</manifest>
Step 6
Retrieve data through the internet.
![JsonArrayData]()
