How to Store a Person's Data With Image in SQLite Database

Introduction

This article explains how to store a person's data with an image in a SQLite Database.

Using this application you can get an image from a drawable folder and store it in a SQLite Database and also you can retrieve that image from the SQLite database to be shown on the screen.

Step 1

Use the following procedure to create the sample.

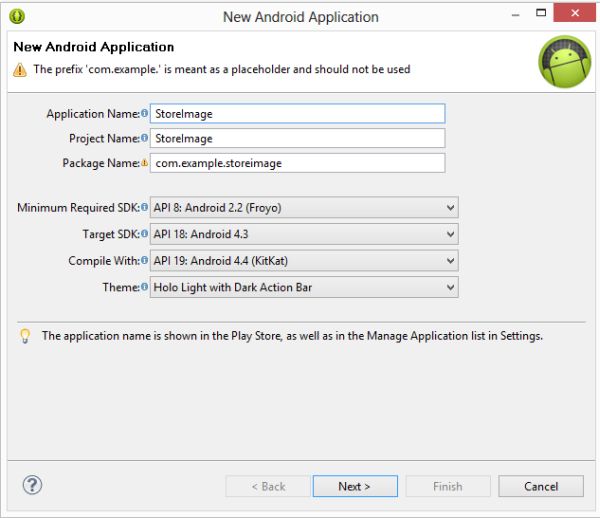

Go to "File" and select "Android Application Project".

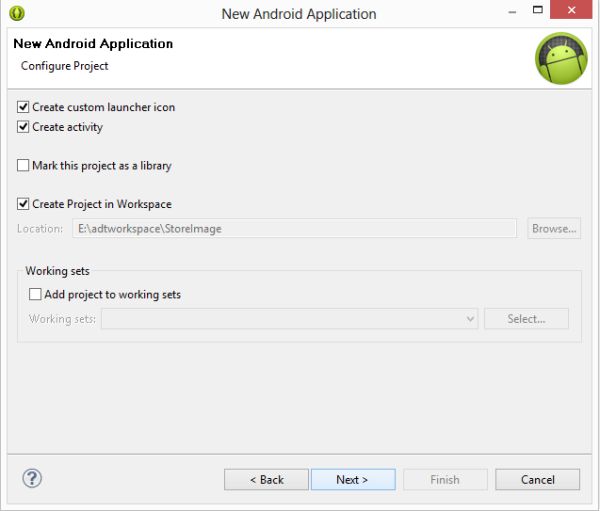

Click "Next".



Click "Next".



Click "Next".



Click "Next".




Step 2

Create an XML file with the following.

In this XML I use two EditTexts, four TextViews and an ImageView. We enter the value in an EditText and fetch it in a Java class file to store it in a data base.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context=".MainActivity" >

<TextView android:layout_height="wrap_content"

android:layout_width="wrap_content"

android:id="@+id/textView1"

android:text="Enter Name"

android:textColor="#cccccc"

android:textStyle="bold"/>

<EditText

android:id="@+id/editText1"

android:layout_height="wrap_content"

android:layout_width="fill_parent"

android:layout_below="@+id/textView"/>

<LinearLayout

android:layout_height="wrap_content"

android:layout_below="@+id/editText1"

android:layout_width="fill_parent"

android:id="@+id/linearLayout"

android:orientation="vertical"

android:layout_marginTop="40dp">

<TextView android:layout_height="wrap_content"

android:layout_width="wrap_content"

android:id="@+id/textView2"

android:text="Enter Age"

android:textColor="#cccccc"

android:textStyle="bold"/>

<EditText

android:layout_height="wrap_content"

android:id="@+id/editText2"

android:layout_width="fill_parent"

android:layout_below="@+id/textView"/>

</LinearLayout>

<Button

android:layout_centerInParent="true"

android:text="Send"

android:layout_below="@+id/linearLayout"

android:layout_height="wrap_content"

android:layout_width="wrap_content"

android:id="@+id/button">

</Button>

<TextView

android:id="@+id/textView3"

android:layout_below="@+id/button"

android:layout_width="wrap_content"

android:layout_height="41dp"

android:textSize="15dp"/>

<TextView

android:id="@+id/textView4"

android:layout_width="wrap_content"

android:layout_height="41dp"

android:layout_below="@+id/textView3"

android:textSize="15dp"/>

<LinearLayout

android:layout_width="wrap_content"

android:layout_marginTop="300dp"

android:layout_height="wrap_content">

<ImageView

android:id="@+id/myimage"

android:layout_width="200dp"

android:layout_height="200dp"

/>

</LinearLayout>

</RelativeLayout>

Step 3

Create a Java class file with the following:

package com.imagestorage;

import java.io.ByteArrayOutputStream;

import android.app.Activity;

import android.content.ContentValues;

import android.content.Context;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteDatabase.CursorFactory;

import android.database.sqlite.SQLiteOpenHelper;

import android.graphics.Bitmap;

import android.graphics.BitmapFactory;

import android.os.Bundle;

import android.view.View;

import android.view.View.OnClickListener;

import android.widget.Button;

import android.widget.EditText;

import android.widget.ImageView;

import android.widget.TextView;

public class MainActivity extends Activity {

/** Called when the activity is first created. */

MyDataBase mdb;

SQLiteDatabase db;

Cursor c;

ImageView iv;

byte[] img,img1;

Bitmap b;

String name,age,getname;

TextView textView3,textView4;

EditText editText1,editText2;

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

/*Create the database by calling and ing all the parameters to the constructor of MyDataBase class

mdb=new MyDataBase(getApplicationContext(),"imagedata",null,1);

this.deleteDatabase("imagedata");

iv=(ImageView)findViewById(R.id.myimage);

textView3=(TextView)findViewById(R.id.textView3);

textView4=(TextView)findViewById(R.id.textView4);

editText1=(EditText)findViewById(R.id.editText1);

editText2=(EditText)findViewById(R.id.editText2);

Button button=(Button)findViewById(R.id.button);

button.setOnClickListener(new OnClickListener() {

@Override

public void onClick(View v) {

// TODO Auto-generated method stub

name=editText1.getText().toString();

/* In this i have used BitMap class which is used to put the image in a variable. Bitmapfactory class is used to get the image from the drawable folder by calling decodeResource() method. */

age=editText2.getText().toString();

Bitmap b=BitmapFactory.decodeResource(getResources(), R.drawable.image);

/*create the object of ByteArrayoutputStream class. Now break the image into the byte parts by calling toByteArray() of ByteOutputStream class and store it in a array */
ByteArrayOutputStream bos=new ByteArrayOutputStream();

b.compress(Bitmap.CompressFormat.PNG, 100, bos);

byte[] img=bos.toByteArray();

/*to write in a database call the getWritableDatabase method /*

db=mdb.getWritableDatabase();

ContentValues cv=new ContentValues();

cv.put("image", img);

cv.put("name", name);

cv.put("age",age);

db.insert("tableimage", null, cv);

String selectQuery = "SELECT * FROM tableimage";

c=db.rawQuery(selectQuery,null);

if(c!=null){

c.moveToFirst();

do{

img1=c.getBlob(2);

String getname =c.getString(0);

String age=c.getString(1);

}while(c.moveToNext());

}

Bitmap b1=BitmapFactory.decodeByteArray(img1, 0, img1.length);

iv.setImageBitmap(b1);

textView3.setText(name);

textView4.setText(age);

}

});

}

}

class MyDataBase extends SQLiteOpenHelper{

public MyDataBase(Context context, String name, CursorFactory factory,

int version) {

super(context, name, factory, version);

// TODO Auto-generated constructor stub

}

public void onCreate(SQLiteDatabase db) {

// TODO Auto-generated method stub

db.execSQL("create table tableimage (name text,age int,image blob);");

}

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

// TODO Auto-generated method stub

}

}

Step 4

Android Manifest. xml file

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.imagestorage"

android:versionCode="1"

android:versionName="1.0" >

<uses-sdk

android:minSdkVersion="8"

android:targetSdkVersion="18" />

<application

android:allowBackup="true"

android:icon="@drawable/ic_launcher"

android:label="@string/app_name"

android:theme="@style/AppTheme" >

<activity

android:name="com.imagestorage.MainActivity"

android:label="@string/app_name" >

<intent-filter>

<action android:name="android.intent.action.MAIN" />

<category android:name="android.intent.category.LAUNCHER" />

</intent-filter>

</activity>

</application>

</manifest>

Step 5

Enter your Name and Age as in the following:



When you click on the button the image will be stored and also be shown on the screen with your name and age. I have selected this image randomly to show that you can use your image.
