Send Email in Android

Introduction

This article explains how to send an Email in Android. Android Studio is used to create the sample.

This application willl send an email on a button click. In this you will first create an XML file and use three textViews, three editTexts and a button. So the first edittext will use the email id of the reciepient, the second edittext will use the subject and the third will contain the messge. On a button click you can send the email. We use an intent to send the email so you will get the intent in the intent object. You will call the putExtra() method that es the email id, subject and text.

Intent i=new Intent(Intent.ACTION_SEND);

                i.putExtra(Intent.EXTRA_EMAIL,new String[]{to});

                i.putExtra(Intent.EXTRA_SUBJECT,subject);

                i.putExtra(Intent.EXTRA_TEXT,message);

                i.setType("meassge/rfc822");

                startActivity(Intent.createChooser(i,"choose:"));


Use the following procedure to create a sample of sending an Email in Android.


Step 1

Create an XML file.

In the XML file you will first create an XML file and use three textViews, three editTexts and a button. So the first edittext will use the email id of the reciepient, the second edittext will use the subject and the third will contain the messge on a button click.


<
RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:paddingLeft="@dimen/activity_horizontal_margin"

    android:paddingRight="@dimen/activity_horizontal_margin"

    android:paddingTop="@dimen/activity_vertical_margin"

    android:paddingBottom="@dimen/activity_vertical_margin"

    tools:context=".MainActivity">



    <LinearLayout

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:orientation="horizontal"

        >



        <TextView

            android:id="@+id/textView1"

            android:ems="4"

            android:textSize="30dp"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="To" />



        <EditText



            android:layout_marginLeft="0dp"

            android:id="@+id/editText1"

            android:layout_width="200dp"

            android:layout_height="wrap_content"

           />



    </LinearLayout>





    <LinearLayout

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:layout_marginTop="100dp"

        android:orientation="horizontal">

        <TextView

            android:id="@+id/textView1"

            android:ems="4"

            android:textSize="30dp"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="Subject" />



        <EditText



            android:layout_marginLeft="0dp"

            android:id="@+id/editText2"

            android:layout_width="200dp"

            android:layout_height="wrap_content"

            />



    </LinearLayout>

    <LinearLayout

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:orientation="horizontal"

        android:layout_marginTop="200dp">



        <TextView

            android:id="@+id/textView1"

            android:ems="4"

            android:textSize="30dp"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="Message" />



        <EditText

            android:layout_marginLeft="0dp"

            android:id="@+id/editText3"

            android:layout_width="200dp"

            android:inputType="textImeMultiLine"

            android:layout_height="wrap_content"

            />



    </LinearLayout>



    <Button

        android:id="@+id/buttonSend"

        android:layout_width="150dp"

        android:text="Send"

        android:layout_marginLeft="100dp"

        android:layout_height="wrap_content"

        android:layout_marginTop="350dp"></Button>



</RelativeLayout>

Step 2

Create a Java class file.


We use an intent to send email so you will get the intent in the intent object. You will call the putExtra() method that es the email id, subject and text as in the following:

package com.sendemail;



import android.content.Intent;

import android.os.Bundle;

import android.app.Activity;

import android.view.Menu;

import android.view.View;

import android.widget.Button;

import android.widget.EditText;



public class MainActivity extends Activity {



    EditText editText1,editText2,editText3;

    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);



        editText1=(EditText)findViewById(R.id.editText1);



        editText2=(EditText)findViewById(R.id.editText2);

        editText3=(EditText)findViewById(R.id.editText3);

        Button buttonSend=(Button)findViewById(R.id.buttonSend);

        buttonSend.setOnClickListener(new View.OnClickListener() {

            @Override

            public void onClick(View v) {



                String to=editText1.getText().toString();

                String subject=editText2.getText().toString();

                String message=editText3.getText().toString();



                Intent i=new Intent(Intent.ACTION_SEND);

                i.putExtra(Intent.EXTRA_EMAIL,new String[]{to});

                i.putExtra(Intent.EXTRA_SUBJECT,subject);

                i.putExtra(Intent.EXTRA_TEXT,message);

                i.setType("meassge/rfc822");

                startActivity(Intent.createChooser(i,"choose:"));

            }

        });



    }

    @Override

    public boolean onCreateOptionsMenu(Menu menu) {

        // Inflate the menu; this adds items to the action bar if it is present.

        getMenuInflater().inflate(R.menu.main, menu);

        return true;

    }

}

Step 3

Android Manifest. xml file

In the Android Manifest.xml file you will provide the internet permission as in the following:


<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.sendemail"

    android:versionCode="1"

    android:versionName="1.0" >



    <uses-sdk

        android:minSdkVersion="7"

        android:targetSdkVersion="16" />



    <application

        android:allowBackup="true"

        android:icon="@drawable/ic_launcher"

        android:label="@string/app_name"

        android:theme="@style/AppTheme" >

        <activity

            android:name="com.sendemail.MainActivity"

            android:label="@string/app_name" >

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />



                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

    </application>

<uses-permission android:name="android.permission.INTERNET"></uses-permission>

</manifest>



Step 4

To run this application in the emulator you need to create an id form to send the Email. To create the id you go to the emulator settings and and select add account; it will provide you a new page where you will enter your email id and word.

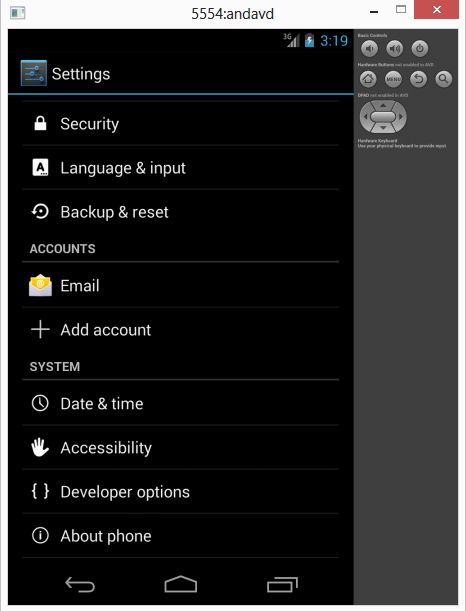

Go to the settings of the emulator as in the following:

settings1

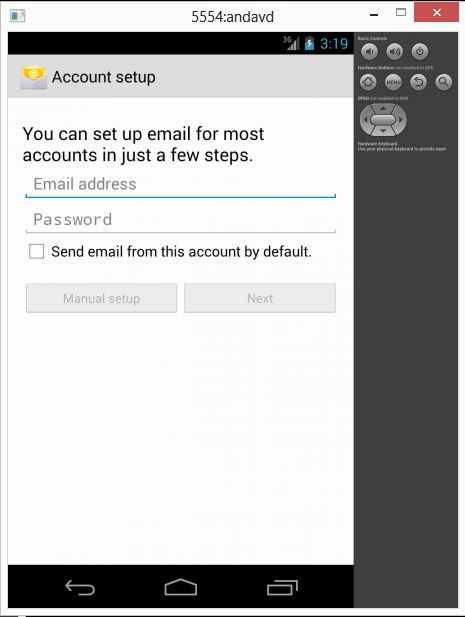

Click on "+Add Account"; it will dispaly a new page where you will enter the email_id from which you will send the email id to the other user.

settings2

Click on the "Next" button.

setting3

Step 5

After running your application your email will be sent upon button click.
