ZoomIn And ZoomOut On Button Click in Android

Introduction

This article explains how to do ZoomIn and ZoomOut in Android.

In this you will use a ImaegView on which you perform ZoomIn and ZoomOut on a button click. To perform animation you will use the Animtion class object to set the animation on the Imageview. In this you will create a folder name anim inside the res folder and create two XML files inside the anim folder to write how much an image should be ZoomOut and ZoomIn.

Step 1

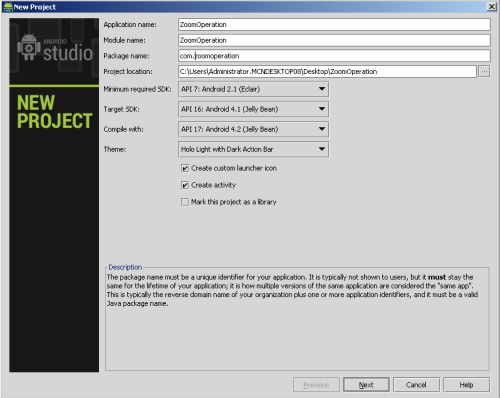

Create a new project like this:

Step 2

Create an XML file and write the following code.

In this you will use an ImageView and two Buttons inside the linearlayout of which the orientation is set to vertical.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:paddingLeft="@dimen/activity_horizontal_margin"

    android:paddingRight="@dimen/activity_horizontal_margin"

    android:paddingTop="@dimen/activity_vertical_margin"

    android:paddingBottom="@dimen/activity_vertical_margin"

    tools:context=".MainActivity"

        android:background="#E0A51B">



  <LinearLayout

          android:layout_height="wrap_content"

          android:layout_width="fill_parent"

          android:orientation="vertical">





    <ImageView

            android:id="@+id/imageVIEW"

            android:layout_width="fill_parent"

            android:layout_height="150dp"

            android:background="@drawable/man_of_steel"

            android:layout_centerHorizontal="true"

            >

    </ImageView>



    <Button

            android:id="@+id/btnZoom_In"

            android:layout_height="wrap_content"

            android:layout_width="150dp"

            android:text="StartZoomIn"

            android:layout_centerHorizontal="true"

            android:layout_marginLeft="70dp"

            android:layout_marginTop="40dp"



            />

      <Button

              android:id="@+id/btn_Zoom_out"

              android:layout_height="wrap_content"

              android:layout_width="150dp"

              android:text="StartZoomOut"

              android:layout_centerHorizontal="true"

              android:layout_marginLeft="70dp"

              android:layout_marginTop="40dp"

              />

  </LinearLayout>

</RelativeLayout>

Step 3


Now you will create a folder named anim inside the res folder. And inside the res folder you will create two XML files, zoom_in and zoom_out.

In the zoom_in.xml file you will write this:


<?xml version="1.0" encoding="utf-8"?>

<set xmlns:android="http://schemas.android.com/apk/res/android"

     android:fillAfter="true" >

    <scale

            xmlns:android="http://schemas.android.com/apk/res/android"

            android:duration="2000"

            android:fromXScale="1"

            android:fromYScale="1"

            android:pivotX="50%"

            android:pivotY="50%"

            android:toXScale="3"

            android:toYScale="3" >

    </scale>

 </set>



In zoom_out XML file you will write this



<?xml version="1.0" encoding="utf-8"?>

<set xmlns:android="http://schemas.android.com/apk/res/android"

     android:fillAfter="true" >



    <scale

            xmlns:android="http://schemas.android.com/apk/res/android"

            android:duration="1000"

            android:fromXScale="1.0"

            android:fromYScale="1.0"

            android:pivotX="50%"

            android:pivotY="50%"

            android:toXScale="0.5"

            android:toYScale="0.5" >

    </scale>



</set>

Step 4

Create a Java class file and write the following code.



In this class file first you will create the id of the image view, button and an Animation refrence variable. The Animation refrence variable will hold the object that will be returned by the loadAnimation method() method. After getting the object of the animation call setAnimationListener () will set the listener to the animation. Use a button and set it on setonClicklIstener to perform the aniamation on button click. Inside the onclick method set the imageview on startAniamtion() method to start animation on the button click.



package com.zoominactivity;



import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.view.animation.Animation;

import android.view.animation.AnimationUtils;

import android.widget.Button;

import android.widget.ImageView;



public class MainActivity extends Activity implements Animation.AnimationListener {



    ImageView imageview;

    Button button1,button2;

    Animation animation,animation2;

    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);



    imageview=(ImageView)findViewById(R.id.imageVIEW);

        button1=(Button)findViewById(R.id.btnZoom_In);

        button2=(Button)findViewById(R.id.btn_Zoom_out);





        animation= AnimationUtils.loadAnimation(getApplicationContext(),R.anim.zoom_in);

        animation2= AnimationUtils.loadAnimation(getApplicationContext(),R.anim.zoom_out);

        animation.setAnimationListener(this);



        button1.setOnClickListener(new View.OnClickListener() {

            @Override

            public void onClick(View view) {

                imageview.startAnimation(animation);

            }

        });

button2.setOnClickListener(new View.OnClickListener() {

    @Override

    public void onClick(View view) {







        imageview.startAnimation(animation2);

    }

});

    }

    @Override

    public void onAnimationStart(Animation animation) {





    }



    @Override

    public void onAnimationEnd(Animation animation) {



    }



    @Override

    public void onAnimationRepeat(Animation animation) {



    }

}

Step 5

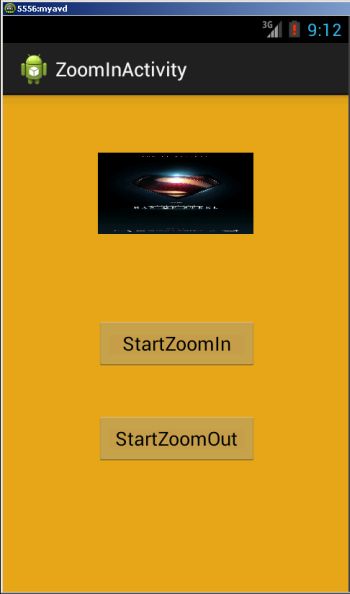

When you run your project:



Step 6

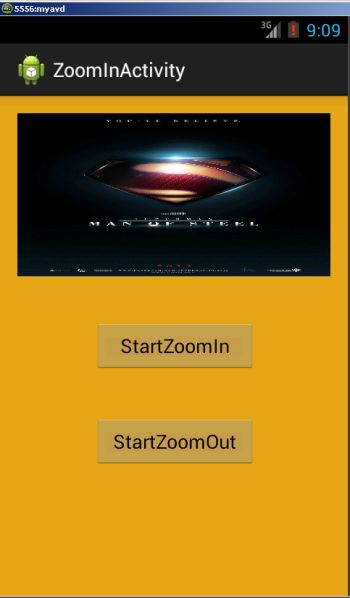

After clicking on the zoomin button:



Step 7

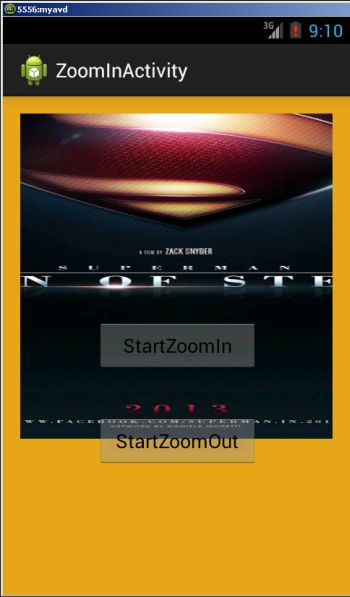

After clicking on the zoomout button:



So in this article you have learned how to perform zoom in and zoom out operations on Imaheview on a button click.
