Design Patterns: Proxy

The proxy design pattern is a layer that prevents you from instantiating heavy objects that will not be needed at a certain time.

The proxy pattern could be used to:

  • prevent loading unnecessary resources
  • access real data in a remote location
  • prevent control from accessing non-declared members/methods

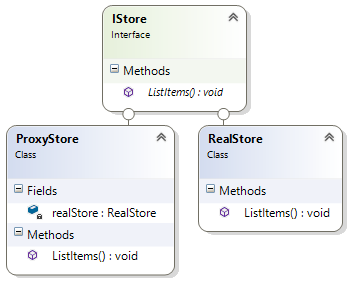

One example of the proxy structure could be the following:


I can have a proxy to access a store, if the store is closed it shouldn't even bother loading unnecessary resources.

  1. public interface IStore
  2. {
  3.     void ListItems();
  4. }
  5.
  6. public class ProxyStore : IStore
  7. {
  8.     private RealStore realStore;
  9.
  10.     public void ListItems()
  11.     {
  12.         if (DateTime.Now.Hour >= 6 && DateTime.Now.Hour <= 10)
  13.         {
  14.             if (realStore == null)
  15.             {
  16.                 realStore = new RealStore();
  17.             }
  18.
  19.             realStore.ListItems();
  20.         }
  21.         else
  22.         {
  23.             Console.WriteLine("We're closed!");
  24.         }
  25.     }
  26. }
  27. public class RealStore : IStore
  28. {
  29.     public void ListItems()
  30.     {
  31.         Console.WriteLine("Heavy graphics Weapon 1");
  32.         Console.WriteLine("Heavy graphics Weapon 2");
  33.         Console.WriteLine("Heavy graphics Weapon 3");
  34.         Console.WriteLine("Heavy graphics Weapon 4");
  35.         Console.WriteLine("Heavy graphics Weapon 5");
  36.     }
  37. }

This example is something we can see in Assassins's Creed where this pattern might have been used. In an early game there is a shop that has many unavailable options. Instead of loading all the resources required for the items it uses a proxy saying there is nothing available, so it saves many resources.
