Coding A AOP Logger

Look at the following points

  • Create a new project (I created a Console Application).

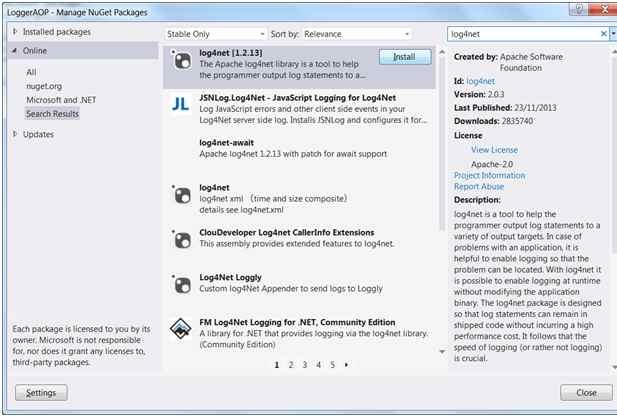

  • Add NuGet package Castle.Core, Castle.Windsor and Log4Net.
  • Castle.Core: Allow we to use Proxy
Proxy objects can assist in building a flexible application architecture because it allows functionality to be transparently added to code without modifying it. For example, a class could be proxied to add logging or security checking without making the code aware this functionality has been added.

For example, NHibernate, an object/relational mapper uses DynamicProxy to provide lazy loading of data without the domain model classes being aware of this functionality.
  • Castle.Widsor: IoC (Inversion of control container).

  • Log4net: Lib to log our application.

    Castle

    log4net
  • Implementing a simple calculator to logger their operations:
    1. public interface ICalculator
    2. {
    3.     double Add(double x, double y);
    4.     double Divide(double x, double y);
    5. }
    6. public class Calculator: ICalculator
    7. {
    8.     public double Add(double x, double y)
    9.     {
    10.         return x + y;
    11.     }
    12.     public double Divide(double x, double y)
    13.     {
    14.         return x / y;
    15.     }
    16. }
  • Now we can proceed to coding our logger. We want to log every call function including their parameters and the return value.

  • Let’s create a simple Class Calculator to be logged as follows.

  • Now we need to configure log4net,

    Open the AssemblyInfo.cs and insert the follow line:

    [assembly: log4net.Config.XmlConfigurator(Watch = true)]

    Configure the application config (app.config) as follows:

    1. <?xml version="1.0" encoding="utf-8" ?>
    2.     <configuration>
    3.         <configSections>
    4.             <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net" /> </configSections>
    5.         <startup>
    6.             <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" /> </startup>
    7.         <log4net>
    8.             <appender name="MyLogger" type="log4net.Appender.RollingFileAppender">
    9.                 <file type="log4net.Util.PatternString" value="MyLog.txt" />
    10.                 <appendToFile value="true" />
    11.                 <rollingStyle value="Size" />
    12.                 <maxSizeRollBackups value="20" />
    13.                 <maximumFileSize value="1000KB" />
    14.                 <layout type="log4net.Layout.PatternLayout">
    15.                     <param name="ConversionPattern" value="%date [%thread] %-5level %logger [%ndc] - %message%newline" /> </layout>
    16.             </appender>
    17.             <root>
    18.                 <level value="DEBUG" />
    19.                 <appender-ref ref="MyLogger" /> </root>
    20.         </log4net>
    21.     </configuration>
  • Now we need to create an Interceptor to be invoked in every method call to create our log.

    1. public class LogInterceptor: IInterceptor
    2. {
    3.     void IInterceptor.Intercept(IInvocation invocation)
    4.     {
    5.         var logger = LogManager.GetLogger(invocation.TargetType);
    6.         try
    7.         {
    8.             StringBuilder sb = null;
    9.             if (logger.IsDebugEnabled)
    10.             {
    11.                 sb = new StringBuilder(invocation.TargetType.FullName).Append(".").Append(invocation.Method).Append("("); //getting method name
    12.                 //getting parameters
    13.                 for (int i = 0; i < invocation.Arguments.Length; i++)
    14.                 {
    15.                     if (i > 0) sb.Append(", ");
    16.                     sb.Append(invocation.Arguments[i]);
    17.                 }
    18.                 sb.Append(")");
    19.                 logger.Debug(sb);
    20.             }
    21.             invocation.Proceed();
    22.             if (logger.IsDebugEnabled)
    23.             {
    24.                 //getting return
    25.                 logger.Debug("Return of " + sb + " is: " + invocation.ReturnValue);
    26.             }
    27.         }
    28.         catch (Exception e)
    29.         {
    30.             logger.Error(e);
    31.             throw;
    32.         }
    33.     }
    34. }
  • Now we need to test our Logger.

    At my console application main I have the following code:

    1. class Program
    2. {
    3.     static void Main(string[] args)
    4.     {
    5.         InitCalc();
    6.     }
    7.     private static void InitCalc()
    8.     {
    9.         //A little of IoC here
    10.         //Here I put our LogInterceptor into my Calculator
    11.         var container = new WindsorContainer().Register(Component.For < LogInterceptor > (), Component.For < ICalculator > ().ImplementedBy < Calculator > ().Interceptors(new InterceptorReference(typeof (LogInterceptor))).First);
    12.         BasicConfigurator.Configure(); // configure log4net
    13.         //Create my ICalculator Object to be able to log method calls
    14.         var c = container.Resolve < ICalculator > ();
    15.         try
    16.         {
    17.             c.Add(1, 2);
    18.             c.Divide(1, 2);
    19.             c.Divide(1, 0);
    20.         }
    21.         catch (Exception)
    22.         {}
    23.         Console.ReadKey();
    24.     }
    25. }
  • Check the MyLog.txt at bin folder:

    1. 2015 - 10 - 28 16: 30: 07, 455[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Add(Double, Double)(1, 2)
    2. 2015 - 10 - 28 16: 30: 07, 529[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Add(Double, Double)(1, 2) is: 3
    3. 2015 - 10 - 28 16: 30: 07, 530[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Divide(Double, Double)(1, 2)
    4. 2015 - 10 - 28 16: 30: 07, 530[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Divide(Double, Double)(1, 2) is: 0, 5
    5. 2015 - 10 - 28 16: 30: 07, 531[10] DEBUG LoggerAOP.Calculator[(null)] - LoggerAOP.Calculator.Double Divide(Double, Double)(1, 0)
    6. 2015 - 10 - 28 16: 30: 07, 531[10] DEBUG LoggerAOP.Calculator[(null)] - Return of LoggerAOP.Calculator.Double Divide(Double, Double)(1, 0) is: +Infinito
