GridView Animations Using jQuery

Introduction

This article describes how to apply an animation to a GridView in ASP.Net using jQuery UI.

Description

To create this application you need the jQuery files listed below.

  • jquery-1.9.1.js
  • jquery-ui.js
  • jquery-ui.css

You can download them from the source code attached in this page.

Here I create three pages for checking various animations on GridView.

  1. Dragable GridView
  2. Zoom able GridView
  3. Animated Effect to GridView

Dragable GridView

In this example I will show how to drag a GridView to any position in a browser's screen.

Design

Add a GridView to a page and apply any design.

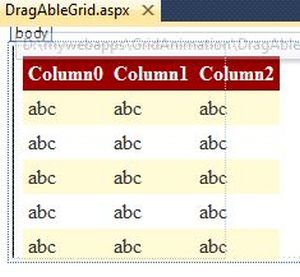

Now design your screen like the following screen:




Or you can copy the following source code:

<body>
   <form id="form1" runat="server">
    <div id="draggable">
        <asp:GridView ID="gvDetails" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None">
            <AlternatingRowStyle BackColor="White" />
            <FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
            <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
            <PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
            <RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
            <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
            <SortedAscendingCellStyle BackColor="#FDF5AC" />
            <SortedAscendingHeaderStyle BackColor="#4D0000" />
            <SortedDescendingCellStyle BackColor="#FCF6C0" />
            <SortedDescendingHeaderStyle BackColor="#820000" />
        </asp:GridView>
    </div>
    </form>

In the code above just check this div:

<div id="draggable">
</div>

Within this div what element you put the dragable  feature applied on that.

Next add the following JavaScript and CSS style code in the head tag of an aspx file (this is used to apply the drag feature to the div in which the grid is present).

<head runat="server">
    <title></title>
    <script src="Scripts/jquery-1.9.1.js" type="text/javascript"></script>
    <script src="Scripts/jquery-ui.js" type="text/javascript"></script>
    <style>
        #draggable
        {
            width: 150px;
            height: 150px;
            padding: 0.5em;
        }
    </style>
    <script>
        $(function () {
            $("#draggable").draggable();
        });
    </script>
</head>

Now go to the code view.

And write the following code in the .cs file for binding data to the grid:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
public partial class DragAbleGrid : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        BindGridDetails();
    }
    protected void BindGridDetails()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("EmpId", typeof(Int32));
        dt.Columns.Add("EmpName", typeof(string));
        dt.Columns.Add("Education", typeof(string));
        dt.Columns.Add("Place", typeof(string));
        DataRow dtrow = dt.NewRow();
        dtrow["EmpId"] = 1;
        dtrow["EmpName"] = "Sanjeeb";
        dtrow["Education"] = "MCA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 2;
        dtrow["EmpName"] = "Laku";
        dtrow["Education"] = "MBA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 3;
        dtrow["EmpName"] = "Pankaj";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Bihar";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 4;
        dtrow["EmpName"] = "Srikanth";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        gvDetails.DataSource = dt;
        gvDetails.DataBind();
    }
}

Now build your application and check.

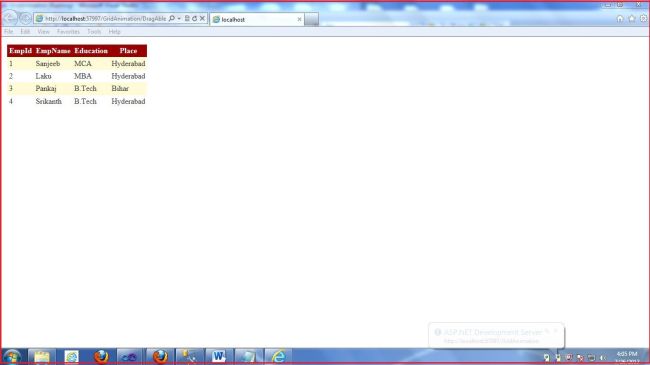

Default view in browser:

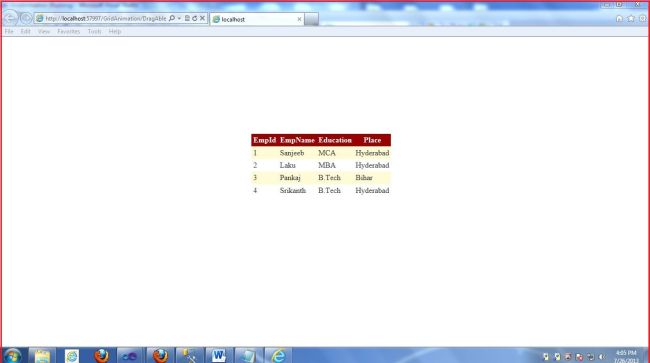

After dragging it in the browser:


Zoomable GridView

In this example I will show how to Zoom a GridView on button click.

Design

Add a GridView to a page and apply any design and one hyperlink.

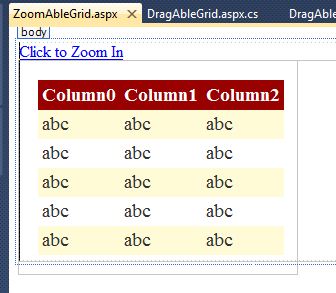

Now design your screen like the following screen:




Or you can copy the following source code:

<body>
   <form id="form1" runat="server">
<div>
        <a href="#" id="button">Click to Zoom In</a>
    </div>
    <div class="toggler">
        <div id="effect" class="newClass ui-corner-all">
        <asp:GridView ID="gvDetails" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None">
            <AlternatingRowStyle BackColor="White" />
            <FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
            <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
            <PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
            <RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
            <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
            <SortedAscendingCellStyle BackColor="#FDF5AC" />
            <SortedAscendingHeaderStyle BackColor="#4D0000" />
            <SortedDescendingCellStyle BackColor="#FCF6C0" />
            <SortedDescendingHeaderStyle BackColor="#820000" />
        </asp:GridView>
    </div>
</div>
    </form>

In the code above just check this div:

<div class="toggler">
        <div id="effect" class="newClass ui-corner-all">
</div>
</div>

Within this div what element you put the Zoom feature applied on that.

Next add the following JavaScript and CSS style code in the head tag of an aspx file (this is used to apply the Zoom feature to the div in which the grid is present).

<head runat="server">
    <title></title>
    <script src="Scripts/jquery-1.9.1.js" type="text/javascript"></script>
    <script src="Scripts/jquery-ui.js" type="text/javascript"></script>
    <style type="text/css">
        .toggler
        {
            width: 500px;
            height: 200px;
            position: relative;
        }
        #effect
        {
            position: relative;
        }
        .newClass
        {
            width: 240px;
            padding: 1em;
            letter-spacing: 0;
            font-size: 1.2em;
            margin: 0;
        }
        .anotherNewClass
        {
            text-indent: 40px;
            letter-spacing: .4em;
            width: 410px;
            height: 100px;
            padding: 30px;
            margin: 10px;
            font-size: 1.6em;
        }
    </style>
    <script type="text/javascript">
        $(function () {
            $("#button").click(function () {
                $(".newClass").switchClass("newClass", "anotherNewClass", 1000);
                $(".anotherNewClass").switchClass("anotherNewClass", "newClass", 1000);
                return false;
            });
        });
    </script>
</head>

Now go to the code view.

And write the following code in the .cs file for binding data to the grid:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
public partial class ZoomAbleGrid : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        BindGridDetails();
    }
    protected void BindGridDetails()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("EmpId", typeof(Int32));
        dt.Columns.Add("EmpName", typeof(string));
        dt.Columns.Add("Education", typeof(string));
        dt.Columns.Add("Place", typeof(string));
        DataRow dtrow = dt.NewRow();
        dtrow["EmpId"] = 1;
        dtrow["EmpName"] = "Sanjeeb";
        dtrow["Education"] = "MCA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 2;
        dtrow["EmpName"] = "Laku";
        dtrow["Education"] = "MBA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 3;
        dtrow["EmpName"] = "Pankaj";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Bihar";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 4;
        dtrow["EmpName"] = "Srikanth";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        gvDetails.DataSource = dt;
        gvDetails.DataBind();
    }
}

Now build your application and check.

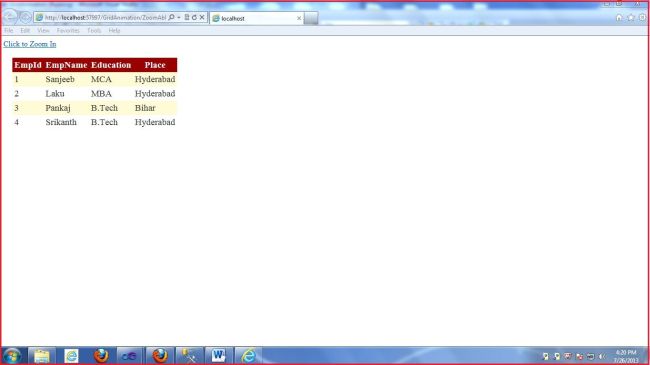

Default view in browser:

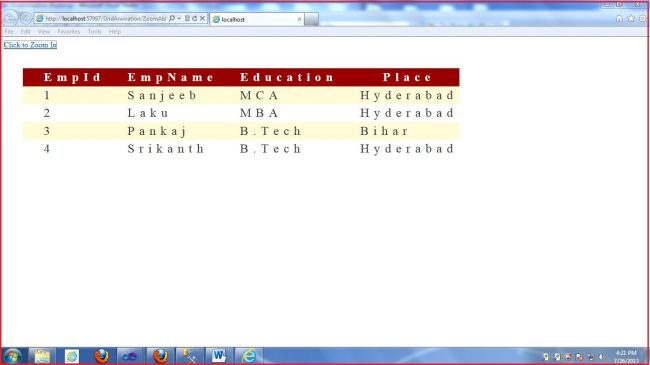

Now click on "Zoom" in Hyper link.


Animated Effect to GridView

In this example I will show how to apply an animation effect to a GridView on a button click.

Design

Add a GridView to a page and apply any design, one dropdown and one hyperlink.

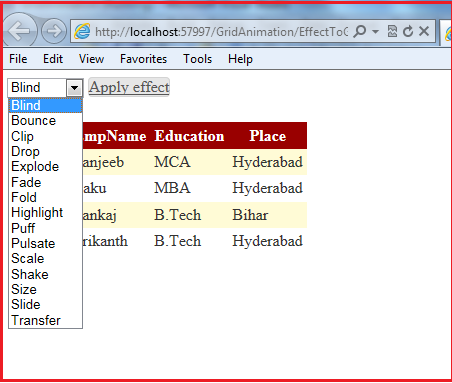

The Dropdown will show all the animation effects.

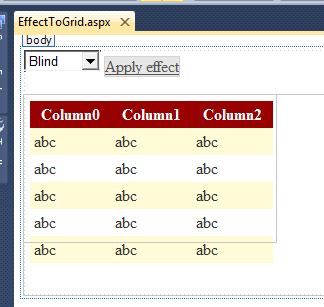

Now design your screen as in the following screen:




Or you can copy the following source code:

<body>
   <form id="form1" runat="server">
<select name="effects" id="effectTypes">
        <option value="blind">Blind</option>
        <option value="bounce">Bounce</option>
        <option value="clip">Clip</option>
        <option value="drop">Drop</option>
        <option value="explode">Explode</option>
        <option value="fade">Fade</option>
        <option value="fold">Fold</option>
        <option value="highlight">Highlight</option>
        <option value="puff">Puff</option>
        <option value="pulsate">Pulsate</option>
        <option value="scale">Scale</option>
        <option value="shake">Shake</option>
        <option value="size">Size</option>
        <option value="slide">Slide</option>
        <option value="transfer">Transfer</option>
    </select>
    <a href="#" id="button" class="ui-state-default ui-corner-all">Apply effect</a>
    <br />
    <br />
    <div class="toggler">
        <div id="effect" class="ui-corner-all">
            <asp:GridView ID="gvDetails" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None"
                Height="125px" Width="243px">
                <AlternatingRowStyle BackColor="White" />
                <FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
                <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
                <PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
                <RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
                <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
                <SortedAscendingCellStyle BackColor="#FDF5AC" />
                <SortedAscendingHeaderStyle BackColor="#4D0000" />
                <SortedDescendingCellStyle BackColor="#FCF6C0" />
                <SortedDescendingHeaderStyle BackColor="#820000" />
            </asp:GridView>
        </div>
    </div>
    </form>

In the code above just check this div:

<div class="toggler">
<div id="effect" class="ui-corner-all">

</div>
</div>

Within this div what element you put the Animation effect feature applied on that.

Next add the following JavaScript and CSS style code in the head tag of an aspx file (this is used to apply an Animation effect feature to a div in which a grid is present).

<head runat="server">
    <title></title>
    <link href="Styles/jquery-ui.css" rel="stylesheet" type="text/css" />
    <script src="Scripts/jquery-1.9.1.js" type="text/javascript"></script>
    <script src="Scripts/jquery-ui.js" type="text/javascript"></script>
    <style type="text/css">
        .toggler
        {
            width: 500px;
            height: 200px;
            position: relative;
        }
        #effect
        {
            width: 240px;
            height: 135px;
            padding: 0.4em;
            position: relative;
        }
    </style>
    <script type="text/javascript">
        $(function () {
            // run the currently selected effect
            function runEffect() {
                // get effect type from
                var selectedEffect = $("#effectTypes").val();
                // most effect types need no options passed by default
                var options = {};
                // some effects have required parameters
                if (selectedEffect === "scale") {
                    options = { percent: 0 };
                } else if (selectedEffect === "transfer") {
                    options = { to: "#button", className: "ui-effects-transfer" };
                } else if (selectedEffect === "size") {
                    options = { to: { width: 200, height: 60} };
                }
                // run the effect
                $("#effect").effect(selectedEffect, options, 500, callback);
            };
            // callback function to bring a hidden box back
            function callback() {
                setTimeout(function () {
                    $("#effect").removeAttr("style").hide().fadeIn();
                }, 1000);
            };
            // set effect from select menu value
            $("#button").click(function () {
                runEffect();
                return false;
            });
        });
    </script>
</head>

 Now go to the code view.

And write the following code in the .cs file for binding data to the grid:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
public partial class EffectToGrid : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        BindGridDetails();
    }
    protected void BindGridDetails()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("EmpId", typeof(Int32));
        dt.Columns.Add("EmpName", typeof(string));
        dt.Columns.Add("Education", typeof(string));
        dt.Columns.Add("Place", typeof(string));
        DataRow dtrow = dt.NewRow();
        dtrow["EmpId"] = 1;
        dtrow["EmpName"] = "Sanjeeb";
        dtrow["Education"] = "MCA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 2;
        dtrow["EmpName"] = "Laku";
        dtrow["Education"] = "MBA";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 3;
        dtrow["EmpName"] = "Pankaj";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Bihar";
        dt.Rows.Add(dtrow);
        dtrow = dt.NewRow();
        dtrow["EmpId"] = 4;
        dtrow["EmpName"] = "Srikanth";
        dtrow["Education"] = "B.Tech";
        dtrow["Place"] = "Hyderabad";
        dt.Rows.Add(dtrow);
        gvDetails.DataSource = dt;
        gvDetails.DataBind();
    }
}

Now build your application. Select any effect from the dropdown and click on "apply effect".


If you have any modifications to suggest then please comment.

Thank you.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
