Create Abstract View Using Backbone.js

Introduction

In this article I will create an abstract View with backbone.js. In this tutorial we will create two views working on the Mouse Hover and Mouse click events. When we move the mouse on the view then it will be hidden and the same as when we click on the other View then it will also be hidden.

Here we need to add the following three scripting files:

 <script src="http://ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.min.js"></script>

    <script src="http://cdnjs.cloudflare.com/ajax/libs/underscore.js/1.3.1/underscore-min.js"></script>

    <script src="http://cdnjs.cloudflare.com/ajax/libs/backbone.js/0.9.1/backbone-min.js"></script>

 Now we will see how to create the application.

Step 1

  • Start Visual Studio 2013. From the Start window select "New Project".
  • Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "Empty Web Application".

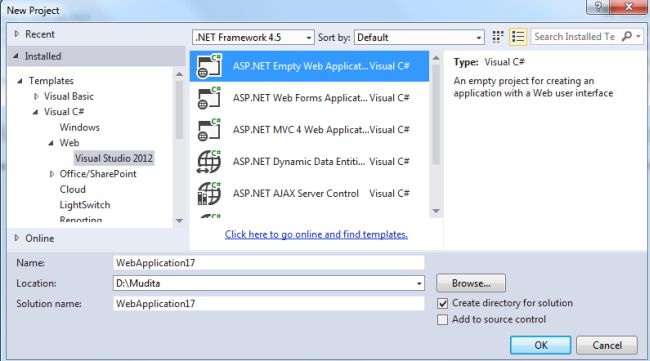

Select Empty Web Application

  • Click on the "OK" button.

Step 2

Now add the HTML page.

  • In the Solution Explorer.
  • Right-click on the project then select "Add" -> "HTML page".

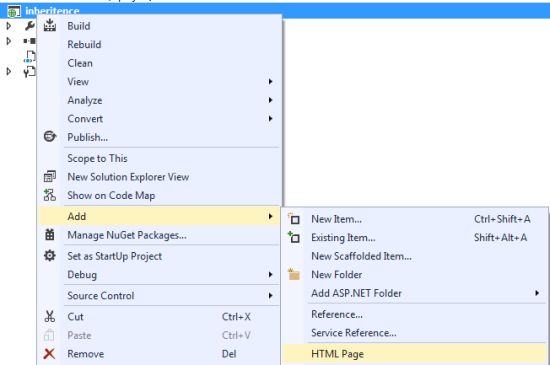

Add HTML Page

  • Change the name of the page.

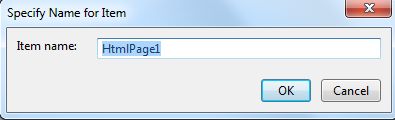

Change name of the page

  • Click on the "Add" button.

Add the following code:

<html>

<head>

    <title>Creating abstract views with Backbone.js - Inheritance!</title>

    <style>

        .abstract-view {

            background-color#0094ff;

            margin20px;

            padding10px;

            width400px;

            font-size:15pt;

            color:white;

        }

    </style>

</head>

<body>

    Click or mouse over on the Views:

    <div id="main">

    </div>



    <script src="http://ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.min.js"></script>

    <script src="http://cdnjs.cloudflare.com/ajax/libs/underscore.js/1.3.1/underscore-min.js"></script>

    <script src="http://cdnjs.cloudflare.com/ajax/libs/backbone.js/0.9.1/backbone-min.js"></script>



    <script>

              $(function () {



            //Backbone code - begin

            var MainView = Backbone.View.extend({

                id: "main-view-id",

                tagName: "div",

                template: null,



                events: {

                },



                initialize: function () {

                    _.bindAll(this);

                },

                render: function () {

                    var newView = new CustomView();

                    newView.render();

                    this.$el.append(newView.el);

                    var secondNewView = new SecondCustView();

                    secondNewView.render();

                    this.$el.append(secondNewView.el);

                    $('#main').append(this.el);

                    return this;

                }

            });

           var AbstractView = Backbone.View.extend({

                className: "abstract-view",

                initialize: function () {

                    throw 'If you use the Abstract View then you must apply the inheritence';

                },

                _initialize: function () {

                    console.log('This is the abstract view!');

                    this.template = _.template('<div>My title is: <%= title %></div>');

                },

                //public and overridable methods

                killMe: function () {

                    this.$el.animate({ height: 0 }, 800, this.killMeHandler);

                },



                killMeHandler: function () {

                    this.remove();

                }



            });



            //Extending AbstractView

            var CustomView = AbstractView.extend({

                events: {

                    "click""clickHandler"

                },

                initialize: function () {

                    _.bindAll(this);

                    //calling the initialize of our parent class

                    this._initialize();

                },

                render: function () {

                    this.$el.html(this.template({ title: "click on me" }));

                },

                clickHandler: function () {

                    //Here we are using one method from our Abstract Class

                    this.killMe();

                }



            });

            //Extending AbstractView

            var SecondCustView = AbstractView.extend({

                events: {

                    "mouseover""clickHandler"

                },

                initialize: function () {

                    _.bindAll(this);

                    //calling the initialize of our parent class

                    this._initialize();

                },

                render: function () {

                    this.$el.html(this.template({ title: "Mouse hover on me" }));

                },

                clickHandler: function () {

                    //Here we are using one method from our Abstract Class

                    this.killMe();

                }



            });

            //Backbone code - end



            var test = new MainView();

            test.render();

        })

    </script>

</body>

</html>

Step 3

Execute the application. Here we can see the following two Views:

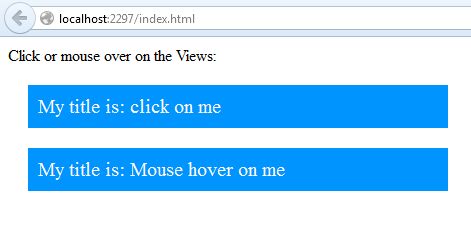

Display Two Views

When we hover the mouse over the bottom view then it will be hidden:

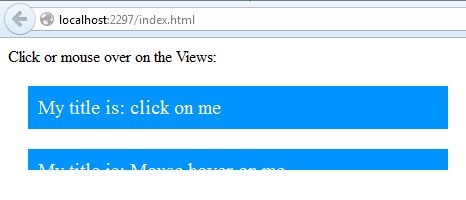

Hide on Mouse hover

When we click on the other view then it will also be hidden:

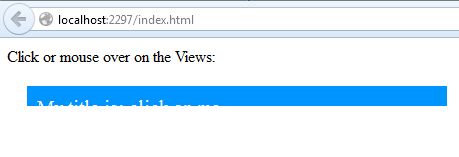

Hide on Mouse click
