Create HyperLink in WebGrid in Web API

Introduction

This articles explains how to create a hyperlink in a Web Grid. Here we create a hyperlink for the Employee Name.

Use the following procedure to create a sample application.

Step 1

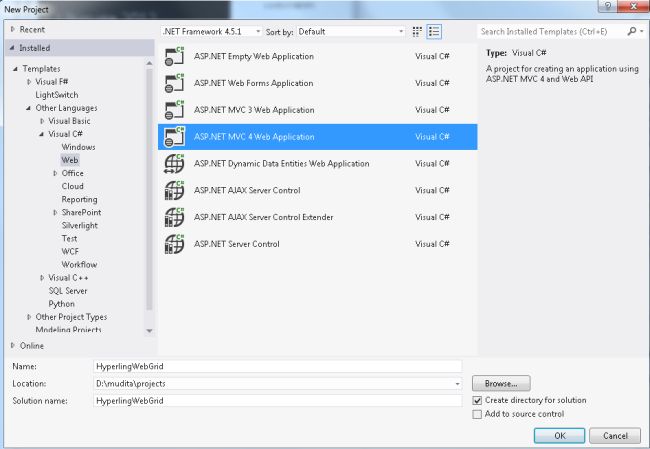

Create a Web Application as in the following:

• Start Visual Studio 2012.
• From the Start window select "Installed" -> "Visual C#" -> "Web".
• Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.

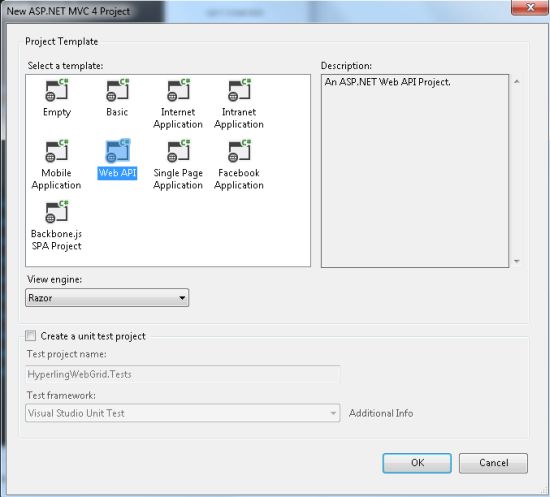

• From the "MVC4 Project" window select "Web API".

• Click on the "OK" button.

Step 2

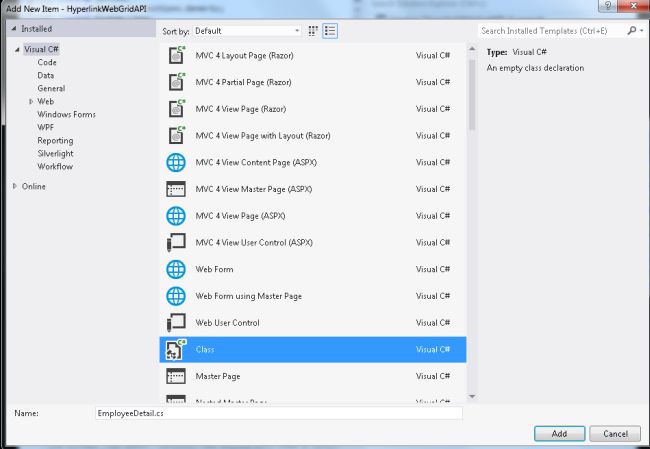

Create a Model Class.

• In the "Solution Explorer".
• Right-click on the Model Folder.
• Select "Add" -> "Class".
• Select "Installed" -> "Visual C#" and select class.

• Click on the "Add" button.

Add the following code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;



namespace HyperlinkWebGridAPI.Models

{

    public class EmployeeDetail

    {

        public List<Employee> UserCollection { get; set; }

    }

    public class Employee

    {

        public int Id { get; set; }

        public string Emp_Name { get; set; }

        public int Contact_No { get; set; }

        public string Emp_Address { get; set; }

    }

}

Step 3

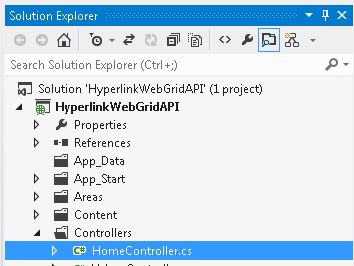

Now select the "HomeController".

• In the "Solution Explorer".
• Expand the Controller folder.
• Select the "HomeController".

Add the following code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;

using HyperlinkWebGridAPI.Models;

namespace HyperlinkWebGridAPI.Controllers

{

    public class HomeController : Controller

    {

        public ActionResult Index()

        {

         EmployeeDetail obj = new EmployeeDetail();

            List<Employee> empdtl = new List<Employee>();

            empdtl.Add(new Employee { Id = 1, Emp_Name = "Name 1", Contact_No = 2345, Emp_Address = "Address 1" });

            empdtl.Add(new Employee { Id = 2, Emp_Name = "Name 1", Contact_No = 567, Emp_Address = "Address 1" });

            empdtl.Add(new Employee {Id = 3, Emp_Name = "Name 1", Contact_No = 4567, Emp_Address = "Address 1" });

            empdtl.Add(new Employee { Id = 4, Emp_Name = "Name 1", Contact_No = 345, Emp_Address = "Address 1" });

            empdtl.Add(new Employee { Id = 5, Emp_Name = "Name 1", Contact_No = 890, Emp_Address = "Address 1" });

            obj.UserCollection = empdtl;

            return View(obj);

        }

        }

    }



 Step 4

Now write some HTML code in the "index.cshtml" file. This file exists:

• In the "Solution Explorer".

• Expand "Views" folder.

• Select "Home" -> "index.cshtml".

Add the following code:

@model HyperlinkWebGridAPI.Models.EmployeeDetail

@{

    ViewBag.Title = "create hyper ling in webgrid";

}

<style type="text/css">

table {

       font-family: verdana,arial,sans-serif;

       font-size:11px;

       color:#b6ff00;

       border-width: 1px;

       border-color: #666666;

       border-collapse: collapse;

}

table th {

       border-width: 1px;

       padding: 8px;

       border-style: solid;

       border-color: #666666;

       background-color: #dedede;

}

table td {

       border-width: 1px;

       padding: 8px;

       border-style: solid;



       border-color: #0026ff;

       background-color: #ffffff;

}

</style>

@using (Html.BeginForm("Index", "Home"))

{

    var grid = new WebGrid(Model.UserCollection, columnNames: new[] { "Emp_Name", "Contact_No" });

    @grid.GetHtml(columns: grid.Columns(

    grid.Column("Emp_Name", format: @<text>@Html.ActionLink((string)item.Emp_Name,"ActionName", "Controllername", new { id = item.id }, null)</text>),

                    grid.Column("Contact_No"),

                    grid.Column("Emp_Address")

                    ))

}



Step 5

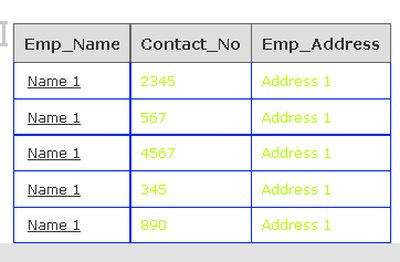

Execute the application, the output will display like this:
