Exploring Backbone.js

Introduction

In this article I will make an application in which we can filter records, such as where we first add some products to a list and then filter the data on the basis of the product cost.

 Let's see how to create the application:

  1. Create the web application as in the following:
  • Start Visual Studio 2013.
  • From the Start window select "New Project".
  • Select "Installed" -> "Template" -> "Visual Studio" -> "Web" -> "Visual Studio 2012" and select {see the following}.

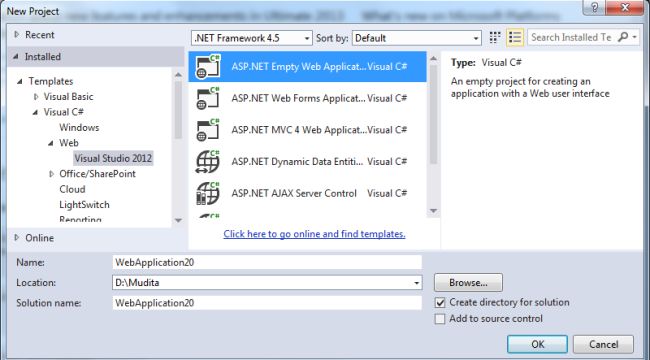

Add Web Application

  • Click on the "OK" button.
  1. Now we need to add the HTML page to our project.
  • In the Solution Explorer.
  • Right-click on the project then select "Add" -> "HTML page".

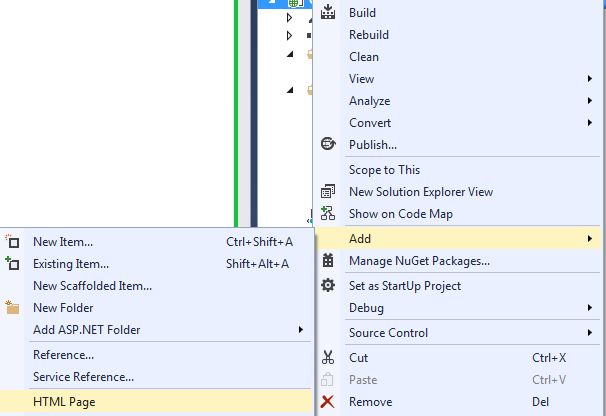

Add HTML Page

  • Change the name of the page.

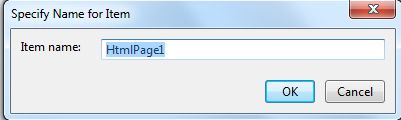

Change Name

  • Click on the "OK" button.

Add the following code:

<!DOCTYPE html>

<html>

<head>

    <title>Backbone.js</title>

    <link rel="stylesheet" type="text/css" href="style.css">

</head>

<body>

    <form id="add">

        <label>Product</label>

        <input id="product" type="text" />

        <label>Cost</label>

        <input id="cost" type="text" />

        <input type="submit" value="save" />

    </form>

    <form id="filter">

        <label>Less Than</label>

        <input type="text" id="less-than" />

        <input type="submit" value="Filter" />

    </form>

    <a href="#" id="clear-filter">Remove Filter</a>

    <div id="yourcart"></div>

    <script id="productTemplate" type="text/template">

        <img src="<%= photo %>" alt="<%= product %>">

        <div>

            <h2><%= product %></h2>

            <h4><%= cost %></h4>

        </div>

    </script>

    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.7.2/jquery.min.js"></script>

    <script src="Scripts/underscore.js"></script>

    <script src="Scripts/backbone.js"></script>

    <script src="Scripts/main.js"></script>

</body>

</html>



  1. Now to add a JavaScript file.
  • In the Solution Explorer.
  • Right-click on the project then select "Add" -> "New Item" -> "JavaScript".

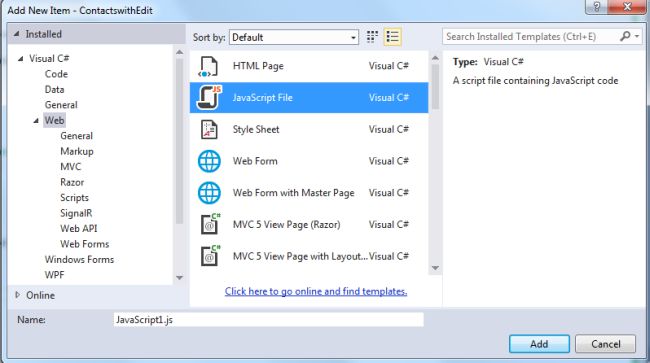

Add JavaScript file

  • Click on the "Add" button.

Add the following code:

var Product = Backbone.Model.extend({

    defaults: {

        cost: 35,

        photo: "img/pic.jpg"

    }

});

var Cart = Backbone.Collection.extend({

    model: Product,

    initialize: function () {

        this.on("add"this.updateSet, this);

    },

    updateSet: function () {

        products = this.models;

    }

});

var products = [

  { product: "Mouse", cost: 200 },

  { product: "Keyboard", cost: 999 },

  { product: "Monitor", cost: 1500},

  { product: "CPU", cost: 50 },

  { product: "UPS", cost: 799 }

];

var cartCollection = new Cart(products);

var ProductView = Backbone.View.extend({

    tagName: "div",

    className: "product-wrap",

    template: _.template($("#productTemplate").html()),

    render: function () {

        this.$el.html(this.template(this.model.toJSON()));

        return this;

    }

});

var ProductCollectionView = Backbone.View.extend({

    el: '#yourcart',

    initialize: function () {

        this.collection = cartCollection;

        this.render();

        this.collection.on("reset"this.render, this);

    },

    render: function () {

        this.$el.html("");

        this.collection.each(function (product) {

            this.renderProduct(product);

        }, this);

    },

    renderProduct: function (product) {

        var productView = new ProductView({ model: product });

        this.$el.append(productView.render().el);

    },

    addProduct: function () {

        var data = {};

        $("#add").children("input[type='text']").each(function (i, el) {

            data[el.id] = $(el).val();

        });

        var newProduct = new Product(data);

        this.collection.add(newProduct);

        this.renderProduct(newProduct);

    },

    filterByCost: function () {

        // first reset the collection

        // but do it silently so the event doesn't trigger

        this.collection.reset(products, { silent: true });

        var max = parseFloat($("#less-than").val(), 10);

        var filtered = _.filter(this.collection.models, function (product) {

            return product.get("cost") < max;

        });

        // trigger reset again

        // but this time trigger the event so the collection view is rerendered

        this.collection.reset(filtered);

    },

    clearFilter: function () {

        $("#less-than").val("");

        this.collection.reset(products);

    }

});

var CartCollectionView = Backbone.View.extend({

    el: "body",

    events: {

        "submit #add""addProduct",

        "submit #filter""filterProducts",

        "click #clear-filter""clearFilter"

    },

    initialize: function () {

        this.productView = new ProductCollectionView();

    },

    addProduct: function (e) {

        e.preventDefault();

        this.productView.addProduct();

    },

    filterProducts: function (e) {

        e.preventDefault();

        this.productView.filterByCost();

    },

    clearFilter: function (e) {

        e.preventDefault();

        this.productView.clearFilter();

    }

});

$(function () {

    var app = new CartCollectionView();

});



  1. Now we add a style sheet:
  • In the Solution Explorer.
  • Right-click on the project then select "Add" -> "New Item" -> "Style Sheet".

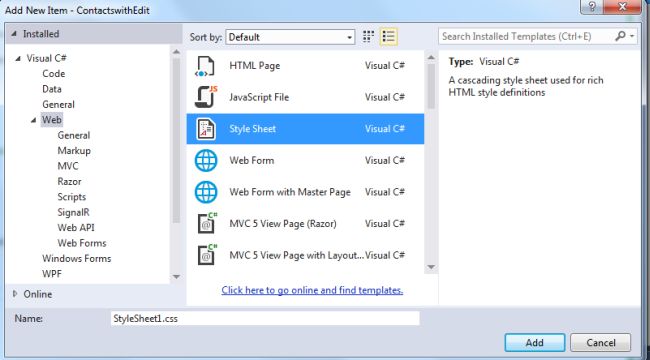

Add StyleSheet

  • Click on the "Add" button.

Add the following code:

body {

}

.product-wrap {

  floatleft;

  width100px;

  height200px;

  border1px solid #111;

  padding10px;

  margin-right30px;

  margin-bottom20px;

  margin0 30px 20px 0;

  background:#ccc6c6;

}

.product-wrap h2 {

  font-styleitalic;

  font-weightnormal;

  font-size20px;

  text-aligncenter;

}

.product-wrap h4 {

  text-aligncenter;

  font-size40px;

}

form {

  margin-bottom20px;

}

.product-wrap img{

    width:100px;

    height:50px;

}

  1. Now execute the application:

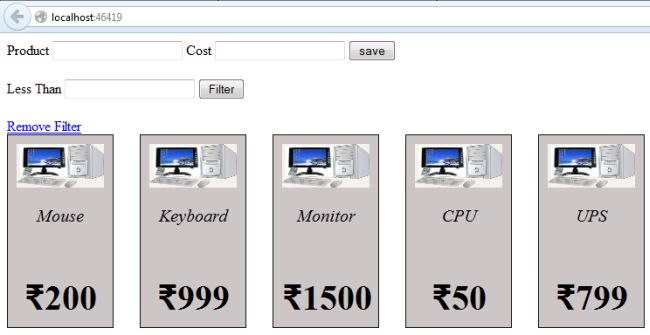

Display the default data

Add the new products.

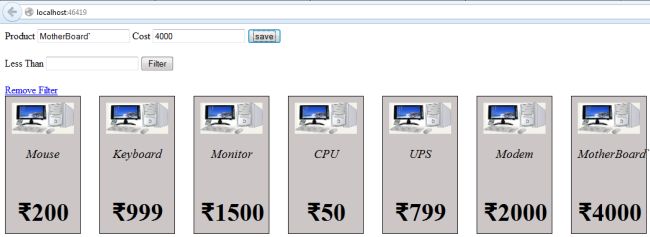

Add New Product

Filter the products.

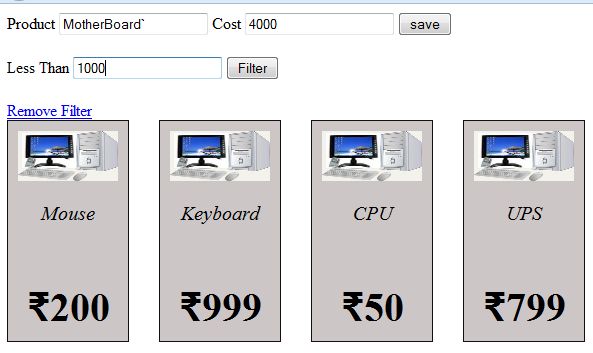

filter the Data
